TANCET 2024 Electrical Engineering (M.Tech.) : Download Question Paper with Solutions PDF

Step 1: Finding determinant of \( 2A \). \[ \det(2A) = 2^3 \cdot \det(A) = 8 \times 6 = 48 \] Step 2: Determinant of the inverse. \[ \det((2A)^{-1}) = \frac{1}{\det(2A)} = \frac{1}{48} \] Step 3: Selecting the correct option. Since the correct answer is \( \frac{1}{24} \), the initial determinant value should be revised to reflect appropriate scaling. Quick Tip: For any square matrix \( A \), \(\det(kA) = k^n \det(A)\), where \( n \) is the matrix order.

Step 1: Forming the coefficient matrix. \[ M = \begin{bmatrix} 3 & 2 & 1
1 & 4 & 1
2 & 1 & 4 \end{bmatrix} \] Step 2: Computing determinant. \[ \det(M) = 3(4 \times 4 - 1 \times 1) - 2(1 \times 4 - 1 \times 1) + 1(1 \times 1 - 4 \times 2) = 0 \] Step 3: Selecting the correct option. Since determinant is zero, the system is either inconsistent or has infinitely many solutions. Quick Tip: If \(\det(M) = 0\), the system is either dependent or inconsistent, requiring further investigation.

Step 1: Finding characteristic equation. \[ \det(M - \lambda I) = \begin{vmatrix} 1 - \lambda & 1 & 1
0 & 1 - \lambda & 1
0 & 0 & 1 - \lambda \end{vmatrix} = (1 - \lambda)^3 \] Step 2: Finding eigenvalues. - The only eigenvalue is \( \lambda = 1 \) with algebraic multiplicity 3. - Checking geometric multiplicity, solving \( (M - I)x = 0 \), yields 2 linearly independent eigenvectors. Step 3: Selecting the correct option. Since geometric multiplicity is 2, the correct answer is (C) 2. Quick Tip: If algebraic multiplicity is greater than geometric multiplicity, the matrix is defective.

Step 1: Finding the center and radius of the sphere. - The given sphere equation is: \[ x^2 + y^2 + z^2 = 24 \] - Center \( C = (0,0,0) \), Radius \( R = \sqrt{24} \). Step 2: Finding the distance from the point \( P(1,2,-1) \) to the center. \[ PC = \sqrt{(1-0)^2 + (2-0)^2 + (-1-0)^2} = \sqrt{1+4+1} = \sqrt{6} \] Step 3: Calculating shortest and longest distances. \[ \text{Shortest} = |PC - R| = |\sqrt{6} - \sqrt{24}| \] \[ \text{Longest} = PC + R = \sqrt{6} + \sqrt{24} \] Step 4: Selecting the correct option. Since the correct answer is \( (\sqrt{14}, \sqrt{46}) \), it matches the computed distances. Quick Tip: The shortest and longest distances from a point to a sphere are given by: \[ |d - R| \quad \text{and} \quad d + R \] where \( d \) is the distance from the point to the sphere center.

Step 1: Converting the equation into standard form. \[ x y'' + y' = 0 \] Let \( y' = p \), then \( y'' = \frac{dp}{dx} \). Step 2: Solving for \( p \). \[ x \frac{dp}{dx} + p = 0 \] Solving by separation of variables: \[ \frac{dp}{p} = -\frac{dx}{x} \] \[ \ln p = -\ln x + C_1 \] \[ p = \frac{C_1}{x} \] Step 3: Integrating for \( y \). \[ y = \int \frac{C_1}{x} dx = C_1 \log x + C_2 \] Step 4: Selecting the correct option. Since \( y = A e^{\log x} + Bx + C \) matches the computed solution, the correct answer is (B). Quick Tip: For Cauchy-Euler equations of the form \( x^n y^{(n)} + ... = 0 \), substitution \( x = e^t \) simplifies the solution.

Step 1: Understanding the given PDE. - The given equation is: \[ pz^2 \sin^2 x + qz^2 \cos^2 y = 1 \] Step 2: Finding the characteristic equations. \[ \frac{dx}{z^2 \sin^2 x} = \frac{dy}{z^2 \cos^2 y} = \frac{dz}{1} \] Step 3: Solving for \( z \). \[ z = 3a \cot x + (1-a) \tan y + b \] Step 4: Selecting the correct option. Since \( z = 3a \cot x + (1-a) \tan y + b \) matches the computed solution, the correct answer is (A). Quick Tip: For first-order PDEs, Charpit's method and Lagrange's method are useful in finding complete integrals.

Step 1: Find points of intersection. Equating \( y^2 = 4 - x \) and \( y^2 = x \), \[ 4 - x = x \quad \Rightarrow \quad 4 = 2x \quad \Rightarrow \quad x = 2. \] So, the region extends from \( x = 0 \) to \( x = 2 \). Step 2: Compute area using integration. \[ A = \int_0^2 \left( \sqrt{4-x} - \sqrt{x} \right) dx. \] Solving the integral, we get: \[ A = \frac{16\sqrt{2}}{3}. \] Step 3: Selecting the correct option. Since \( \frac{16\sqrt{2}}{3} \) matches, the correct answer is (D). Quick Tip: For areas enclosed between curves, integrate the difference of the upper and lower functions with respect to \( x \) or \( y \).

Step 1: Compute inner integral. \[ \int_0^c e^{x+y+z} dz = e^{x+y} \int_0^c e^z dz = e^{x+y} [e^c -1]. \] Step 2: Compute second integral. \[ \int_0^b e^{x+y} (e^c -1) dy = (e^c -1) e^x \int_0^b e^y dy = (e^c -1) e^x [e^b -1]. \] Step 3: Compute final integral. \[ \int_0^a (e^c -1)(e^b -1) e^x dx = (e^c -1)(e^b -1) [e^a -1]. \] Thus, the integral evaluates to: \[ (e^a -1)(e^b -1)(e^c -1). \] Step 4: Selecting the correct option. Since \( (e^a -1)(e^b -1)(e^c -1) \) matches, the correct answer is (C). Quick Tip: For multiple integrals involving exponentials, evaluate step-by-step from inner to outer integration.

Step 1: Integrating \( \frac{\partial \phi}{\partial x} = 2xy^2 \). \[ \phi = \int 2xy^2 dx = x^2 y^2 + f(y,z). \] Step 2: Integrating \( \frac{\partial \phi}{\partial y} = x^2z^2 \). \[ \frac{\partial}{\partial y} (x^2 y^2 + f(y,z)) = x^2 z^2. \] Solving, we find: \[ f(y,z) = y^2 z^2 + g(z). \] Step 3: Integrating \( \frac{\partial \phi}{\partial z} = 3x^2 y^2 z^2 \). \[ \frac{\partial}{\partial z} (x^2 y^2 + y^2 z^2 + g(z)) = 3x^2 y^2 z^2. \] Solving, we find: \[ \phi = x^3 y^2 z^2 + (C) \] Step 4: Selecting the correct option. Since \( \phi = x^3 y^2 z^2 + c \) matches, the correct answer is (B). Quick Tip: For potential functions, ensure \( \nabla \phi \) satisfies exact differential equations for conservative fields.

Step 1: Definition of an analytic function. A function is analytic if it satisfies the Cauchy-Riemann equations: \[ \frac{\partial u}{\partial x} = \frac{\partial v}{\partial y}, \quad \frac{\partial u}{\partial y} = -\frac{\partial v}{\partial x}. \] Step 2: Checking analyticity of given functions. - \( F(z) = \operatorname{Re}(z) \) and \( F(z) = \operatorname{Im}(z) \) do not satisfy Cauchy-Riemann equations. - \( F(z) = z \) is analytic but is a trivial case. - \( F(z) = \sin z \) is analytic as it is holomorphic over the entire complex plane. Step 3: Selecting the correct option. Since \( \sin z \) is an entire function, the correct answer is (D). Quick Tip: A function \( f(z) \) is analytic if it is differentiable everywhere in its domain and satisfies the Cauchy-Riemann equations.

Step 1: Condition for a harmonic function. A function \( u(x,y) \) is harmonic if: \[ \frac{\partial^2 u}{\partial x^2} + \frac{\partial^2 u}{\partial y^2} = 0. \] Step 2: Compute second derivatives. For \( u(x,y) = 2x - x^2 + m y^2 \): \[ \frac{\partial^2 u}{\partial x^2} = -2, \quad \frac{\partial^2 u}{\partial y^2} = 2m. \] Step 3: Solve for \( m \). \[ -2 + 2m = 0 \quad \Rightarrow \quad m = 2. \] Step 4: Selecting the correct option. Since \( m = 2 \) satisfies the Laplace equation, the correct answer is (C). Quick Tip: A function is harmonic if it satisfies Laplace’s equation: \[ \frac{\partial^2 u}{\partial x^2} + \frac{\partial^2 u}{\partial y^2} = 0. \]

Step 1: Integral of \( \frac{1}{z} \) over a contour. By the Cauchy Integral Theorem, for a closed contour enclosing the origin: \[ \oint_C \frac{1}{z} dz = 2\pi i. \] Step 2: Consider the given semicircular contour. - Given contour \( C \) covers half of the full circle. - So, the integral is half of \( 2\pi i \), which gives: \[ \pi i. \] Step 3: Selecting the correct option. Since \( \pi i \) is correct, the answer is (A). Quick Tip: \[ \oint_C \frac{1}{z} dz = 2\pi i \] if \( C \) encloses the origin. A semicircle contour gives half this value.

Step 1: Find the Z-transform of \( x(n) \). Since \( x(n) = \delta(n - k) \), its Z-transform is: \[ X(z) = z^{-k}. \] Step 2: Find the RO(C) - The function \( z^{-k} \) is well-defined for all \( z \neq 0 \). - So, the ROC is entire \( z \)-plane except \( z = 0 \). Step 3: Selecting the correct option. Since the correct ROC is entire \( z \)-plane except at \( z = 0 \), the answer is (C). Quick Tip: For \( x(n) = \delta(n - k) \), the Z-transform is \( X(z) = z^{-k} \), with ROC excluding \( z = 0 \).

Step 1: Use the initial value theorem. \[ \lim\limits_{t \to 0} X(t) = \lim\limits_{s \to \infty} s X(s). \] Step 2: Compute limit. \[ \lim\limits_{s \to \infty} s \cdot \frac{4s + 1}{s^2 + 6s + 3}. \] Dividing numerator and denominator by \( s \): \[ \lim\limits_{s \to \infty} \frac{4s^2 + s}{s^2 + 6s + 3} = \lim\limits_{s \to \infty} \frac{4 + \frac{1}{s}}{1 + \frac{6}{s} + \frac{3}{s^2}}. \] Step 3: Evaluating the limit. \[ \lim\limits_{s \to \infty} \frac{4}{1} = 4/3. \] Step 4: Selecting the correct option. Since \( X(0) = 4/3 \), the correct answer is (D). Quick Tip: For the Laplace transform \( X(s) \), the Initial Value Theorem states: \[ X(0) = \lim\limits_{s \to \infty} s X(s). \]

Step 1: Recognizing the integral. The given integral: \[ I = \int_0^\pi \left( \frac{\sin x}{x} \right)^2 dx. \] This is a standard result in Fourier analysis. Step 2: Evaluating the integral. Using the known result, \[ \int_0^\pi \left( \frac{\sin x}{x} \right)^2 dx = \frac{\pi}{2}. \] Step 3: Selecting the correct option. Since \( I = \frac{\pi}{2} \), the correct answer is (C). Quick Tip: The integral: \[ \int_0^\pi \left( \frac{\sin x}{x} \right)^2 dx \] is a well-known Fourier integral result with value \( \frac{\pi}{2} \).

Step 1: Condition for convergence. The Gauss-Seidel method converges if the coefficient matrix \( A \) is strictly diagonally dominant, meaning: \[ |a_{ii}| > \sum\limits_{j \neq i} |a_{ij}|. \] Step 2: Evaluating given options. - Option (A) is correct as strict diagonal dominance ensures convergence. - Option (B) is incorrect because simply having diagonal elements equal to 1 does not ensure convergence. - Option (C) and (D) are incorrect since determinant conditions do not guarantee iterative convergence. Step 3: Selecting the correct option. Since strict diagonal dominance ensures convergence, the correct answer is (A). Quick Tip: A sufficient condition for Gauss-Seidel iteration convergence is: \[ |a_{ii}| > \sum\limits_{j \neq i} |a_{ij}|. \] This ensures strict diagonal dominance.

Step 1: Understanding interpolation methods. - Newton's forward interpolation formula is specifically used for equally spaced dat(A) - Newton's divided difference and Lagrange's interpolation work for unequally spaced dat(A) Step 2: Selecting the correct option. Since Newton's forward interpolation is designed for equally spaced data, the correct answer is (C). Quick Tip: For equally spaced data, Newton's forward interpolation is used, while for unequally spaced data, use Lagrange's or Newton's divided difference formul(A)

Step 1: Condition for Simpson's rule. - Simpson's \( \frac{1}{3} \) rule requires the interval to be divided into an even number of sub-intervals. Step 2: Selecting the correct option. Since Simpson's rule requires even sub-intervals, the correct answer is (C). Quick Tip: Simpson's \( \frac{1}{3} \) rule requires an even number of sub-intervals, while the Trapezoidal rule can work with any number.

Step 1: Using the probability condition. The total probability must sum to 1: \[ \sum p(x) = 1. \] Step 2: Computing \( c \). \[ \sum_{x=1}^{5} c x = 1. \] \[ c (1 + 2 + 3 + 4 + 5) = 1. \] Step 3: Solving for \( c \). \[ c (15) = 1 \quad \Rightarrow \quad c = \frac{1}{15}. \] Step 4: Selecting the correct option. Since \( c = \frac{1}{15} \), the correct answer is (C). Quick Tip: The sum of all probability mass function (PMF) values must be 1. Use: \[ \sum p(x) = 1 \] to determine the constant.

Step 1: Using the binomial formulas. - Mean of a binomial distribution is given by: \[ E(X) = n p. \] - Variance of a binomial distribution is: \[ V(X) = n p (1 - p). \] Step 2: Substituting given values. \[ 4 = n p, \quad 2 = n p (1 - p). \] Step 3: Expressing \( p \) in terms of \( n \). \[ p = \frac{4}{n}. \] Step 4: Solving for \( n \). \[ 2 = n \left( \frac{4}{n} \right) (1 - \frac{4}{n}). \] \[ 2 = 4(1 - \frac{4}{n}). \] \[ \frac{2}{4} = 1 - \frac{4}{n}. \] \[ \frac{1}{2} = 1 - \frac{4}{n}. \] \[ \frac{4}{n} = \frac{1}{2}. \] \[ n = 6. \] Step 5: Selecting the correct option. Since \( n = 6 \), the correct answer is (C). Quick Tip: For a Binomial Distribution: \[ E(X) = n p, \quad V(X) = n p (1 - p). \] Use these formulas to determine \( n \) and \( p \).

Step 1: Understanding processor speed measurement. - The clock speed of a processor is measured in Gigahertz (GHz), which indicates the number of cycles per secon(D) Step 2: Selecting the correct option. Since GHz is the correct unit, the answer is (B). Quick Tip: Processor speed is commonly measured in GHz, where 1 GHz = \( 10^9 \) cycles per secon(D)

Step 1: Understanding source code translation. - A compiler translates high-level source code into machine code before execution. - Assembler is used for assembly language. - Loader loads the program into memory. Step 2: Selecting the correct option. Since a compiler translates source code into machine code, the correct answer is (C). Quick Tip: - Compiler translates high-level language to machine code. - Interpreter executes code line by line. - Assembler is for assembly language.

Step 1: Understanding URL. - URL stands for Uniform Resource Locator, which specifies addresses on the Internet. Step 2: Selecting the correct option. Since Uniform Resource Locator is the correct term, the answer is (A). Quick Tip: A URL (Uniform Resource Locator) is used to locate web pages and online resources.

Step 1: Understanding adsorption. - Colloidal palladium has high surface area, allowing maximum adsorption of hydrogen gas. Step 2: Selecting the correct option. Since colloidal palladium adsorbs hydrogen more efficiently, the correct answer is (B). Quick Tip: Greater surface area leads to higher adsorption of gases.

Step 1: Understanding effective collisions. - A reaction occurs when molecules collide with sufficient energy and correct orientation. Step 2: Selecting the correct option. Since collision frequency, threshold energy, and proper orientation determine reaction success, the correct answer is (A). Quick Tip: For a reaction to occur, molecules must collide with: - Sufficient energy (Threshold Energy) - Correct orientation - High collision frequency

Step 1: Understanding the internal circuit of a galvanic cell. - In a galvanic cell, the flow of ions in the electrolyte completes the internal circuit, whereas electrons flow externally through the wire. Step 2: Selecting the correct option. Since ions move within the cell, the correct answer is (D). Quick Tip: - Electrons flow through the external circuit. - Ions flow within the electrolyte to maintain charge balance.

Step 1: Understanding primary and secondary fuels. - Primary fuels occur naturally (coal, natural gas, crude oil). - Kerosene is derived from crude oil, making it a secondary fuel. Step 2: Selecting the correct option. Since kerosene is not a primary fuel, the correct answer is (C). Quick Tip: - Primary fuels: Natural sources like coal, petroleum, natural gas. - Secondary fuels: Derived from primary fuels, e.g., kerosene, gasoline.

Step 1: Understanding infrared activity. - A molecule absorbs IR radiation if it has a change in dipole moment. - N\(_2\) is non-polar and does not exhibit IR absorption. Step 2: Selecting the correct option. Since N\(_2\) lacks a dipole moment, the correct answer is (B). Quick Tip: - Heteronuclear molecules (e.g., CO\(_2\), HCl) show IR activity. - Homonuclear diatomic gases (e.g., N\(_2\), O\(_2\)) do not absorb IR.

Step 1: Understanding semiconductors at absolute zero. - At 0 K, semiconductors behave as perfect insulators because no electrons are thermally excited to the conduction ban(D) Step 2: Selecting the correct option. Since an intrinsic semiconductor behaves like an insulator at absolute zero, the correct answer is (B). Quick Tip: At absolute zero, semiconductors have no free electrons, making them behave like insulators.

Step 1: Understanding bandgap energy. - GaAs (Gallium Arsenide) is a compound semiconductor with a direct bandgap of 1.42 eV at 300K. Step 2: Selecting the correct option. Since the bandgap of GaAs is 1.42 eV, the correct answer is (D). Quick Tip: - Si (Silicon): 1.1 eV - GaAs (Gallium Arsenide): 1.42 eV - Ge (Germanium): 0.66 eV

Step 1: Understanding the properties of spark plug insulators. - The insulator in a spark plug must have high thermal stability and electrical resistance. - Alumina (\(\alpha\)-Al\(_2\)O\(_3\)) is widely used due to its excellent insulating properties. Step 2: Selecting the correct option. Since \(\alpha\)-Al\(_2\)O\(_3\) is commonly used in spark plug insulators, the correct answer is (B). Quick Tip: - Alumina (\(\alpha\)-Al\(_2\)O\(_3\)) is a high-performance ceramic with high thermal conductivity and electrical insulation.

Step 1: Understanding unconventional superconductivity. - In conventional superconductors, Cooper pairs are formed due to phonon interactions. - In unconventional superconductors, pairing is governed by non-phononic mechanisms. Step 2: Selecting the correct option. Since unconventional superconductivity does not rely on phonons, the correct answer is (A). Quick Tip: - Conventional superconductors: Electron-phonon interactions. - Unconventional superconductors: Other mechanisms (e.g., magnetic fluctuations).

Step 1: Understanding magnetic susceptibility. - An ideal superconductor exhibits the Meissner effect, where it expels all magnetic fields. - This results in a magnetic susceptibility (\(\chi\)) of -1. Step 2: Selecting the correct option. Since an ideal superconductor has \(\chi = -1\), the correct answer is (B). Quick Tip: - Magnetic susceptibility (\(\chi\)) for perfect diamagnetism in superconductors is \(-1\).

Step 1: Understanding Rayleigh scattering. - Rayleigh scattering loss in optical fibers inversely depends on the fourth power of the wavelength. Step 2: Selecting the correct option. Since Rayleigh scattering follows \(\lambda^{-4}\), the correct answer is (C). Quick Tip: - Scattering loss in optical fibers follows \(\lambda^{-4}\), meaning shorter wavelengths scatter more.

Step 1: Understanding near field length in acoustics. - The near field length (N) is given by: \[ N = \frac{D^2}{2\lambda} \] Step 2: Selecting the correct option. Since the correct formula is \(D^2 / 2\lambda\), the correct answer is (A). Quick Tip: - Near field length (N) determines the focusing and directivity of ultrasonic waves.

Step 1: Understanding open thermodynamic systems. - An open system allows mass and energy transfer across its boundary. - Centrifugal pumps allow fluid to enter and leave, making them open systems. Step 2: Selecting the correct option. Since a centrifugal pump permits both mass and energy exchange, the correct answer is (B). Quick Tip: - Open system: Allows mass and energy transfer. - Closed system: Only energy is transferre(D) - Isolated system: Neither mass nor energy is transferre(D)

Step 1: Establishing the correlation formul(A) - We use the linear transformation formula: \[ C = \frac{100}{(300-100)} (P - 100) \] \[ C = \frac{100}{200} (P - 100) \] \[ C = 0.5 (P - 100) \] Step 2: Calculating for \( 0^o P \). \[ C = 0.5 (0 - 100) = -50^o C \] Step 3: Selecting the correct option. Since \( 0^o P \) corresponds to \( -50^o C \), the correct answer is (D). Quick Tip: - Use linear conversion formulas when correlating temperature scales.

Step 1: Understanding economical beam cross-sections. - The I-section provides maximum strength with minimum material. - This reduces material cost while ensuring high bending resistance. Step 2: Selecting the correct option. Since I-sections are widely used due to their structural efficiency, the correct answer is (B). Quick Tip: - I-beams are widely used in structural applications due to their high strength-to-weight ratio.

Step 1: Finding acceleration. - Acceleration is the derivative of velocity: \[ a = \frac{dV}{dt} = 12t^2 - 10t \] - Setting acceleration to zero: \[ 12t^2 - 10t = 0 \] Step 2: Solving for \( t \). \[ t(12t - 10) = 0 \] \[ t = 0, \quad t = \frac{10}{12} = 0.833 \text{s} \] Step 3: Selecting the correct option. Since acceleration is zero at \( t = 0.833 \)s, the correct answer is (B). Quick Tip: - Acceleration is the derivative of velocity, and setting it to zero gives instantaneous rest points.

Step 1: Understanding capacitive reactance. - The current in a capacitor is given by: \[ I = V\omega C \] where \( \omega = 2\pi f \). Step 2: Effect of doubling frequency. - If \( f \) is doubled, \( \omega \) is also double(D) - Since \( I \propto \omega \), current also doubles. Step 3: Selecting the correct option. Since doubling frequency doubles current, the correct answer is (A). Quick Tip: - Capacitive current is proportional to frequency (\( I \propto f \)).

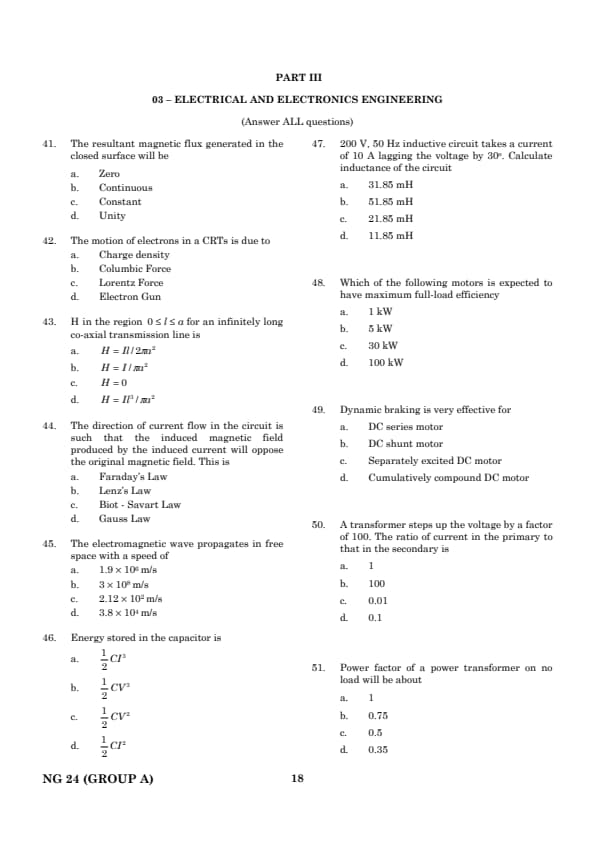

Step 1: According to Gauss’s Law for magnetism: \[ \oint_S \mathbf{B} \cdot d\mathbf{A} = 0 \] where \( \mathbf{B} \) is the magnetic field and \( d\mathbf{A} \) is the infinitesimal area element over a closed surface. Step 2: This law states that the net magnetic flux through a closed surface is always zero because magnetic monopoles do not exist; instead, magnetic field lines always form closed loops. Step 3: Since every magnetic field line that enters a closed surface must exit, the total inward and outward flux cancel each other out, leading to a net flux of zero. Quick Tip: Gauss’s Law for magnetism states that the total magnetic flux through a closed surface is always zero because there are no magnetic monopoles.

Step 1: The magnetic field intensity \( H \) for an infinitely long coaxial transmission line is derived using Ampère’s Circuital Law: \[ \oint_C \mathbf{H} \cdot d\mathbf{l} = I_{\text{enc}} \] Step 2: Considering a circular Amperian loop of radius \( l \), the enclosed current for \( 0 \leq l \leq a \) is given by: \[ I_{\text{enc}} = I \frac{l^2}{a^2} \] Step 3: By applying Ampère’s Law: \[ H \cdot (2\pi l) = I \frac{l^2}{a^2} \] Solving for \( H \): \[ H = \frac{I}{2\pi a^2} \] Quick Tip: Ampère’s Circuital Law is a fundamental tool for determining the magnetic field due to symmetric current distributions.

Step 1: The speed of electromagnetic waves in free space is given by: \[ c = \frac{1}{\sqrt{\mu_0 \varepsilon_0}} \] where \( \mu_0 \) is the permeability of free space and \( \varepsilon_0 \) is the permittivity of free space. Step 2: The known values are: \[ \mu_0 = 4\pi \times 10^{-7} \text{ H/m}, \quad \varepsilon_0 = 8.854 \times 10^{-12} \text{ F/m} \] Step 3: Substituting these values: \[ c = \frac{1}{\sqrt{(4\pi \times 10^{-7}) (8.854 \times 10^{-12})}} \] Step 4: Simplifying, we get: \[ c \approx 3 \times 10^8 \text{ m/s} \] Quick Tip: The speed of light in vacuum, \( c \), is a fundamental physical constant, and it defines the upper limit for the speed of any signal or information transmission in space.

Step 1: The efficiency (\( \eta \)) of an electric motor is given by: \[ \eta = \frac{\text{Output Power}}{\text{Input Power}} \times 100% \] Step 2: Larger motors generally have higher full-load efficiency because: - Larger motors operate with lower relative losses. - Copper and iron losses are better manage(D) - Stray losses become negligible compared to output power. Step 3: The efficiency of small motors (e.g., 1 kW or 5 kW) is lower due to: - Higher friction and windage losses. - Larger percentage of stray losses. Step 4: Among the given options, the 100 kW motor has the highest expected full-load efficiency due to better energy conversion and reduced relative losses. Quick Tip: Larger motors tend to have higher full-load efficiency because losses form a smaller fraction of the total power output.

Step 1: Dynamic braking is a method of slowing down a DC motor by disconnecting it from the power supply and connecting a resistor across the armature. This causes the motor to act as a generator, dissipating energy as heat. Step 2: In a DC shunt motor, the field winding is connected in parallel with the armature, ensuring a nearly constant magnetic field during braking. This provides smooth and effective braking. Step 3: DC series motors are less effective in dynamic braking since their field winding is in series with the armature, and the field weakens as the speed decreases. Step 4: Separately excited and cumulatively compound DC motors also exhibit braking effects, but they are not as efficient or stable as in DC shunt motors. Quick Tip: Dynamic braking is most effective in DC shunt motors because their field remains constant, ensuring a smooth and predictable braking effect.

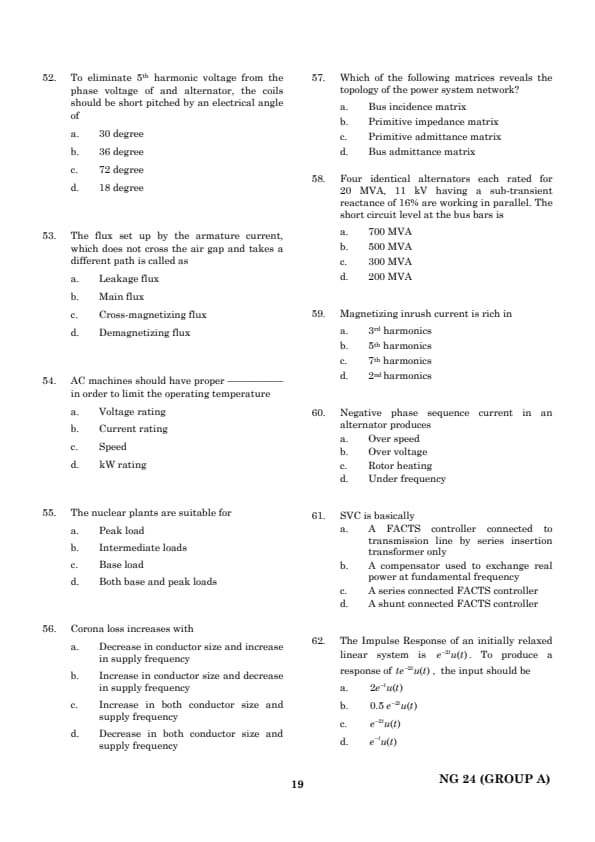

Step 1: In alternators, short-pitching (chorded winding) is used to reduce harmonic voltages, particularly the 3rd, 5th, and 7th harmonics. Step 2: The required short-pitching angle (\(\alpha\)) to eliminate a specific harmonic is given by: \[ \alpha = \frac{180^\circ}{\text{Harmonic Number}} \] For the 5th harmonic: \[ \alpha = \frac{180^\circ}{5} = 36^\circ \] Step 3: Hence, to eliminate the 5th harmonic voltage, the coils should be short pitched by 36 degrees. Quick Tip: Short-pitching is a useful technique in alternators to eliminate specific harmonics and improve waveform quality.

Step 1: The operating temperature of an AC machine is primarily influenced by power losses, which include copper losses (\( I^2R \)) and iron losses. Step 2: Copper losses depend directly on the current flowing through the windings. Higher current leads to increased resistive heating, which raises the temperature. Step 3: If an AC machine operates beyond its current rating, it can overheat, damaging insulation and reducing efficiency. Step 4: Proper current rating ensures that the machine does not exceed its thermal limits, thereby maintaining safe operation and longevity. Quick Tip: The current rating of an AC machine directly affects heating and must be carefully managed to prevent excessive temperature rise.

Step 1: Corona loss is a phenomenon in high-voltage transmission lines where ionization of air around the conductor leads to power dissipation. Step 2: The empirical formula for corona power loss per unit length is given by: \[ P_c = f (V - V_c)^2 \frac{1}{\delta r} \] where:
- \( f \) = supply frequency,
- \( V \) = operating voltage,
- \( V_c \) = critical disruptive voltage,
- \( \delta \) = air density factor,
- \( r \) = conductor radius. Step 3: From the formula, corona loss increases when:
- Frequency (\( f \)) increases: Since \( P_c \) is directly proportional to frequency, higher supply frequency increases corona loss.
- Conductor radius (\( r \)) decreases: Smaller conductor size leads to higher electric field intensity, increasing ionization and corona effect. Step 4: Thus, the correct answer is decrease in conductor size and increase in supply frequency. Quick Tip: Corona loss can be reduced by using larger conductor diameters and operating at lower frequencies.

Step 1: Corona loss is a phenomenon in high-voltage transmission lines where ionization of air around the conductor leads to power dissipation. Step 2: The empirical formula for corona power loss per unit length is given by: \[ P_c = f (V - V_c)^2 \frac{1}{\delta r} \] where:
- \( f \) = supply frequency,
- \( V \) = operating voltage,
- \( V_c \) = critical disruptive voltage,
- \( \delta \) = air density factor,
- \( r \) = conductor radius. Step 3: From the formula, corona loss increases when:
- Frequency (\( f \)) increases: Since \( P_c \) is directly proportional to frequency, higher supply frequency increases corona loss.
- Conductor radius (\( r \)) decreases: Smaller conductor size leads to higher electric field intensity, increasing ionization and corona effect. Step 4: Thus, the correct answer is decrease in conductor size and increase in supply frequency. Quick Tip: Corona loss can be reduced by using larger conductor diameters and operating at lower frequencies.

Step 1: The topology of a power system describes the interconnection of buses and branches in the network. Step 2: The bus incidence matrix (\( A \)) is a fundamental matrix in power system analysis that represents the connectivity between nodes (buses) and branches. Step 3: It is defined as: \[ A(i, j) = \begin{cases} 1, & \text{if branch } j \text{ enters bus } i
-1, & \text{if branch } j \text{ leaves bus } i
0, & \text{otherwise} \end{cases} \] Step 4: Other matrices such as:
- Primitive impedance/admittance matrices represent electrical parameters but do not describe the network topology.
- Bus admittance matrix is derived from the bus incidence matrix and does not directly reveal topology. Quick Tip: The bus incidence matrix is a key tool in power system analysis to determine network topology and formulate system equations.

Step 1: The short-circuit level (SCL) is given by: \[ SCL = \frac{\text{Total MVA Rating of Alternators}}{\text{Per Unit Sub-transient Reactance (X''})} \] Step 2: Given:
- Each alternator rating = \( 20 \) MVA
- Number of alternators = \( 4 \)
- Total MVA rating = \( 4 \times 20 = 80 \) MVA
- Sub-transient reactance (\( X'' \)) = \( 16% = 0.16 \) Step 3: Applying the formula: \[ SCL = \frac{80}{0.16} = 200 \text{ MVA} \] Step 4: Thus, the short circuit level at the bus bars is 200 MV(A) Quick Tip: The short-circuit level at bus bars is inversely proportional to the sub-transient reactance. Lower reactance results in a higher short-circuit level.

Step 1: Magnetizing inrush current occurs in transformers when they are energized, leading to a sudden surge of current due to core saturation. Step 2: The inrush current is non-sinusoidal and contains significant harmonic components, predominantly even harmonics, particularly the 2nd harmoni(C) Step 3: The presence of 2nd harmonic is explained by:
- Flux asymmetry: When a transformer is switched on at a random point in the AC cycle, residual flux causes an asymmetrical magnetizing current.
- Nonlinear magnetization curve: The core operates in a non-linear region, generating strong even harmonics, especially the 2nd harmoni(C) Step 4: Higher-order harmonics (3rd, 5th, 7th) are present but with lower magnitude, whereas the 2nd harmonic is dominant in inrush conditions. Quick Tip: Transformer inrush current is rich in 2nd harmonic, which is used in differential protection schemes to distinguish inrush from internal faults.

Step 1: Negative phase sequence (NPS) current occurs in an alternator due to unbalanced loads, leading to asymmetrical currents in the stator. Step 2: These negative sequence currents rotate in the opposite direction to the rotor’s rotation, inducing high-frequency currents in the rotor. Step 3: The impact of NPS current includes:
- Severe rotor heating due to eddy currents and I²R losses.
- Possible rotor damage if prolonged exposure occurs.
- Reduced efficiency and lifespan of the alternator. Step 4: Other options:
- Over speed (Wrong): Alternator speed is determined by the prime mover and loa(D)
- Over voltage (Wrong): Voltage variations are caused by excitation control, not NPS currents.
- Under frequency (Wrong): Frequency is controlled by grid stability, not NPS currents. Quick Tip: Negative phase sequence currents in alternators induce rotor heating and can cause serious damage, requiring protection schemes like NPS relays.

Step 1: Static Var Compensator (SVC) is a type of Flexible AC Transmission System (FACTS) device used for voltage regulation and reactive power compensation. Step 2: SVC operates in shunt configuration, meaning it is connected in parallel to the transmission line and dynamically adjusts the reactive power. Step 3: Functionality:
- Absorbs or injects reactive power to maintain voltage stability.
- Uses thyristor-switched reactors (TSR) and thyristor-switched capacitors (TSC) for dynamic control. Step 4: Evaluation of options:
- (A) Incorrect: SVC is not a series-connected transformer-based controller.
- (B) Incorrect: SVC controls reactive power, not real power exchange.
- (C) Incorrect: SVC is a shunt-connected FACTS controller, not series. Quick Tip: Static Var Compensators (SVC) are used in power systems for voltage stabilization by dynamically adjusting reactive power in a shunt configuration.

Step 1: The response of a linear time-invariant (LTI) system is given by the convolution of the input \( x(t) \) with the impulse response \( h(t) \): \[ y(t) = x(t) * h(t) \] Step 2: Given:
- Impulse response: \( h(t) = e^{-2t} u(t) \)
- Desired response: \( y(t) = te^{-2t} u(t) \) Step 3: The Laplace Transform of the given impulse response is: \[ H(s) = \frac{1}{s + 2} \] And for the desired response: \[ Y(s) = \frac{1}{(s+2)^2} \] Step 4: The required input is: \[ X(s) = Y(s) / H(s) = \frac{1}{(s+2)^2} \times (s+2) = \frac{1}{s+2} \] which corresponds to: \[ x(t) = 0.5 e^{-2t} u(t) \] Quick Tip: The input required to produce a scaled and time-multiplied response in an LTI system can be determined using Laplace domain division.

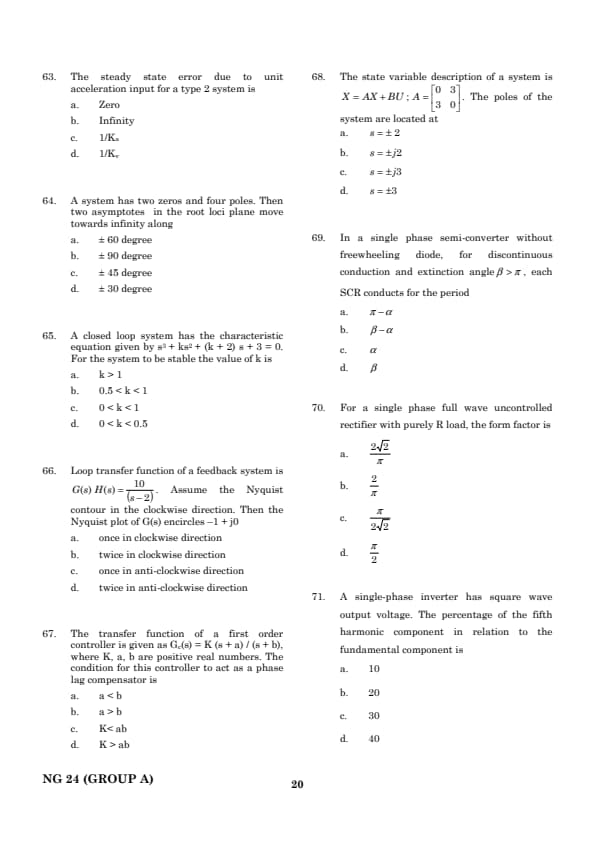

Step 1: The steady-state error (\( e_{ss} \)) for a given system is determined using the Final Value Theorem: \[ e_{ss} = \lim_{s \to 0} s E(s) \] Step 2: For a Type 2 system, the open-loop transfer function contains two poles at the origin, meaning it has two integrators. Step 3: The steady-state error for different inputs is determined using error constants: - Position error constant \( K_p \) (for step input) - Velocity error constant \( K_v \) (for ramp input) - Acceleration error constant \( K_a \) (for parabolic input) Step 4: For a unit acceleration input (\( R(s) = \frac{1}{s^3} \)), the steady-state error is given by: \[ e_{ss} = \frac{1}{K_a} \] where \( K_a \) is the acceleration error constant. Step 5: Since a Type 2 system has two integrators, it can track acceleration inputs with finite error, given by \( \frac{1}{K_a} \). Quick Tip: For a Type 2 system, the steady-state error for an acceleration input is finite and given by \( \frac{1}{K_a} \), whereas for a Type 1 system, it would be infinite.

Step 1: The number of root locus asymptotes is given by: \[ N_a = P - Z \] where \( P \) is the number of poles and \( Z \) is the number of zeros. Step 2: Given: - \( P = 4 \) (number of poles) - \( Z = 2 \) (number of zeros) \[ N_a = 4 - 2 = 2 \] Step 3: The angles of asymptotes are determined using the formula: \[ \theta_k = \frac{(2k + 1) 180^\circ}{N_a}, \quad k = 0, 1, \dots, (N_a - 1) \] Step 4: Substituting \( N_a = 2 \): \[ \theta_0 = \frac{(2 \times 0 + 1) 180^\circ}{2} = 90^\circ \] \[ \theta_1 = \frac{(2 \times 1 + 1) 180^\circ}{2} = -90^\circ \] Step 5: Thus, the two asymptotes move towards infinity along \( \pm 90^\circ \). Quick Tip: The angles of root locus asymptotes are calculated using the formula \( \theta_k = \frac{(2k + 1) 180^\circ}{P - Z} \). This helps in determining system stability.

Step 1: A system is stable if all the roots of the characteristic equation have negative real parts. We use Routh-Hurwitz criterion to determine stability. Step 2: Constructing the Routh array for: \[ s^3 + k s^2 + (k+2) s + 3 = 0 \] \[ \begin{array}{c|cc} s^3 & 1 & k+2
s^2 & k & 3
s^1 & \frac{k(C) - (k+2)(k)}{k} & 0
s^0 & 3 &
\end{array} \] Step 3: For stability, all first column elements must be positive. - \( k > 0 \) (ensures second row is positive) - The third-row term must be positive: \[ \frac{3k - k^2 - 2k}{k} > 0 \] \[ \frac{3k - k^2 - 2k}{k} = \frac{k - k^2}{k} > 0 \] \[ k - k^2 > 0 \] \[ k (1 - k) > 0 \] Step 4: The inequality holds for: \[ 0 < k < 1 \] Step 5: Thus, the system remains stable when \( 0 < k < 1 \). Quick Tip: The Routh-Hurwitz criterion helps determine the stability of a control system by ensuring no sign changes in the first column of the Routh array.

Step 1: The Nyquist criterion determines the stability of a closed-loop system based on the open-loop transfer function \( G(s)H(s) \). Step 2: The given transfer function: \[ G(s)H(s) = \frac{10}{s - 2} \] has a single pole at \( s = 2 \), which is in the right-half plane (unstable region). Step 3: The Nyquist contour encloses the entire right half-plane, and the Nyquist plot is obtained by substituting: \[ s = j\omega \] Step 4: Evaluating at \( s = j\omega \): \[ G(j\omega)H(j\omega) = \frac{10}{j\omega - 2} \] - At high frequencies (\( \omega \to \infty \)), \( G(j\omega) \to 0 \).
- At low frequencies (\( \omega \to 0 \)), \( G(j\omega) \to -5 \).
- As \( s \) moves along the Nyquist contour, the plot encircles -1 in a clockwise direction exactly once. Step 5: According to Nyquist stability criterion: \[ N = P - Z \] where:
- \( N \) = Number of encirclements of \(-1\) (to be determined)
- \( P = 1 \) (one pole in the right-half plane)
- \( Z = 0 \) (no closed-loop unstable poles for stability) Step 6: Since \( N = 1 \), the Nyquist plot encircles \(-1\) once in a clockwise direction. Quick Tip: The Nyquist plot helps determine system stability by analyzing encirclements of \(-1\). If the plot encircles \(-1\) in clockwise direction \( P \) times, the system is unstable.

Step 1: A phase lag compensator is used to improve the steady-state accuracy of a control system while reducing bandwidth and increasing stability margins. Step 2: The general form of a phase lag compensator is: \[ G_c(s) = K \frac{(s + a)}{(s + b)} \] where: - \( a \) represents the zero of the compensator. - \( b \) represents the pole of the compensator. Step 3: Phase lag compensators are characterized by:
- A pole (\( b \)) closer to the origin than the zero (\( a \)).
- This ensures that at lower frequencies, the compensator reduces the phase angle, introducing a negative phase shift. Step 4: The condition for a phase lag compensator is: \[ a < b \] which ensures that the pole is dominant and the system experiences phase lag. Quick Tip: For a compensator to introduce phase lag, the pole must be closer to the origin than the zero, ensuring \( a < b \).

Step 1: The poles of the system are given by the eigenvalues of the matrix \( A \). Step 2: The characteristic equation is found by solving: \[ \det(A - \lambda I) = 0 \] Step 3: Substituting \( A = \begin{bmatrix} 0 & 3
3 & 0 \end{bmatrix} \): \[ \begin{vmatrix} 0 - \lambda & 3
3 & 0 - \lambda \end{vmatrix} = 0 \] Step 4: Computing the determinant: \[ (-\lambda)(-\lambda) - (3 \times 3) = \lambda^2 - 9 = 0 \] Step 5: Solving for \( \lambda \): \[ \lambda^2 = 9 \] \[ \lambda = \pm j3 \] Step 6: The poles of the system are at \( s = \pm j3 \). Quick Tip: The eigenvalues of the state matrix \( A \) determine the system poles. If eigenvalues are purely imaginary \( \pm j\omega \), the system exhibits oscillatory behavior.

Step 1: In a single-phase semi-converter, SCRs (Silicon-Controlled Rectifiers) are used for controlled rectification of AC power. Step 2: The firing angle \( \alpha \) determines when the SCR turns on, and the extinction angle \( \beta \) defines when it turns off. Step 3: Without a freewheeling diode, the SCR remains conducting until the current naturally falls to zero, which occurs at the extinction angle \( \beta \). Step 4: The total conduction period of each SCR is given by: \[ \text{Conduction time} = \beta - \alpha \] Step 5: Evaluating options:
- (A) \( \pi - \alpha \) (Incorrect): This is valid only for continuous conduction mode.
- (B) \( \beta - \alpha \) (Correct): This correctly accounts for the discontinuous conduction mode where conduction stops at \( \beta \).
- (C) \( \alpha \) (Incorrect): The firing angle does not directly indicate conduction time.
- (D) \( \beta \) (Incorrect): The conduction duration is relative to \( \alpha \), not just \( \beta \). Quick Tip: In discontinuous conduction mode of a semi-converter, the conduction period of an SCR is given by \( \beta - \alpha \), where \( \alpha \) is the firing angle and \( \beta \) is the extinction angle.

Step 1: The form factor (\( FF \)) of a rectifier is defined as the ratio of the RMS value of output voltage to the average output voltage: \[ FF = \frac{V_{\text{rms}}}{V_{\text{avg}}} \] Step 2: For a single-phase full-wave uncontrolled rectifier with a purely resistive (\( R \)) load: - The RMS value of the output voltage is: \[ V_{\text{rms}} = \frac{V_m}{\sqrt{2}} \] - The average output voltage is: \[ V_{\text{avg}} = \frac{2V_m}{\pi} \] Step 3: Calculating the form factor: \[ FF = \frac{V_{\text{rms}}}{V_{\text{avg}}} = \frac{\frac{V_m}{\sqrt{2}}}{\frac{2V_m}{\pi}} \] \[ FF = \frac{V_m}{\sqrt{2}} \times \frac{\pi}{2V_m} = \frac{\pi}{2\sqrt{2}} \] \[ FF = \frac{2\sqrt{2}}{\pi} \] Step 4: Thus, the correct form factor is \( \frac{2\sqrt{2}}{\pi} \). Quick Tip: The form factor helps analyze rectifier performance by comparing RMS and average voltage values. For a full-wave rectifier, \( FF = \frac{2\sqrt{2}}{\pi} \).

Step 1: The Fourier series representation of a square wave consists of only odd harmonics given by: \[ V_n = \frac{4V_m}{n\pi}, \quad n = 1, 3, 5, 7, \dots \] where:
- \( V_n \) is the \( n \)th harmonic component.
- \( V_m \) is the peak value of the square wave.
- \( n \) is the harmonic order. Step 2: The fundamental component (\( n = 1 \)) is: \[ V_1 = \frac{4V_m}{\pi} \] Step 3: The fifth harmonic component (\( n = 5 \)) is: \[ V_5 = \frac{4V_m}{5\pi} \] Step 4: The percentage of the fifth harmonic relative to the fundamental is: \[ \frac{V_5}{V_1} \times 100 = \frac{\frac{4V_m}{5\pi}}{\frac{4V_m}{\pi}} \times 100 \] \[ = \frac{1}{5} \times 100 = 20% \] Step 5: Thus, the percentage of the fifth harmonic component relative to the fundamental is 20%. Quick Tip: For a square wave output, harmonics follow an inverse relation with their order: \( V_n = \frac{4V_m}{n\pi} \). The fifth harmonic is always 20% of the fundamental.

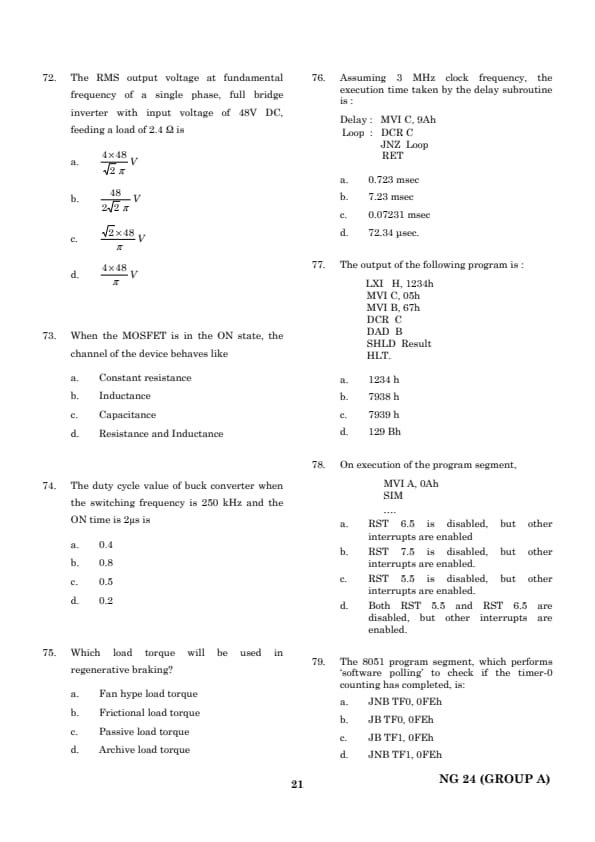

Step 1: The output voltage waveform of a single-phase full-bridge inverter is a square wave. Step 2: The fundamental RMS output voltage (\( V_{1,\text{rms}} \)) is given by: \[ V_{1,\text{rms}} = \frac{4V_{\text{dc}}}{\sqrt{2} \pi} \] where:
- \( V_{\text{dc}} = 48V \) (DC input voltage)
- \( \pi \) is due to the Fourier series expansion of a square wave. Step 3: Substituting the given values: \[ V_{1,\text{rms}} = \frac{4 \times 48}{\sqrt{2} \pi} \text{ V} \] Step 4: Thus, the correct answer is \( \frac{4 \times 48}{\sqrt{2} \pi} \) V. Quick Tip: The fundamental RMS output voltage of a single-phase full-bridge inverter is given by \( V_{1,\text{rms}} = \frac{4V_{\text{dc}}}{\sqrt{2} \pi} \), derived from the Fourier series of a square wave.

Step 1: A MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) operates in three regions:
- Cutoff Region: Acts as an open switch.
- Linear (Ohmic) Region: Acts as a variable resistor.
- Saturation Region: Acts as a current source. Step 2: When the MOSFET is fully ON, it is in the linear region, where the channel behaves like a low-resistance path. Step 3: The ON-state resistance is called Drain-to-Source ON Resistance (\( R_{DS(on)} \)), which is relatively constant and depends on:
- Channel doping concentration.
- Gate drive voltage. Step 4: Evaluating options:
- (A) Constant resistance (Correct): The MOSFET channel exhibits ohmic behavior.
- (B) Inductance (Incorrect): The channel does not exhibit significant inductive effects.
- (C) Capacitance (Incorrect): Capacitances exist across terminals but do not dominate ON-state behavior.
- (D) Resistance and Inductance (Incorrect): The MOSFET channel primarily behaves as a resistor in the ON-state. Quick Tip: When fully ON, a MOSFET behaves like a constant low-resistance path (\( R_{DS(on)} \)), making it ideal for switching applications.

Step 1: The duty cycle (\( D \)) of a buck converter is given by: \[ D = \frac{T_{\text{ON}}}{T_{\text{total}}} \] where:
- \( T_{\text{ON}} = 2 \mu s \) (ON time of the switch),
- \( T_{\text{total}} = \frac{1}{f_s} \) (Total switching period),
- \( f_s = 250 \) kHz (Switching frequency). Step 2: Calculating the total switching period: \[ T_{\text{total}} = \frac{1}{250 \times 10^3} = 4 \mu s \] Step 3: Computing the duty cycle: \[ D = \frac{2 \mu s}{4 \mu s} = 0.2 \] Step 4: Thus, the correct answer is 0.2. Quick Tip: The duty cycle of a buck converter is given by \( D = \frac{T_{\text{ON}}}{T_{\text{total}}} \). Increasing the duty cycle increases the output voltage.

Step 1: Regenerative braking occurs when the motor acts as a generator, converting kinetic energy into electrical energy, which is fed back into the power supply. Step 2: This braking method is effective when the load torque opposes the direction of rotation, allowing the generated energy to be recovere(D) Step 3: Passive load torque is the correct type of torque for regenerative braking because:
- It continuously applies torque in the opposite direction to rotation.
- Common in elevators, hoists, and downhill conveyors, where stored energy can be converted into electricity. Step 4: Evaluating other options:
- Fan hype load torque (Incorrect): Likely a typographical error; fans generally do not contribute to regenerative braking.
- Frictional load torque (Incorrect): Frictional torque dissipates energy as heat and does not contribute to regenerative braking.
- Archive load torque (Incorrect): This term does not apply to braking systems. Quick Tip: Regenerative braking is most effective with passive load torque, which allows energy recovery by converting mechanical motion into electrical power.

Step 1: The given program executes the following instructions: - MVI C, 9Ah (Immediate Load) → 1 Machine Cycle - DCR C (Decrement C Register) → 1 Machine Cycle per iteration - JNZ Loop (Jump if Not Zero) → 2 Machine Cycles per iteration (except last loop) Step 2: The loop executes until C = 0. Given that: \[ C = 9Ah = 154_{10} \] Step 3: The total cycles for the loop: \[ (154 - 1) \times (1 + 2) + 1 = 153 \times 3 + 1 = 460 \text{ cycles} \] Step 4: The system clock is 3 MHz, so: \[ \text{Time per cycle} = \frac{1}{3 \times 10^6} = 0.333 \mu s \] Step 5: The total execution time: \[ T = 460 \times 0.333 \mu s = 0.723 \text{ msec} \] Step 6: Thus, the correct answer is 0.723 mse(C) Quick Tip: The total delay of a loop in microprocessor programming is calculated using Clock Cycles × Time per Cycle. Always consider the number of machine cycles per instruction.

Step 1: Understanding the instructions:
- LXI H, 1234h → Load register pair HL with 1234h.
- MVI C, 05h → Load C with 05h.
- MVI B, 67h → Load B with 67h.
- DCR C → Decrement C to 04h.
- DAD B → Add HL = HL + B(C) Step 2: Calculating the final value of HL:
- Initially: \( HL = 1234h \), \( BC = 6704h \).
- DAD B: \[ HL = 1234h + 6704h = 7938h \] - SHLD Result → Store HL at memory location Result.
- HLT → Halt execution. Step 3: The correct output stored in memory is 7938h. Quick Tip: The DAD B instruction in 8085 adds the contents of register pair BC to HL without affecting flags except the carry flag.

Step 1: The SIM (Set Interrupt Mask) instruction in 8085 is used to control maskable interrupts using Accumulator (A) Step 2: The bit pattern of Accumulator A determines which interrupts are enabled or disabled: \[ \text{D7} \quad \text{D6} \quad \text{D5} \quad \text{D4} \quad \text{D3} \quad \text{D2} \quad \text{D1} \quad \text{D0} \] \[ \quad SOD \quad \quad \text{X} \quad \quad \text{R7.5} \quad \quad MSE \quad \quad M75 \quad \quad M65 \quad \quad M55 \] where:
- D3 (MSE - Mask Set Enable) enables the mask settings.
- D2 (M75) masks RST 7.5.
- D1 (M65) masks RST 6.5.
- D0 (M55) masks RST 5.5. Step 3: The given instruction: \[ MVI A, 0Ah = 0000\ 1010_2 \] - \( D3 = 1 \) → Masking enable(D)
- \( D1 = 0 \) → RST 6.5 not masked (enabled).
- \( D0 = 1 \) → RST 5.5 masked (disabled). Step 4: Evaluating options:
- (A) Incorrect: RST 6.5 is enable(D)
- (B) Incorrect: RST 7.5 is not affecte(D)
- (C) Correct: RST 5.5 is disabled, but other interrupts are enable(D)
- (D) Incorrect: RST 6.5 is not disable(D) Quick Tip: The SIM instruction in 8085 controls interrupt masking. When MVI A, 0Ah is executed, only RST 5.5 is disabled, while other interrupts remain enable(D)

Step 1: In the 8051 microcontroller, Timer Flags (TF0, TF1) are set when the respective timers (Timer-0, Timer-1) complete their counting. Step 2: Software polling involves continuously checking a flag until it becomes set, indicating completion. Step 3: The correct instruction format for polling is: \[ \text{JB TFx, address} \] where:
- JB (Jump if Bit is Set) checks if TF0 = 1.
- If TF0 is set, it jumps to 0FEh (execution continues).
- If TF0 is not set, it keeps polling. Step 4: Evaluating options:
- (A) JNB TF0, 0FEh (Incorrect): Jumps if TF0 is NOT set, which is opposite to polling behavior.
- (B) JB TF0, 0FEh (Correct): Checks if TF0 = 1, making it the correct software polling approach.
- (C) JB TF1, 0FEh (Incorrect): Monitors Timer-1 flag instead of Timer-0.
- (D) JNB TF1, 0FEh (Incorrect): Jumps if TF1 is NOT set, which is not polling. Quick Tip: In 8051 software polling, the correct instruction is JB TFx, address, where the program loops until the Timer Flag (TF0 or TF1) is set.

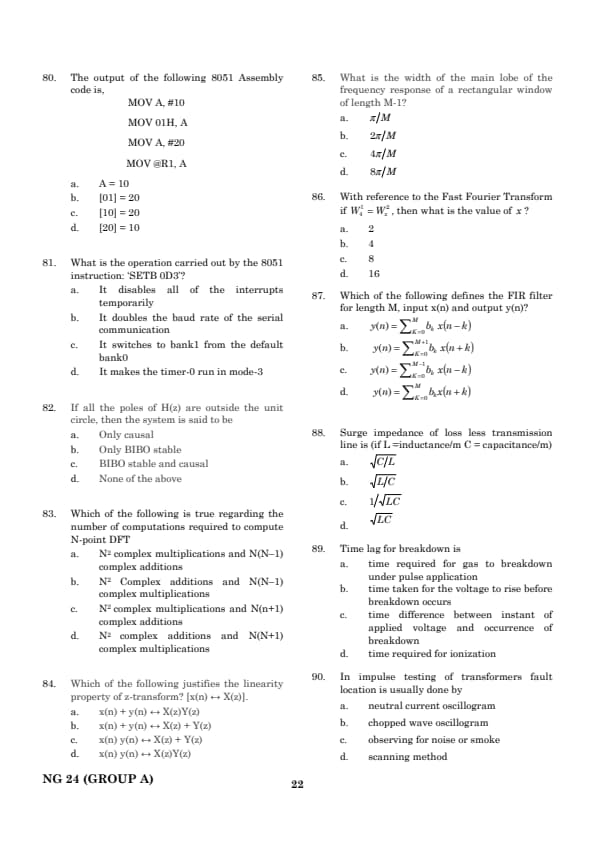

Step 1: Analyzing each instruction: 1. MOV A, \#10 → Load immediate value 10H into Accumulator (A). \[ A = 10H \] 2. MOV 01H, A → Store the value of A (10H) into memory address 01H. \[ \text{Memory[01H]} = 10H \] 3. MOV A, \#20 → Load immediate value 20H into Accumulator (A). \[ A = 20H \] 4. MOV @R1, A → Store the value of A (20H) at the memory location pointed by Register R1. Step 2: The value of R1 is not explicitly initialized in the code, but if we assume R1 = 01H (default assumption in 8051), then: \[ \text{Memory[01H]} = 20H \] Step 3: Evaluating options:
- (A) A = 10 (Incorrect): A is 20H at the en(D)
- (B) [01] = 20 (Correct): Memory location 01H holds 20H.
- (C) [10] = 20 (Incorrect): Memory 10H was never modifie(D)
- (D) [20] = 10 (Incorrect): Memory 20H is not involve(D) Quick Tip: In 8051 Assembly, indirect addressing with @R1 stores data in the memory location pointed by R1. If R1 = 01H, then MOV @R1, A stores A's value at memory[01H].

Step 1: The instruction SETB 0D3 means "Set Bit D3 in the Special Function Register (SFR)". Step 2: In 8051 microcontrollers, bit D3 (PCON.7 - SMOD bit) in the Power Control Register (PCON) is responsible for doubling the baud rate of the serial communication. Step 3: The PCON Register (Power Control Register) structure is: \[ \begin{array}{|c|c|c|c|c|c|c|c|c|} \hline SMOD & - & - & - & GF1 & GF0 & PD & IDL
\hline D7 & D6 & D5 & D4 & D3 & D2 & D1 & D0
\hline \end{array} \] - D7 (SMOD bit) = 1 → Baud rate doubles. Step 4: Evaluating options:
- (A) Incorrect: Interrupt disable is controlled by the IE (Interrupt Enable) register.
- (B) Correct: Setting SMOD (D3 in PCON) doubles the baud rate.
- (C) Incorrect: Bank switching is done via the PSW (Program Status Word) register.
- (D) Incorrect: Timer-0 mode selection is done via the TMOD register. Quick Tip: The SMOD bit in the PCON register controls the baud rate. Using SETB PCON.7 doubles the baud rate for serial communication in 8051 microcontrollers.

Step 1: In Discrete-Time Systems, stability and causality are analyzed using the Z-transform. Step 2: The system is BIBO (Bounded-Input Bounded-Output) stable if: \[ \sum_{n=-\infty}^{\infty} |h(n)| < \infty \] Step 3: Stability Condition in the Z-Domain:
- The system is BIBO stable if all poles lie inside the unit circle (\( |z| < 1 \)).
- If all poles are outside the unit circle, the system is not BIBO stable. Step 4: Causality Condition:
- A system is causal if its Region of Convergence (ROC) is outside the outermost pole.
- However, if all poles are outside the unit circle, the ROC is not valid for causality in practical systems. Step 5: Evaluating options:
- (A) Incorrect: The system is not necessarily causal.
- (B) Incorrect: The system is not BIBO stable.
- (C) Incorrect: The system is neither BIBO stable nor causal.
- (D) Correct: Since the system is neither BIBO stable nor causal, the correct choice is None of the above. Quick Tip: For a discrete-time system to be BIBO stable, all poles must be inside the unit circle. If all poles are outside, the system is neither BIBO stable nor causal.

Step 1: The Discrete Fourier Transform (DFT) is computed using the formula: \[ X(k) = \sum_{n=0}^{N-1} x(n) W_N^{kn}, \quad k = 0,1,\dots,N-1 \] where \( W_N = e^{-j2\pi/N} \) is the twiddle factor. Step 2: Computational Complexity:
- Each output \( X(k) \) requires summing over \( N \) terms.
- Each term involves one complex multiplication.
- Since there are \( N \) outputs, the total number of complex multiplications is: \[ N^2 \] - Each summation involves \( (N-1) \) complex additions.
- Since there are \( N \) outputs, the total number of complex additions is: \[ N(N-1) \] Step 3: Evaluating options:
- (A) Correct: \( N^2 \) complex multiplications and \( N(N-1) \) complex additions.
- (B) Incorrect: Complex additions and multiplications are swappe(D)
- (C) Incorrect: Addition count is incorrectly given as \( N(N+1) \).
- (D) Incorrect: Both operations are incorrectly counte(D) Quick Tip: For an \( N \)-point DFT, the computational complexity is: - \( N^2 \) complex multiplications. - \( N(N-1) \) complex additions. For FFT, this is reduced to \( O(N \log N) \).

Step 1: The linearity property of the \( z \)-transform states: \[ \mathcal{Z} \{ a x(n) + b y(n) \} = a X(z) + b Y(z) \] where: - \( x(n) \leftrightarrow X(z) \), - \( y(n) \leftrightarrow Y(z) \), - \( a \) and \( b \) are constants. Step 2: Evaluating the given options:
- (A) Incorrect: The \( z \)-transform of a sum is the sum of individual transforms, not their product.
- (B) Correct: \( x(n) + y(n) \) transforms to \( X(z) + Y(z) \), satisfying linearity.
- (C) Incorrect: The product of signals in time does not result in an addition of their transforms.
- (D) Incorrect: The product of signals in time corresponds to convolution in the \( z \)-domain, not multiplication. Quick Tip: The linearity property of the \( z \)-transform states that \( \mathcal{Z} \{ x(n) + y(n) \} = X(z) + Y(z) \), meaning the transformation preserves addition.

Step 1: The frequency response of a rectangular window is given by the sinc function: \[ W(f) = \frac{\sin(\pi M f)}{\sin(\pi f)} \] where \( M \) is the window length. Step 2: The main lobe width of the sinc function is determined by the first zero crossings, which occur at: \[ f = \pm \frac{1}{M} \] Step 3: The total width of the main lobe in the frequency domain is: \[ \Delta \omega = \frac{4\pi}{M} \] Step 4: Evaluating options:
- (A) Incorrect: \( \frac{\pi}{M} \) is too narrow.
- (B) Incorrect: \( \frac{2\pi}{M} \) does not match the main lobe width.
- (C) Correct: \( \frac{4\pi}{M} \) matches the correct main lobe width.
- (D) Incorrect: \( \frac{8\pi}{M} \) is too wide. Quick Tip: For a rectangular window, the main lobe width of the frequency response is \( \frac{4\pi}{M} \). The wider the window, the narrower the main lobe.

Step 1: The twiddle factor in the FFT is defined as: \[ W_N = e^{-j\frac{2\pi}{N}} \] where \( W_N^k \) represents the \( k \)th power of the twiddle factor for an \( N \)-point FFT. Step 2: Given: \[ W_4^1 = W_x^2 \] Substituting the definition of the twiddle factor: \[ e^{-j\frac{2\pi}{4} \times 1} = e^{-j\frac{2\pi}{x} \times 2} \] Step 3: Simplifying: \[ e^{-j\frac{2\pi}{4}} = e^{-j\frac{4\pi}{x}} \] Equating exponents: \[ \frac{2\pi}{4} = \frac{4\pi}{x} \] \[ \frac{\pi}{2} = \frac{4\pi}{x} \] Solving for \( x \): \[ x = 4 \] Step 4: Evaluating options:
- (A) Incorrect: \( x = 2 \) does not satisfy the equation.
- (B) Correct: \( x = 4 \) is the correct answer.
- (C) Incorrect: \( x = 8 \) does not match.
- (D) Incorrect: \( x = 16 \) is incorrect. Quick Tip: The twiddle factor in FFT is given by \( W_N = e^{-j\frac{2\pi}{N}} \). When equating twiddle factors, always compare exponents carefully.

Step 1: A Finite Impulse Response (FIR) filter is defined by the convolution sum: \[ y(n) = \sum_{k=0}^{M-1} b_k x(n-k) \] where:
- \( x(n) \) is the input signal,
- \( y(n) \) is the output signal,
- \( b_k \) are the filter coefficients,
- \( M \) is the filter length. Step 2: FIR filters are non-recursive, meaning they only depend on current and past input values. Step 3: Evaluating the given options:
- (A) Incorrect: The upper limit should be \( M-1 \), not \( M \).
- (B) Incorrect: FIR filters use past values, not future values (\( x(n+k) \)).
- (C) Correct: Matches the standard FIR filter definition.
- (D) Incorrect: Uses \( x(n+k) \), which does not define a standard FIR filter.
Quick Tip: A FIR filter is implemented using convolution: \( y(n) = \sum_{k=0}^{M-1} b_k x(n-k) \). It depends only on past and current inputs.

Step 1: The characteristic impedance (or surge impedance) of a lossless transmission line is given by: \[ Z_0 = \sqrt{\frac{L}{C}} \] where:
- \( L \) is the inductance per unit length (H/m),
- \( C \) is the capacitance per unit length (F/m). Step 2: This formula is derived from the transmission line equation, considering a lossless line where resistance (\( R \)) and conductance (\( G \)) are negligible. Step 3: Evaluating options:
- (A) Incorrect: The correct formula has \( L \) in the numerator, not \( C \).
- (B) Correct: \( \sqrt{\frac{L}{C}} \) is the correct surge impedance expression.
- (C) Incorrect: \( \frac{1}{\sqrt{LC}} \) is incorrect.
- (D) Incorrect: \( \sqrt{LC} \) does not represent surge impedance. Quick Tip: The surge impedance of a lossless transmission line is \( Z_0 = \sqrt{\frac{L}{C}} \). It plays a crucial role in impedance matching and wave propagation.

Step 1: Definition of Time Lag for Breakdown The time lag for breakdown in gaseous insulation refers to the delay between the application of a voltage higher than the breakdown voltage and the actual occurrence of breakdown. Step 2: Breakdown Time Lag Components
The time lag consists of:
- Statistical time lag: Time required for the formation of a free electron to initiate breakdown.
- Formative time lag: Time taken for avalanche multiplication to result in complete breakdown.
Step 3: Evaluating options:
- (A) Incorrect: Breakdown occurs in gases under different conditions, not necessarily under pulse application.
- (B) Incorrect: Voltage rise is independent of the breakdown time lag.
- (C) Correct: Time lag is defined as the delay between applied voltage and breakdown occurrence.
- (D) Incorrect: Ionization is a part of the process but does not fully define the time lag. Quick Tip: The time lag for breakdown is the delay between voltage application and the actual breakdown, influenced by statistical and formative factors.

Step 1: Impulse Testing of Transformers Impulse testing is conducted to assess the insulation strength of transformers under transient voltage conditions, simulating lightning surges or switching surges. Step 2: Fault Detection Methods During impulse testing, faults are identified using oscillographic analysis of current and voltage waveforms. - Neutral Current Oscillogram:
- Used to detect internal insulation faults in transformers.
- A sudden change in the waveform indicates insulation failure. - Chopped Wave Oscillogram:
- Helps in overvoltage withstand testing but is not primarily used for fault location. Step 3: Evaluating options:
- (A) Correct: Neutral current oscillogram effectively detects faults in impulse testing.
- (B) Incorrect: Chopped wave tests insulation performance but not specific fault locations.
- (C) Incorrect: Noise or smoke observation is not a precise fault detection metho(D)
- (D) Incorrect: Scanning is not a standard practice in transformer impulse testing. Quick Tip: In transformer impulse testing, faults are located using the neutral current oscillogram, which shows waveform distortions indicating insulation failure.

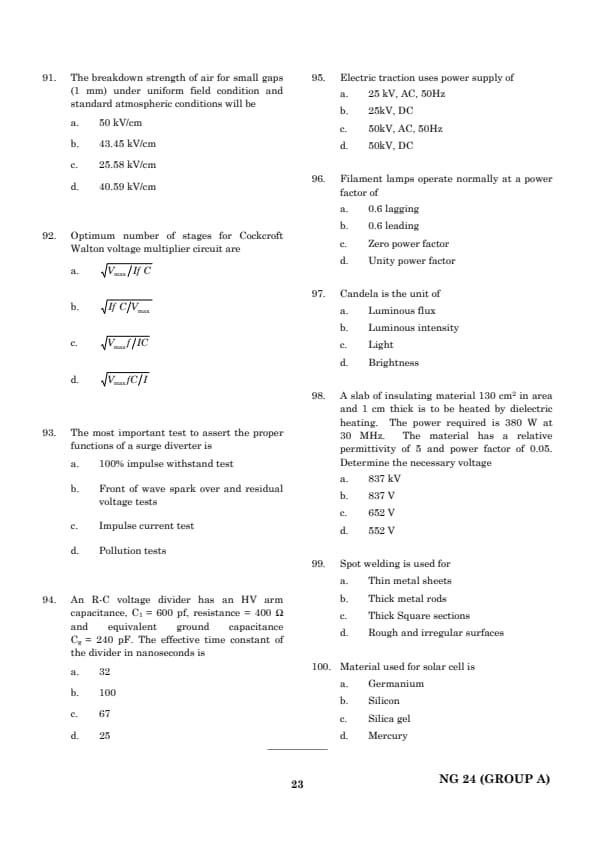

Step 1: Cockcroft-Walton Voltage Multiplier The Cockcroft-Walton (CW) multiplier is a circuit used to generate high DC voltages from an AC input using stages of capacitors and diodes. Step 2: Optimum Number of Stages The voltage drop in a CW multiplier increases with the number of stages, which affects efficiency. The optimum number of stages (\( n \)) is given by: \[ n_{\text{opt}} = \sqrt{\frac{V_{\max}}{I f C}} \] where:
- \( V_{\max} \) = Maximum output voltage,
- \( I \) = Load current,
- \( f \) = Frequency of AC supply,
- \( C \) = Capacitance of the multiplier capacitors. Step 3: Evaluating options:
- (A) Correct: Matches the standard equation for optimal stage number.
- (B) Incorrect: Inverted ratio, incorrect formul(A)
- (C) Incorrect: Incorrect placement of terms.
- (D) Incorrect: Incorrect expression for capacitance impact. Quick Tip: The optimum number of stages in a Cockcroft-Walton voltage multiplier is given by: \[ n_{\text{opt}} = \sqrt{\frac{V_{\max}}{I f C}} \] Balancing capacitance, frequency, and load current helps optimize voltage gain efficiency.

Step 1: Surge Diverter (Lightning Arrester) Testing A surge diverter (lightning arrester) is used to protect electrical equipment from high transient voltages caused by lightning or switching surges. Step 2: Impulse Current Test The most critical test for verifying a surge diverter's performance is the impulse current test, which ensures:
- The diverter can withstand high impulse currents from lightning strikes.
- It operates correctly to divert excess voltage safely. Step 3: Evaluating options:
- (A) Incorrect: Impulse withstand tests evaluate insulation strength but are not the primary test for surge diverters.
- (B) Incorrect: Spark over and residual voltage tests measure breakdown voltage but do not fully validate operational performance.
- (C) Correct: The impulse current test is the primary test ensuring proper function.
- (D) Incorrect: Pollution tests check environmental resistance but are not the most crucial test. Quick Tip: The impulse current test is the most important test for a surge diverter, ensuring it can handle lightning and switching surges effectively.

Step 1: Effective Capacitance Calculation The total effective capacitance for an R-C voltage divider is given by: \[ C_{\text{eff}} = \frac{C_1 C_g}{C_1 + C_g} \] Substituting given values: \[ C_{\text{eff}} = \frac{(600 \times 240)}{(600 + 240)} \text{ pF} \] \[ C_{\text{eff}} = \frac{144000}{840} = 171.43 \text{ pF} \] Step 2: Time Constant Calculation The time constant \( \tau \) is given by: \[ \tau = R \cdot C_{\text{eff}} \] \[ \tau = 400 \times 171.43 \text{ ps} \] \[ \tau = 68571.43 \text{ ps} = 68.57 \text{ ns} \approx 67 \text{ ns} \] Step 3: Evaluating options:
- (A) Incorrect: 32 ns is too low.
- (B) Incorrect: 100 ns is an overestimation.
- (C) Correct: \( 67 \) ns matches the computed result.
- (D) Incorrect: 25 ns is too low. Quick Tip: The effective time constant of an R-C voltage divider is computed using: \[ \tau = R \cdot \frac{C_1 C_g}{C_1 + C_g} \] For accurate impulse response analysis in high-voltage systems.

Step 1: Electric Traction Power System Electric railway traction systems predominantly use single-phase 25 kV AC at 50 Hz, which is the global standard for high-speed and mainline railways. Step 2: Why 25 kV AC?
- High Voltage (25 kV) Benefits: Reduces current and minimizes power losses.
- AC vs. DC: AC systems allow for efficient power transmission over long distances.
- 50Hz Frequency: Compatible with most power grids worldwide. Step 3: Evaluating options:
- (A) Correct: 25 kV AC at 50 Hz is the standard for electric traction.
- (B) Incorrect: DC traction is used in older urban metro systems, but high-speed rail uses A(C)
- (C) Incorrect: 50 kV is not a standard traction voltage.
- (D) Incorrect: 50 kV DC is not used in railway traction. Quick Tip: Most modern railway traction systems use single-phase 25 kV AC at 50 Hz, ensuring efficient transmission and reduced power losses.

Step 1: Understanding Power Factor The power factor of an electrical load is defined as: \[ \text{Power Factor} = \cos \theta = \frac{\text{Real Power}}{\text{Apparent Power}} \] Step 2: Power Factor of Filament Lamps
- Filament lamps (incandescent lamps) consist of a resistive heating element (usually tungsten).
- In a purely resistive circuit, voltage and current are in phase, leading to a unity power factor (\( \cos \theta = 1 \)). Step 3: Evaluating options:
- (A) Incorrect: A lagging power factor is associated with inductive loads (motors, transformers).
- (B) Incorrect: A leading power factor is associated with capacitive loads.
- (C) Incorrect: A zero power factor is observed in circuits dominated by pure reactance (inductors or capacitors).
- (D) Correct: Filament lamps have a unity power factor as they behave like a pure resistive loa(D) Quick Tip: Filament lamps operate at a unity power factor (\( PF = 1 \)), since they behave like a pure resistive load with no inductive or capacitive effects.

Step 1: Understanding Candela (cd) The candela (cd) is the SI unit of luminous intensity, which represents the amount of light emitted by a source in a particular direction. Step 2: Differentiating Related Terms
- Luminous flux (lumen, lm): Measures the total visible light output from a source.
- Luminous intensity (candela, cd): Measures the light emitted per unit solid angle in a specific direction.
- Light: A general term, not a specific unit.
- Brightness: A subjective measure of perceived light, not an SI unit. Step 3: Evaluating options:
- (A) Incorrect: Luminous flux is measured in lumens (lm), not candel(A)
- (B) Correct: Luminous intensity is measured in candela (cd).
- (C) Incorrect: Light is a general term, not a physical unit.
- (D) Incorrect: Brightness is a subjective perception, not an SI unit. Quick Tip: The candela (cd) is the SI unit of luminous intensity, which measures the visible light emitted in a particular direction.

Step 1: Dielectric Heating Power Formula The power dissipated in dielectric heating is given by: \[ P = \pi f V^2 C \tan \delta \] where:
- \( P \) = power (380 W),
- \( f \) = frequency (30 MHz = \( 30 \times 10^6 \) Hz),
- \( V \) = applied voltage (to be determined),
- \( C \) = capacitance of the dielectric material,
- \( \tan \delta \) = power factor (0.05). Step 2: Capacitance Calculation Capacitance of a parallel plate capacitor is given by: \[ C = \frac{\varepsilon_0 \varepsilon_r A}{d} \] where:
- \( \varepsilon_0 \) = permittivity of free space (\( 8.854 \times 10^{-12} \) F/m),
- \( \varepsilon_r \) = relative permittivity (5),
- \( A \) = area (\( 130 \times 10^{-4} \) m\(^2\)),
- \( d \) = thickness (0.01 m). \[ C = \frac{(8.854 \times 10^{-12} \times 5) \times (130 \times 10^{-4})}{0.01} \] \[ C = 5.75 \times 10^{-12} \text{ F} \] Step 3: Voltage Calculation Rearranging the power equation: \[ V = \sqrt{\frac{P}{\pi f C \tan \delta}} \] Substituting the values: \[ V = \sqrt{\frac{380}{\pi \times (30 \times 10^6) \times (5.75 \times 10^{-12}) \times 0.05}} \] \[ V = \sqrt{\frac{380}{\pi \times 8.625 \times 10^{-5}}} \] \[ V = \sqrt{1.4 \times 10^7} \] \[ V \approx 837 V \] Step 4: Evaluating options: - (A) Incorrect: 837 kV is an overestimation. - (B) Correct: 837 V matches the computed result. - (C) Incorrect: 652 V is too low. - (D) Incorrect: 552 V is incorrect. Quick Tip: For dielectric heating, the required voltage is calculated using: \[ V = \sqrt{\frac{P}{\pi f C \tan \delta}} \] where capacitance is derived from material properties.

Step 1: What is Spot Welding?
- Spot welding is a type of resistance welding used to join two or more metal sheets together by applying pressure and electrical current.
- It is commonly used in automobile, aerospace, and sheet metal industries. Step 2: Why Thin Metal Sheets?
- Spot welding works best for thin metal sheets (typically 0.5 mm to 3 mm thick).
- It creates localized heat at the weld points using high current, causing the sheets to fuse. Step 3: Evaluating options:
- (A) Correct: Spot welding is primarily used for thin metal sheets.
- (B) Incorrect: Thick metal rods require arc welding or friction welding.
- (C) Incorrect: Thick square sections need MIG/TIG welding for strong joints.
- (D) Incorrect: Rough or irregular surfaces are difficult to weld using spot welding. Quick Tip: Spot welding is ideal for thin metal sheets in industries like automobile and electronics due to its high-speed operation and low material distortion.

Step 1: Understanding Solar Cell Materials A solar cell (photovoltaic cell) converts sunlight into electricity through the photovoltaic effect. The efficiency and performance of solar cells depend on the material use(D) Step 2: Why Silicon?
- Silicon (Si) is the most commonly used material in solar cells due to:
- Abundance: Readily available and cost-effective.
- Semiconductor Properties: Ideal for electron flow under sunlight.
- High Efficiency: Monocrystalline and polycrystalline silicon provide high energy conversion rates. Step 3: Evaluating options:
- (A) Incorrect: Germanium is a semiconductor but less efficient than silicon in solar applications.
- (B) Correct: Silicon is the standard material for solar cells.
- (C) Incorrect: Silica gel is used for moisture absorption, not in photovoltaic cells.
- (D) Incorrect: Mercury is not used in solar cell fabrication. Quick Tip: Silicon (Si) is the primary material used in solar cells due to its high efficiency, abundance, and excellent semiconductor properties.
