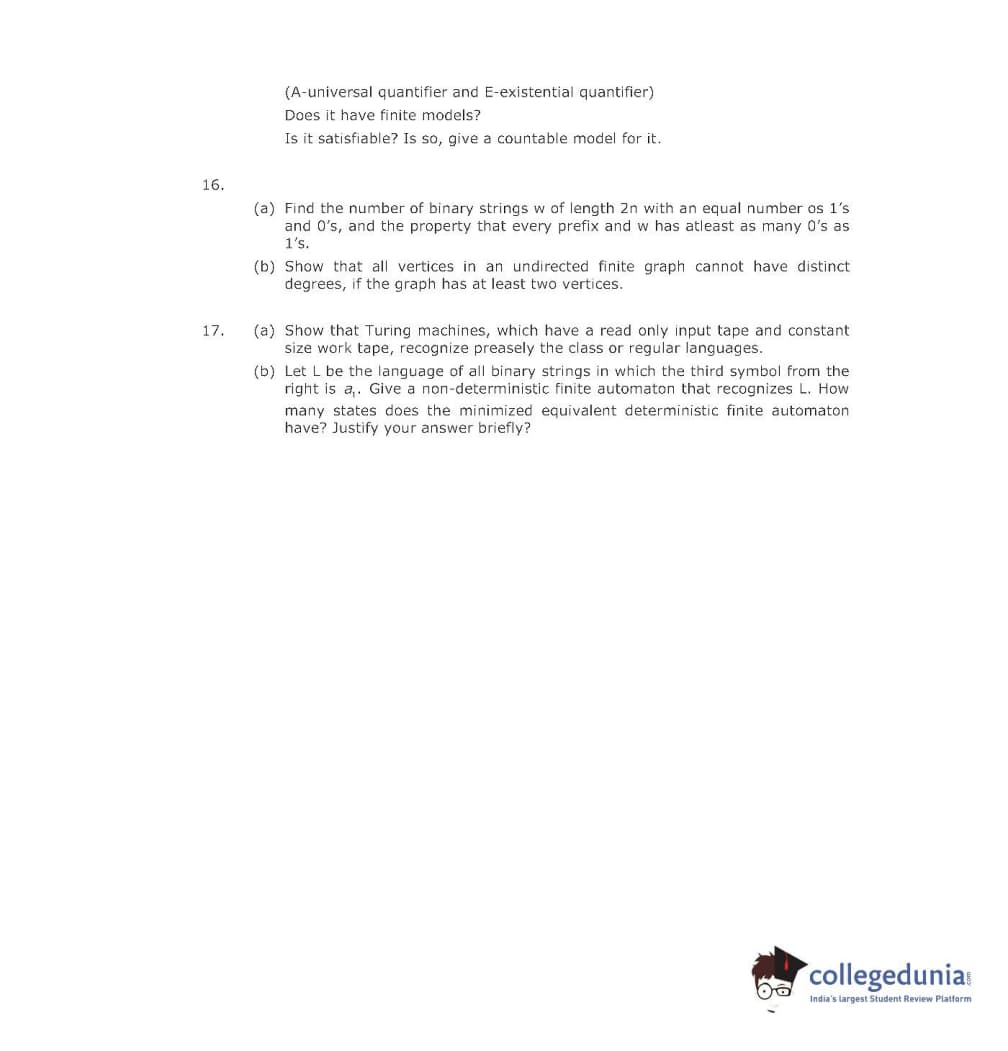

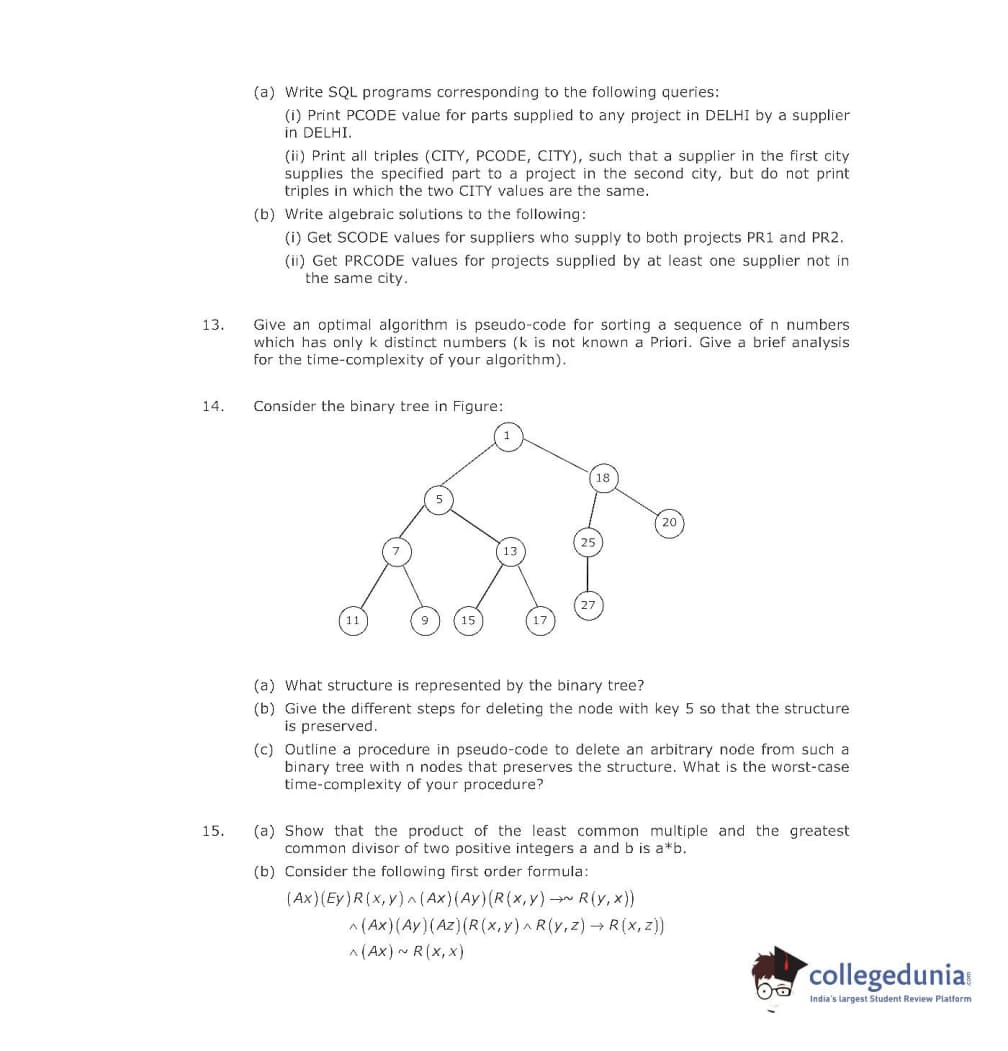

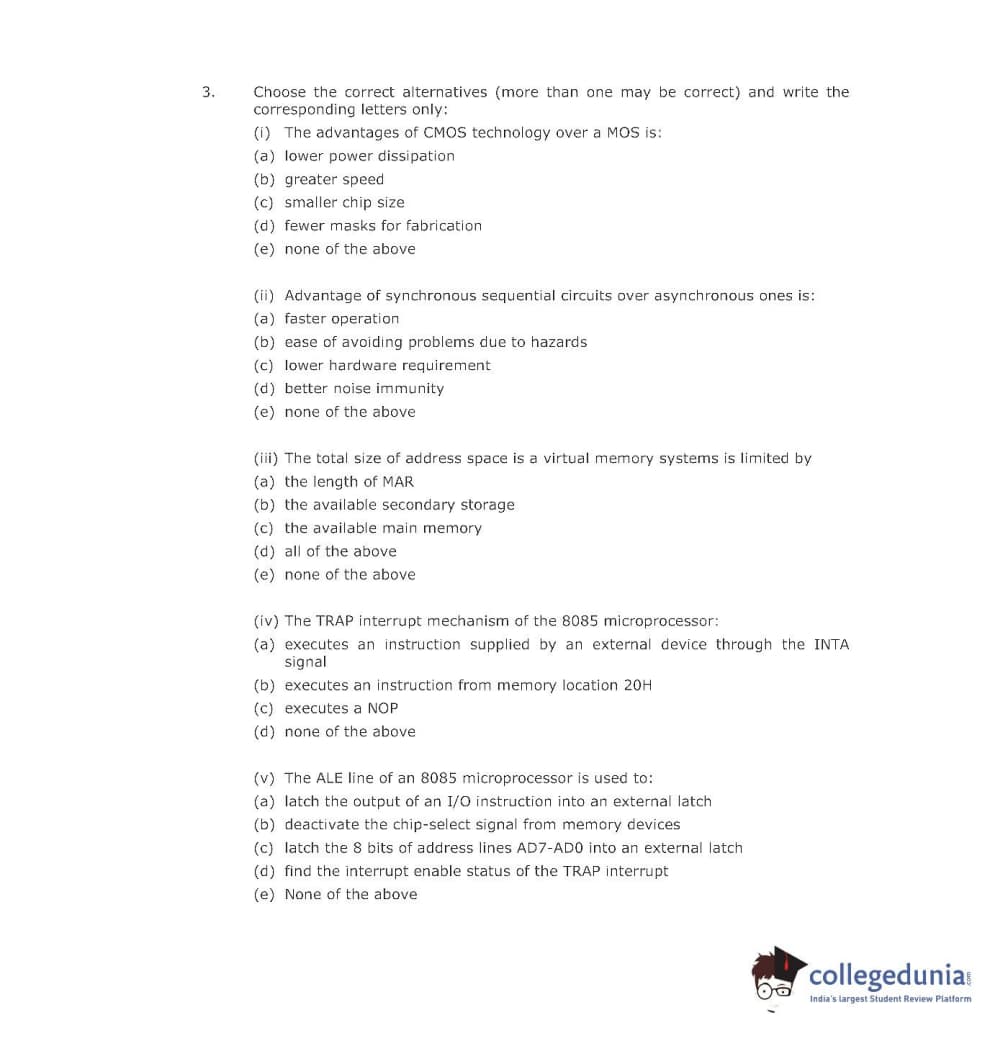

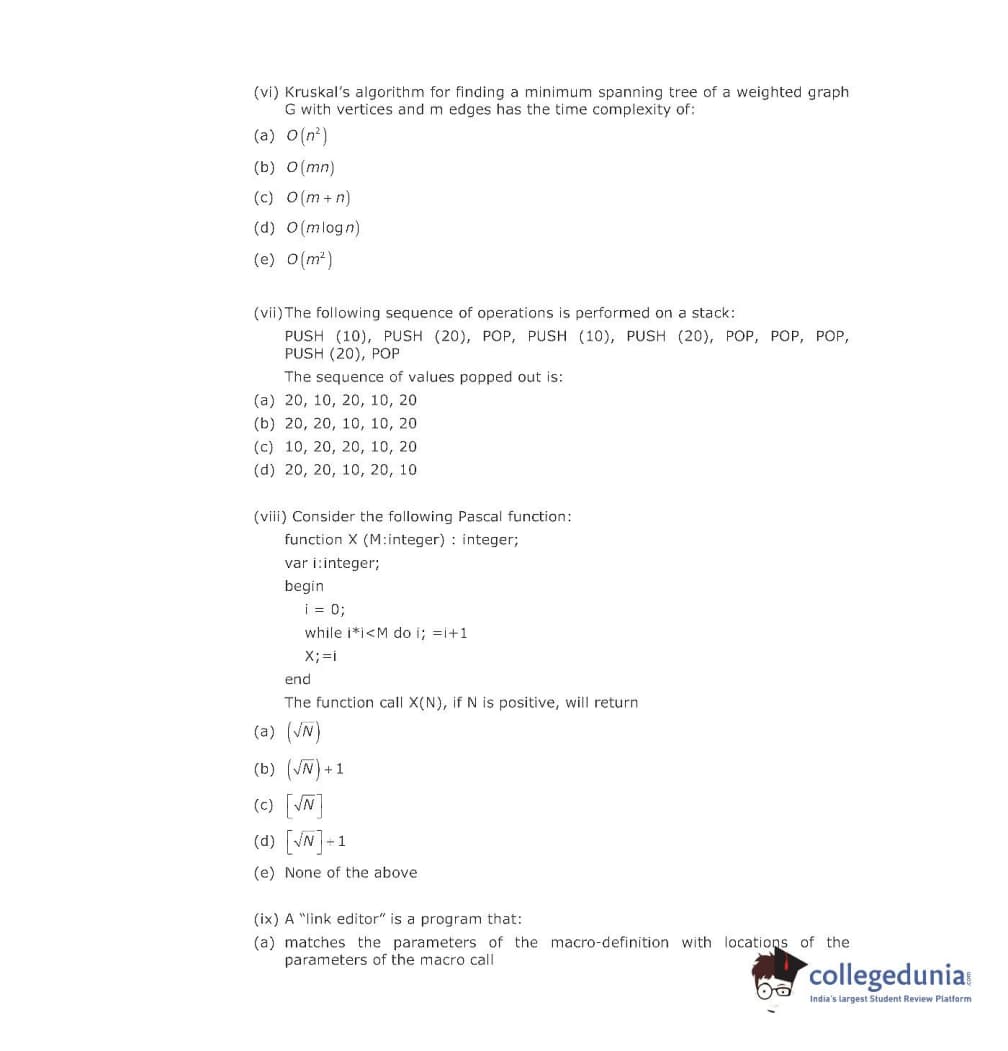

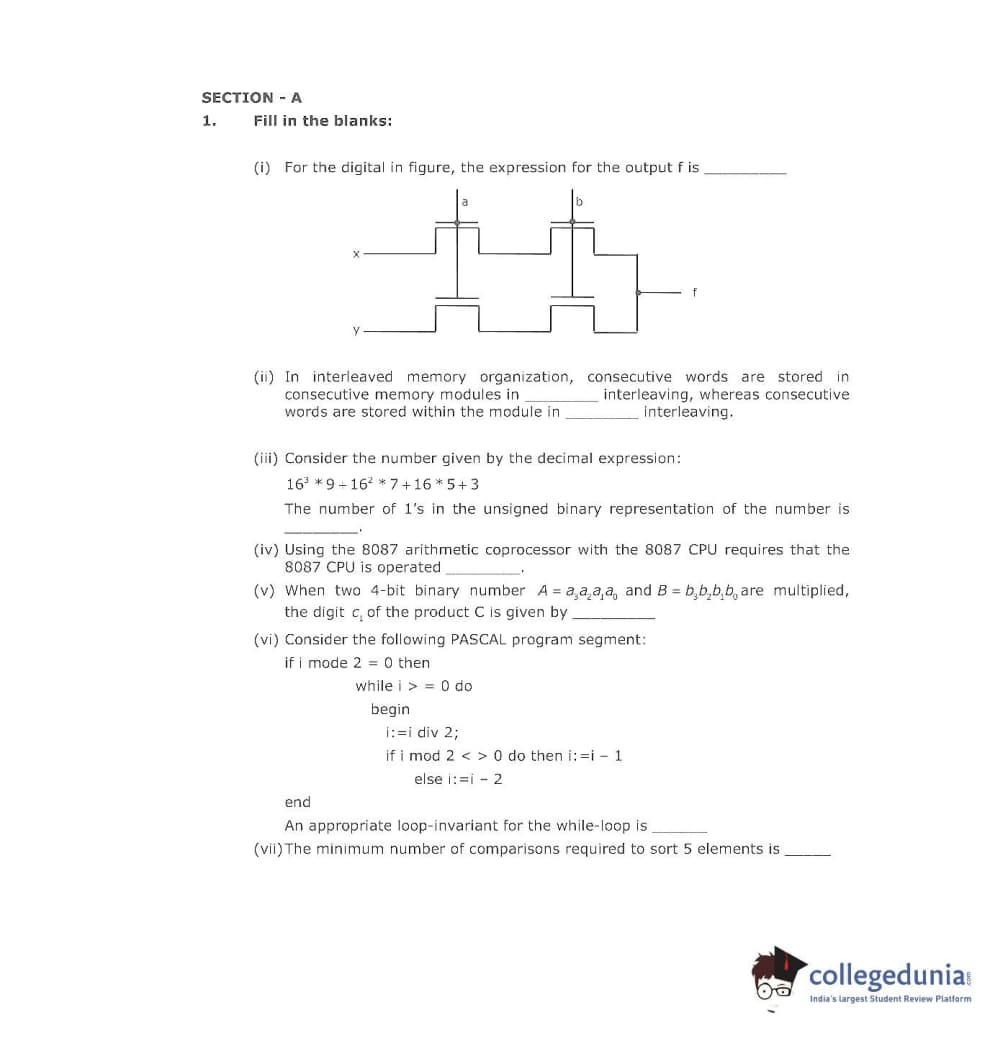

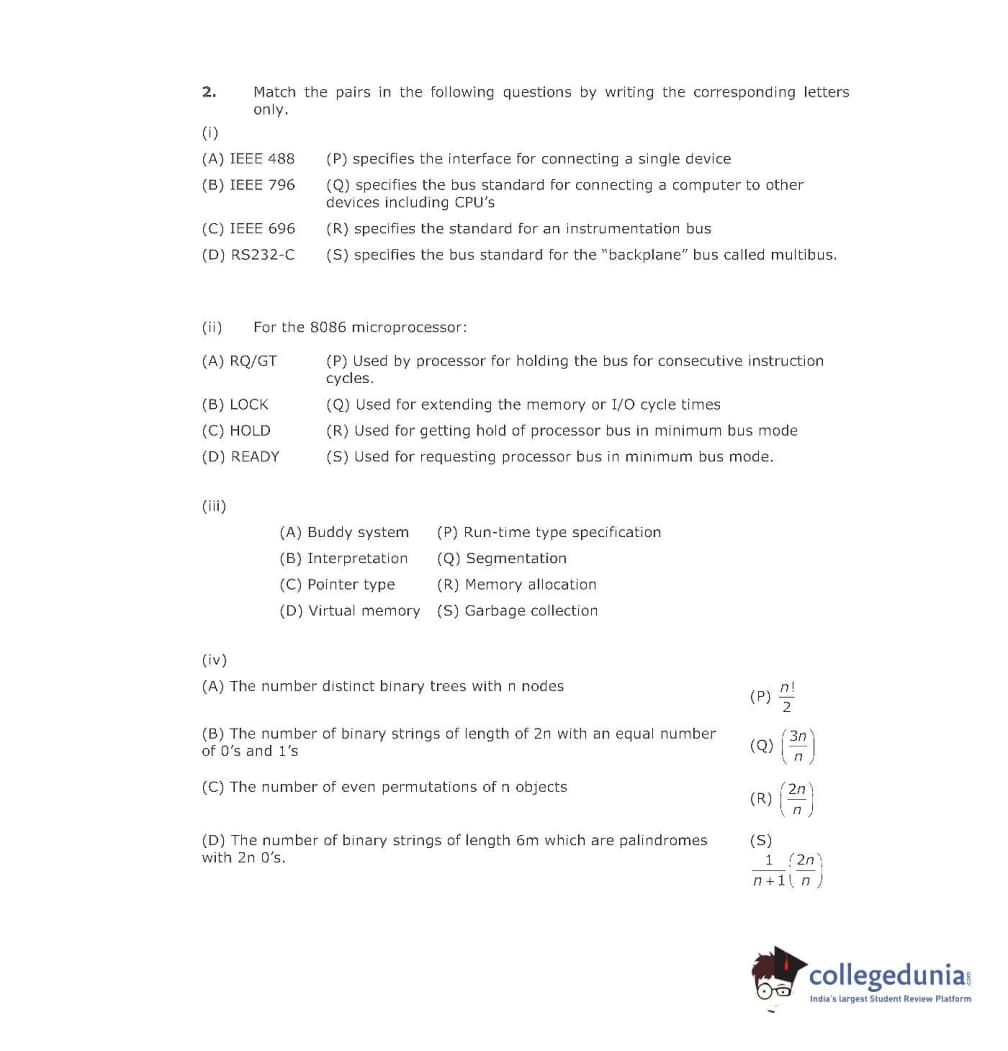

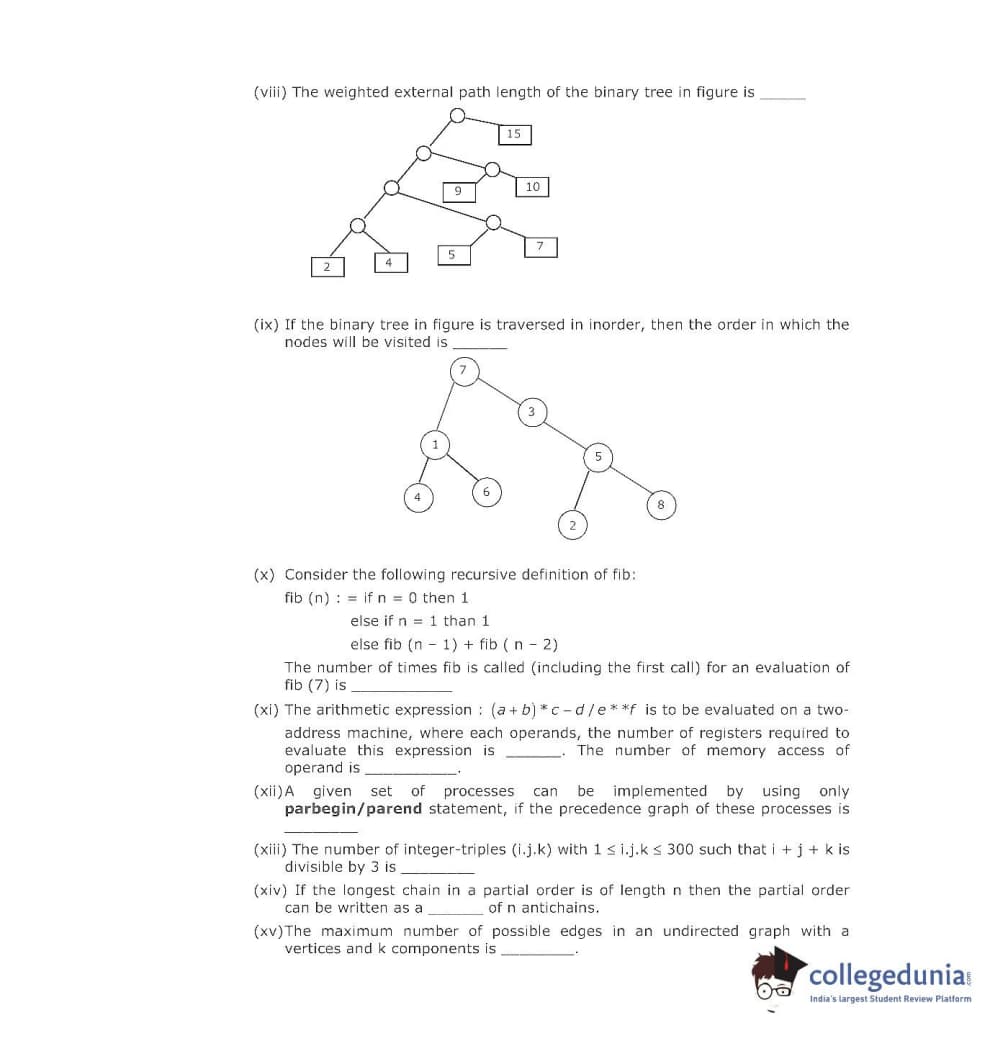

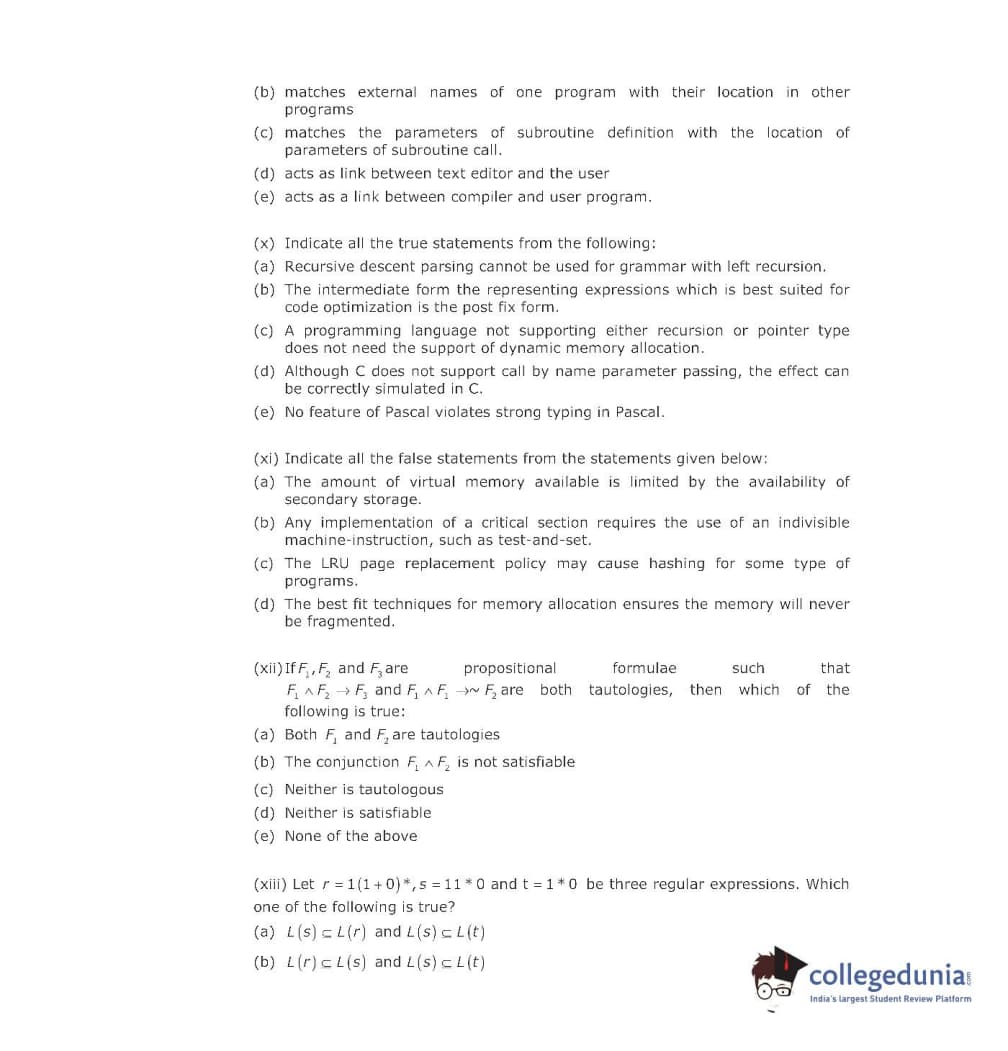

GATE 1991 Computer Science and Information Technology (CS) Question Paper with Answer Key PDFs

GATE Questions

• 1.

  The values of a function \( f \) obtained for different values of \( x \) are shown in the table below.



  Using Simpson’s one-third rule, approximate the integral \[ \int_0^1 f(x) \, dx \quad \text{(rounded off to 2 decimal places)}. \]

  View Solution

  ---

• 2.

  Consider two infinitely long fins made of the same material and exposed to the same convective environment. One fin has a square cross-section of side \(a\), and the other has a circular cross-section of diameter \(d\). Assume \(a = d\). The ratio of the steady-state heat transfer rate from the square fin to that from the circular fin, \(\frac{\dot{Q}_{\text{square}}}{\dot{Q}_{\text{circular}}}\), is:

  • \(\frac{\pi}{4}\)

  • \(\frac{4}{\pi}\)

  • \(\frac{2}{\sqrt{\pi}}\)

  • \(\frac{\sqrt{\pi}}{2}\)
  View Solution

  ---

• 3.

  A plate of 30 mm thickness is fed through a rolling mill with two powered rolls. Each roll has a diameter of 500 mm. The plate thickness is to be reduced to 27 mm in a single pass. Assume no change in width. The process feasibility and the maximum draft (in mm) can be represented, respectively, as
  Use the coefficient of friction as 0.12

  • NOT feasible and 6.0

  • NOT feasible and 2.6

  • feasible and 3.6

  • feasible and 3.0

  View Solution

  ---

• 4.

  For the differential equation given below, which one of the following options is correct? \[ \frac{\partial^2 u}{\partial x^2} + \frac{\partial^2 u}{\partial y^2} = 0, \quad 0 \leq x \leq 1, 0 \leq y \leq 1 \]

  • \( u = e^{x + y} \) is a solution for all \(x\) and \(y\)

  • \( u = e^{x} \sin y \) is a solution for all \(x\) and \(y\)

  • \( u = \sin x \sin y \) is a solution for all \(x\) and \(y\)

  • \( u = \cos x \cos y \) is a solution for all \(x\) and \(y\)

  View Solution

  ---

• 5.

  A cantilever beam of length \(L\) is fixed at the left end (\(x=0\)). It is subjected to a concentrated downward point load \(P\) and a concentrated clockwise moment \(M = \frac{PL}{2}\) at the midpoint (\(x = L/2\)). Which of the following descriptions correctly represents the Shear Force Diagram (SFD) for the beam?

  • A rectangular block of constant positive height \(P\) from \(x=0\) to \(x=L/2\), and zero shear force from \(x=L/2\) to \(x=L\).

  • A rectangular block of constant positive height \(P\) from \(x=0\) to \(x=L/2\), followed by another rectangular block of height \(P/2\) from \(x=L/2\) to \(x=L\).

  • A triangular shape increasing linearly from \(x=0\) to \(x=L/2\).

  • A rectangular block from \(x=0\) to \(x=L\), unaffected by the point load.
  View Solution

  ---

• 6.

  A vibrating system has a critical damping coefficient \(C_c = 350 \, \text{N}\cdot\text{s/m}\) and an actual damping coefficient \(C = 35 \, \text{N}\cdot\text{s/m}\). The logarithmic decrement of the system is approximately:

  • 0.10

  • 0.31

  • 0.63

  • 3.14
  View Solution
