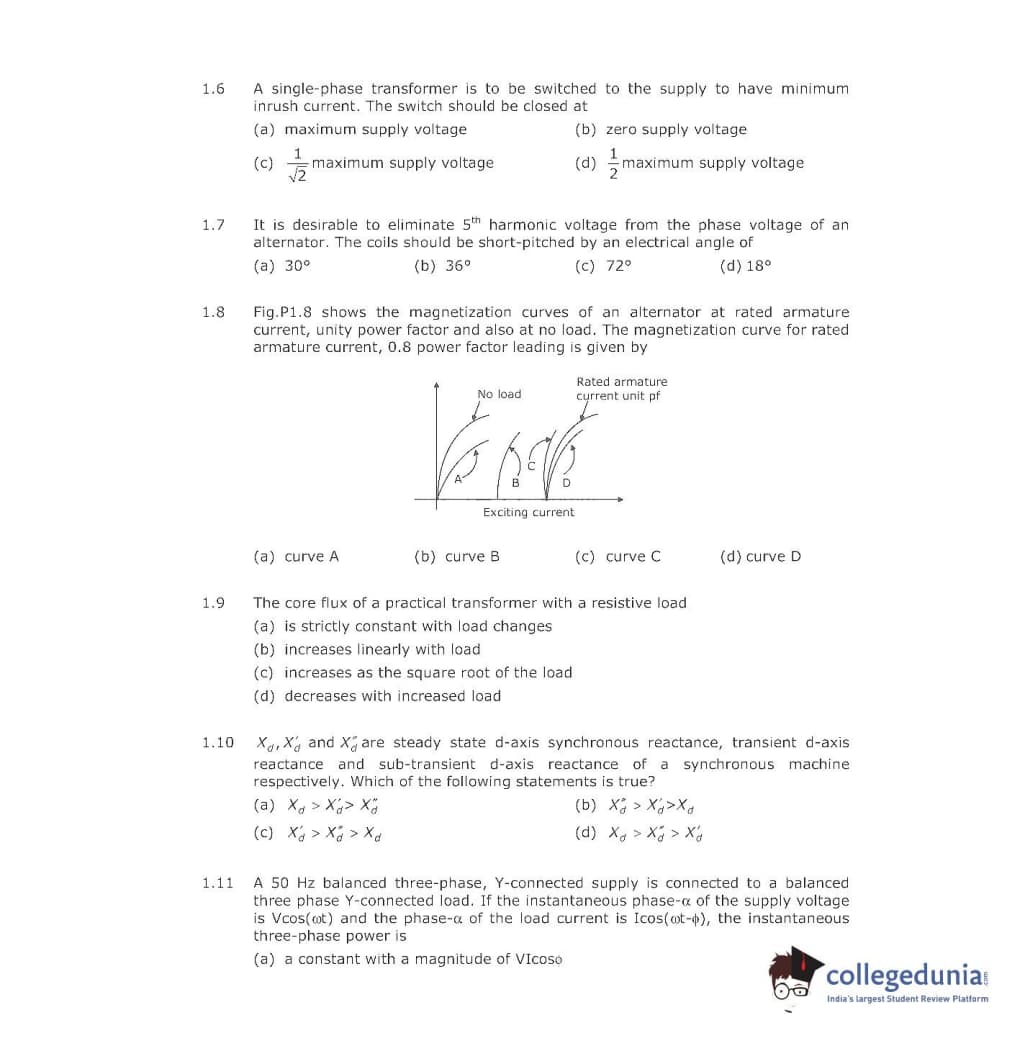

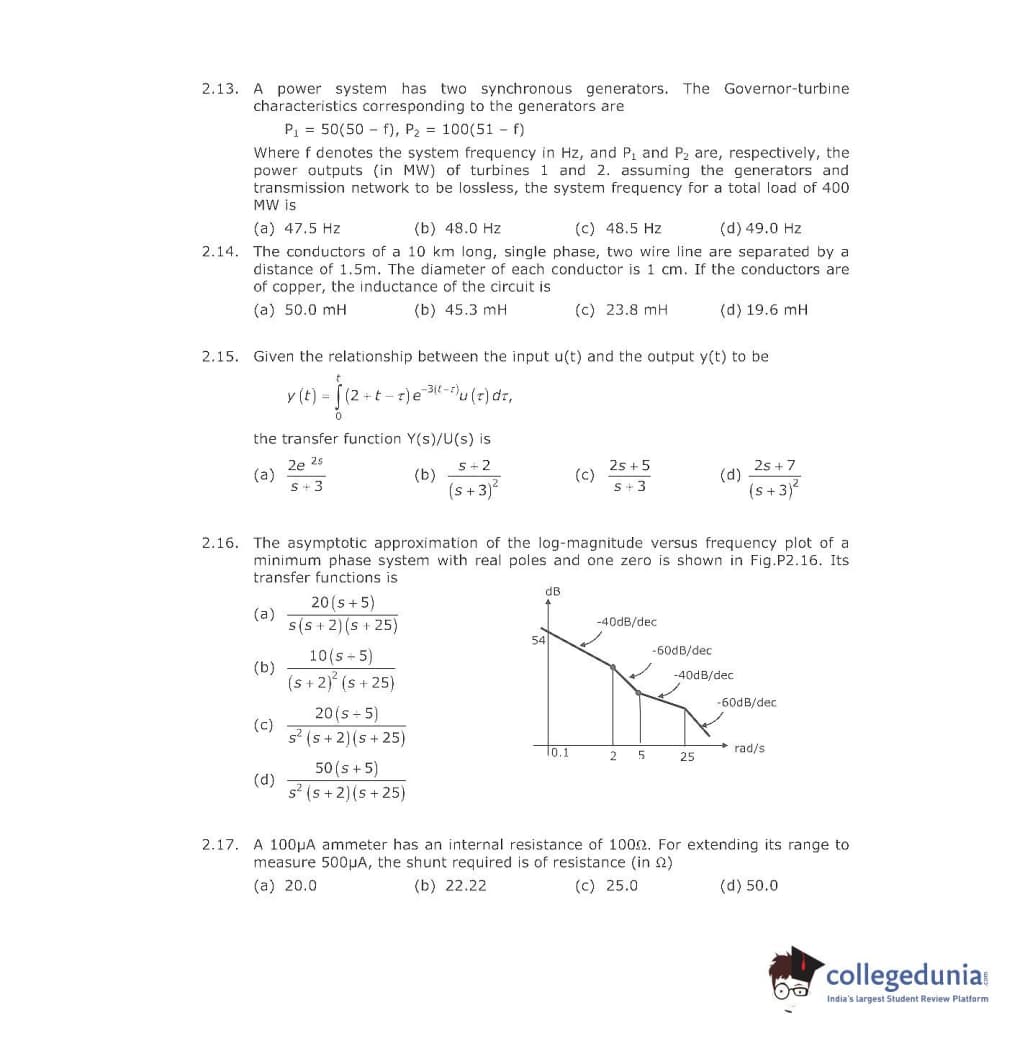

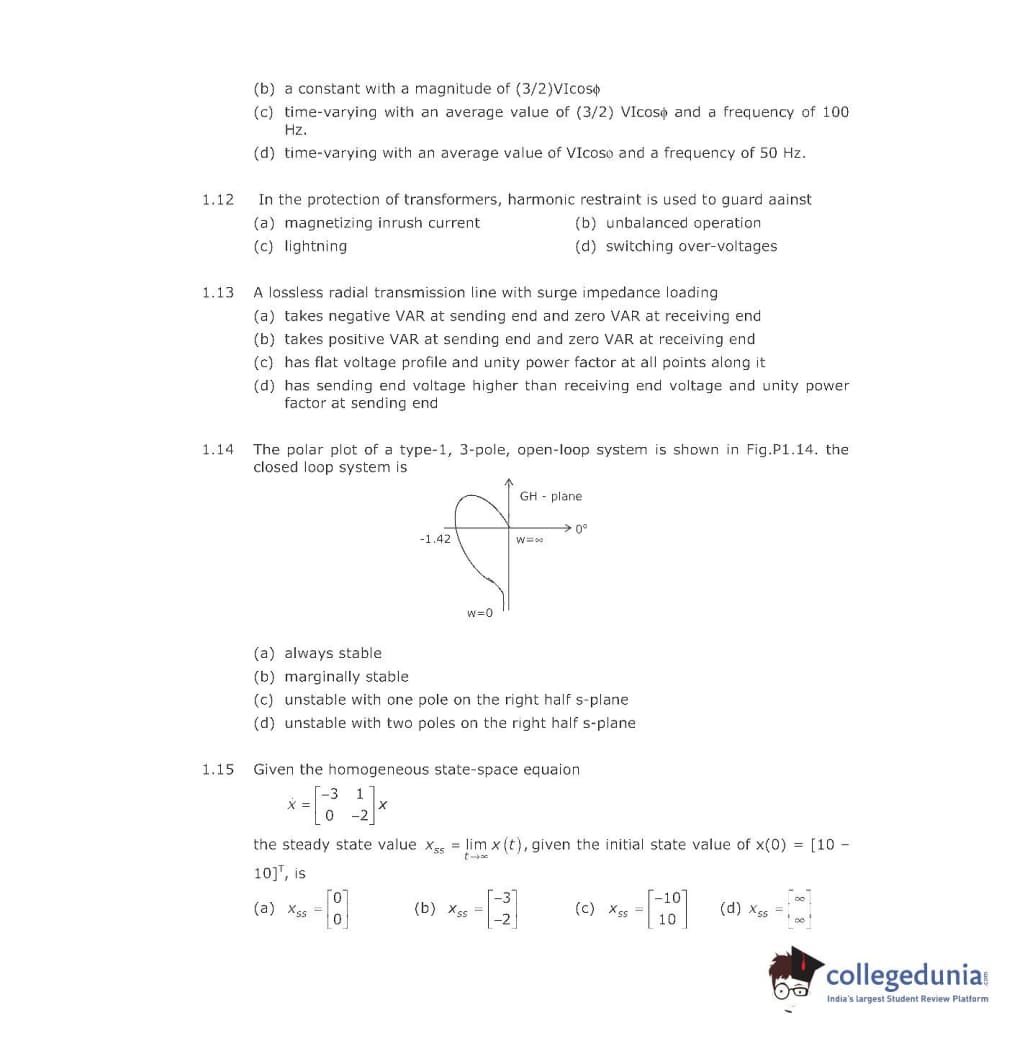

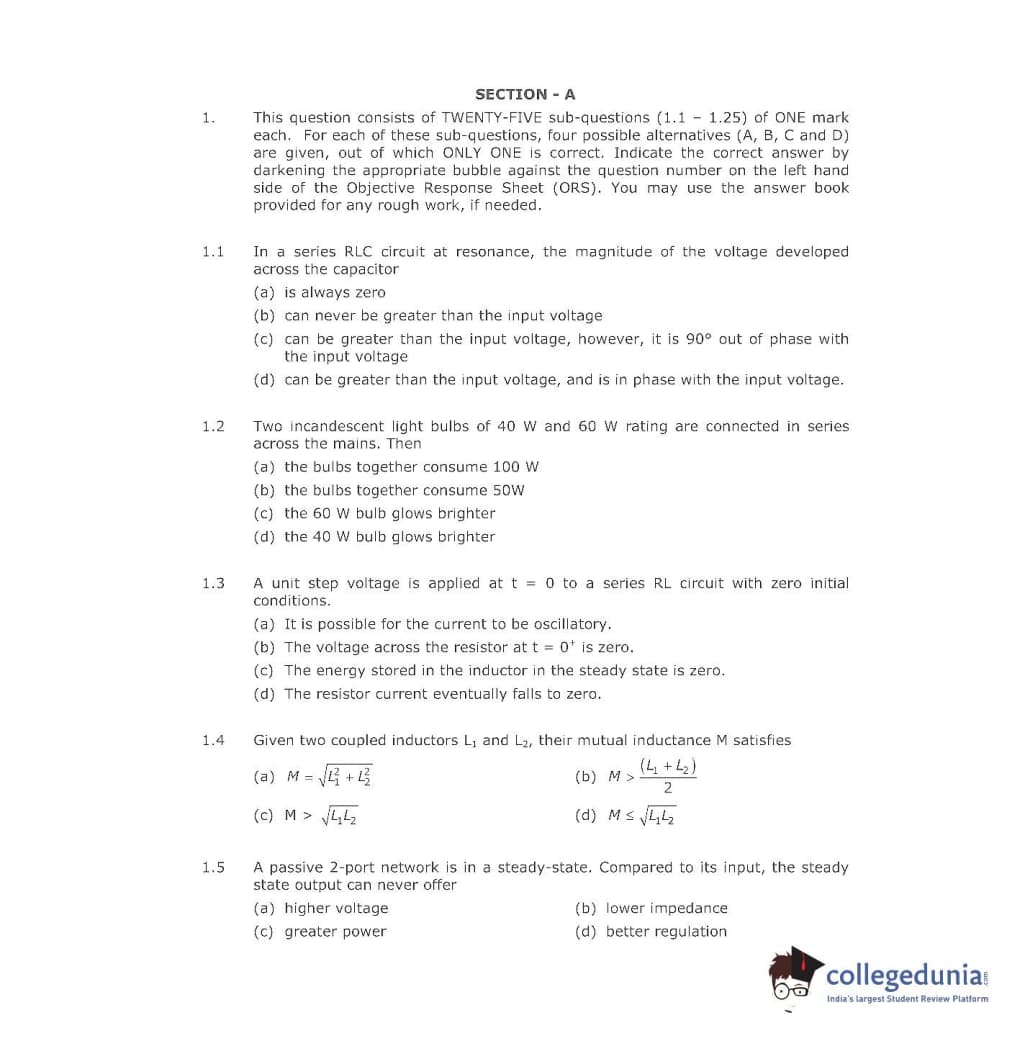

GATE 2001 Electrical Engineering (EE) Question Paper with Answer Key PDF

GATE Questions

• 1.

  Two cars, P and Q, start from a point X in India at 10 AM. Car P travels North with a speed of 25 km/h and car Q travels East with a speed of 30 km/h. Car P travels continuously but car Q stops for some time after traveling for one hour. If both cars are at the same distance from X at 11:30 AM, for how long (in minutes) did car Q stop?

  • 10

  • 12

  • 15

  • 18

  View Solution

  ---

• 2.

  Consider two infinitely long fins made of the same material and exposed to the same convective environment. One fin has a square cross-section of side \(a\), and the other has a circular cross-section of diameter \(d\). Assume \(a = d\). The ratio of the steady-state heat transfer rate from the square fin to that from the circular fin, \(\frac{\dot{Q}_{\text{square}}}{\dot{Q}_{\text{circular}}}\), is:

  • \(\frac{\pi}{4}\)

  • \(\frac{4}{\pi}\)

  • \(\frac{2}{\sqrt{\pi}}\)

  • \(\frac{\sqrt{\pi}}{2}\)
  View Solution

  ---

• 3.

  If two unbiased coins are tossed, then what is the probability of having at least one head?


  • 0.25

  • 0.5

  • 0.675

  • 0.75

  View Solution

  ---

• 4.

  A truss structure is loaded as shown in the figure below. Among the options given, which member in the truss is a zero-force member?



  \[ {Given: } F = 1000\,{N} \]

  • \(BD\)

  • \(BC\)

  • \(BA\)

  • \(AD\)
  View Solution

  ---

• 5.

  For the differential equation given below, which one of the following options is correct? \[ \frac{\partial^2 u}{\partial x^2} + \frac{\partial^2 u}{\partial y^2} = 0, \quad 0 \leq x \leq 1, 0 \leq y \leq 1 \]

  • \( u = e^{x + y} \) is a solution for all \(x\) and \(y\)

  • \( u = e^{x} \sin y \) is a solution for all \(x\) and \(y\)

  • \( u = \sin x \sin y \) is a solution for all \(x\) and \(y\)

  • \( u = \cos x \cos y \) is a solution for all \(x\) and \(y\)

  View Solution

  ---

• 6.

  Two metal parts (a cylinder and a cube) of same volume are cast under identical conditions. The diameter of the cylinder is equal to its height. The ratio of the solidification time of the cube to that of the cylinder is _______________ (rounded off to 2 decimal places).
  Assume that solidification time follows Chvorinov's rule with an exponent of 2.


  View Solution
