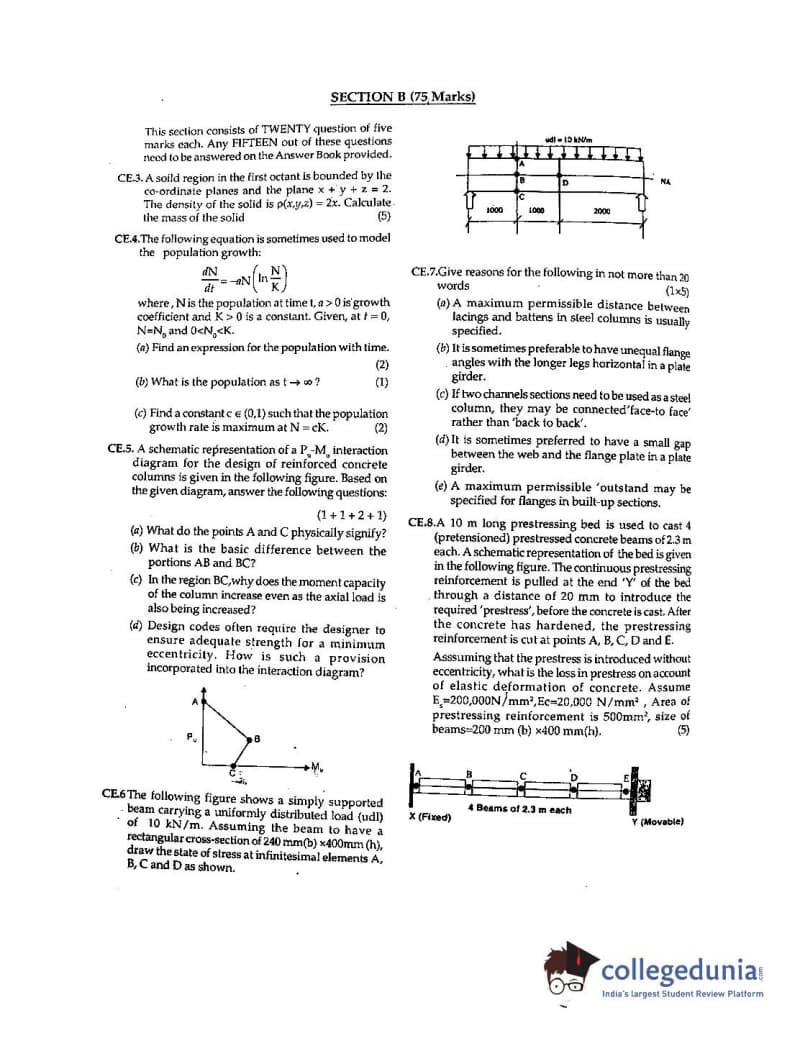

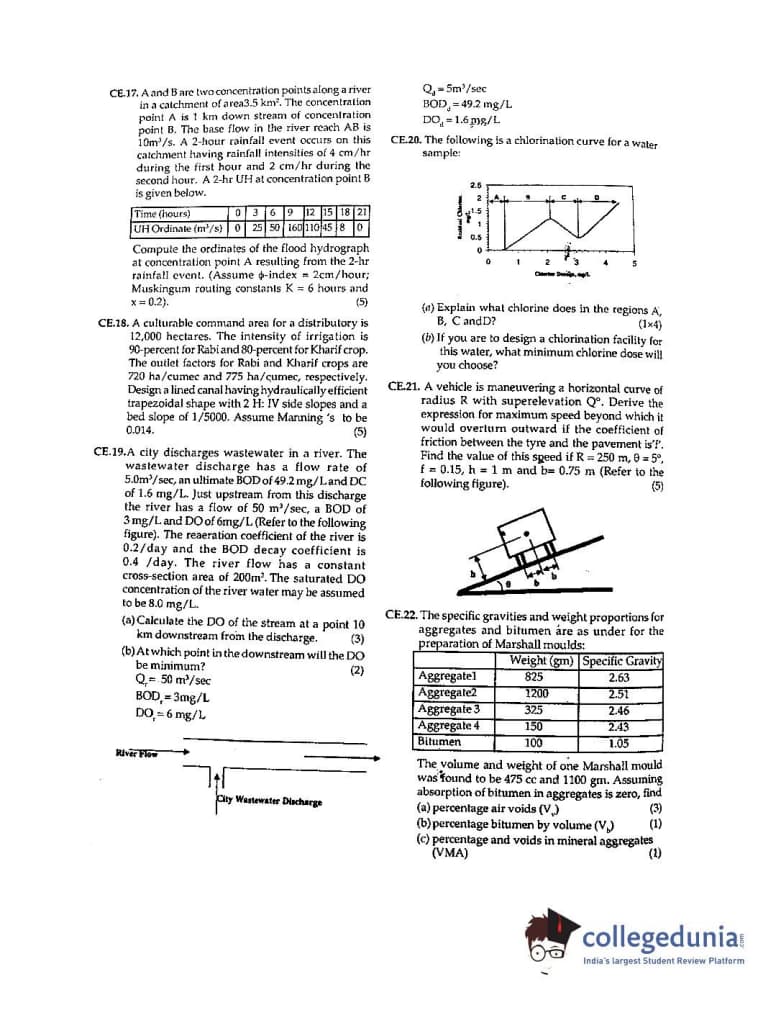

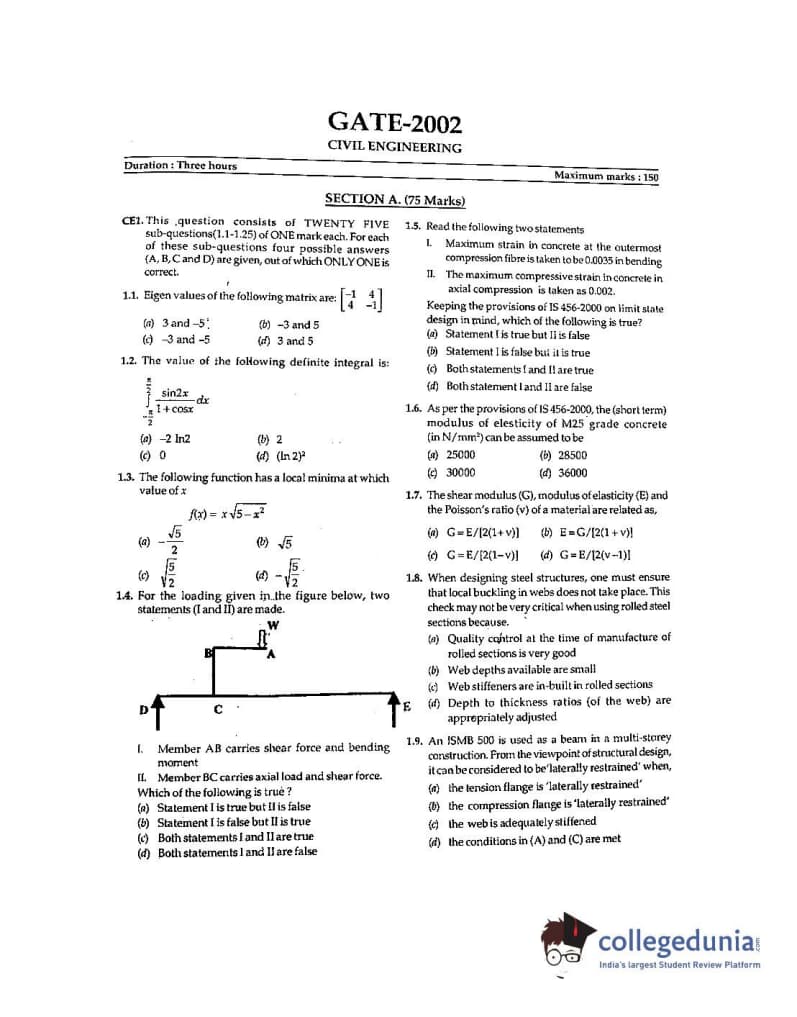

GATE 2002 Civil Engineering (CE) Question Paper with Answer Key PDFs

GATE Questions

• 1.

  The welding process commonly used for fabricating tailor-welded blanks of dissimilar thickness for automotive applications is

  • arc welding

  • laser welding

  • gas welding

  • friction welding

  View Solution

  ---

• 2.

  The values of a function \( f \) obtained for different values of \( x \) are shown in the table below.



  Using Simpson’s one-third rule, approximate the integral \[ \int_0^1 f(x) \, dx \quad \text{(rounded off to 2 decimal places)}. \]

  View Solution

  ---

• 3.

  A cantilever beam of length \(L\) is fixed at the left end (\(x=0\)). It is subjected to a concentrated downward point load \(P\) and a concentrated clockwise moment \(M = \frac{PL}{2}\) at the midpoint (\(x = L/2\)). Which of the following descriptions correctly represents the Shear Force Diagram (SFD) for the beam?

  • A rectangular block of constant positive height \(P\) from \(x=0\) to \(x=L/2\), and zero shear force from \(x=L/2\) to \(x=L\).

  • A rectangular block of constant positive height \(P\) from \(x=0\) to \(x=L/2\), followed by another rectangular block of height \(P/2\) from \(x=L/2\) to \(x=L\).

  • A triangular shape increasing linearly from \(x=0\) to \(x=L/2\).

  • A rectangular block from \(x=0\) to \(x=L\), unaffected by the point load.
  View Solution

  ---

• 4.

  The state of stress at a point is shown in the figure given below. Under plane stress assumption, the normal strain along the thickness direction (\(\epsilon_{zz}\)) is _________ (rounded off to 2 decimal places).






  View Solution

  ---

• 5.

  Two metal parts (a cylinder and a cube) of same volume are cast under identical conditions. The diameter of the cylinder is equal to its height. The ratio of the solidification time of the cube to that of the cylinder is _______________ (rounded off to 2 decimal places).
  Assume that solidification time follows Chvorinov's rule with an exponent of 2.


  View Solution

  ---

• 6.

  Consider two identical tanks with a bottom hole of diameter \( d \). One tank is filled with water and the other tank is filled with engine oil. The height of the fluid column \( h \) is the same in both cases. The fluid exit velocity in the two tanks are \( V_1 \) and \( V_2 \). Neglecting all losses, which one of the following options is correct?






  • \( V_2>V_1 \)

  • \( V_2 = V_1 \)

  • \( V_2<V_1 \)

  • Insufficient data to definitively conclude the relationship between \( V_1 \) and \( V_2 \)

  View Solution
