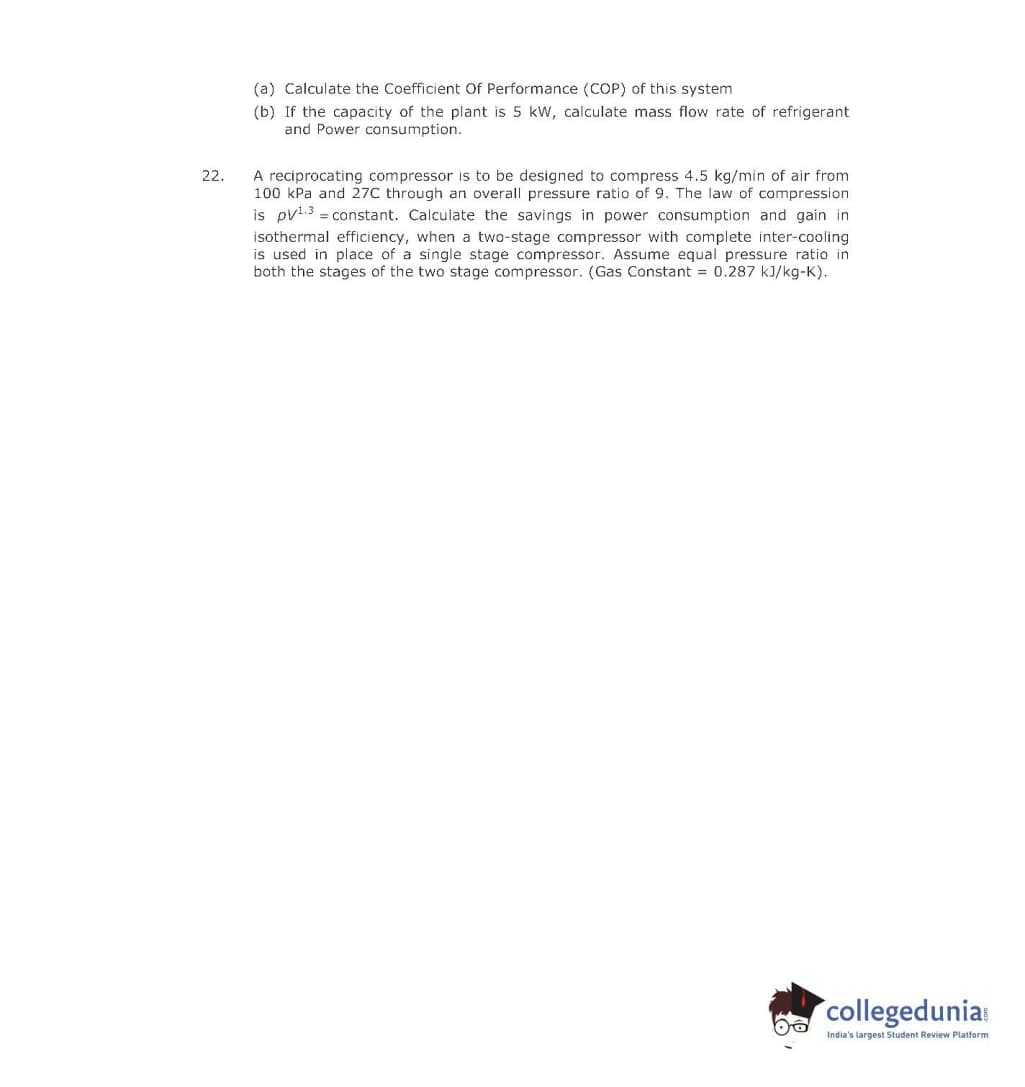

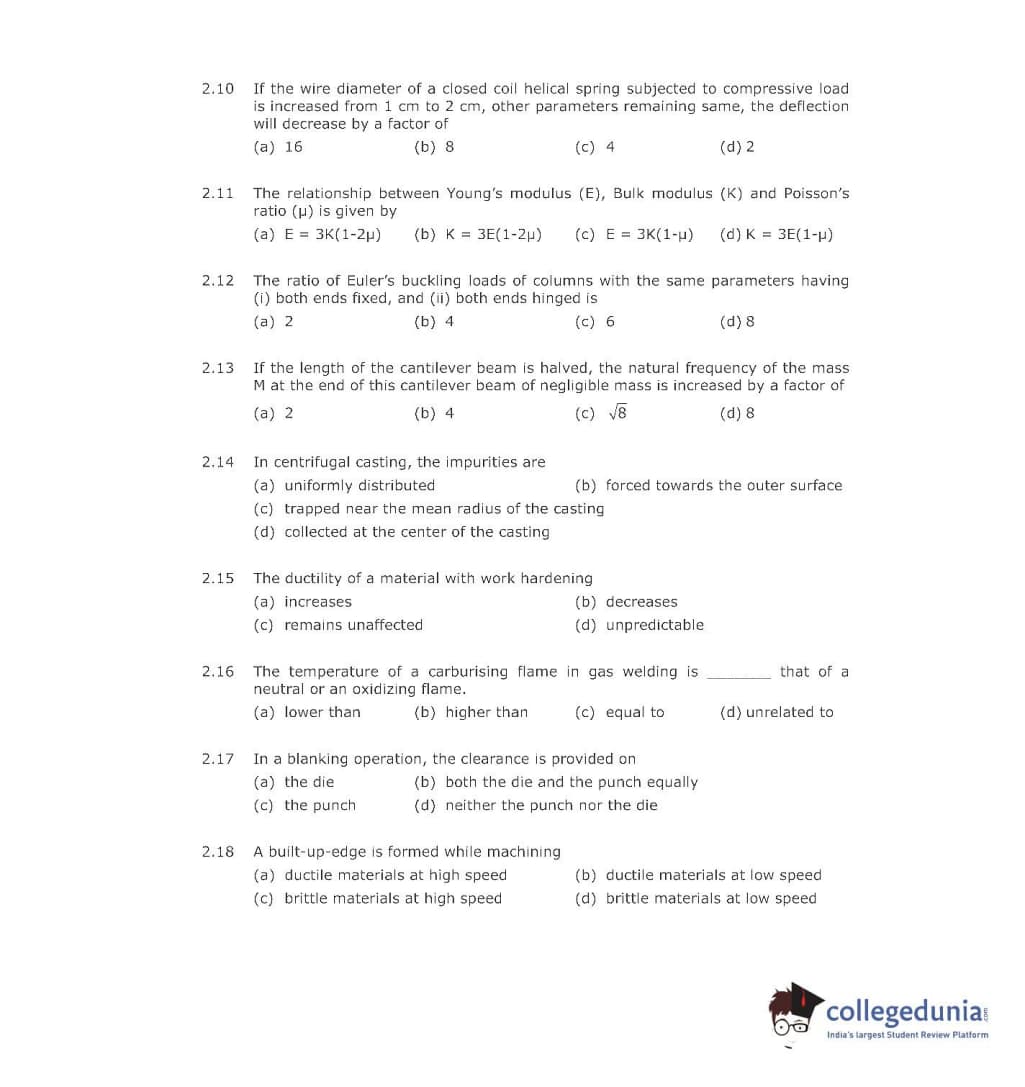

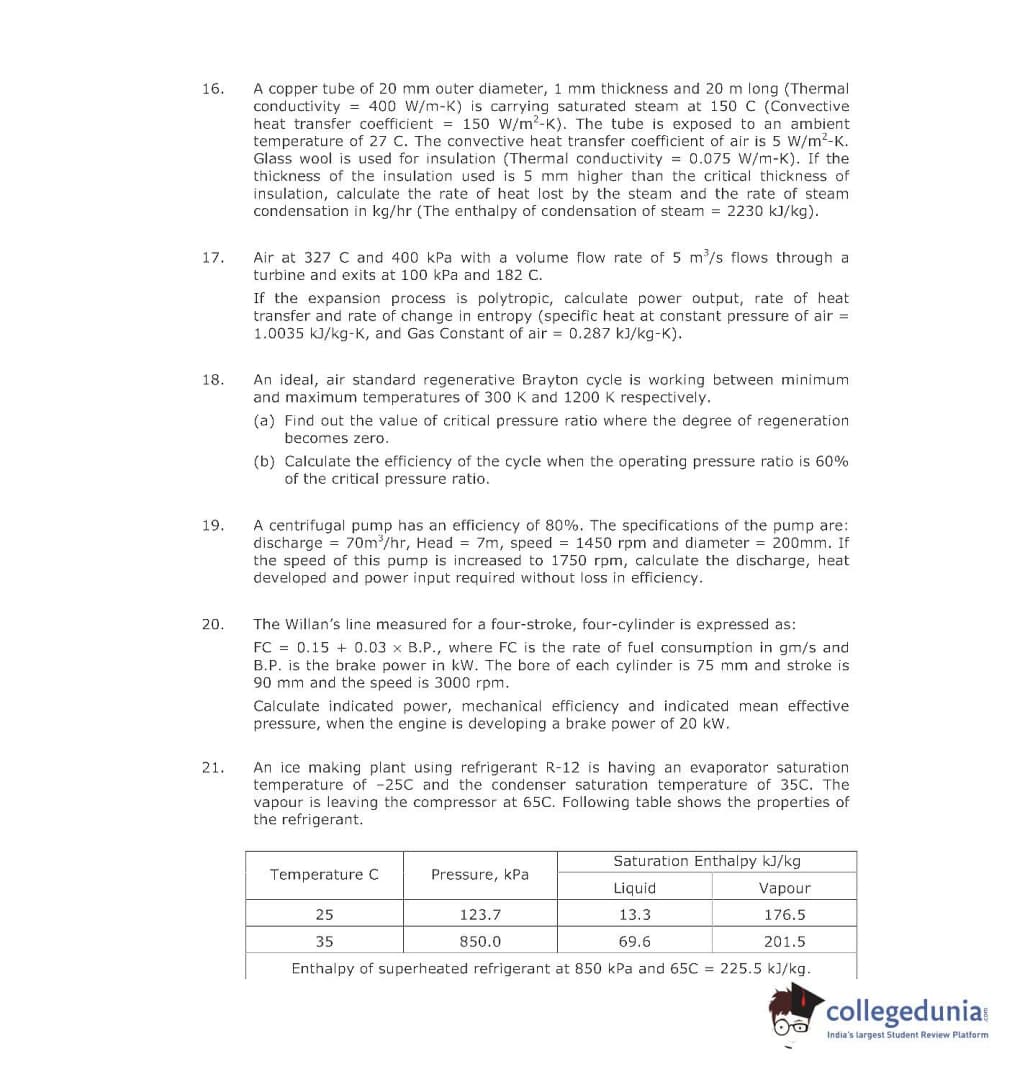

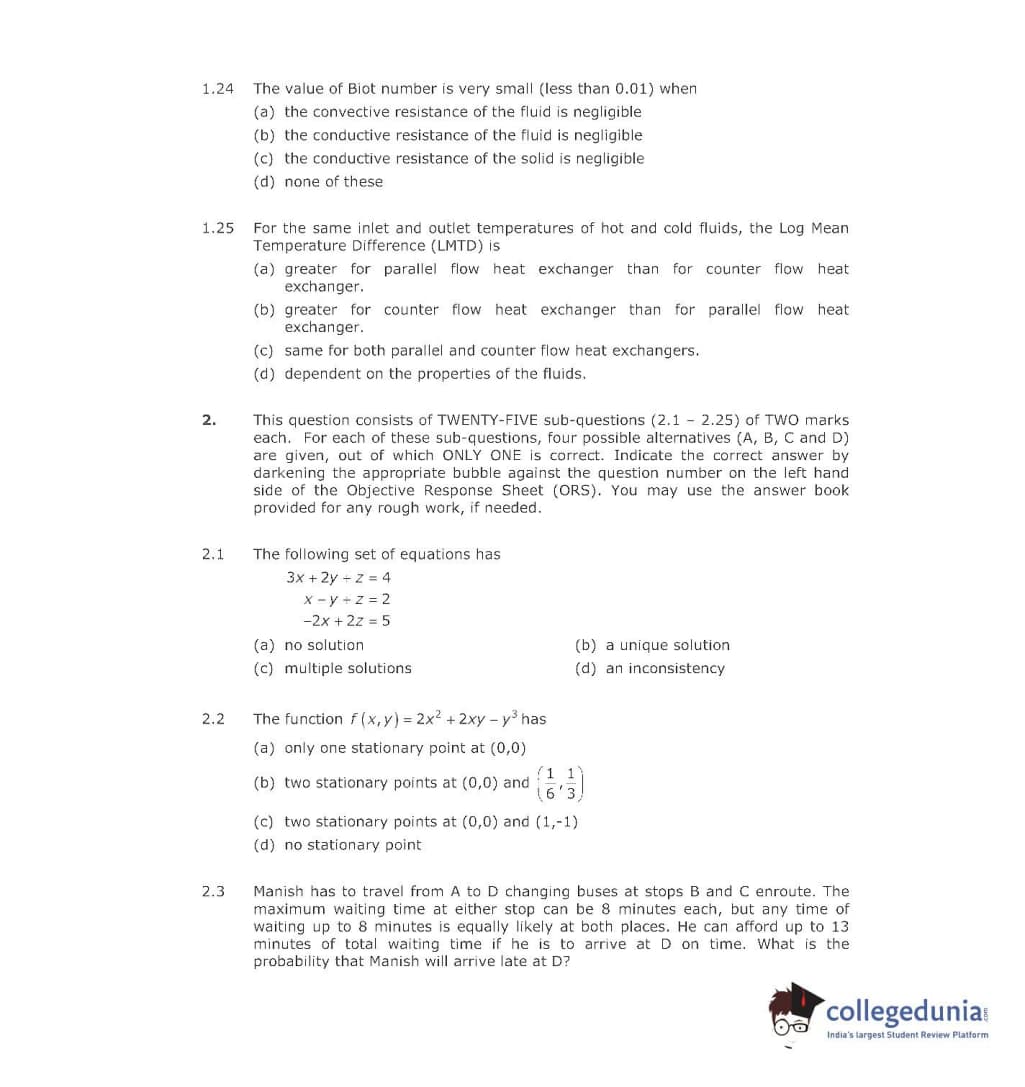

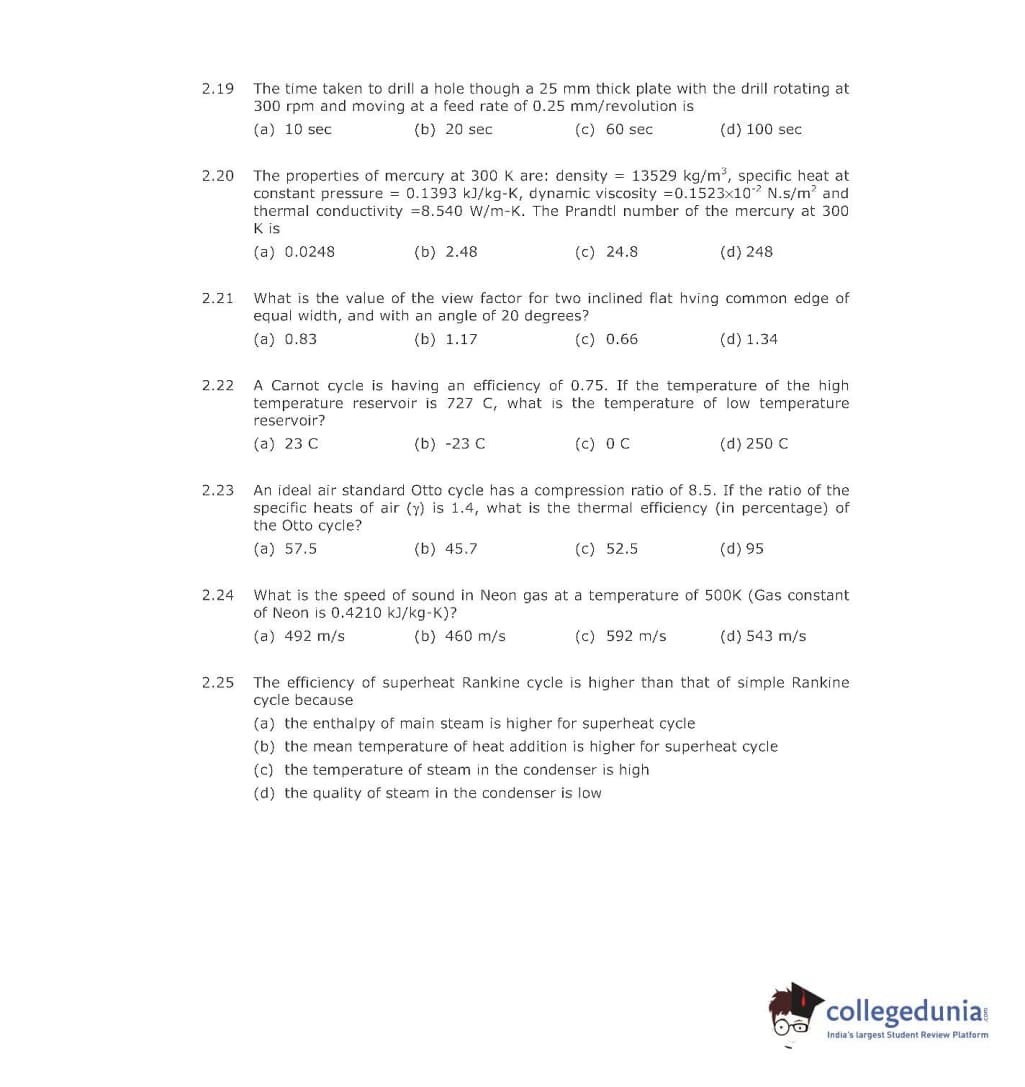

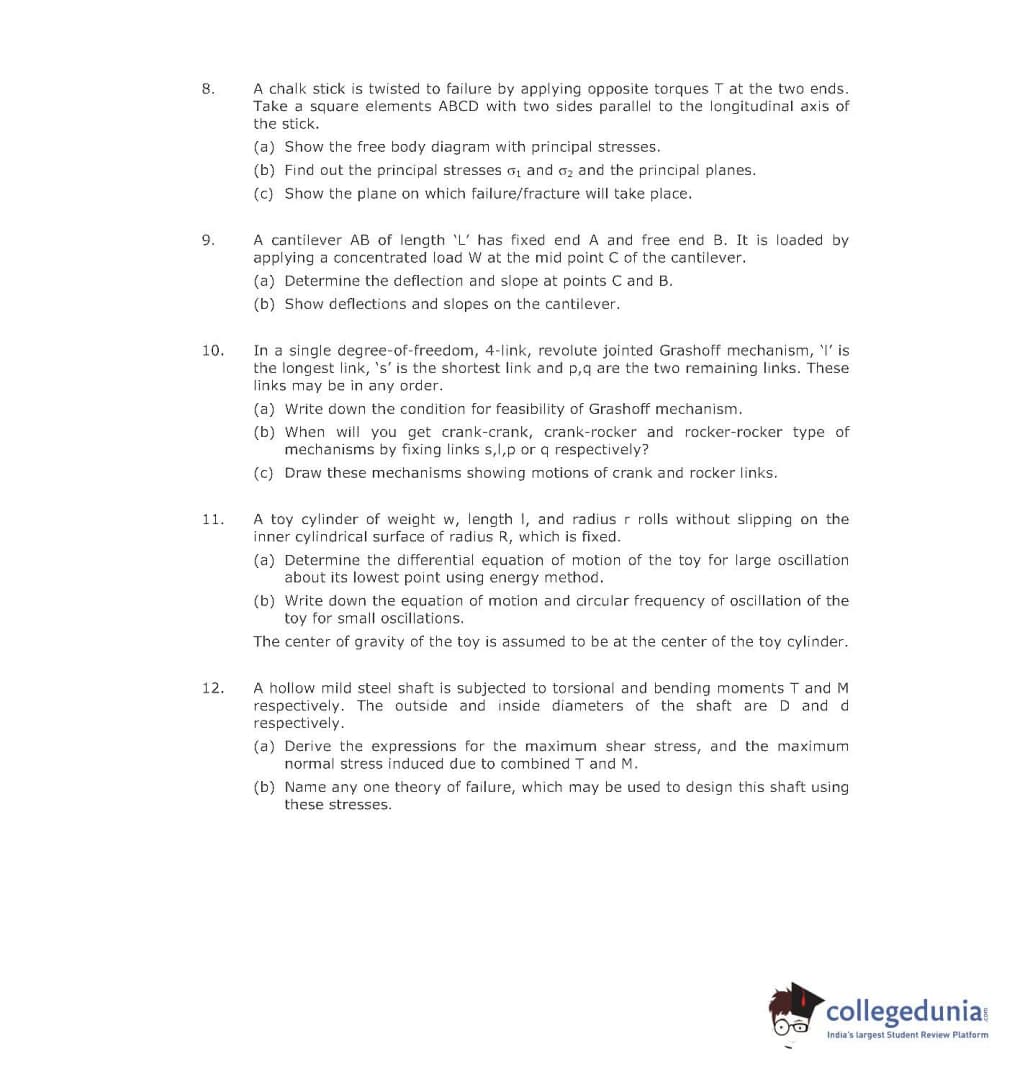

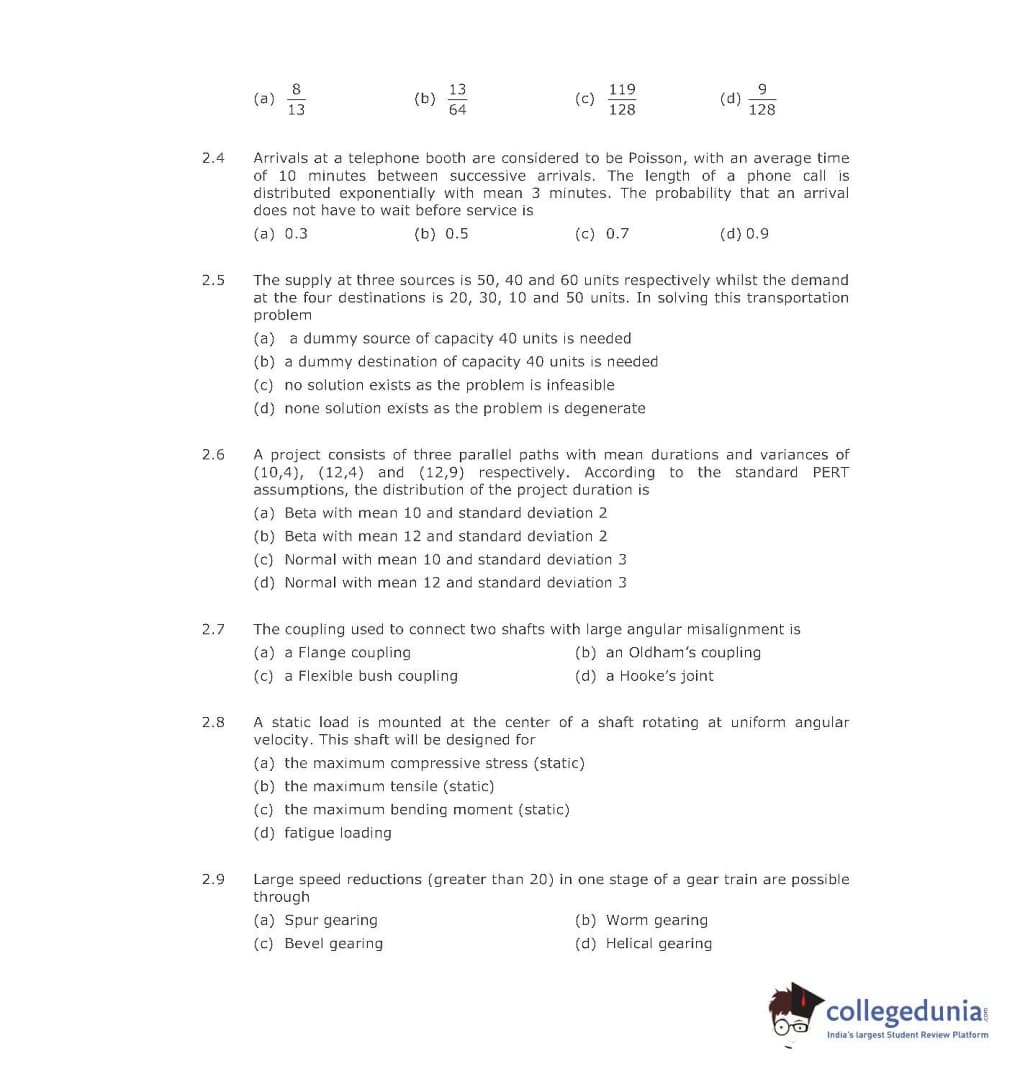

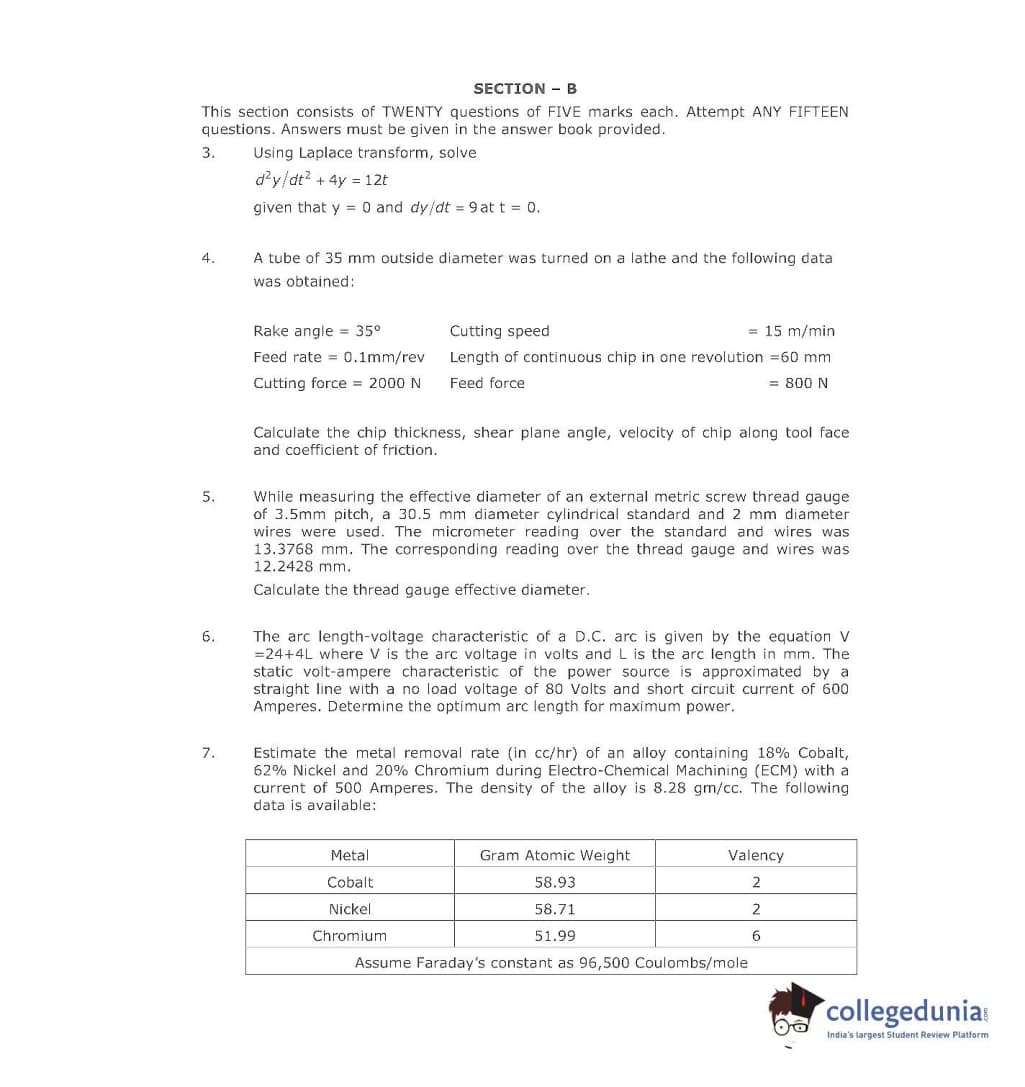

GATE 2002 Mechanical Engineering (ME) Question Paper with Answer Key PDF

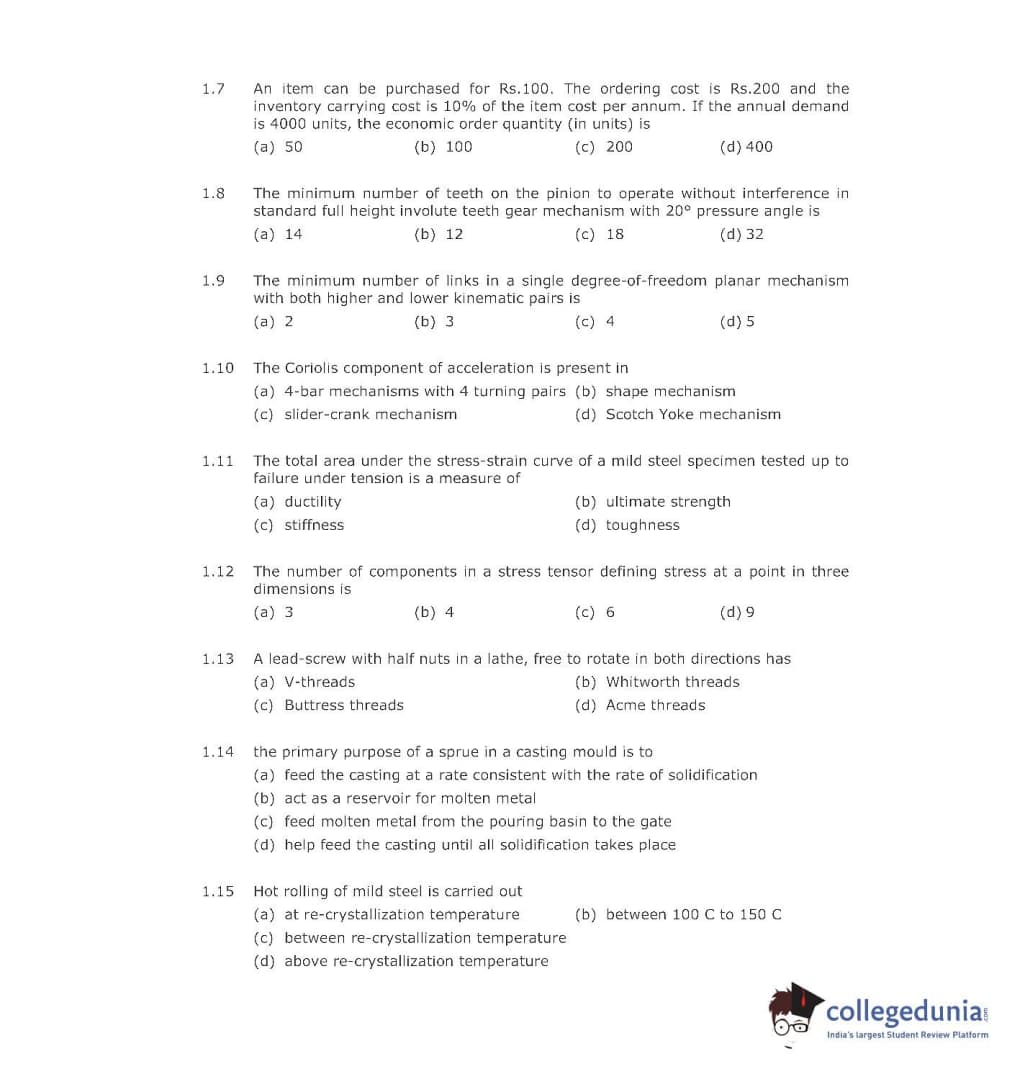

GATE Questions

• 1.

  For the differential equation given below, which one of the following options is correct? \[ \frac{\partial^2 u}{\partial x^2} + \frac{\partial^2 u}{\partial y^2} = 0, \quad 0 \leq x \leq 1, 0 \leq y \leq 1 \]

  • \( u = e^{x + y} \) is a solution for all \(x\) and \(y\)

  • \( u = e^{x} \sin y \) is a solution for all \(x\) and \(y\)

  • \( u = \sin x \sin y \) is a solution for all \(x\) and \(y\)

  • \( u = \cos x \cos y \) is a solution for all \(x\) and \(y\)

  View Solution

  ---

• 2.

  The state of stress at a point is shown in the figure given below. Under plane stress assumption, the normal strain along the thickness direction (\(\epsilon_{zz}\)) is _________ (rounded off to 2 decimal places).






  View Solution

  ---

• 3.

  Two metal parts (a cylinder and a cube) of same volume are cast under identical conditions. The diameter of the cylinder is equal to its height. The ratio of the solidification time of the cube to that of the cylinder is _______________ (rounded off to 2 decimal places).
  Assume that solidification time follows Chvorinov's rule with an exponent of 2.


  View Solution

  ---

• 4.

  The welding process commonly used for fabricating tailor-welded blanks of dissimilar thickness for automotive applications is

  • arc welding

  • laser welding

  • gas welding

  • friction welding

  View Solution

  ---

• 5.

  A truss structure is loaded as shown in the figure below. Among the options given, which member in the truss is a zero-force member?



  \[ {Given: } F = 1000\,{N} \]

  • \(BD\)

  • \(BC\)

  • \(BA\)

  • \(AD\)
  View Solution

  ---

• 6.

  A cantilever beam of length \(L\) is fixed at the left end (\(x=0\)). It is subjected to a concentrated downward point load \(P\) and a concentrated clockwise moment \(M = \frac{PL}{2}\) at the midpoint (\(x = L/2\)). Which of the following descriptions correctly represents the Shear Force Diagram (SFD) for the beam?

  • A rectangular block of constant positive height \(P\) from \(x=0\) to \(x=L/2\), and zero shear force from \(x=L/2\) to \(x=L\).

  • A rectangular block of constant positive height \(P\) from \(x=0\) to \(x=L/2\), followed by another rectangular block of height \(P/2\) from \(x=L/2\) to \(x=L\).

  • A triangular shape increasing linearly from \(x=0\) to \(x=L/2\).

  • A rectangular block from \(x=0\) to \(x=L\), unaffected by the point load.
  View Solution
