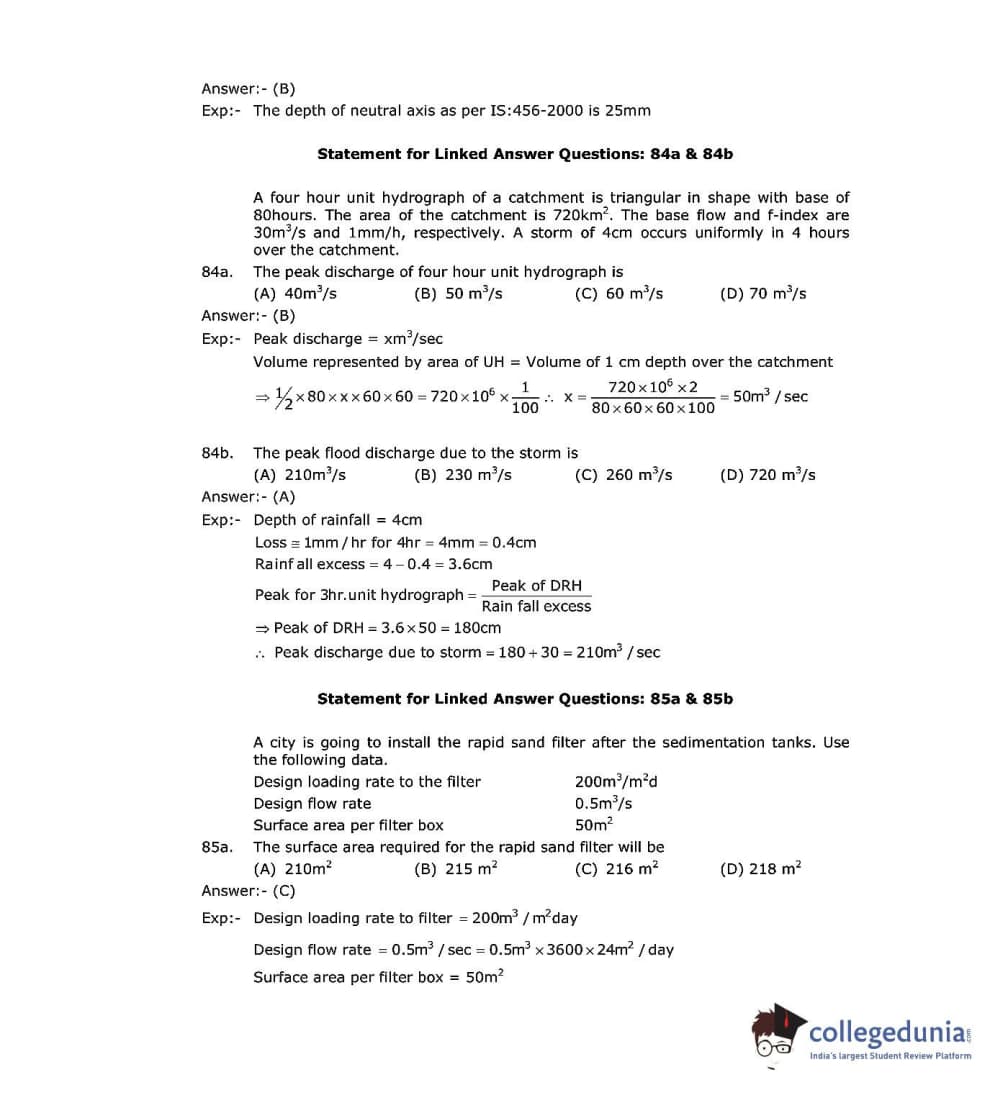

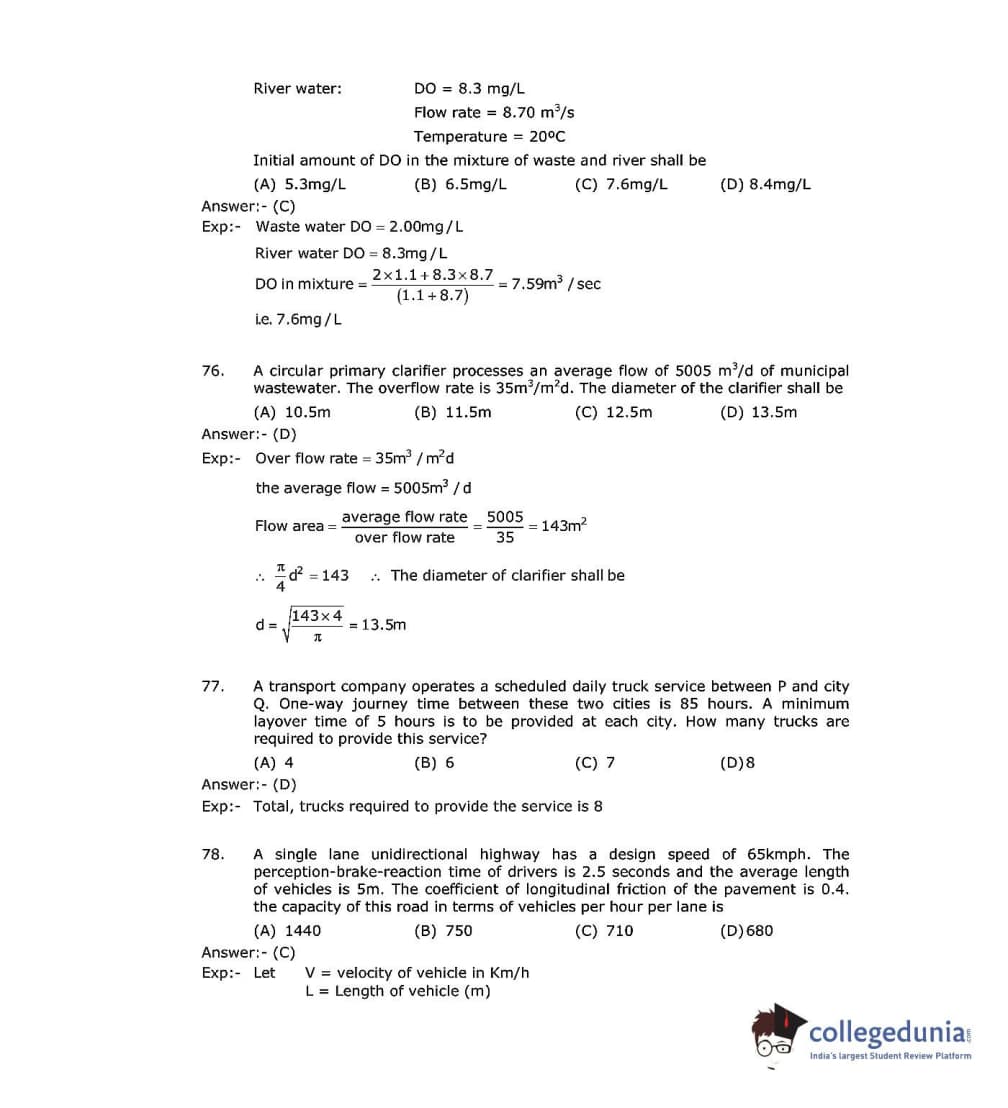

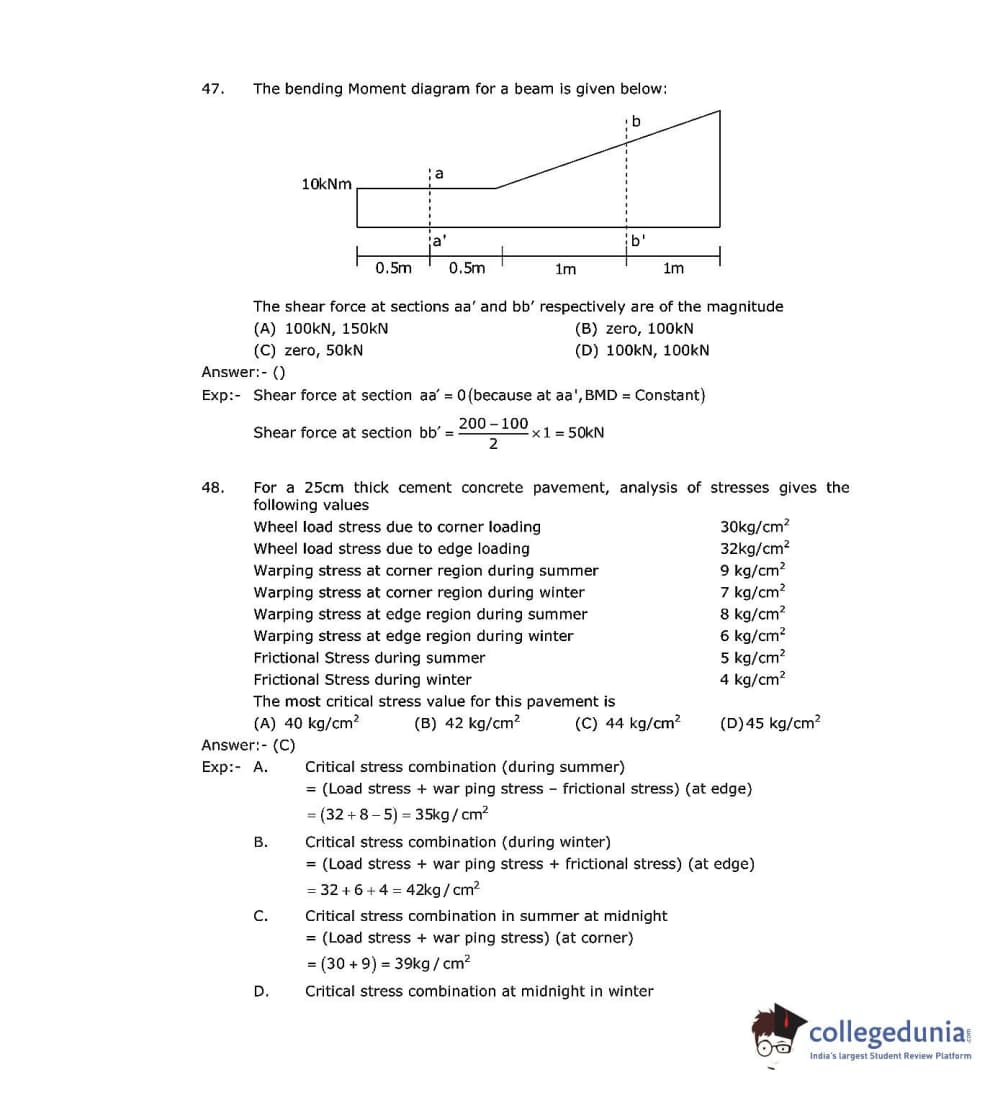

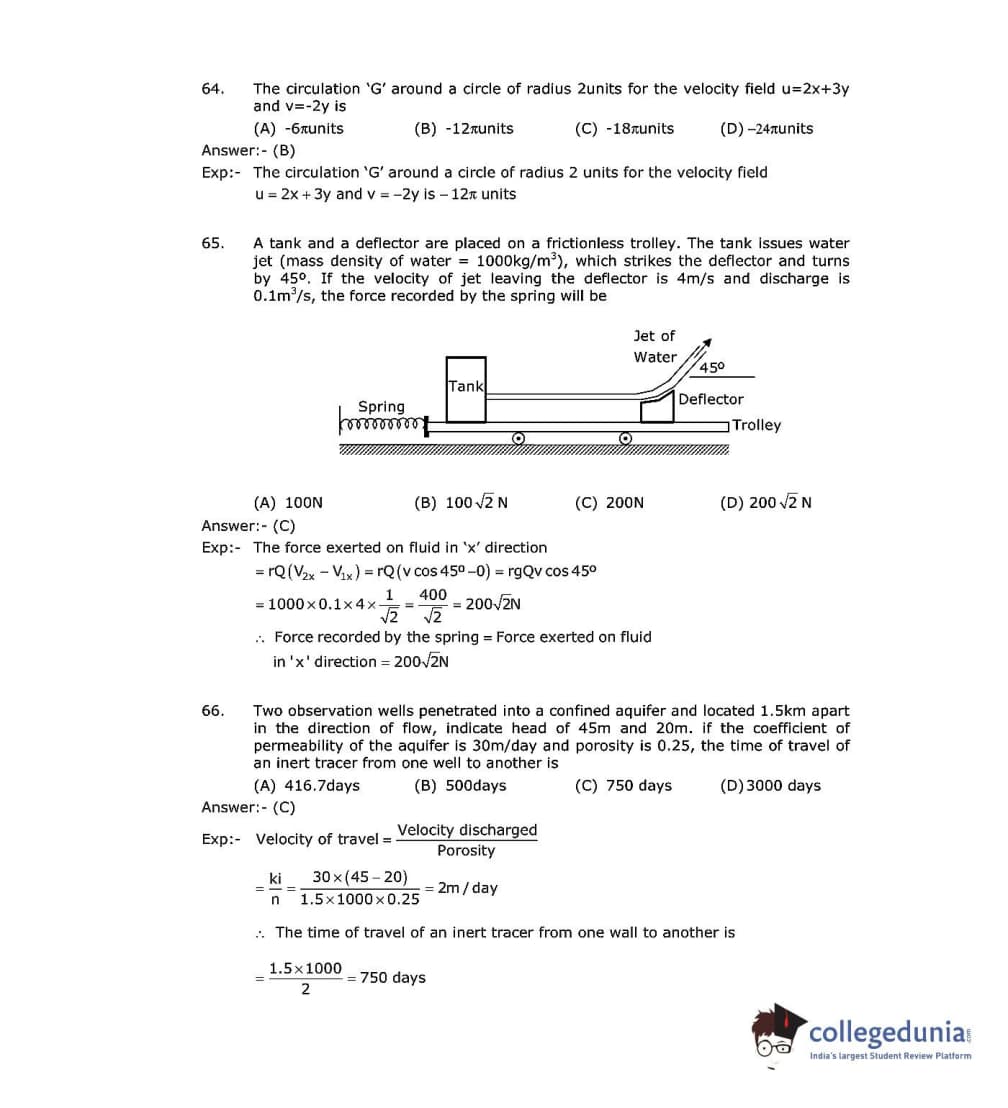

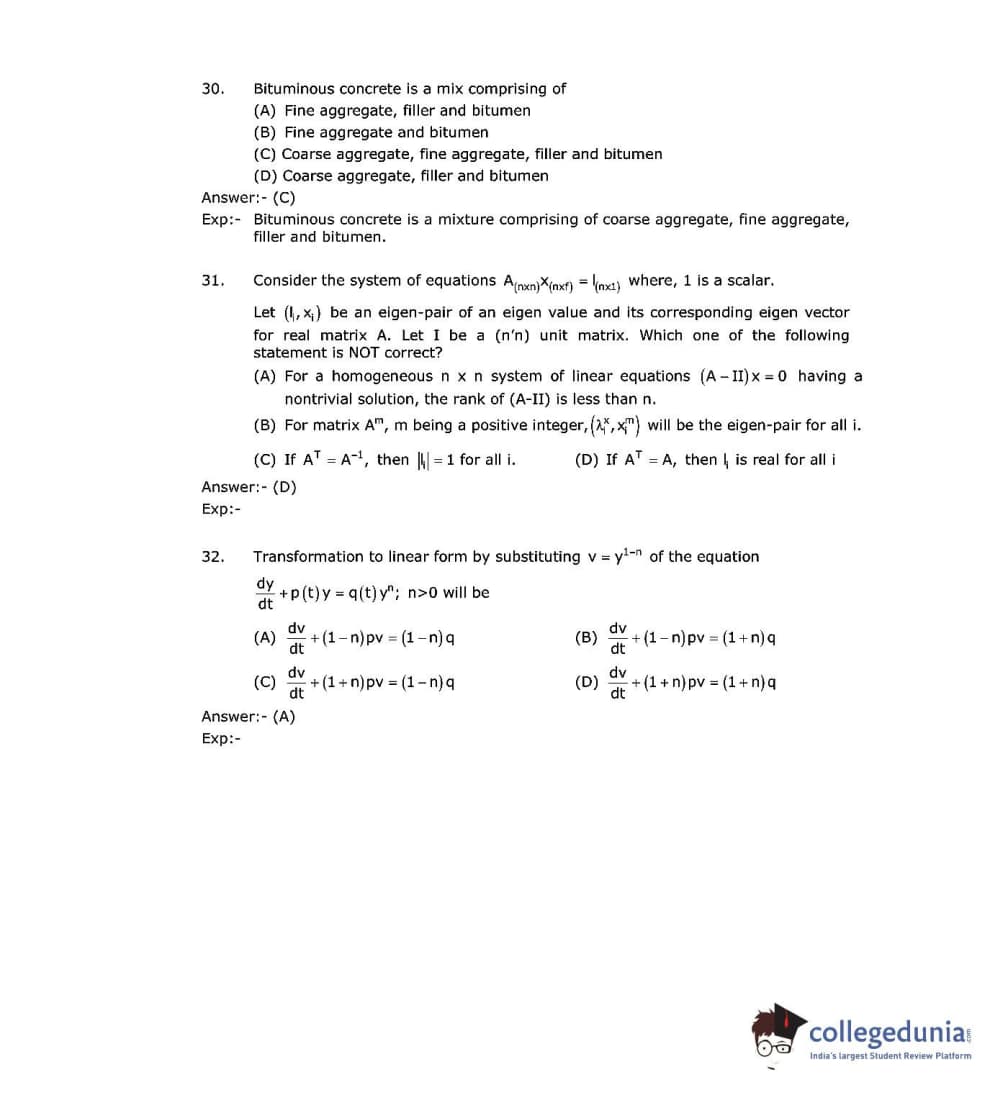

GATE 2005 Civil Engineering (CE) Question Paper with Answer Key PDFs

GATE Questions

• 1.

  A plate of 30 mm thickness is fed through a rolling mill with two powered rolls. Each roll has a diameter of 500 mm. The plate thickness is to be reduced to 27 mm in a single pass. Assume no change in width. The process feasibility and the maximum draft (in mm) can be represented, respectively, as
  Use the coefficient of friction as 0.12

  • NOT feasible and 6.0

  • NOT feasible and 2.6

  • feasible and 3.6

  • feasible and 3.0

  View Solution

  ---

• 2.

  If two unbiased coins are tossed, then what is the probability of having at least one head?


  • 0.25

  • 0.5

  • 0.675

  • 0.75

  View Solution

  ---

• 3.

  The values of a function \( f \) obtained for different values of \( x \) are shown in the table below.



  Using Simpson’s one-third rule, approximate the integral \[ \int_0^1 f(x) \, dx \quad \text{(rounded off to 2 decimal places)}. \]

  View Solution

  ---

• 4.

  Consider two infinitely long fins made of the same material and exposed to the same convective environment. One fin has a square cross-section of side \(a\), and the other has a circular cross-section of diameter \(d\). Assume \(a = d\). The ratio of the steady-state heat transfer rate from the square fin to that from the circular fin, \(\frac{\dot{Q}_{\text{square}}}{\dot{Q}_{\text{circular}}}\), is:

  • \(\frac{\pi}{4}\)

  • \(\frac{4}{\pi}\)

  • \(\frac{2}{\sqrt{\pi}}\)

  • \(\frac{\sqrt{\pi}}{2}\)
  View Solution

  ---

• 5.

  Two metal parts (a cylinder and a cube) of same volume are cast under identical conditions. The diameter of the cylinder is equal to its height. The ratio of the solidification time of the cube to that of the cylinder is _______________ (rounded off to 2 decimal places).
  Assume that solidification time follows Chvorinov's rule with an exponent of 2.


  View Solution

  ---

• 6.

  Consider two identical tanks with a bottom hole of diameter \( d \). One tank is filled with water and the other tank is filled with engine oil. The height of the fluid column \( h \) is the same in both cases. The fluid exit velocity in the two tanks are \( V_1 \) and \( V_2 \). Neglecting all losses, which one of the following options is correct?






  • \( V_2>V_1 \)

  • \( V_2 = V_1 \)

  • \( V_2<V_1 \)

  • Insufficient data to definitively conclude the relationship between \( V_1 \) and \( V_2 \)

  View Solution
