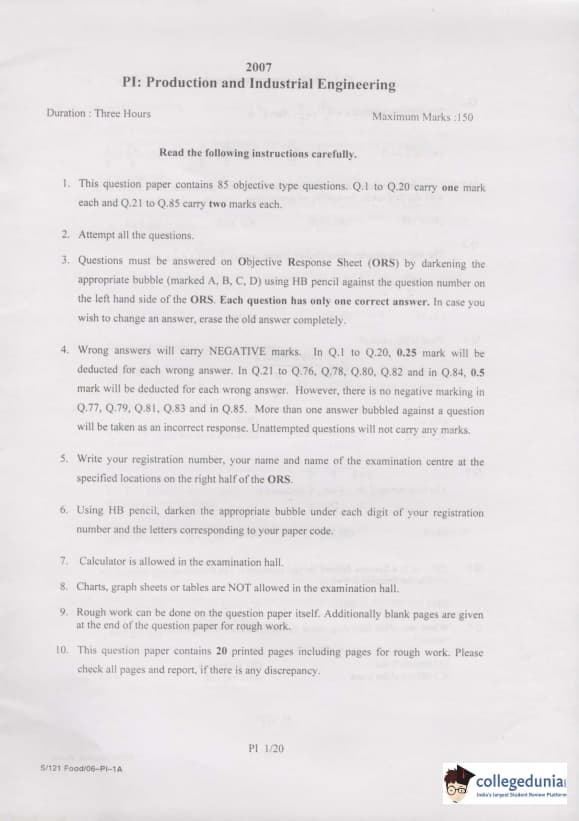

GATE 2007 Production and Industrial Engineering (PI) Question Paper with Answer Key PDF (February 11)

GATE Questions

• 1.

  A truss structure is loaded as shown in the figure below. Among the options given, which member in the truss is a zero-force member?



  \[ {Given: } F = 1000\,{N} \]

  • \(BD\)

  • \(BC\)

  • \(BA\)

  • \(AD\)
  View Solution

  ---

• 2.

  A cantilever beam of length \(L\) is fixed at the left end (\(x=0\)). It is subjected to a concentrated downward point load \(P\) and a concentrated clockwise moment \(M = \frac{PL}{2}\) at the midpoint (\(x = L/2\)). Which of the following descriptions correctly represents the Shear Force Diagram (SFD) for the beam?

  • A rectangular block of constant positive height \(P\) from \(x=0\) to \(x=L/2\), and zero shear force from \(x=L/2\) to \(x=L\).

  • A rectangular block of constant positive height \(P\) from \(x=0\) to \(x=L/2\), followed by another rectangular block of height \(P/2\) from \(x=L/2\) to \(x=L\).

  • A triangular shape increasing linearly from \(x=0\) to \(x=L/2\).

  • A rectangular block from \(x=0\) to \(x=L\), unaffected by the point load.
  View Solution

  ---

• 3.

  Two cars, P and Q, start from a point X in India at 10 AM. Car P travels North with a speed of 25 km/h and car Q travels East with a speed of 30 km/h. Car P travels continuously but car Q stops for some time after traveling for one hour. If both cars are at the same distance from X at 11:30 AM, for how long (in minutes) did car Q stop?

  • 10

  • 12

  • 15

  • 18

  View Solution

  ---

• 4.

  For the differential equation given below, which one of the following options is correct? \[ \frac{\partial^2 u}{\partial x^2} + \frac{\partial^2 u}{\partial y^2} = 0, \quad 0 \leq x \leq 1, 0 \leq y \leq 1 \]

  • \( u = e^{x + y} \) is a solution for all \(x\) and \(y\)

  • \( u = e^{x} \sin y \) is a solution for all \(x\) and \(y\)

  • \( u = \sin x \sin y \) is a solution for all \(x\) and \(y\)

  • \( u = \cos x \cos y \) is a solution for all \(x\) and \(y\)

  View Solution

  ---

• 5.

  The state of stress at a point is shown in the figure given below. Under plane stress assumption, the normal strain along the thickness direction (\(\epsilon_{zz}\)) is _________ (rounded off to 2 decimal places).






  View Solution

  ---

• 6.

  Let A and B be real symmetric matrices of same size. Which one of the following options is correct?

  • \( (AB)^T = B^T A^T \)

  • \( AB = BA \)

  • \( A^T = A^{-1} \)

  • \( A = A^{-1} \)

  View Solution
