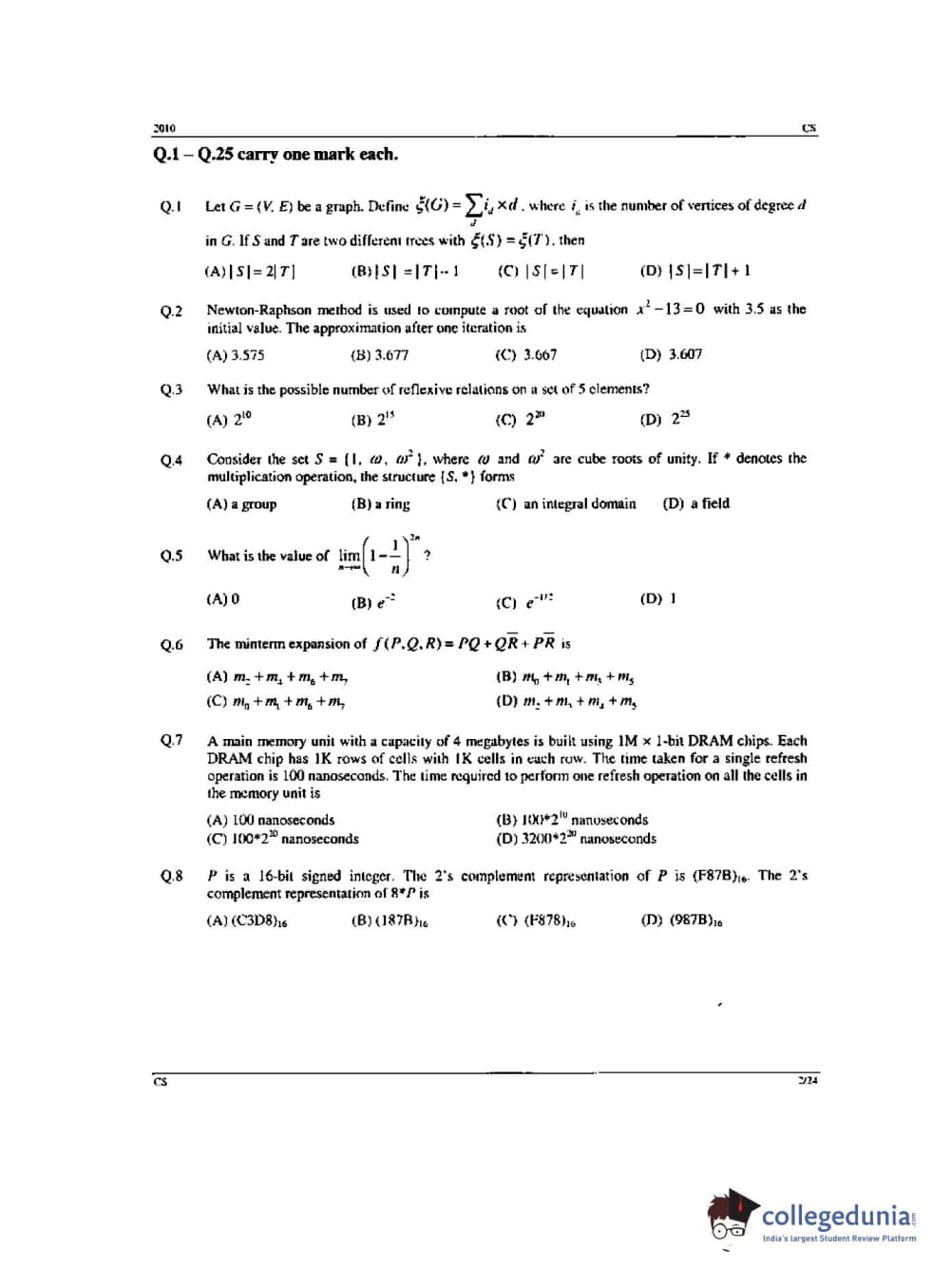

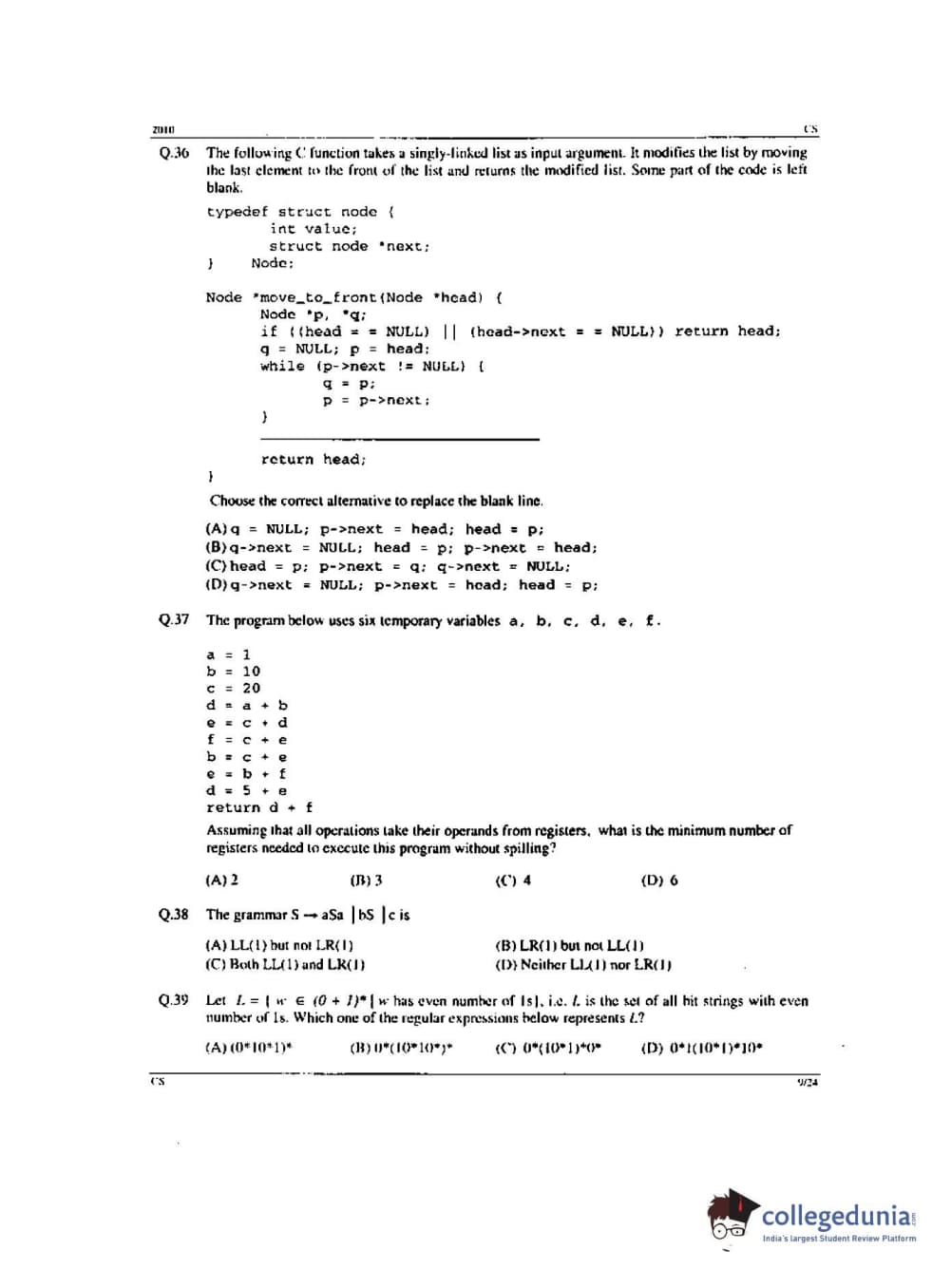

GATE 2010 Computer Science and Information Technology (CS) - Offline Question Paper with Answer Key PDFs (February 14, 2010 - Forenoon Session)

GATE Questions

• 1.

  Two cars, P and Q, start from a point X in India at 10 AM. Car P travels North with a speed of 25 km/h and car Q travels East with a speed of 30 km/h. Car P travels continuously but car Q stops for some time after traveling for one hour. If both cars are at the same distance from X at 11:30 AM, for how long (in minutes) did car Q stop?

  • 10

  • 12

  • 15

  • 18

  View Solution

  ---

• 2.

  Consider two infinitely long fins made of the same material and exposed to the same convective environment. One fin has a square cross-section of side \(a\), and the other has a circular cross-section of diameter \(d\). Assume \(a = d\). The ratio of the steady-state heat transfer rate from the square fin to that from the circular fin, \(\frac{\dot{Q}_{\text{square}}}{\dot{Q}_{\text{circular}}}\), is:

  • \(\frac{\pi}{4}\)

  • \(\frac{4}{\pi}\)

  • \(\frac{2}{\sqrt{\pi}}\)

  • \(\frac{\sqrt{\pi}}{2}\)
  View Solution

  ---

• 3.

  Two metal parts (a cylinder and a cube) of same volume are cast under identical conditions. The diameter of the cylinder is equal to its height. The ratio of the solidification time of the cube to that of the cylinder is _______________ (rounded off to 2 decimal places).
  Assume that solidification time follows Chvorinov's rule with an exponent of 2.


  View Solution

  ---

• 4.

  The values of a function \( f \) obtained for different values of \( x \) are shown in the table below.



  Using Simpson’s one-third rule, approximate the integral \[ \int_0^1 f(x) \, dx \quad \text{(rounded off to 2 decimal places)}. \]

  View Solution

  ---

• 5.

  The welding process commonly used for fabricating tailor-welded blanks of dissimilar thickness for automotive applications is

  • arc welding

  • laser welding

  • gas welding

  • friction welding

  View Solution

  ---

• 6.

  A plate of 30 mm thickness is fed through a rolling mill with two powered rolls. Each roll has a diameter of 500 mm. The plate thickness is to be reduced to 27 mm in a single pass. Assume no change in width. The process feasibility and the maximum draft (in mm) can be represented, respectively, as
  Use the coefficient of friction as 0.12

  • NOT feasible and 6.0

  • NOT feasible and 2.6

  • feasible and 3.6

  • feasible and 3.0

  View Solution
