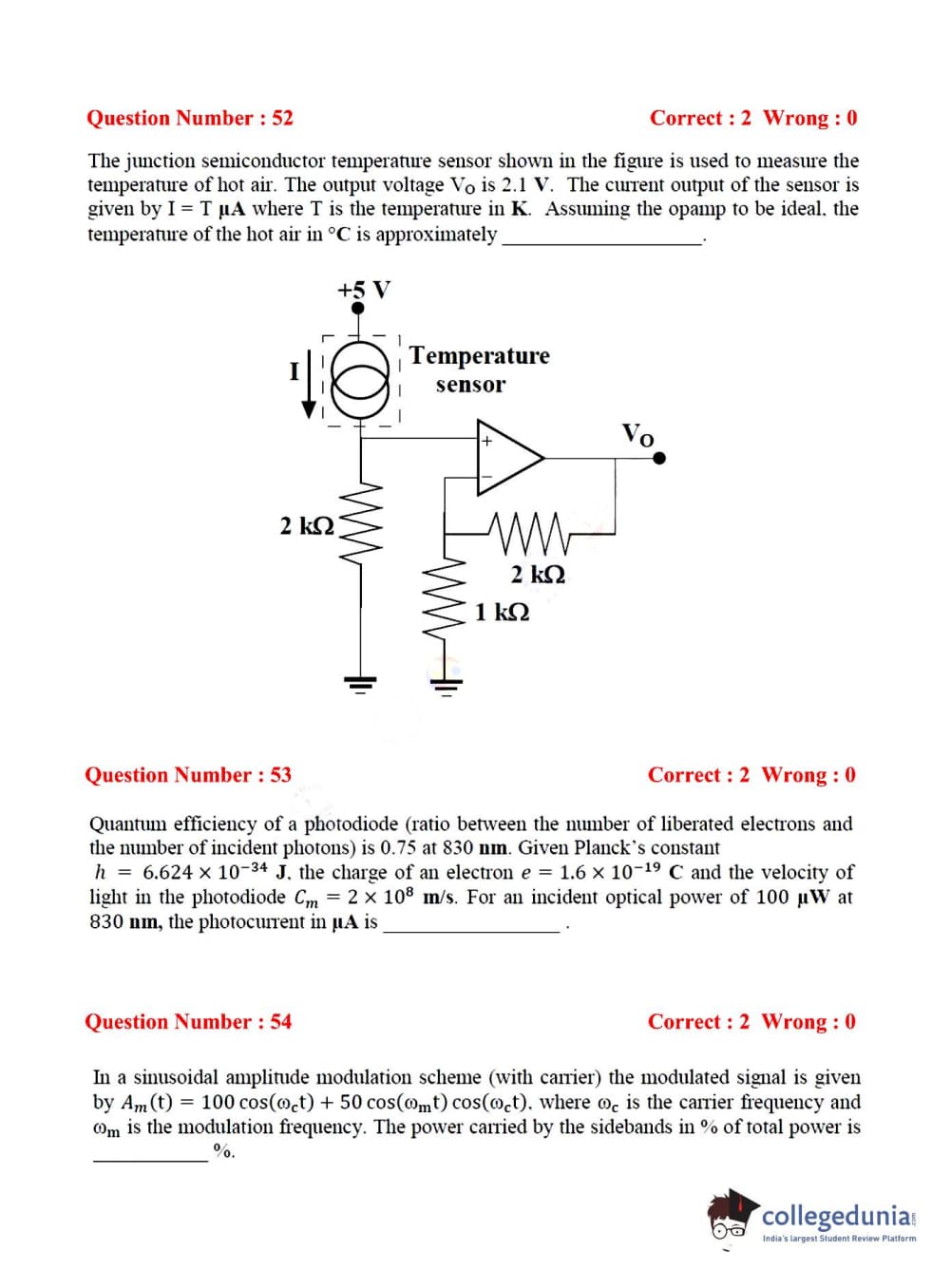

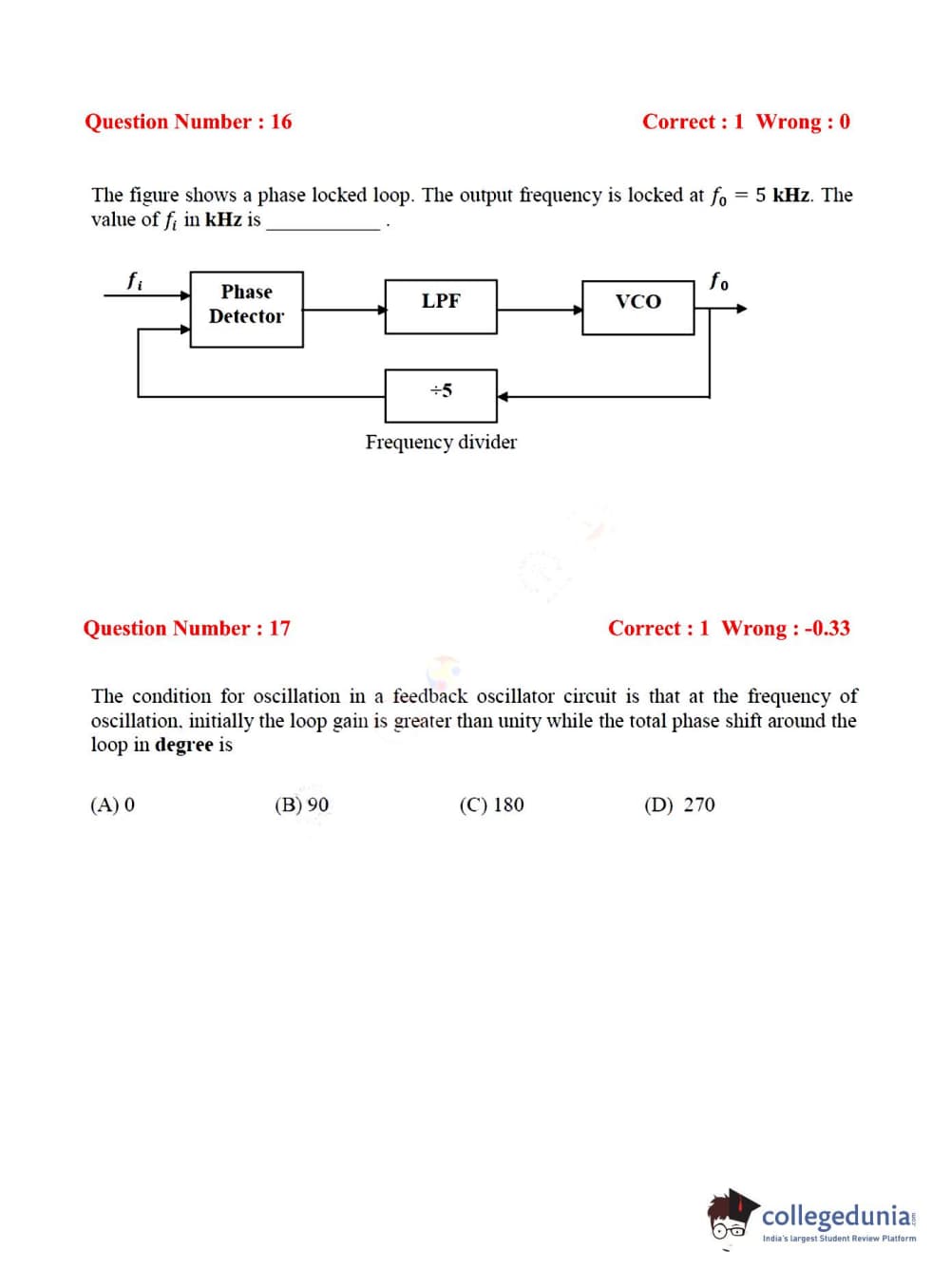

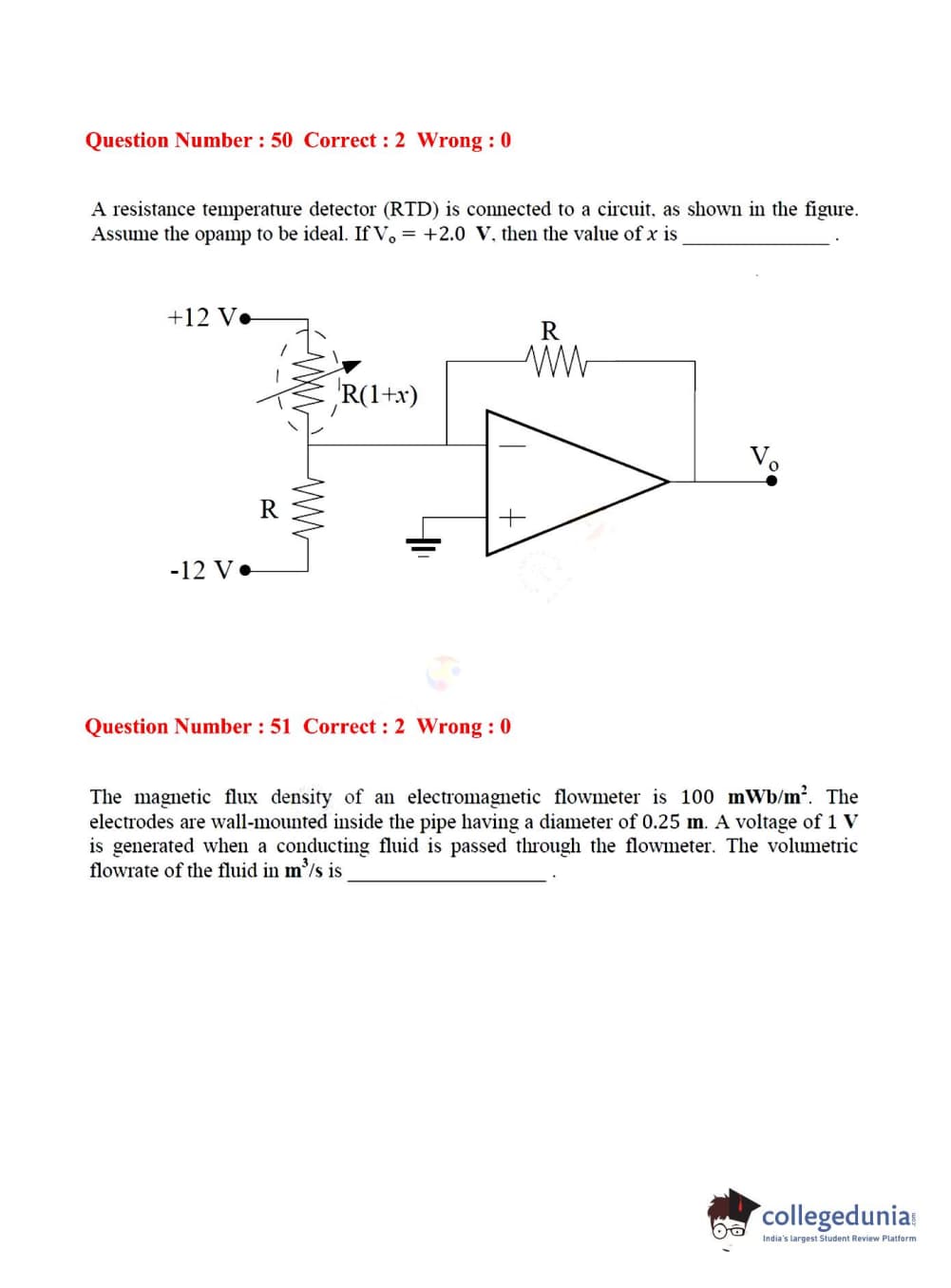

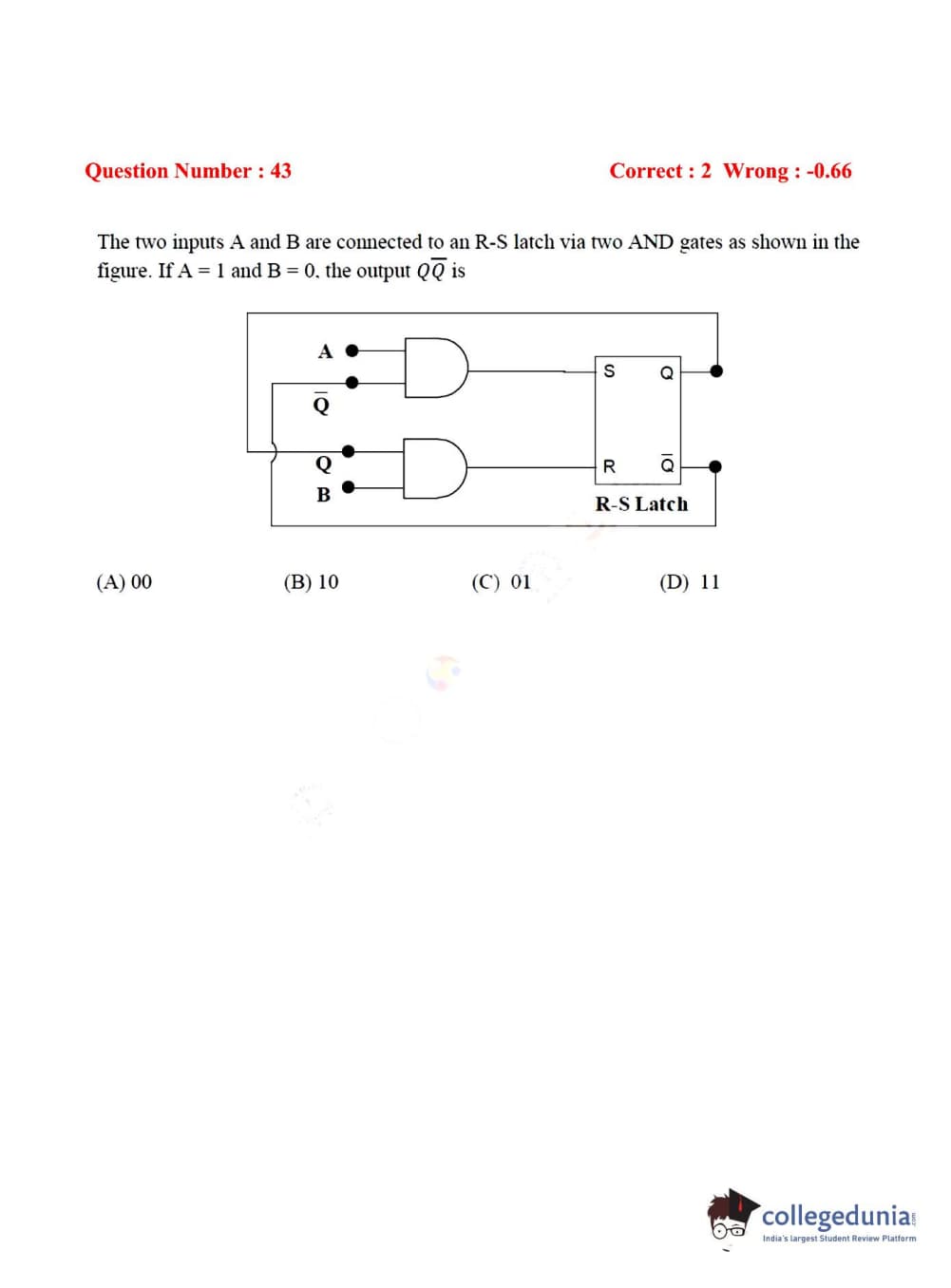

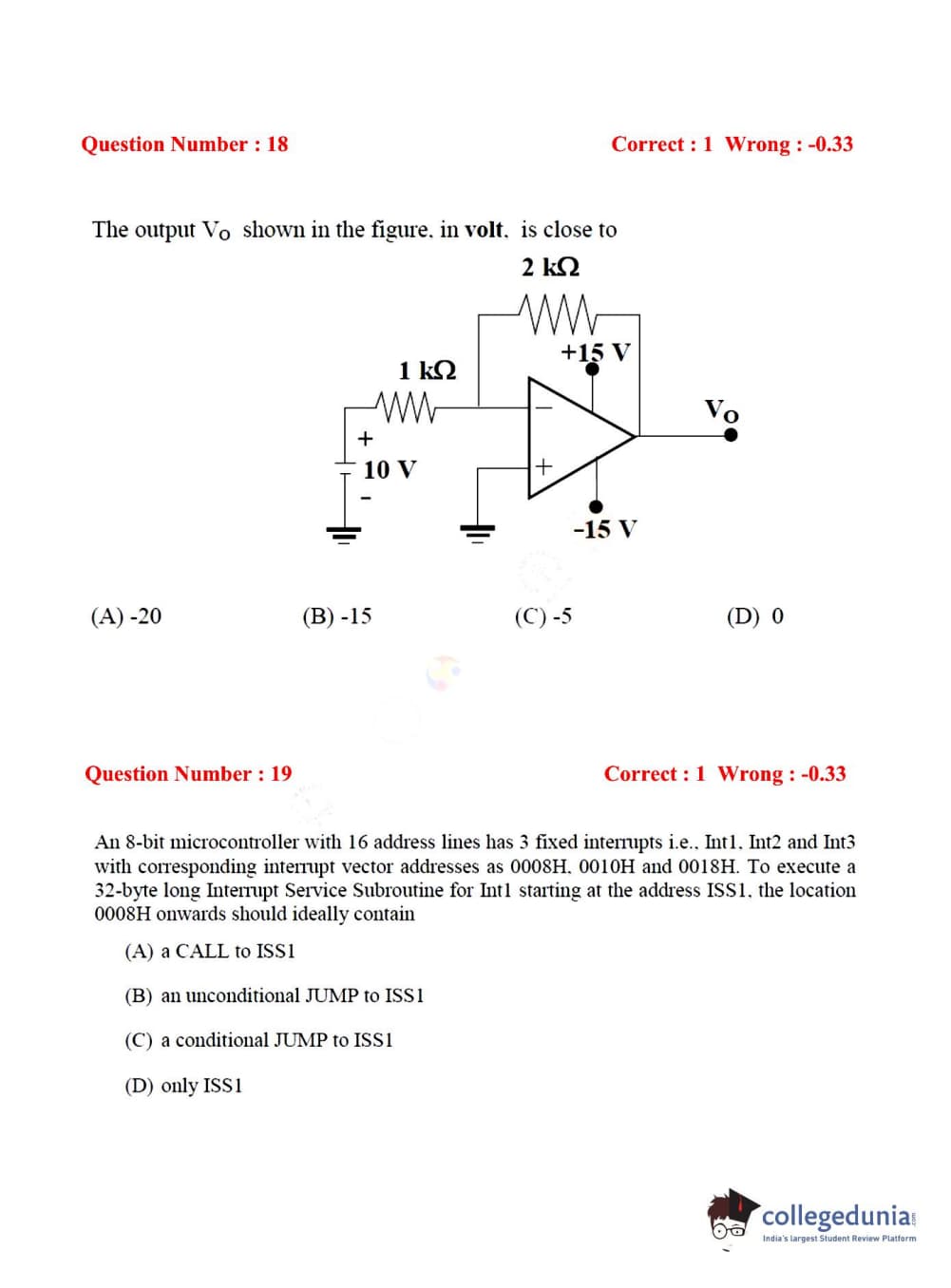

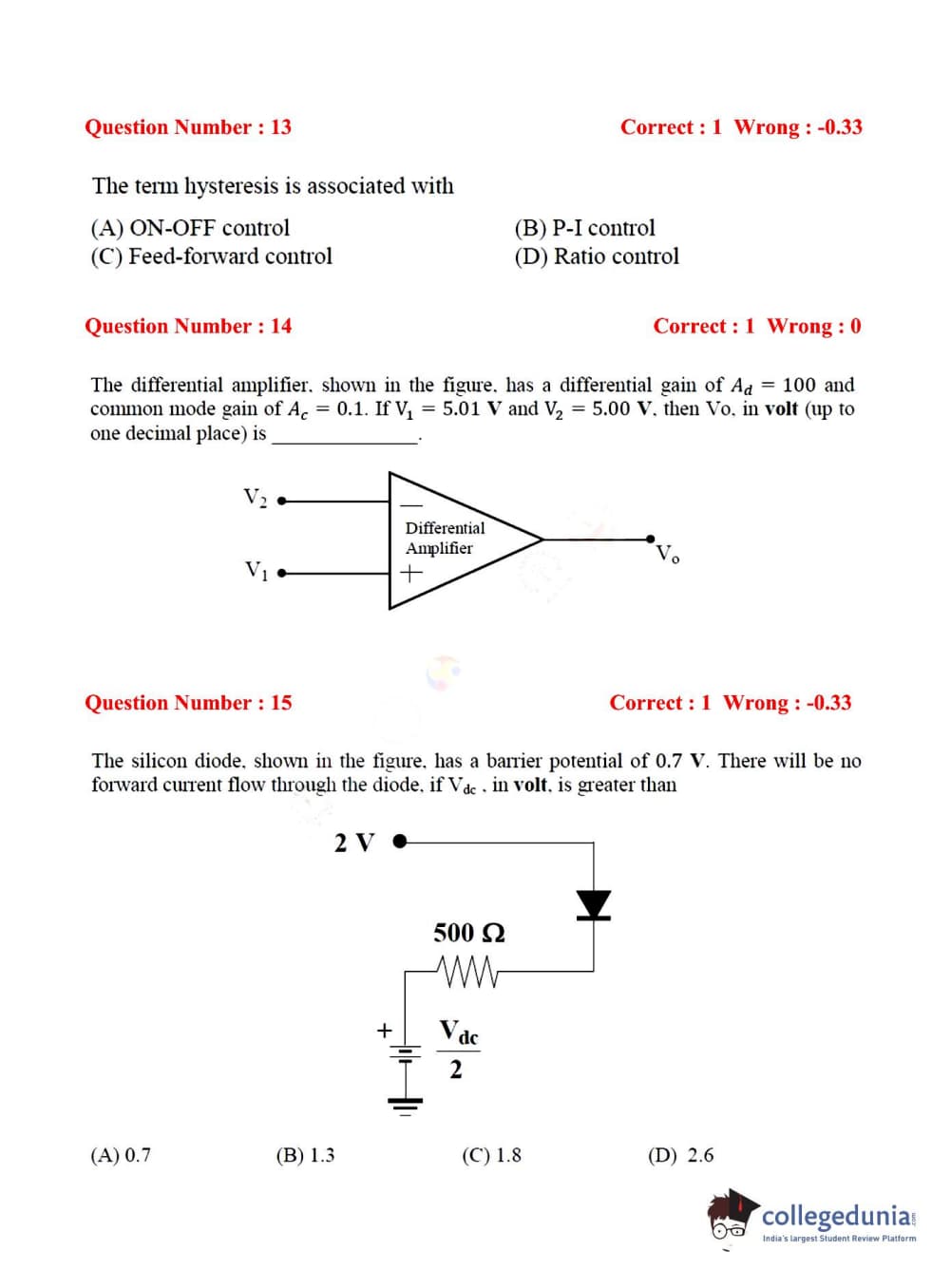

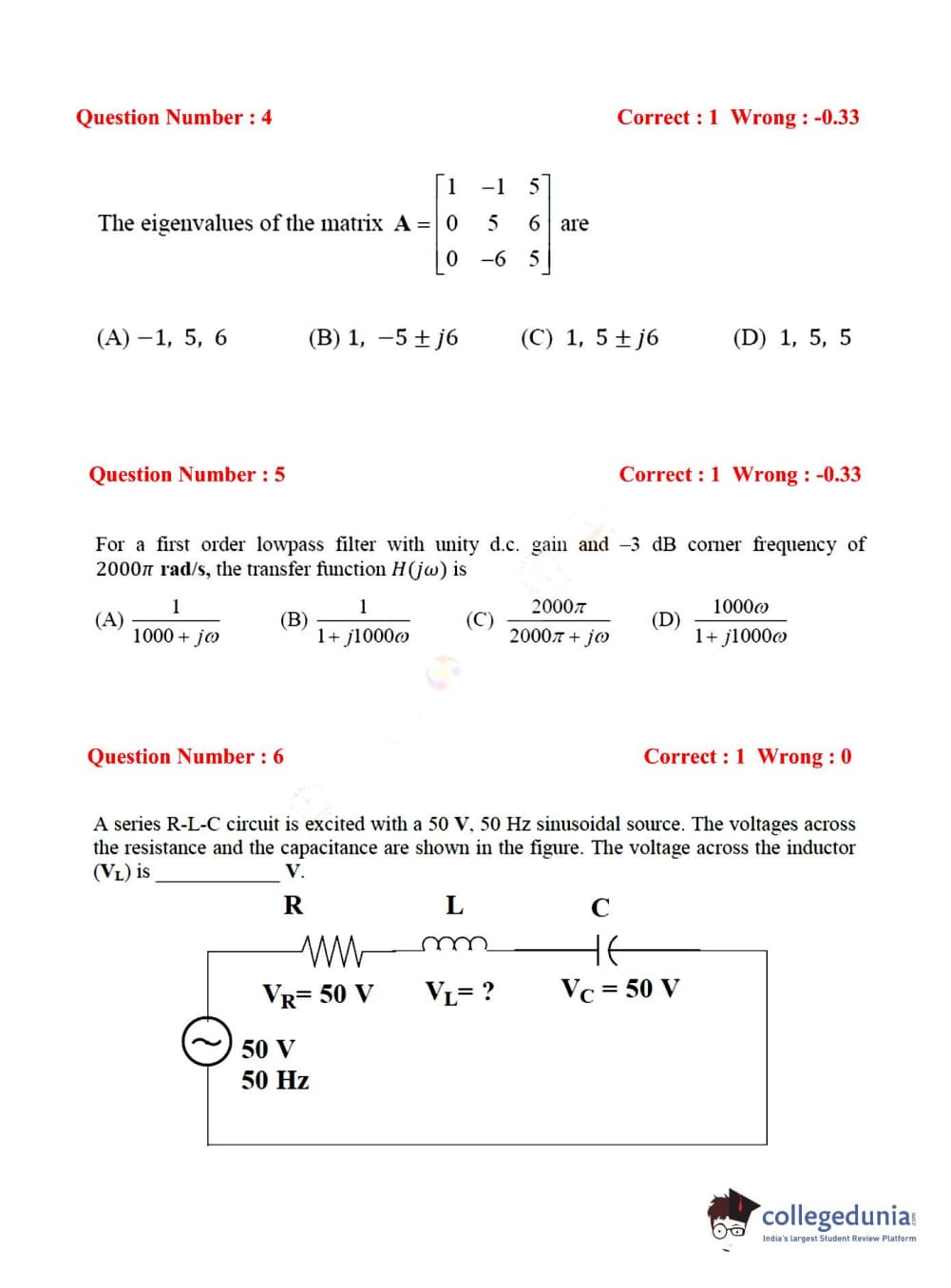

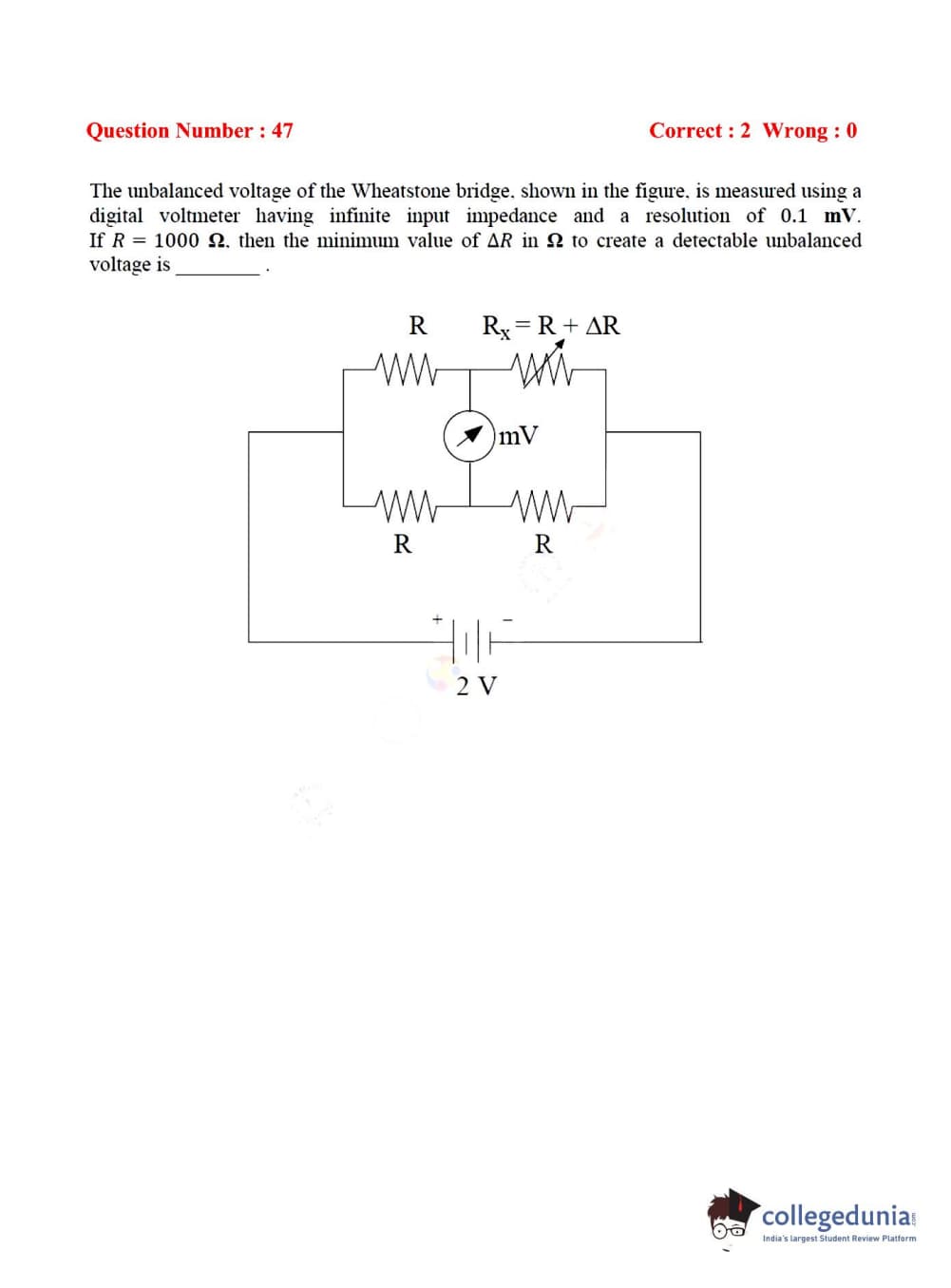

GATE 2017 Instrumentation Engineering (IN) Question Paper with Answer Key PDFs (February 12 - Afternoon Session)

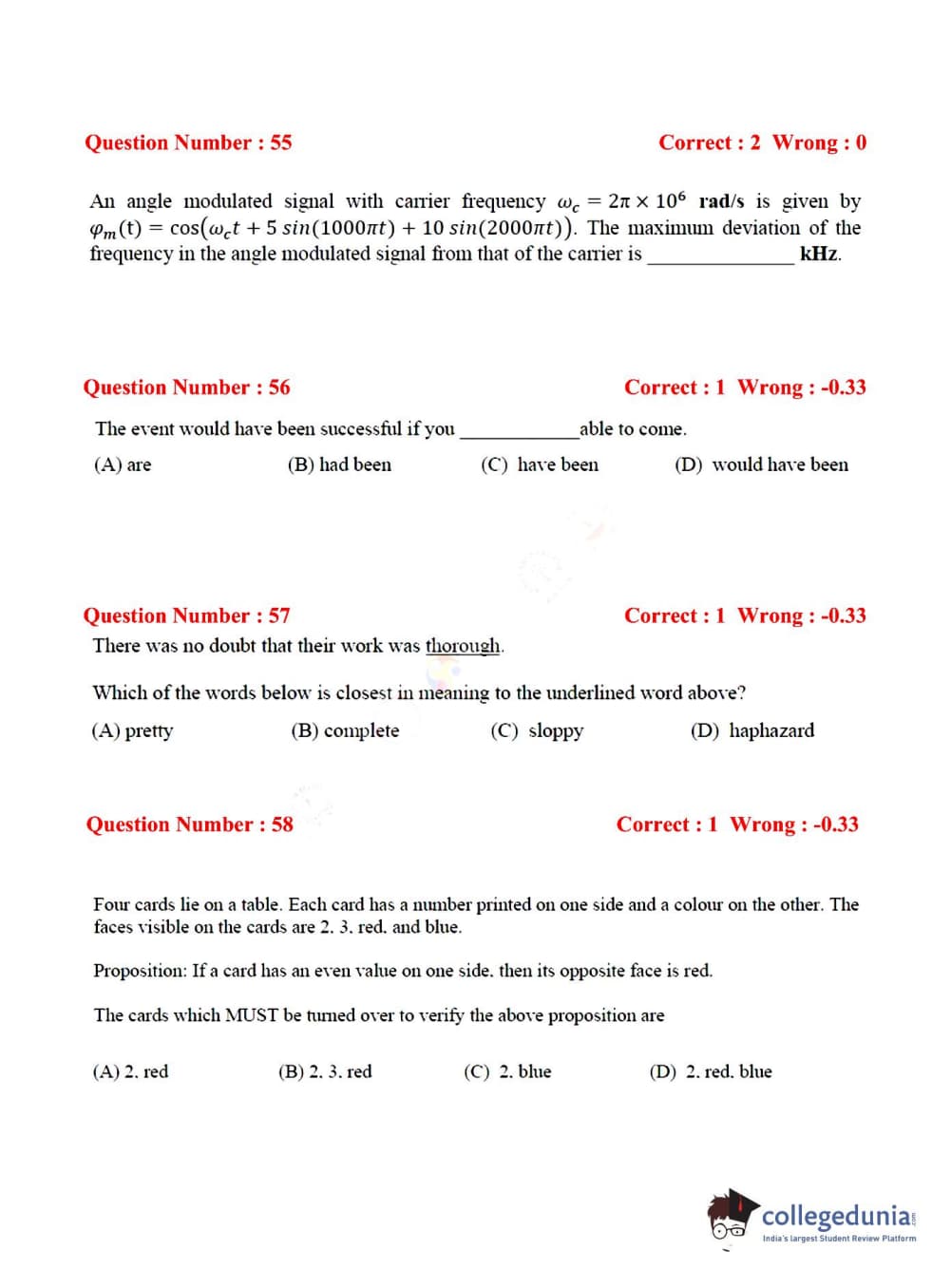

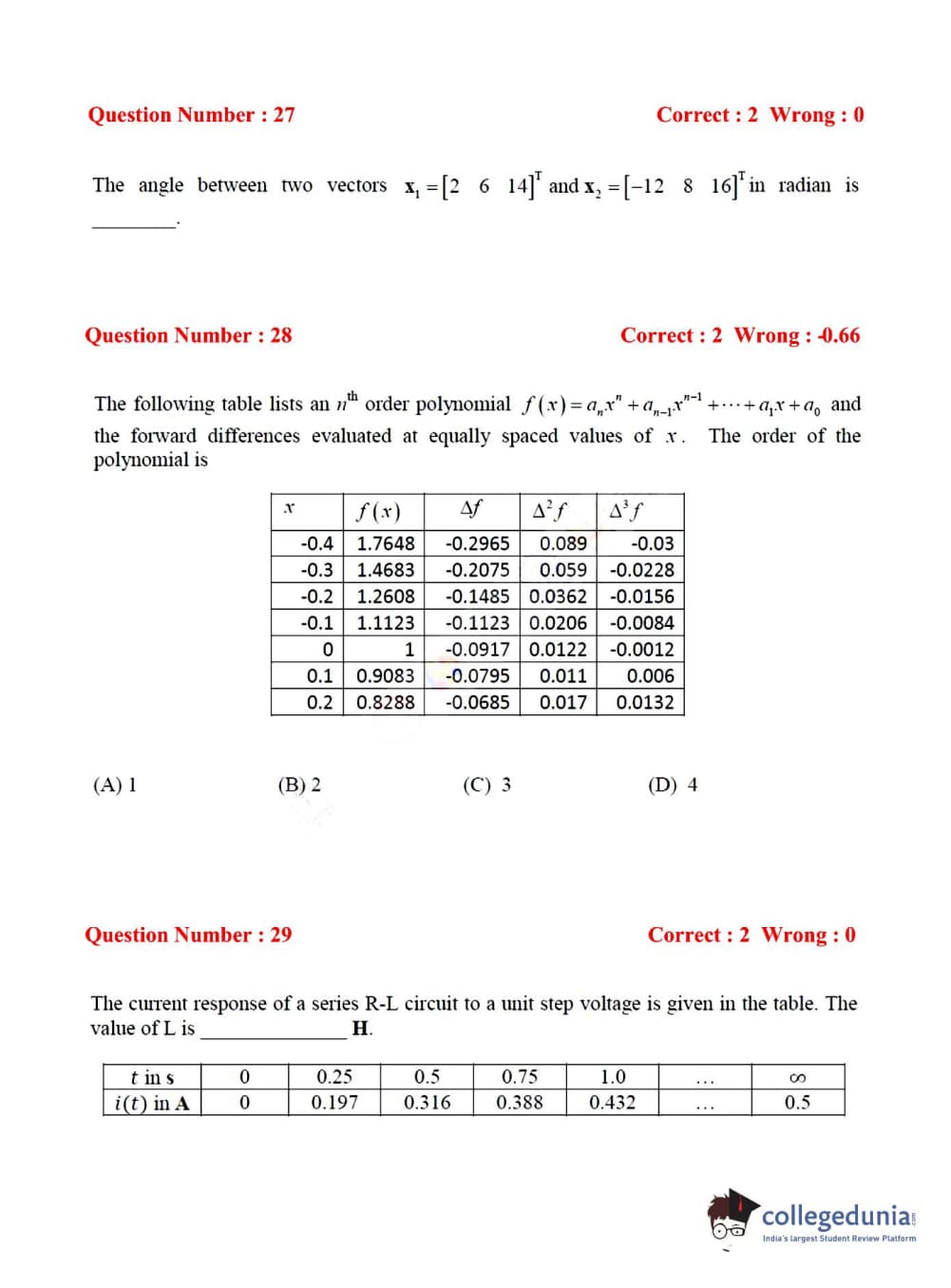

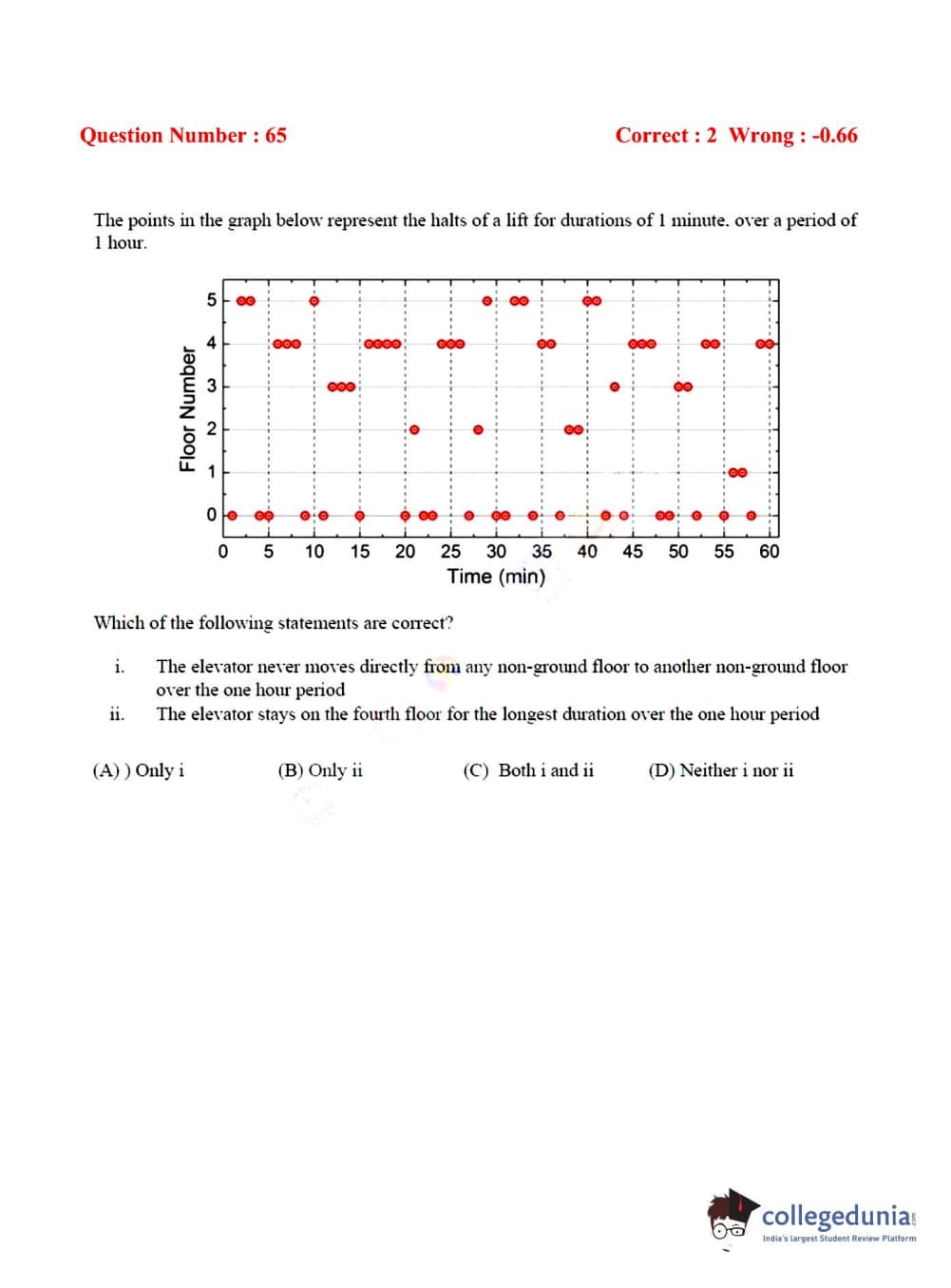

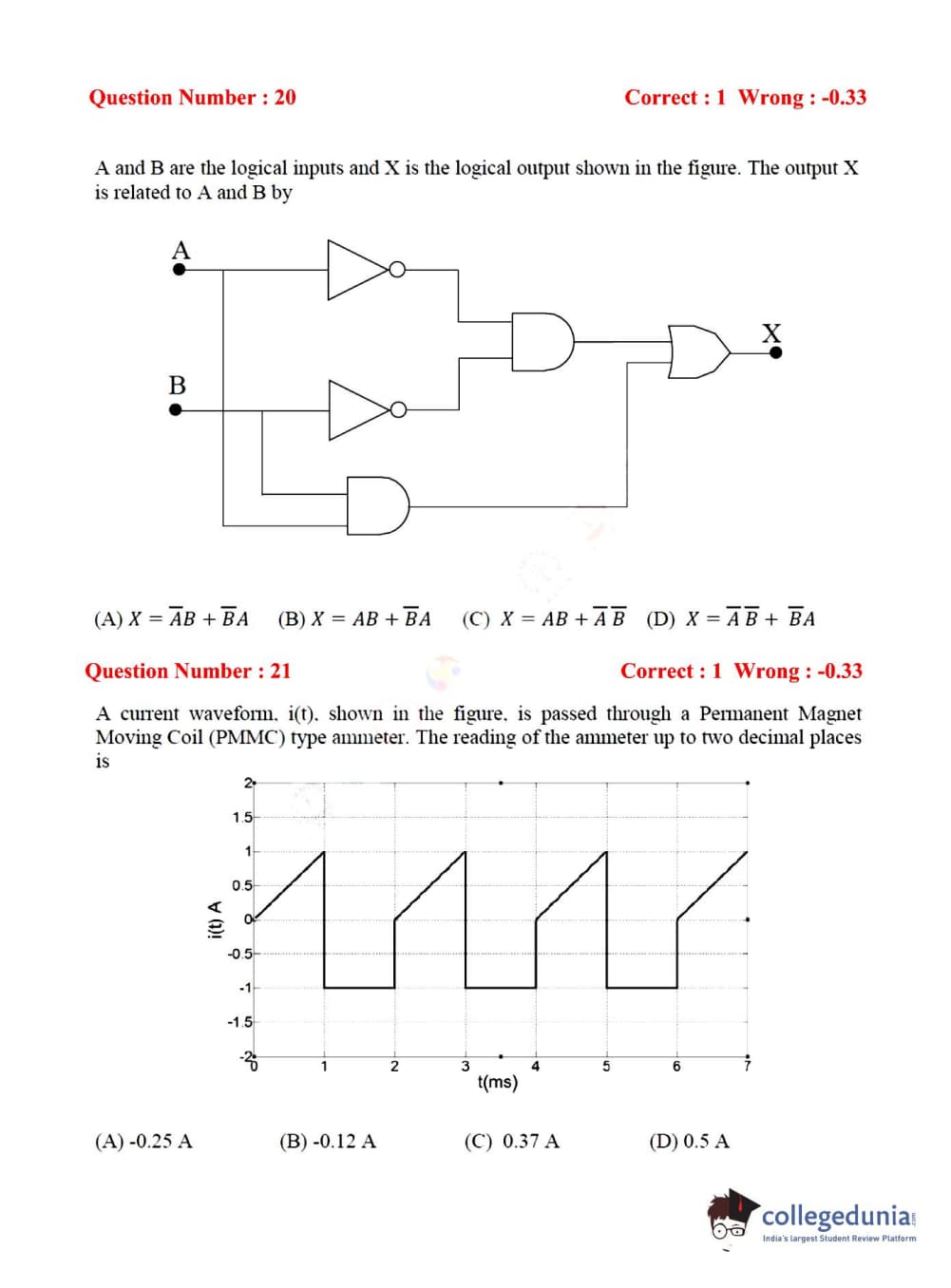

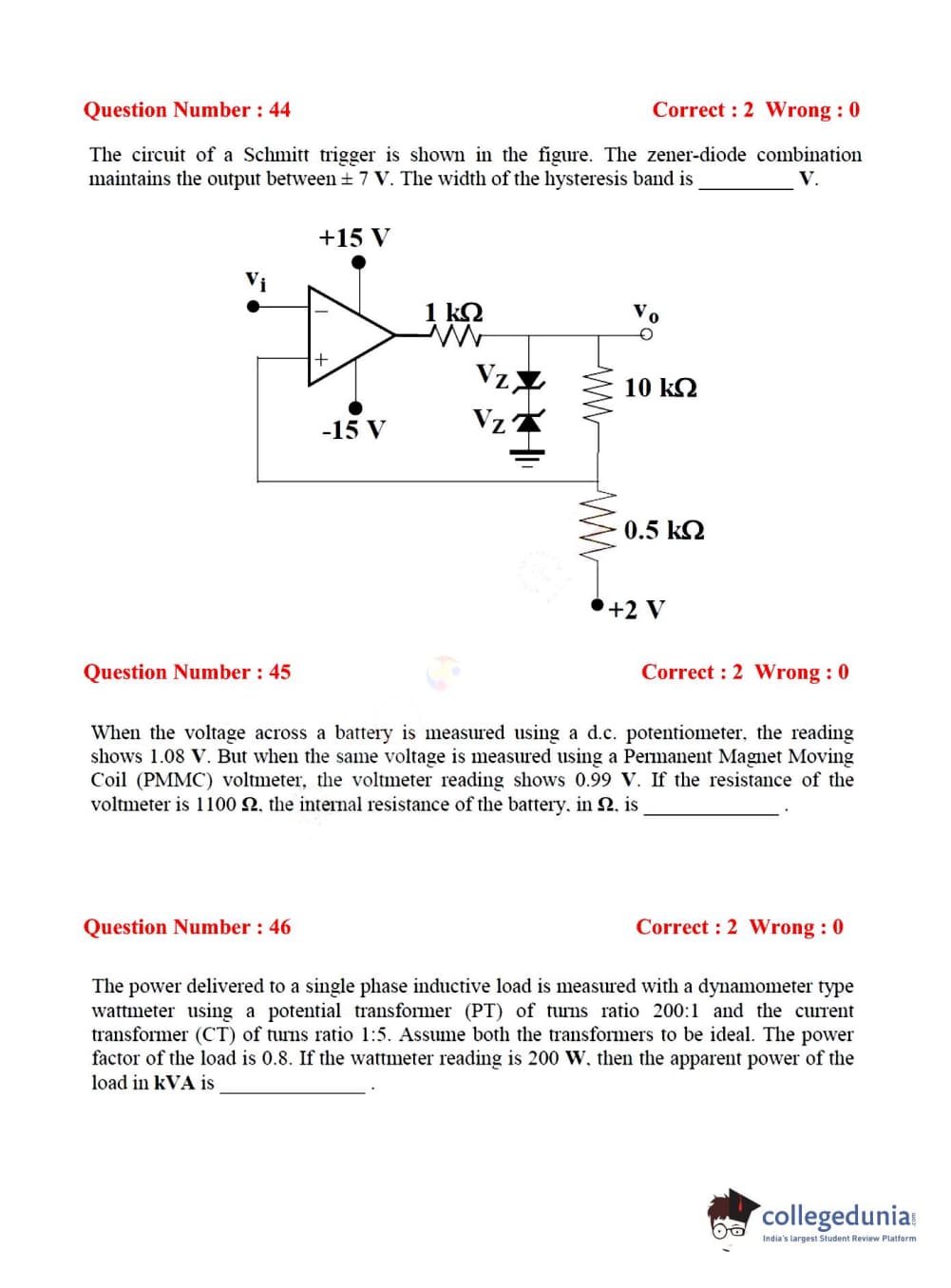

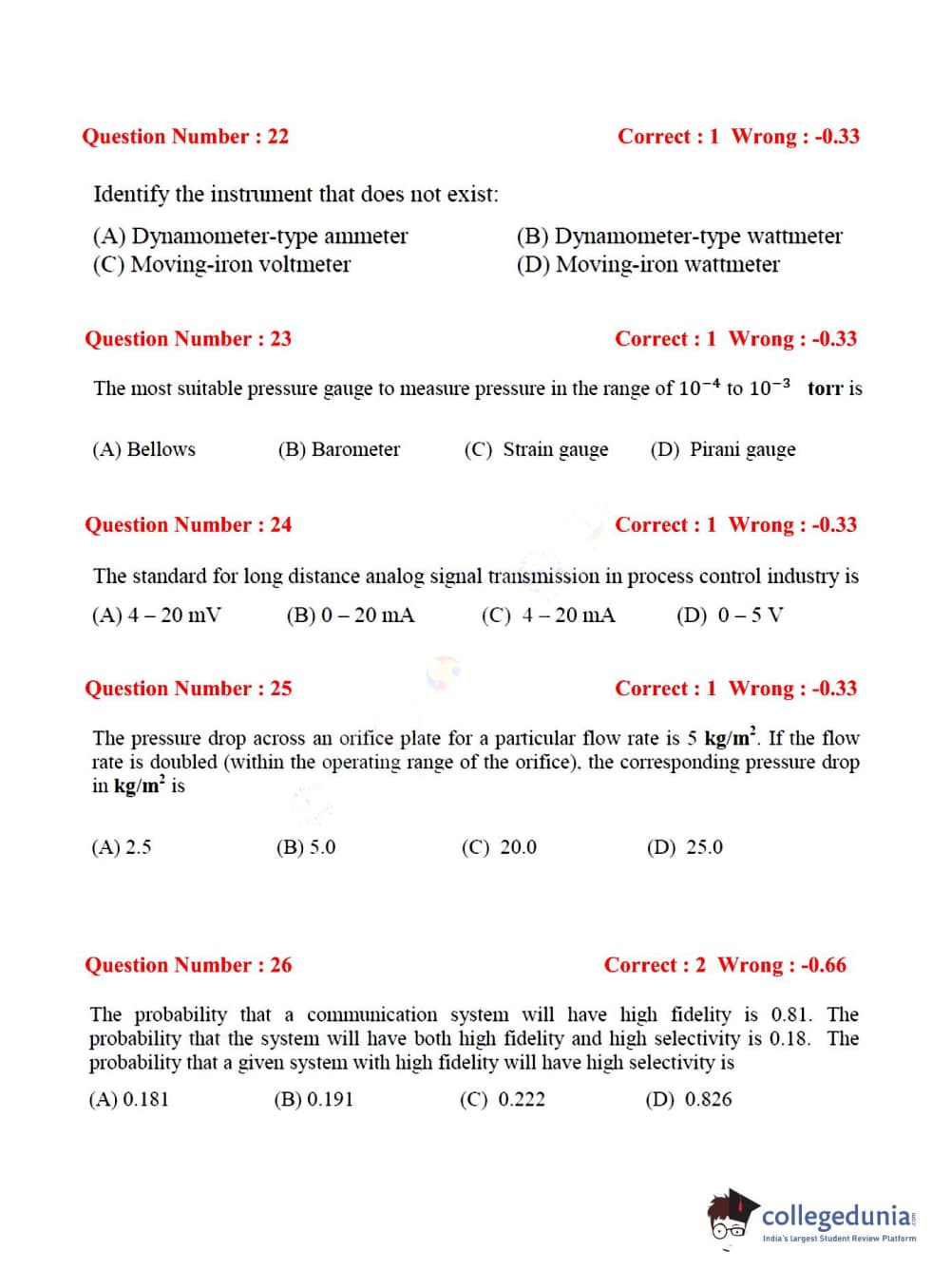

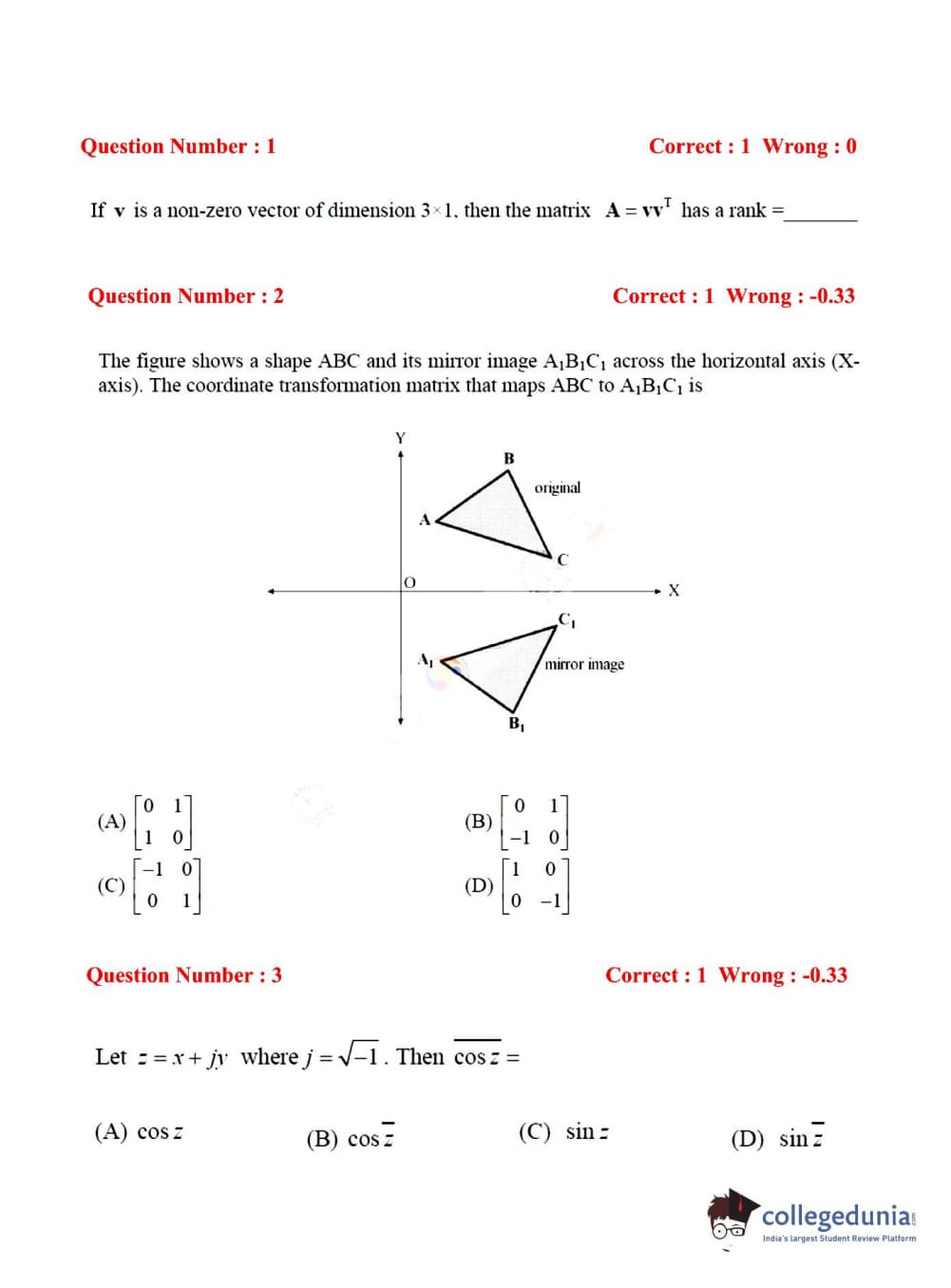

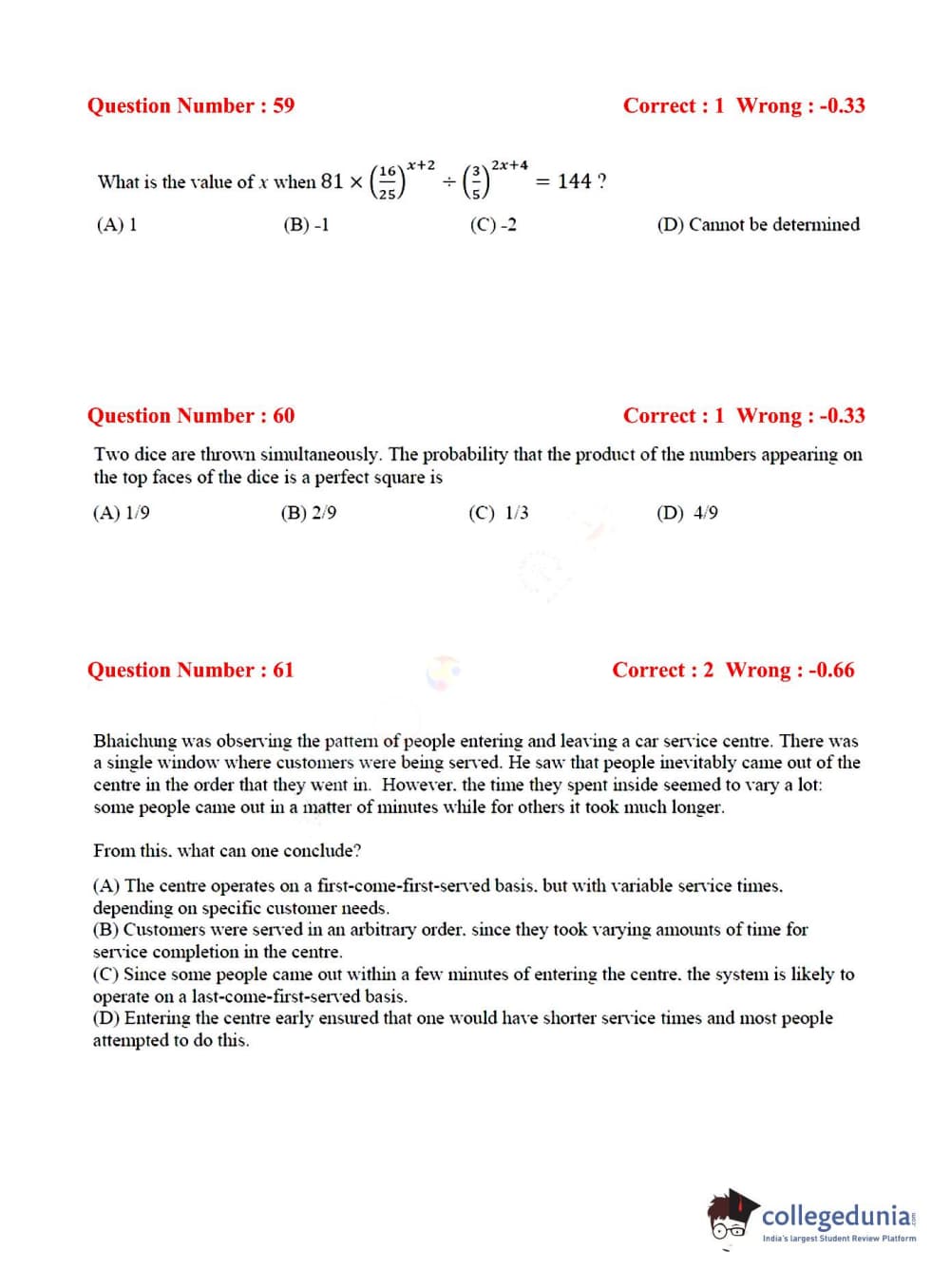

GATE Questions

• 1.

  Let A and B be real symmetric matrices of same size. Which one of the following options is correct?

  • \( (AB)^T = B^T A^T \)

  • \( AB = BA \)

  • \( A^T = A^{-1} \)

  • \( A = A^{-1} \)

  View Solution

  ---

• 2.

  A vibrating system has a critical damping coefficient \(C_c = 350 \, \text{N}\cdot\text{s/m}\) and an actual damping coefficient \(C = 35 \, \text{N}\cdot\text{s/m}\). The logarithmic decrement of the system is approximately:

  • 0.10

  • 0.31

  • 0.63

  • 3.14
  View Solution

  ---

• 3.

  The values of a function \( f \) obtained for different values of \( x \) are shown in the table below.



  Using Simpson’s one-third rule, approximate the integral \[ \int_0^1 f(x) \, dx \quad \text{(rounded off to 2 decimal places)}. \]

  View Solution

  ---

• 4.

  The state of stress at a point is shown in the figure given below. Under plane stress assumption, the normal strain along the thickness direction (\(\epsilon_{zz}\)) is _________ (rounded off to 2 decimal places).






  View Solution

  ---

• 5.

  A cantilever beam of length \(L\) is fixed at the left end (\(x=0\)). It is subjected to a concentrated downward point load \(P\) and a concentrated clockwise moment \(M = \frac{PL}{2}\) at the midpoint (\(x = L/2\)). Which of the following descriptions correctly represents the Shear Force Diagram (SFD) for the beam?

  • A rectangular block of constant positive height \(P\) from \(x=0\) to \(x=L/2\), and zero shear force from \(x=L/2\) to \(x=L\).

  • A rectangular block of constant positive height \(P\) from \(x=0\) to \(x=L/2\), followed by another rectangular block of height \(P/2\) from \(x=L/2\) to \(x=L\).

  • A triangular shape increasing linearly from \(x=0\) to \(x=L/2\).

  • A rectangular block from \(x=0\) to \(x=L\), unaffected by the point load.
  View Solution

  ---

• 6.

  Two metal parts (a cylinder and a cube) of same volume are cast under identical conditions. The diameter of the cylinder is equal to its height. The ratio of the solidification time of the cube to that of the cylinder is _______________ (rounded off to 2 decimal places).
  Assume that solidification time follows Chvorinov's rule with an exponent of 2.


  View Solution
