GATE 2019 Aerospace Engineering (AE) Question Paper with Answer Key PDF (Feb 3- Afternoon Session)

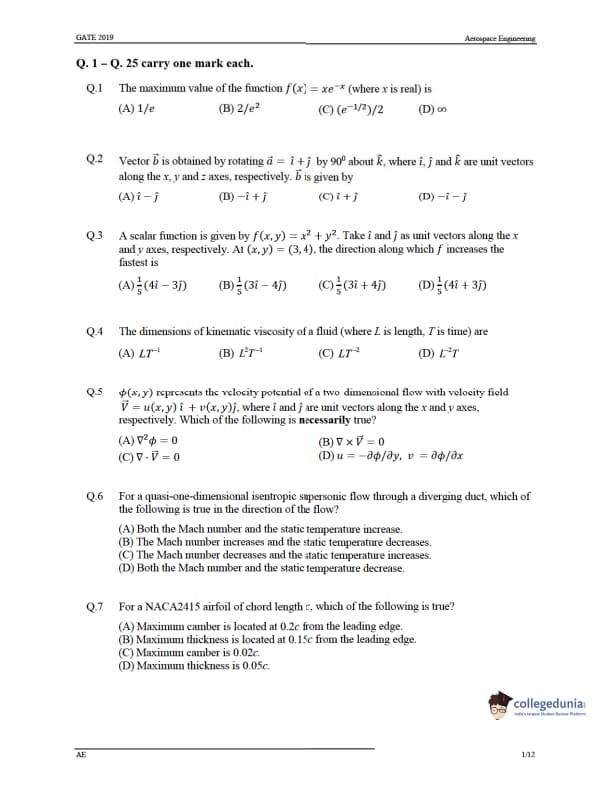

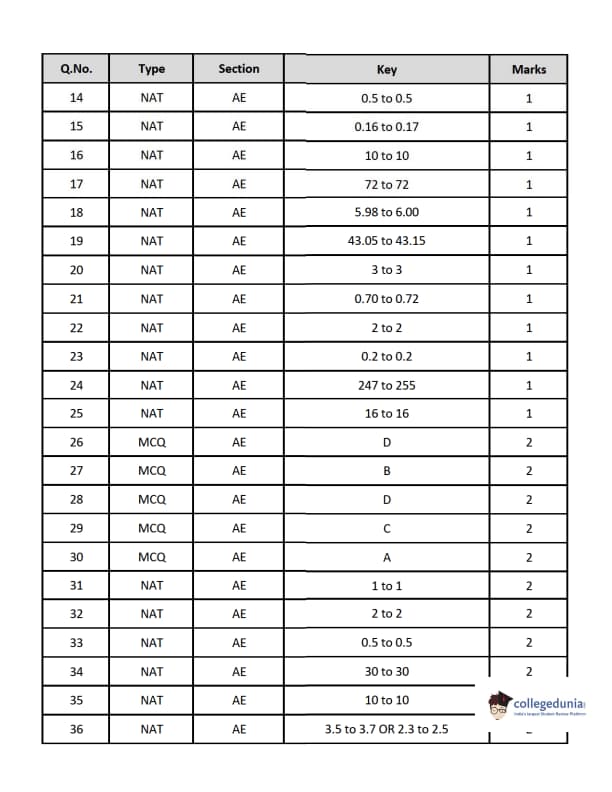

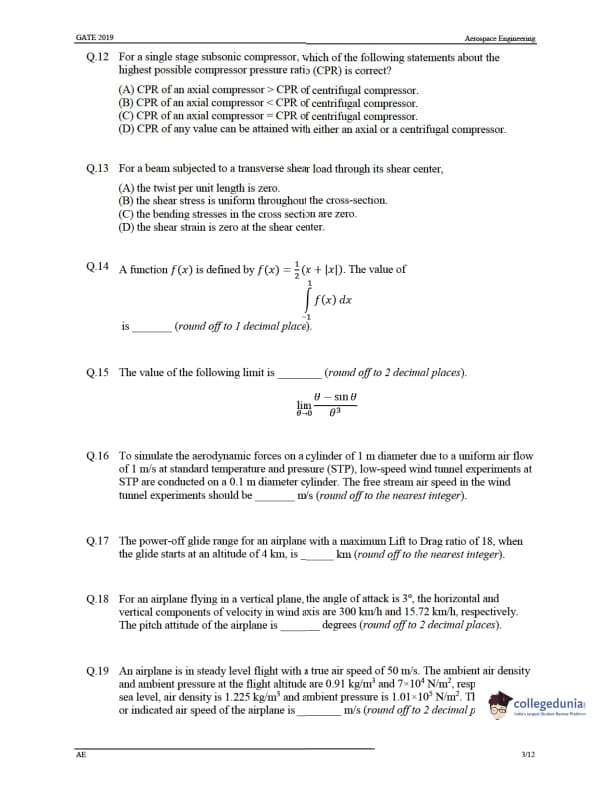

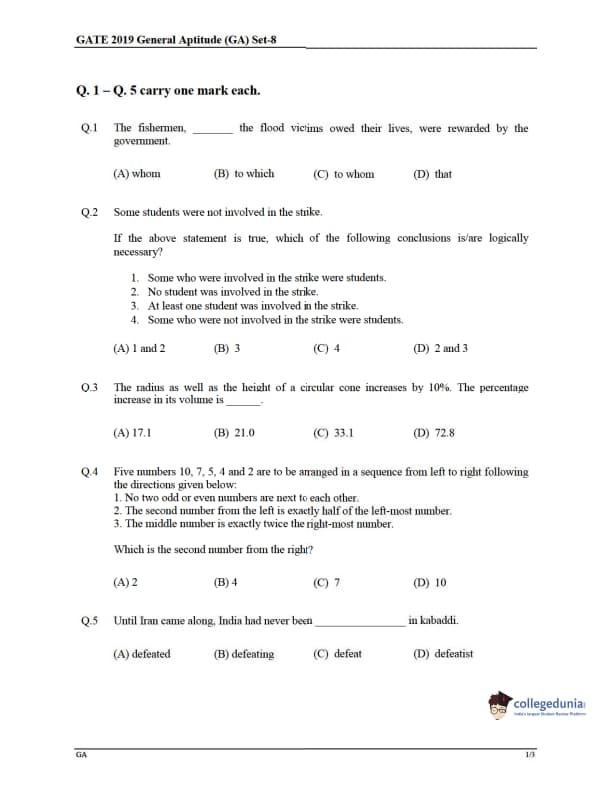

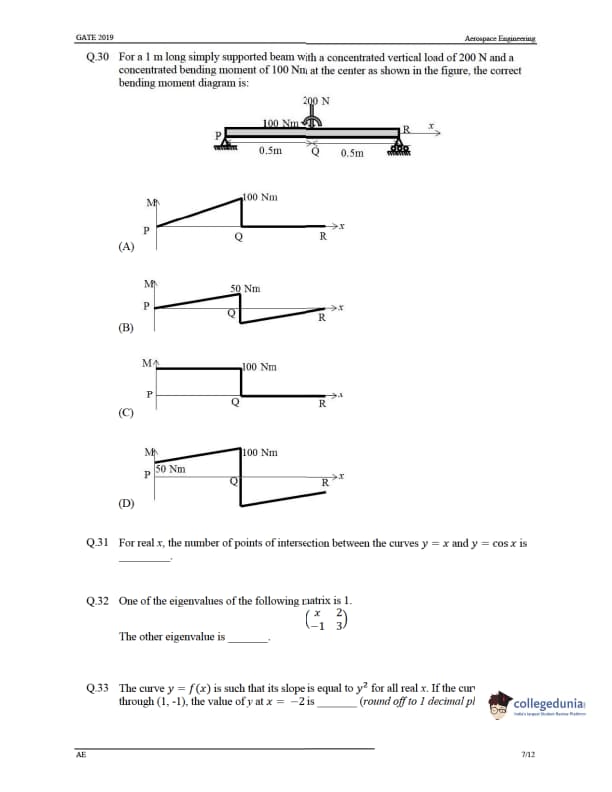

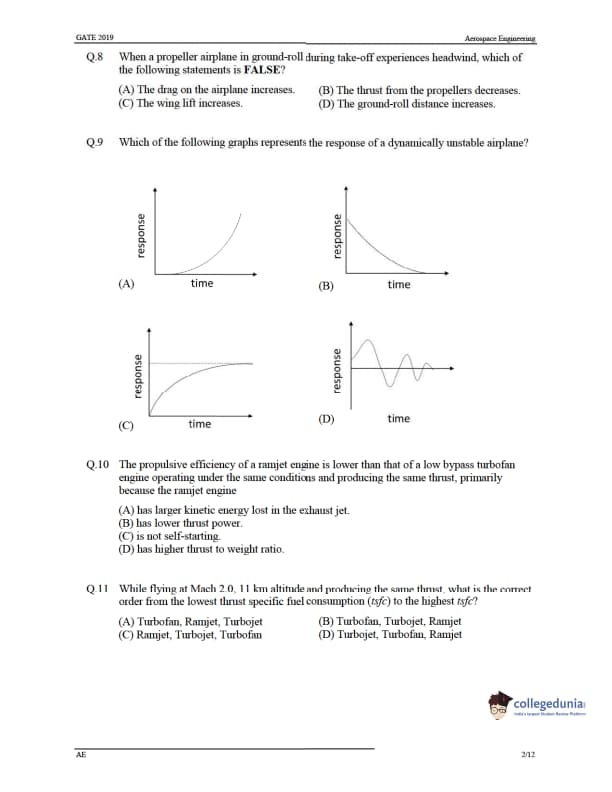

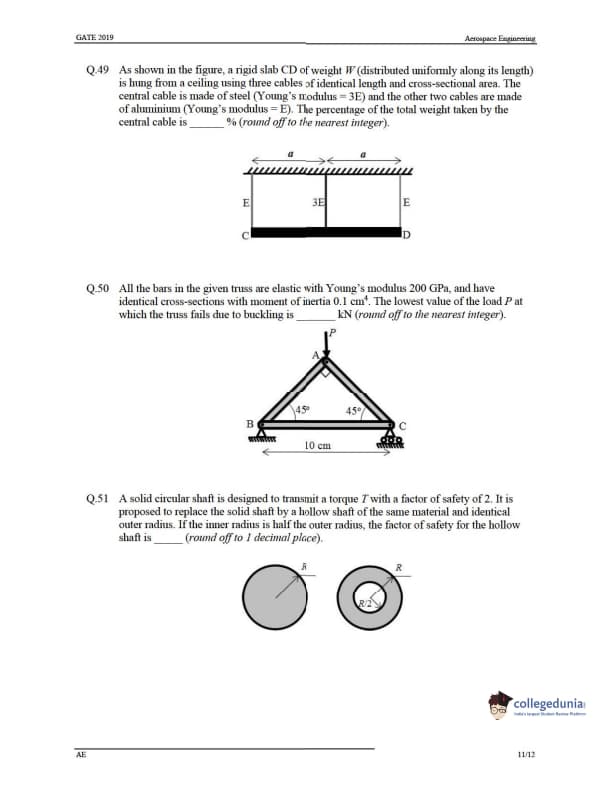

GATE Questions

• 1.

  A cantilever beam of length \(L\) is fixed at the left end (\(x=0\)). It is subjected to a concentrated downward point load \(P\) and a concentrated clockwise moment \(M = \frac{PL}{2}\) at the midpoint (\(x = L/2\)). Which of the following descriptions correctly represents the Shear Force Diagram (SFD) for the beam?

  • A rectangular block of constant positive height \(P\) from \(x=0\) to \(x=L/2\), and zero shear force from \(x=L/2\) to \(x=L\).

  • A rectangular block of constant positive height \(P\) from \(x=0\) to \(x=L/2\), followed by another rectangular block of height \(P/2\) from \(x=L/2\) to \(x=L\).

  • A triangular shape increasing linearly from \(x=0\) to \(x=L/2\).

  • A rectangular block from \(x=0\) to \(x=L\), unaffected by the point load.
  View Solution

  ---

• 2.

  Two cars, P and Q, start from a point X in India at 10 AM. Car P travels North with a speed of 25 km/h and car Q travels East with a speed of 30 km/h. Car P travels continuously but car Q stops for some time after traveling for one hour. If both cars are at the same distance from X at 11:30 AM, for how long (in minutes) did car Q stop?

  • 10

  • 12

  • 15

  • 18

  View Solution

  ---

• 3.

  Consider two infinitely long fins made of the same material and exposed to the same convective environment. One fin has a square cross-section of side \(a\), and the other has a circular cross-section of diameter \(d\). Assume \(a = d\). The ratio of the steady-state heat transfer rate from the square fin to that from the circular fin, \(\frac{\dot{Q}_{\text{square}}}{\dot{Q}_{\text{circular}}}\), is:

  • \(\frac{\pi}{4}\)

  • \(\frac{4}{\pi}\)

  • \(\frac{2}{\sqrt{\pi}}\)

  • \(\frac{\sqrt{\pi}}{2}\)
  View Solution

  ---

• 4.

  A truss structure is loaded as shown in the figure below. Among the options given, which member in the truss is a zero-force member?



  \[ {Given: } F = 1000\,{N} \]

  • \(BD\)

  • \(BC\)

  • \(BA\)

  • \(AD\)
  View Solution

  ---

• 5.

  The state of stress at a point is shown in the figure given below. Under plane stress assumption, the normal strain along the thickness direction (\(\epsilon_{zz}\)) is _________ (rounded off to 2 decimal places).






  View Solution

  ---

• 6.

  A vibrating system has a critical damping coefficient \(C_c = 350 \, \text{N}\cdot\text{s/m}\) and an actual damping coefficient \(C = 35 \, \text{N}\cdot\text{s/m}\). The logarithmic decrement of the system is approximately:

  • 0.10

  • 0.31

  • 0.63

  • 3.14
  View Solution
