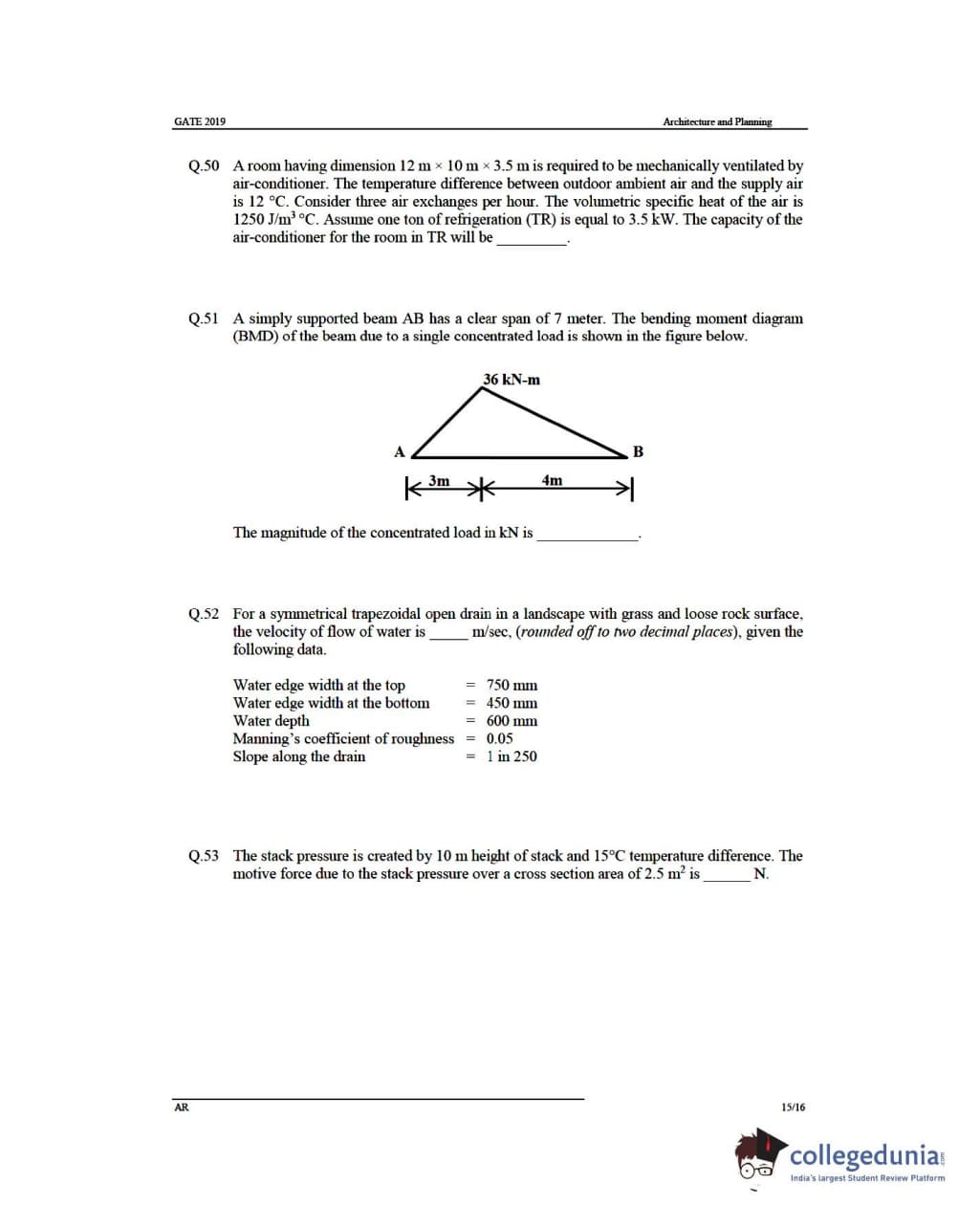

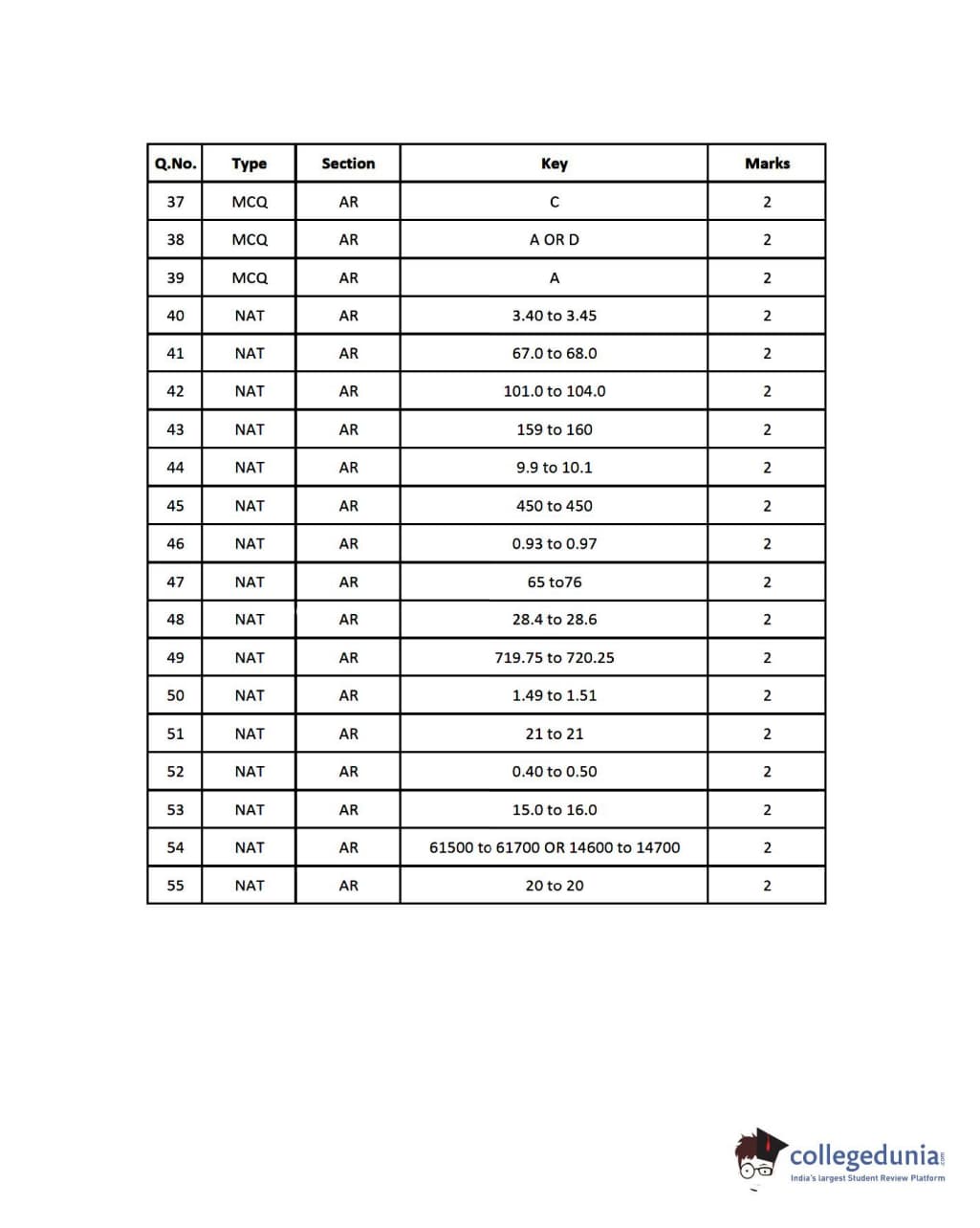

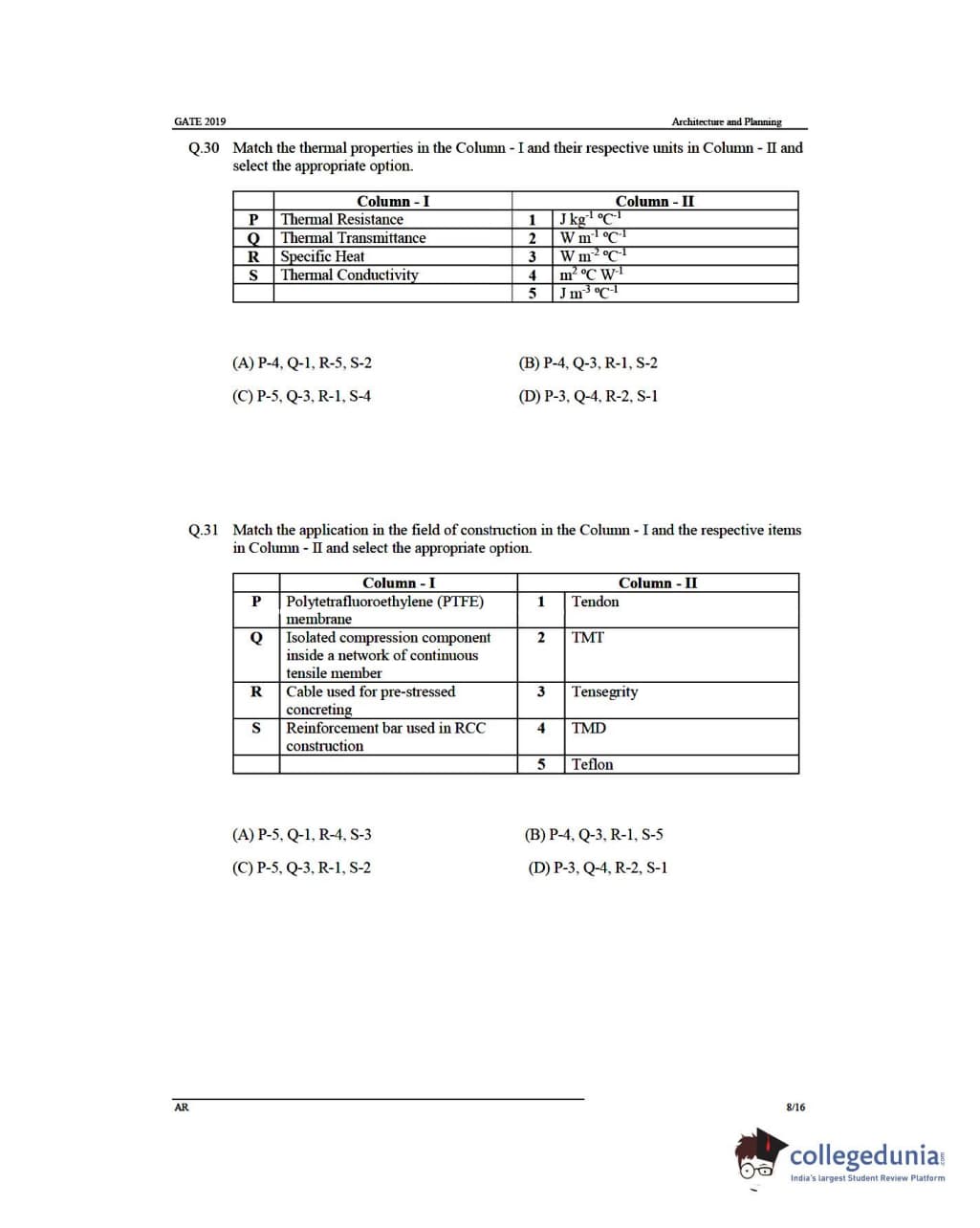

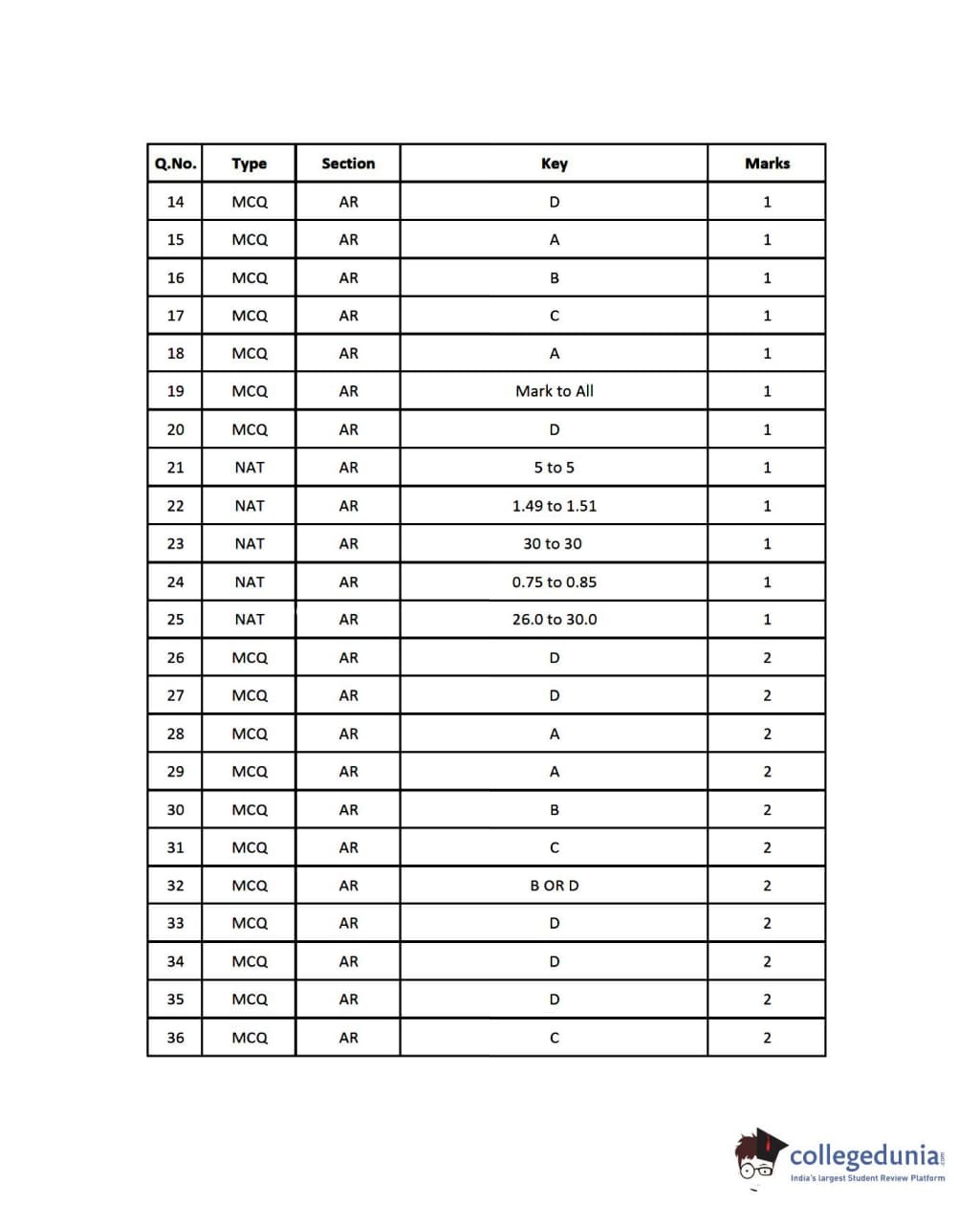

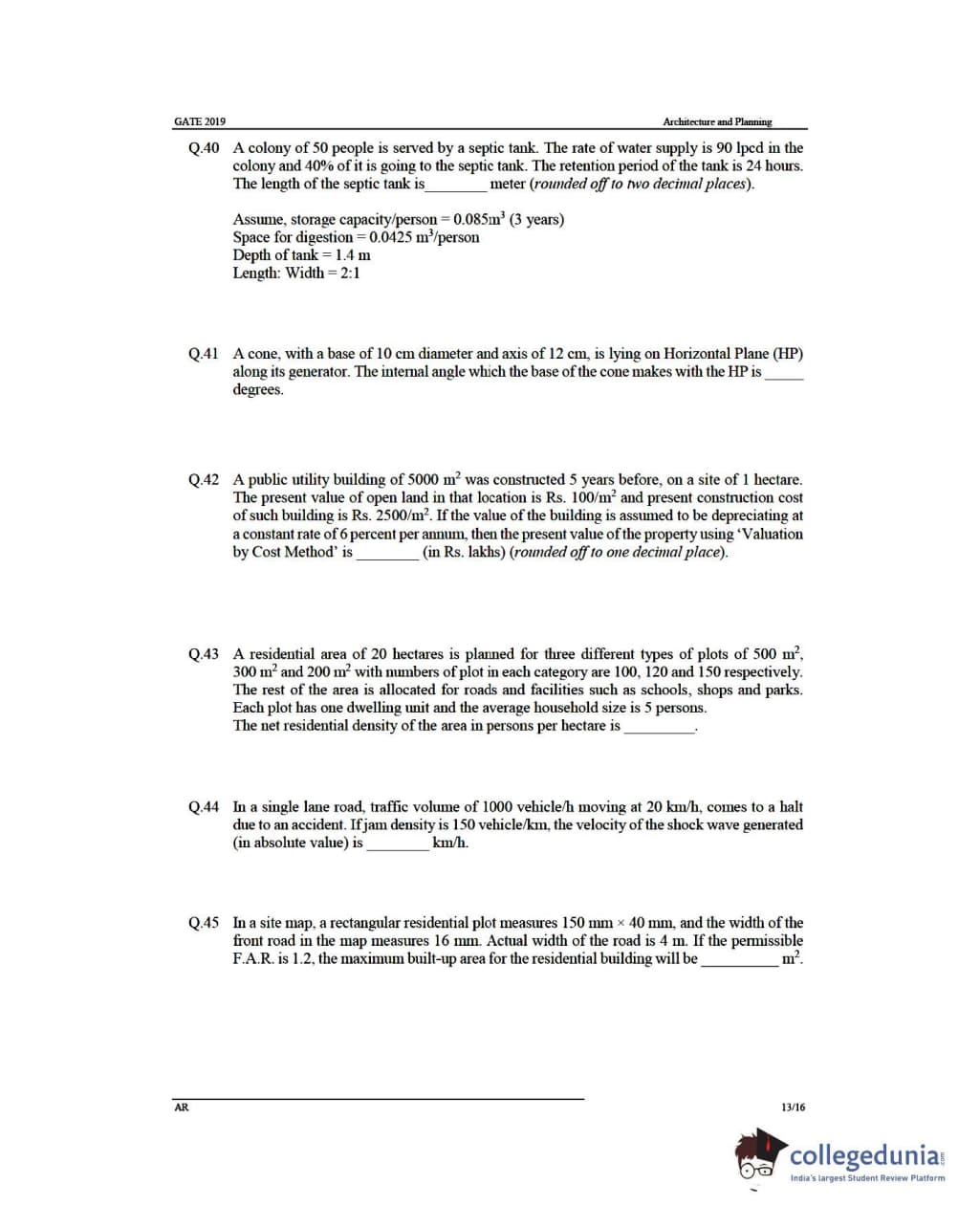

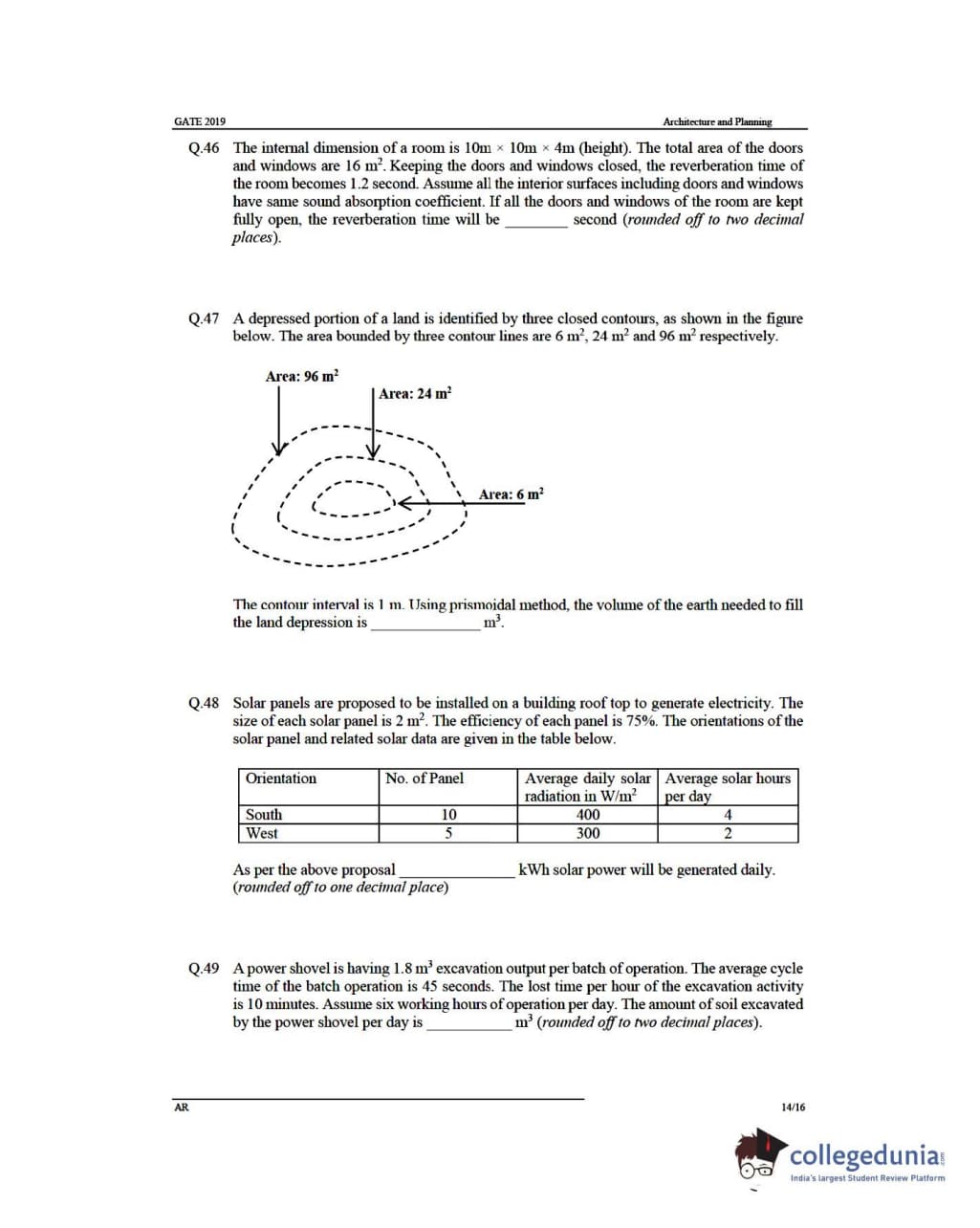

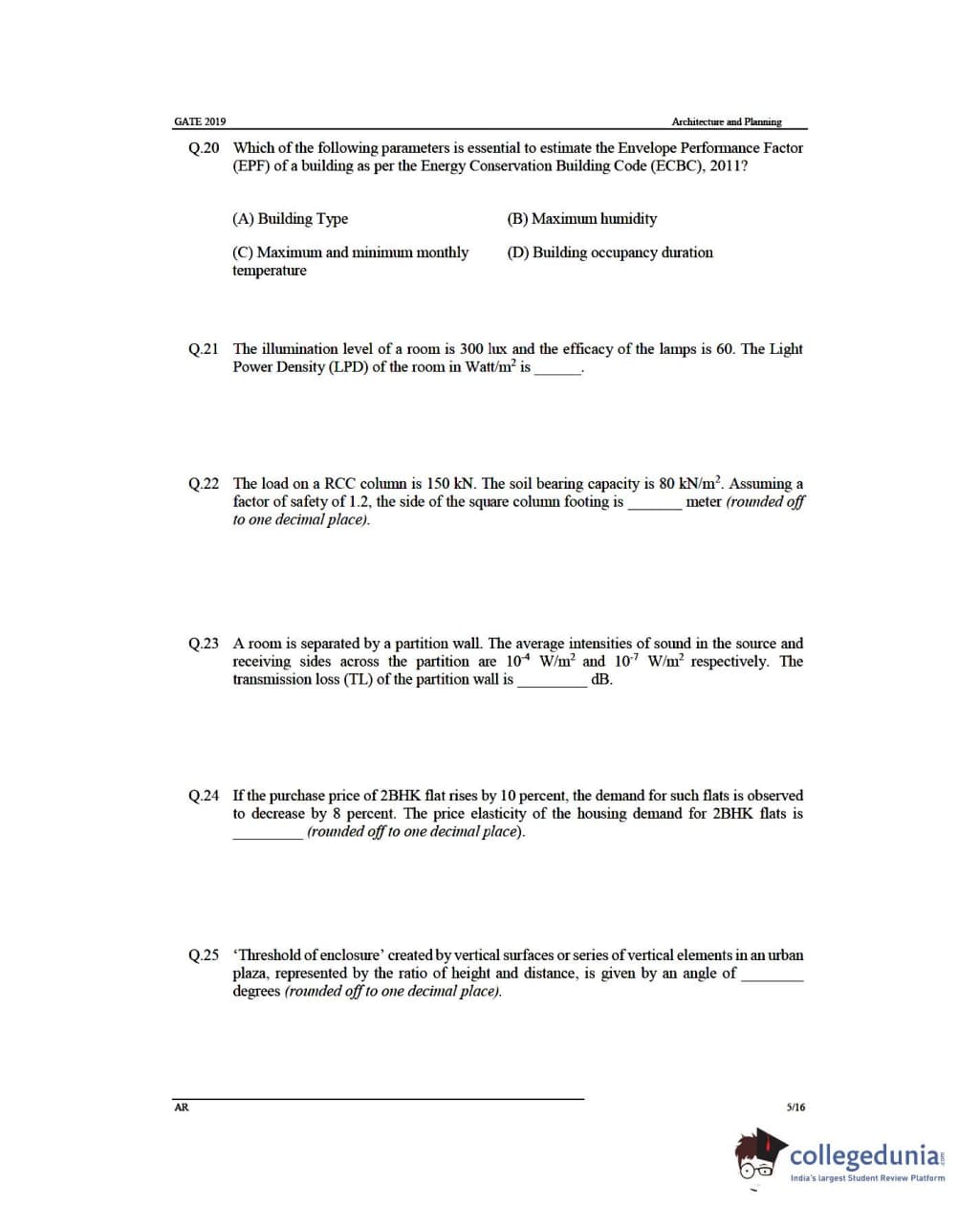

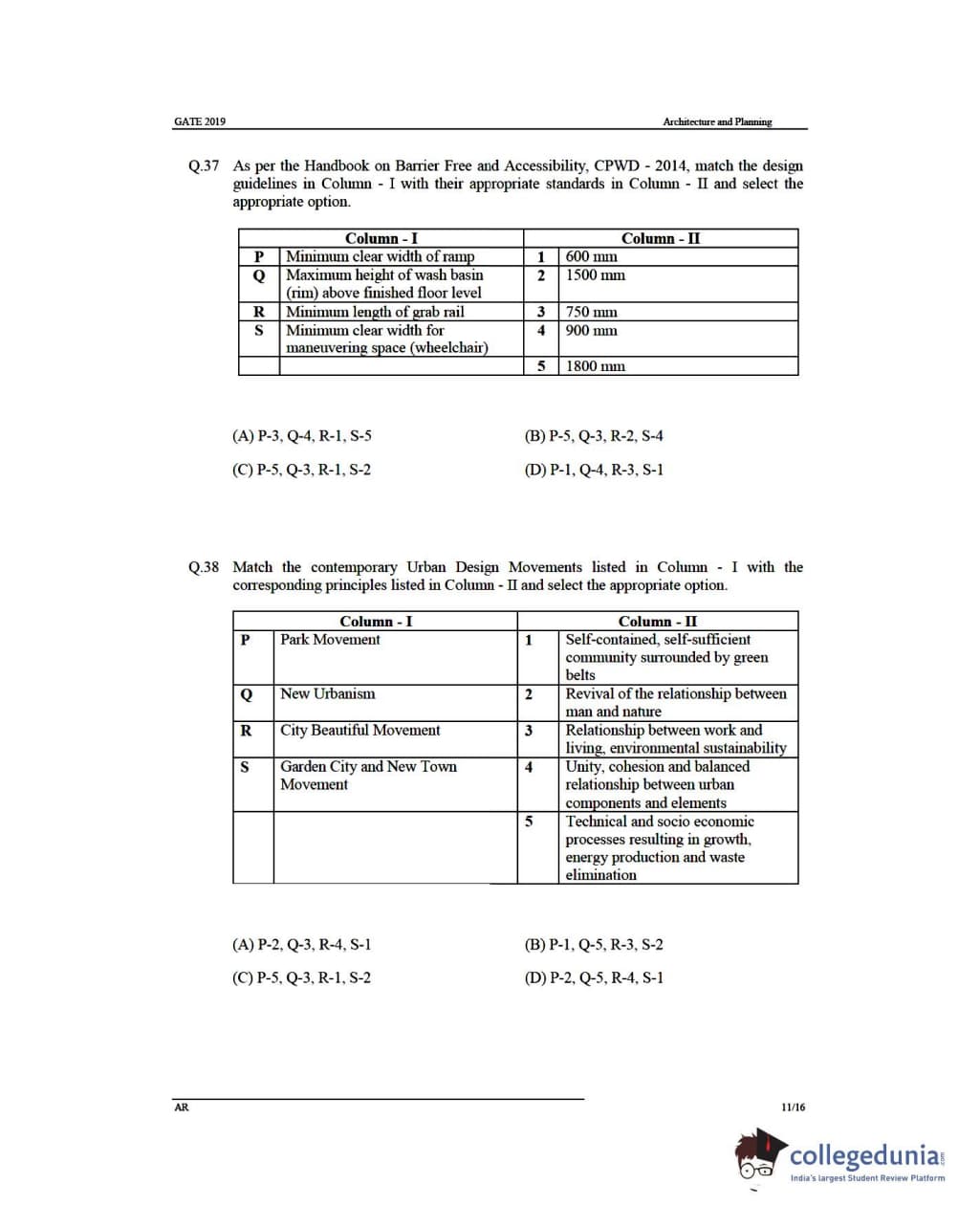

GATE 2019 Architecture and Planning (AR) Question Paper with Answer Key PDF (February 3 - Afternoon Session)

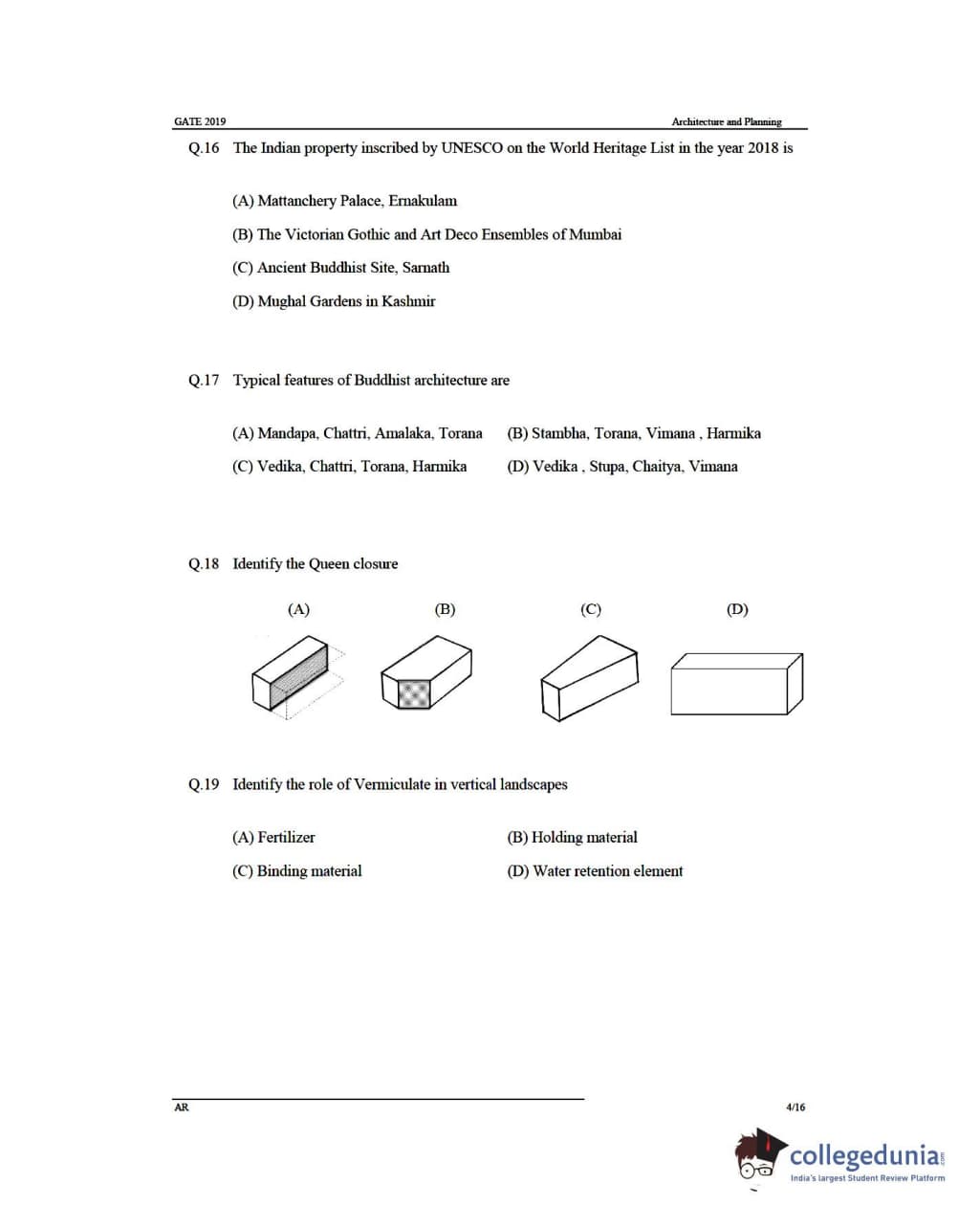

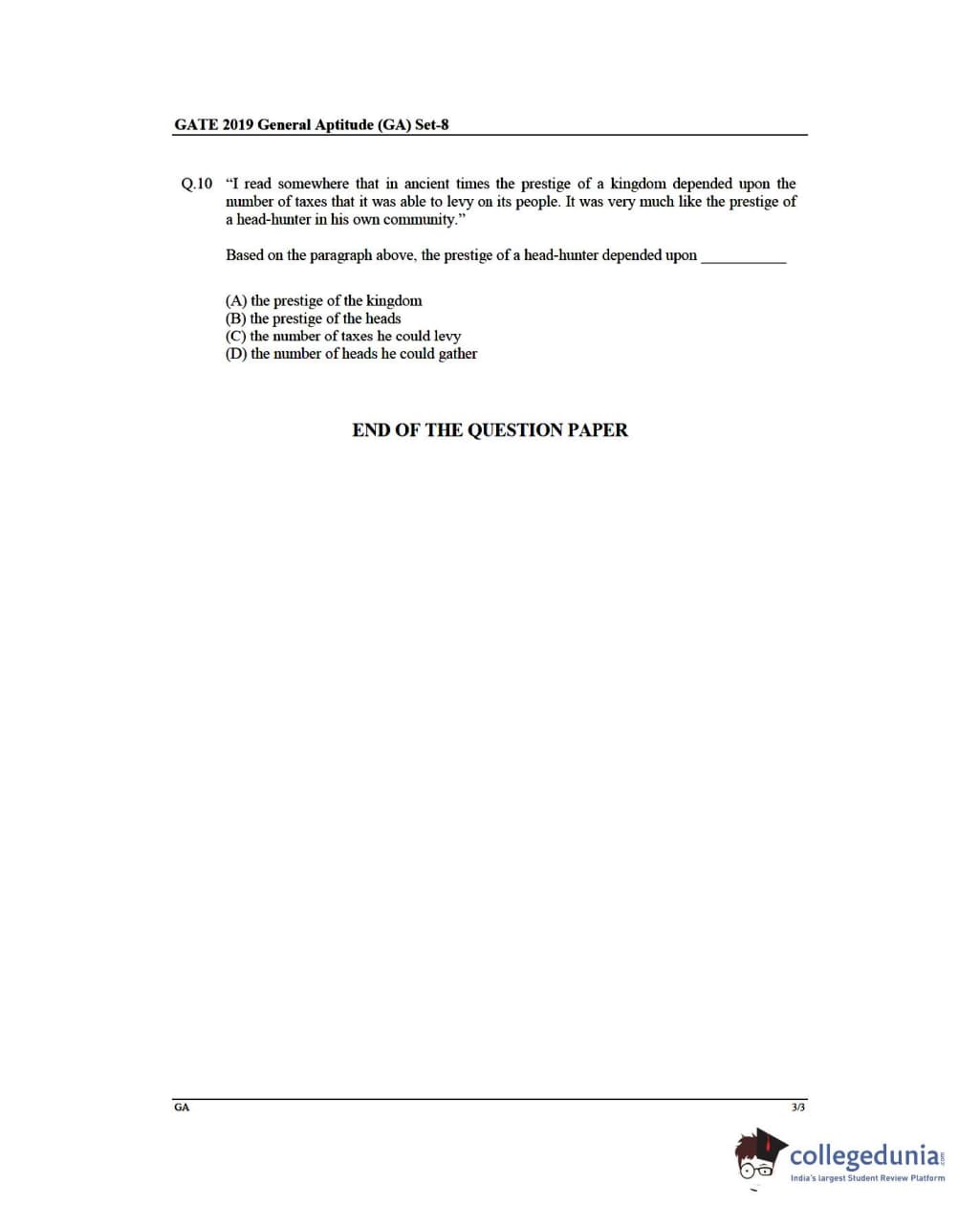

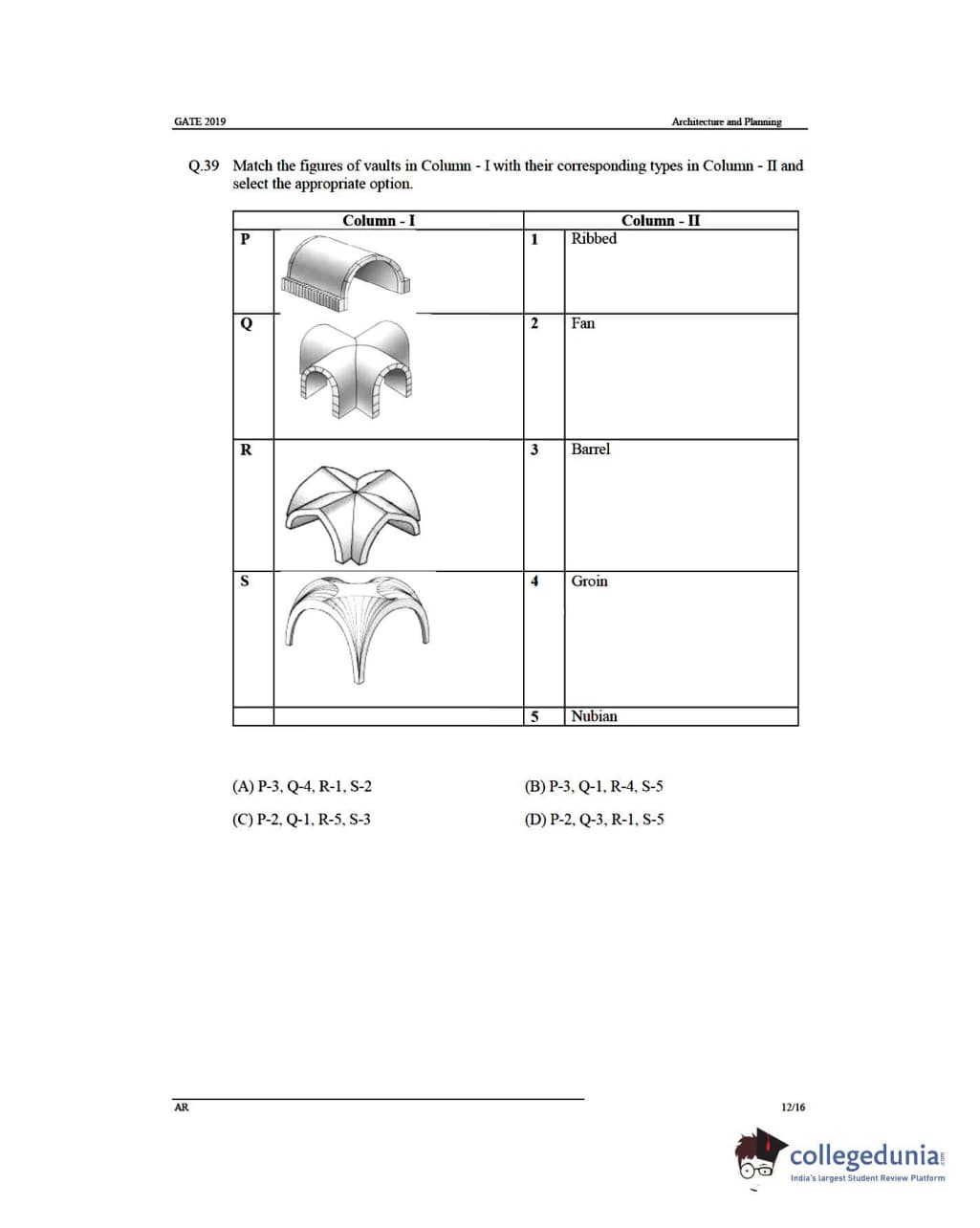

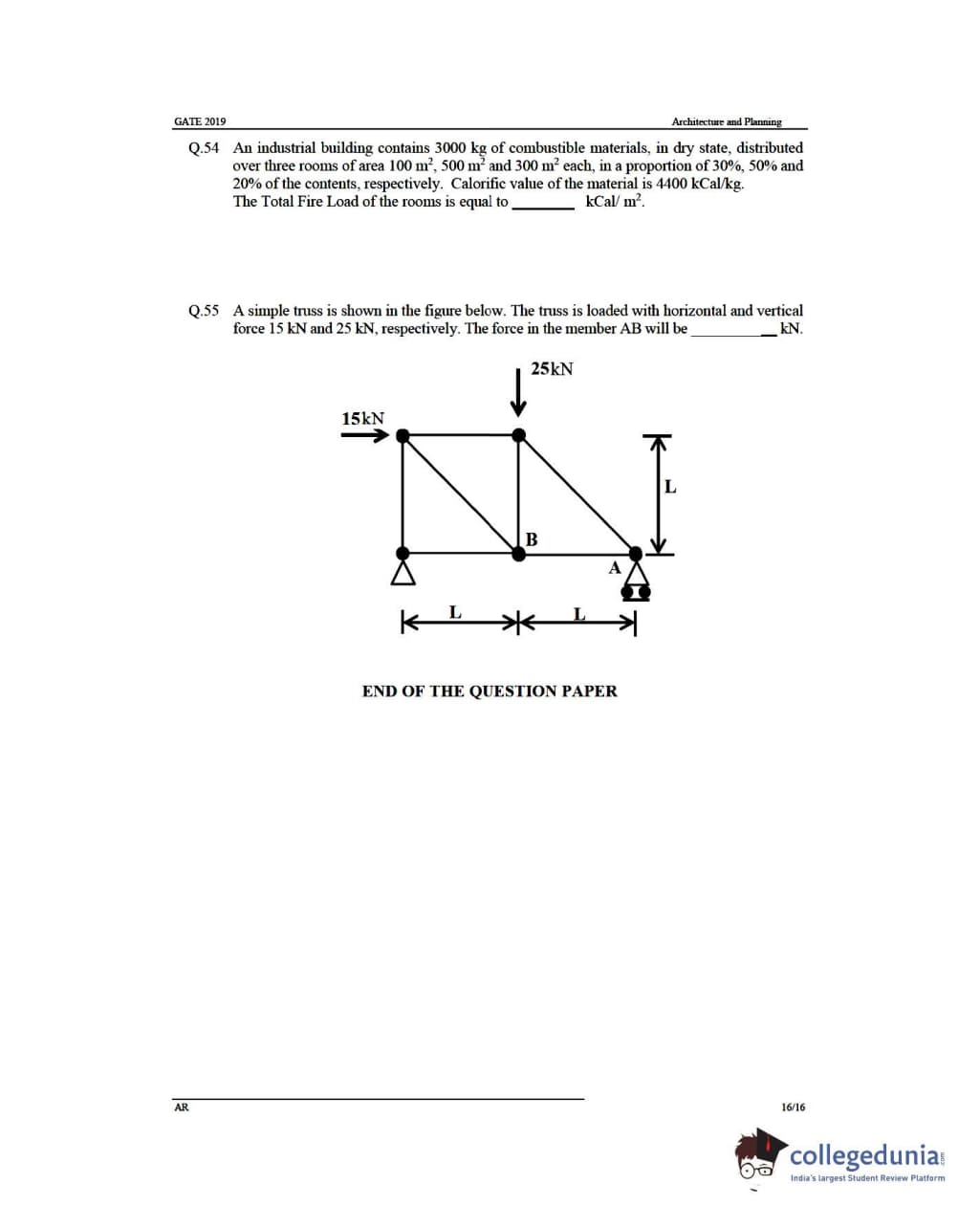

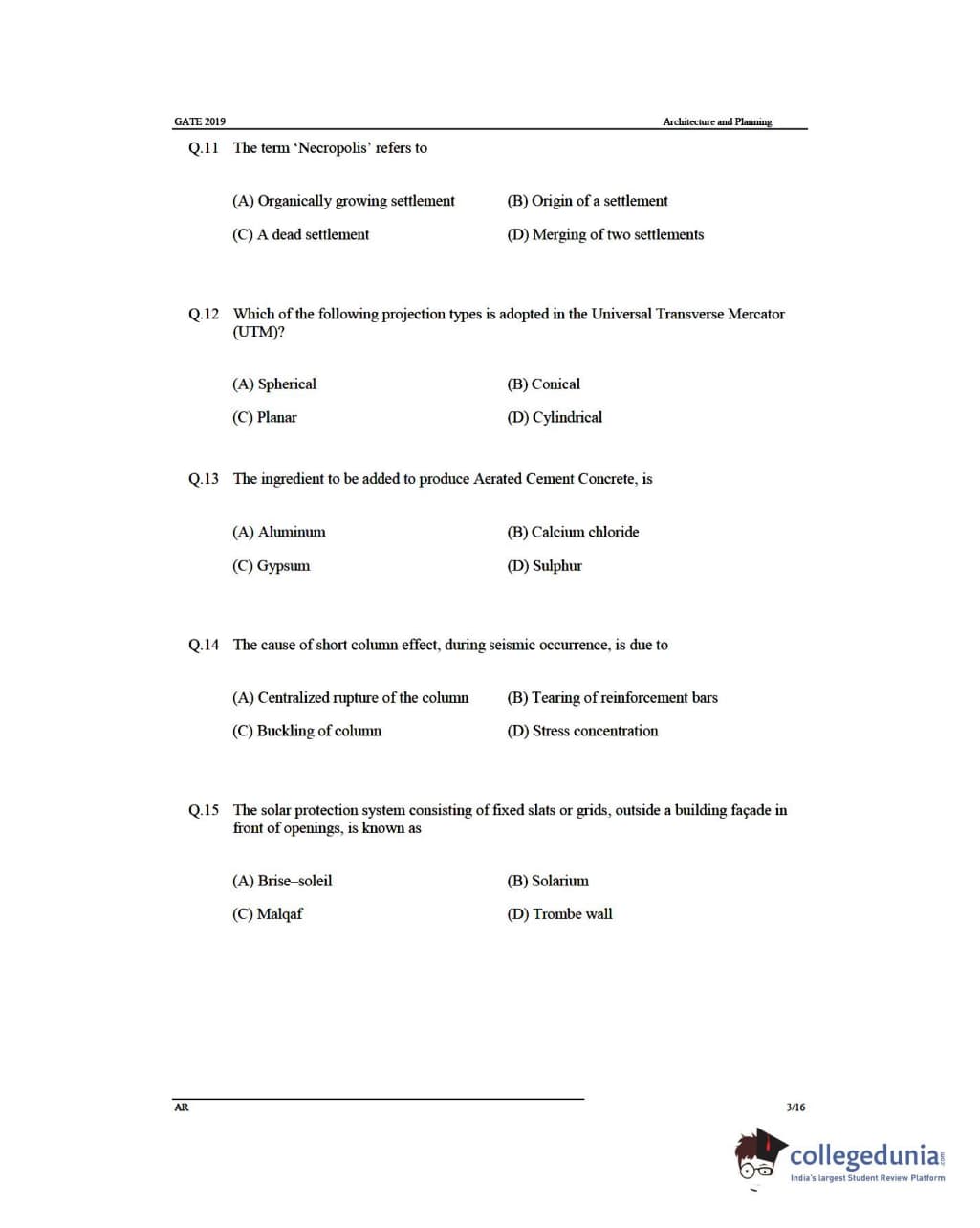

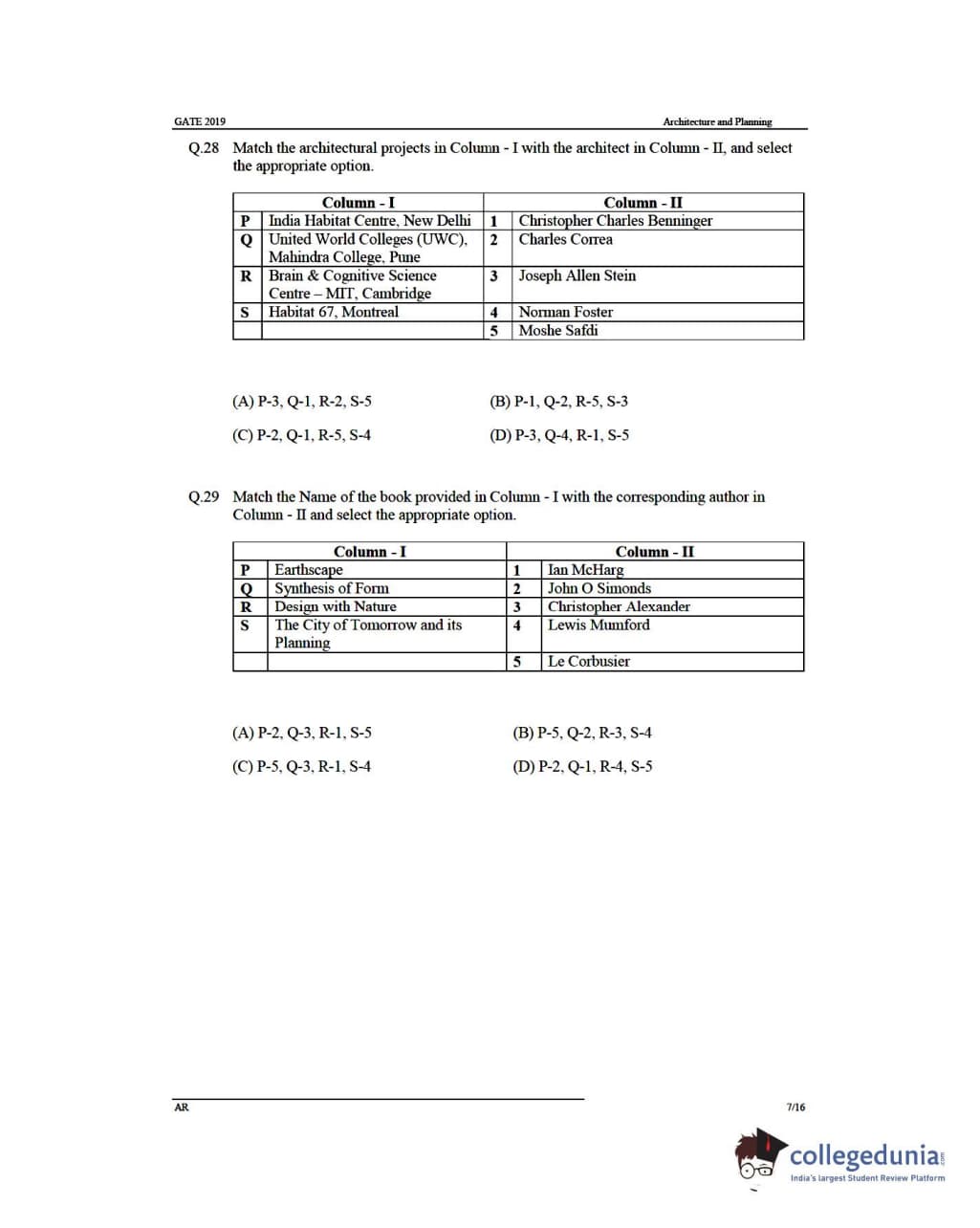

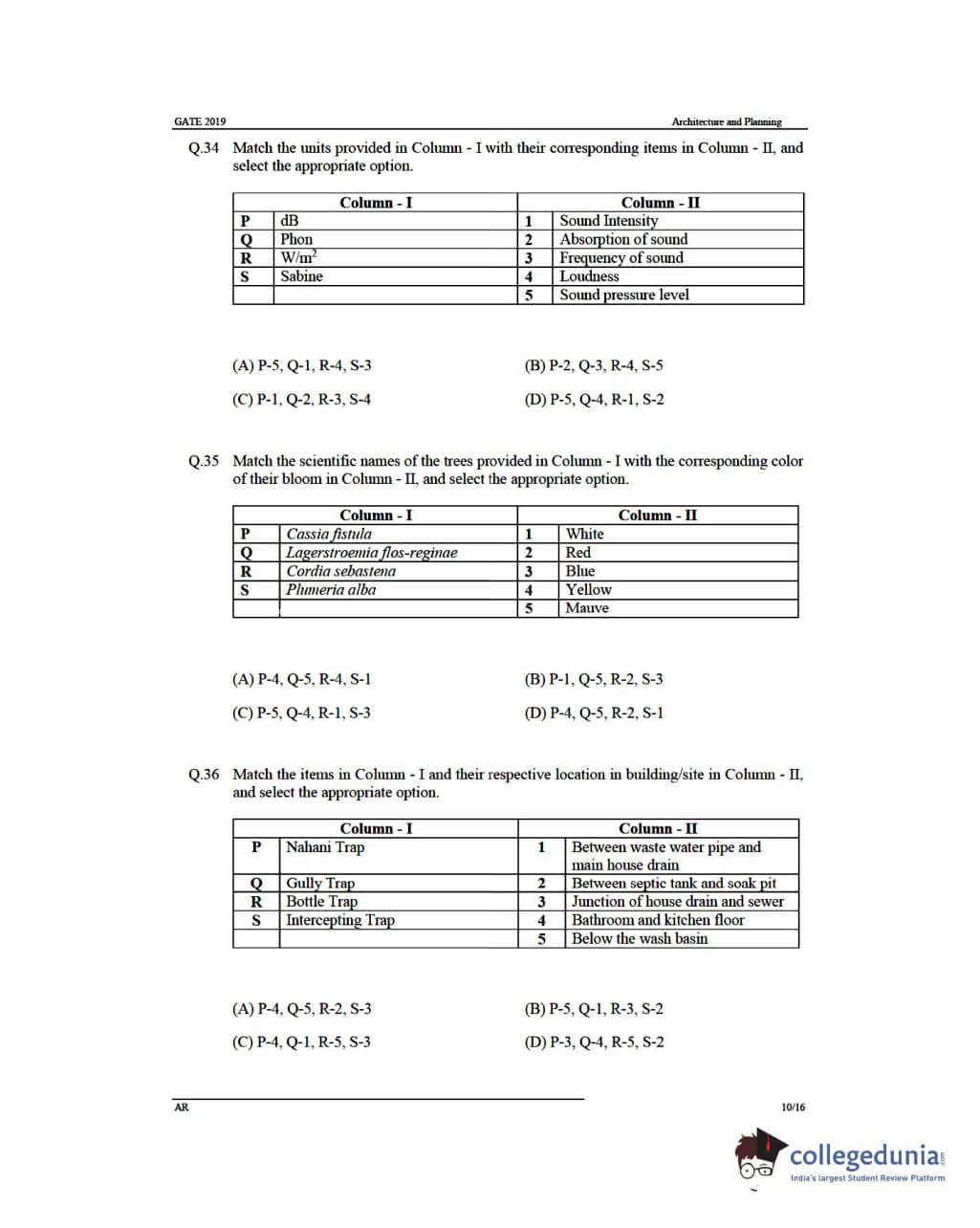

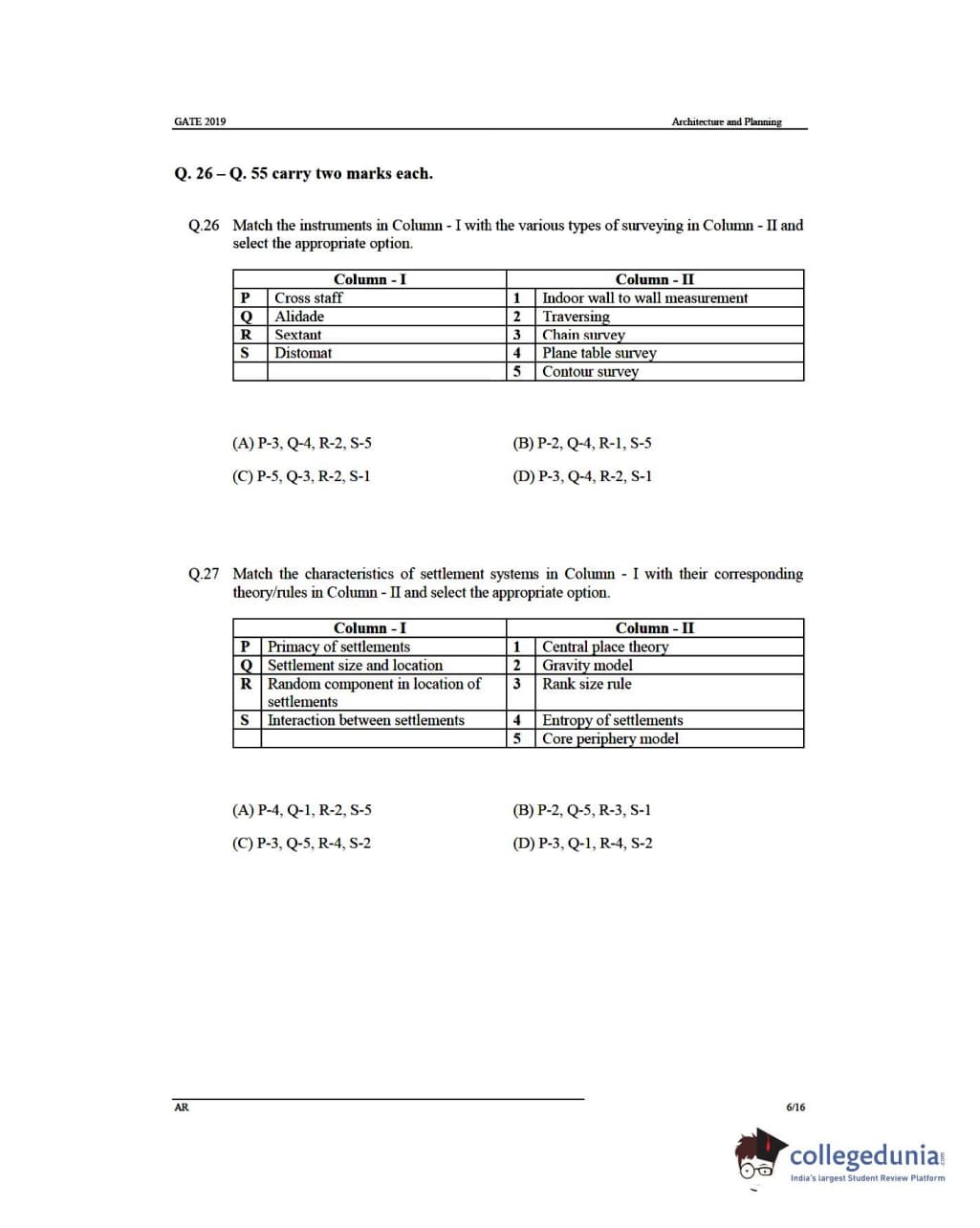

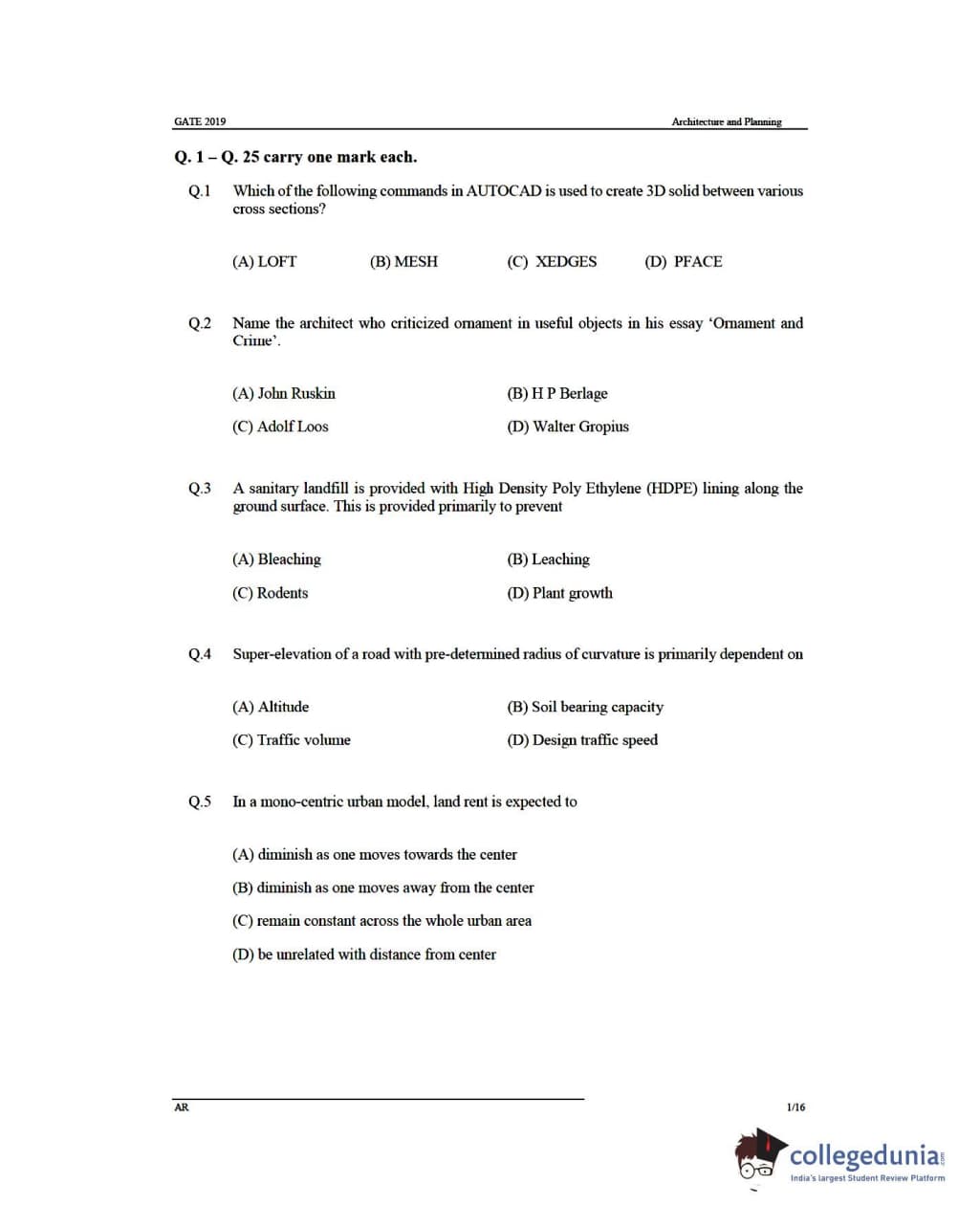

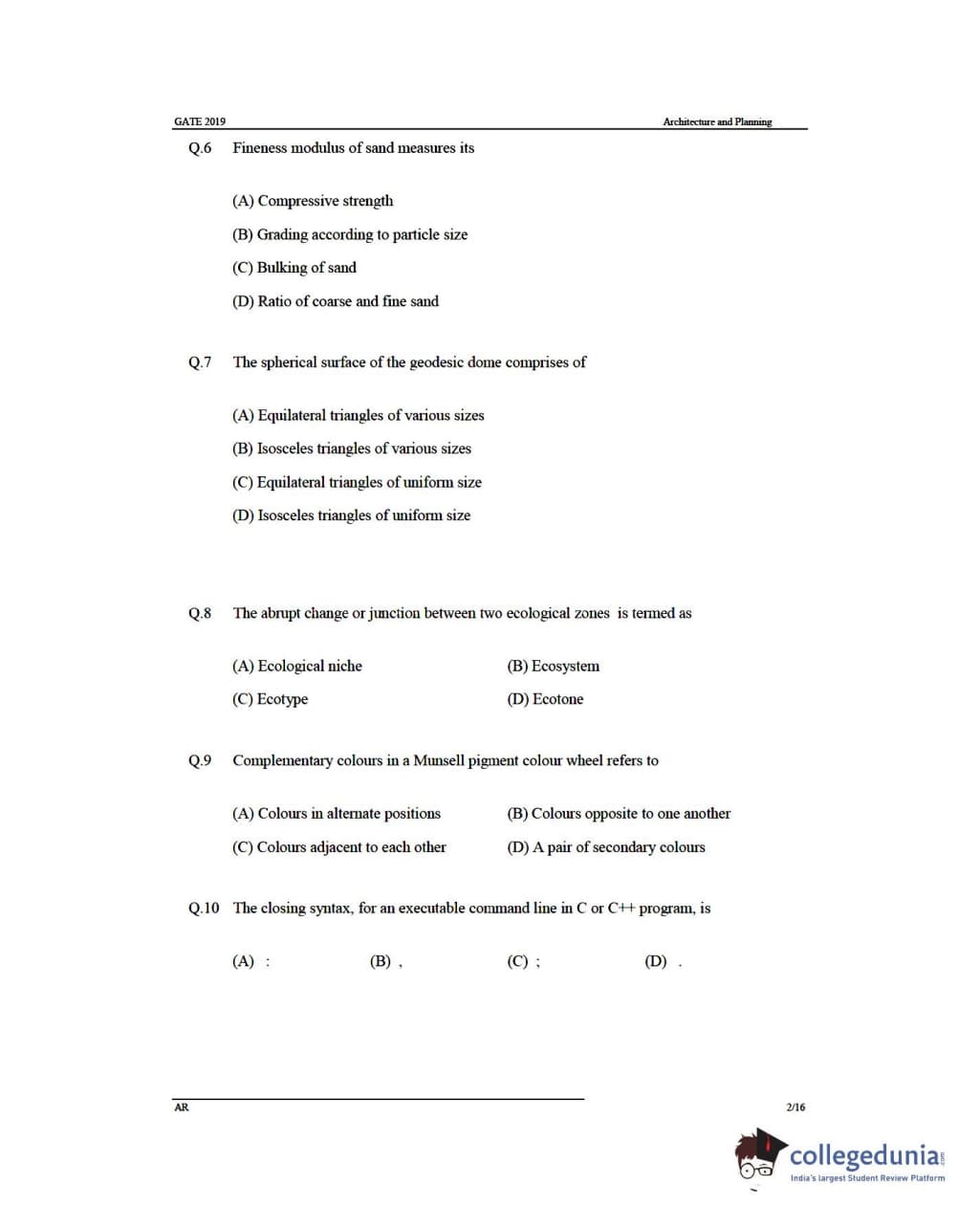

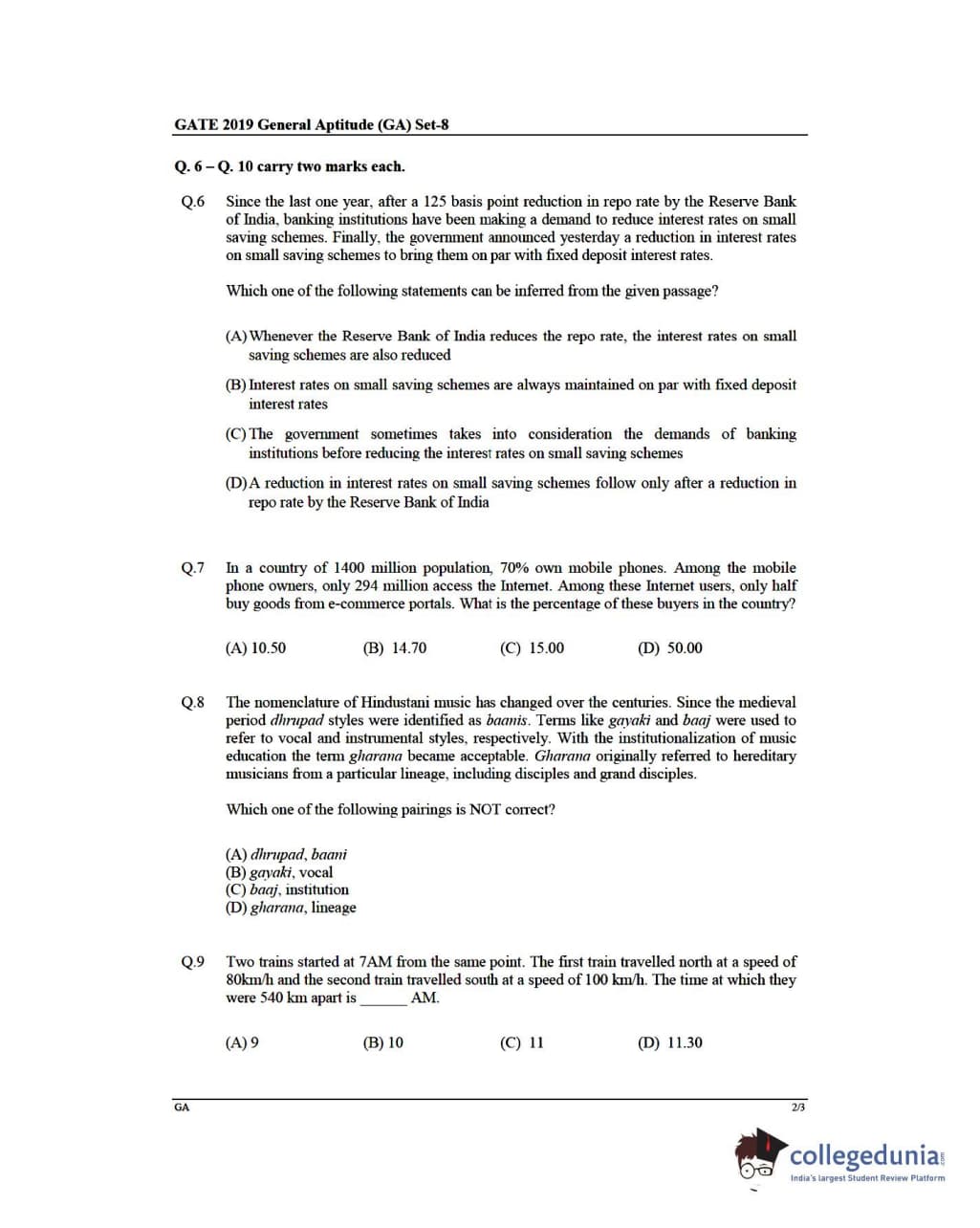

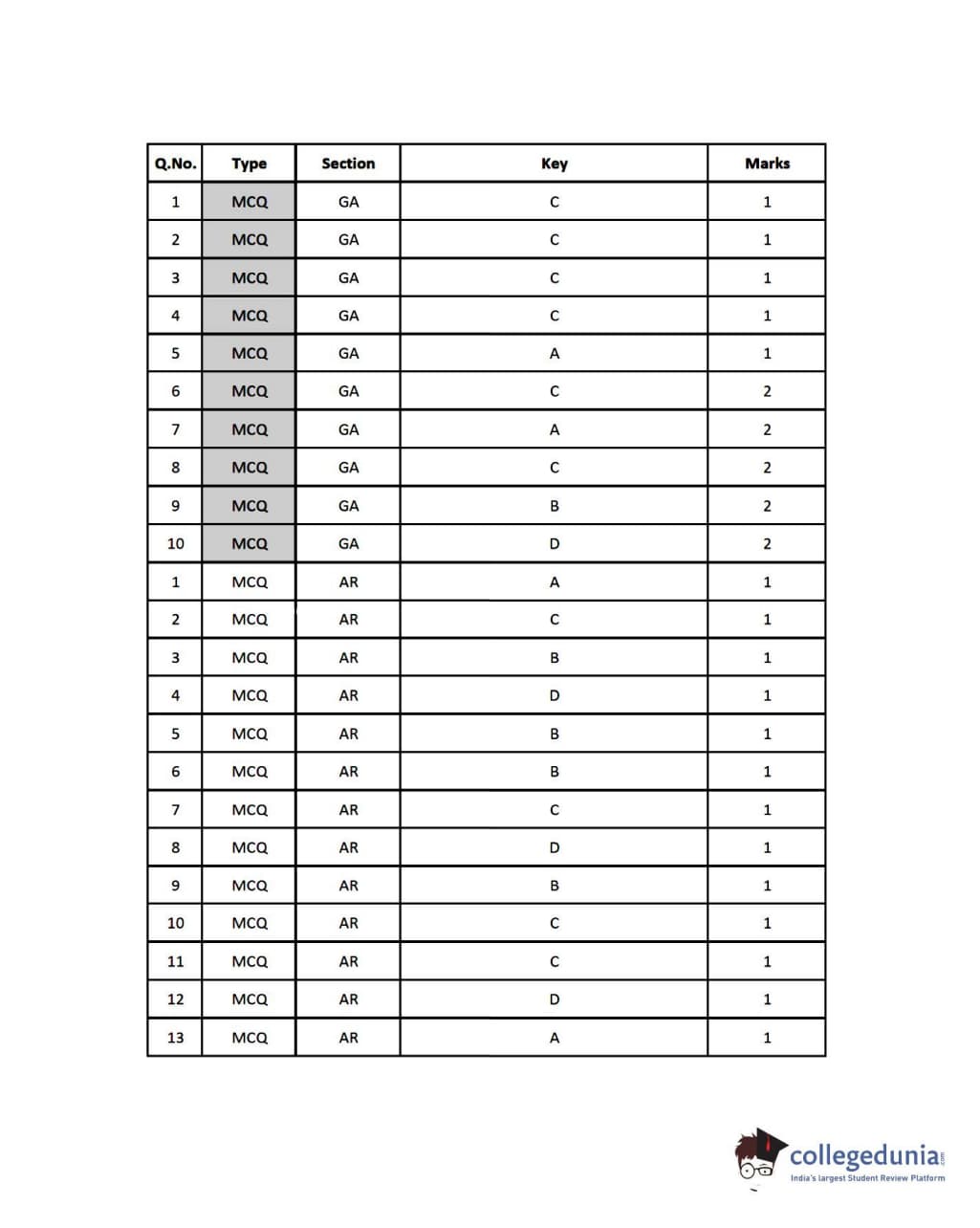

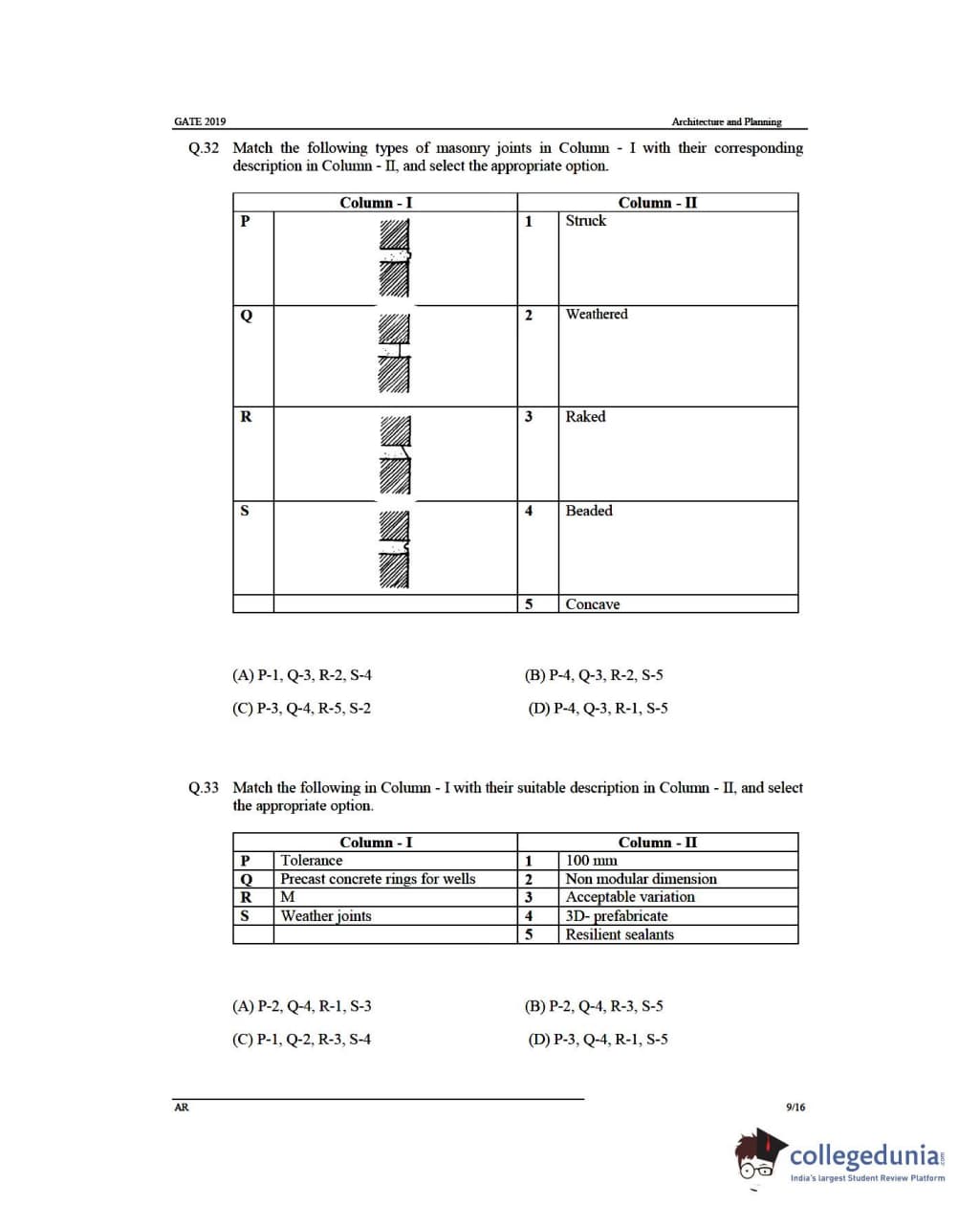

GATE Questions

• 1.

  A cantilever beam of length \(L\) is fixed at the left end (\(x=0\)). It is subjected to a concentrated downward point load \(P\) and a concentrated clockwise moment \(M = \frac{PL}{2}\) at the midpoint (\(x = L/2\)). Which of the following descriptions correctly represents the Shear Force Diagram (SFD) for the beam?

  • A rectangular block of constant positive height \(P\) from \(x=0\) to \(x=L/2\), and zero shear force from \(x=L/2\) to \(x=L\).

  • A rectangular block of constant positive height \(P\) from \(x=0\) to \(x=L/2\), followed by another rectangular block of height \(P/2\) from \(x=L/2\) to \(x=L\).

  • A triangular shape increasing linearly from \(x=0\) to \(x=L/2\).

  • A rectangular block from \(x=0\) to \(x=L\), unaffected by the point load.
  View Solution

  ---

• 2.

  A vibrating system has a critical damping coefficient \(C_c = 350 \, \text{N}\cdot\text{s/m}\) and an actual damping coefficient \(C = 35 \, \text{N}\cdot\text{s/m}\). The logarithmic decrement of the system is approximately:

  • 0.10

  • 0.31

  • 0.63

  • 3.14
  View Solution

  ---

• 3.

  The state of stress at a point is shown in the figure given below. Under plane stress assumption, the normal strain along the thickness direction (\(\epsilon_{zz}\)) is _________ (rounded off to 2 decimal places).






  View Solution

  ---

• 4.

  Two cars, P and Q, start from a point X in India at 10 AM. Car P travels North with a speed of 25 km/h and car Q travels East with a speed of 30 km/h. Car P travels continuously but car Q stops for some time after traveling for one hour. If both cars are at the same distance from X at 11:30 AM, for how long (in minutes) did car Q stop?

  • 10

  • 12

  • 15

  • 18

  View Solution

  ---

• 5.

  Consider two identical tanks with a bottom hole of diameter \( d \). One tank is filled with water and the other tank is filled with engine oil. The height of the fluid column \( h \) is the same in both cases. The fluid exit velocity in the two tanks are \( V_1 \) and \( V_2 \). Neglecting all losses, which one of the following options is correct?






  • \( V_2>V_1 \)

  • \( V_2 = V_1 \)

  • \( V_2<V_1 \)

  • Insufficient data to definitively conclude the relationship between \( V_1 \) and \( V_2 \)

  View Solution

  ---

• 6.

  During a welding operation, thermal power of 2500 W is incident normally on a metallic surface. As shown in the figure below (figure is NOT to scale), the heated area is circular. Out of the incident power, 85% of the power is absorbed within a circle of radius 5 mm while 65% is absorbed within an inner concentric circle of radius 3 mm. The power density in the shaded area is _________ W mm^-2 (rounded off to 2 decimal places).






  View Solution
