GATE 2021 Instrumentation Engineering (IN) Question Paper February 6 Forenoon Session was rated moderately difficult. GATE Instrumentation Engineering paper was conducted in a single shift from 9:30 am to 12:30 pm. A total of 65 questions were asked in the exam and the paper was segmented into two sections- General Aptitude and Instrumentation Engineering (the core subject). The majority of the questions were asked from Transducer & Measurement. Check GATE IN Syllabus

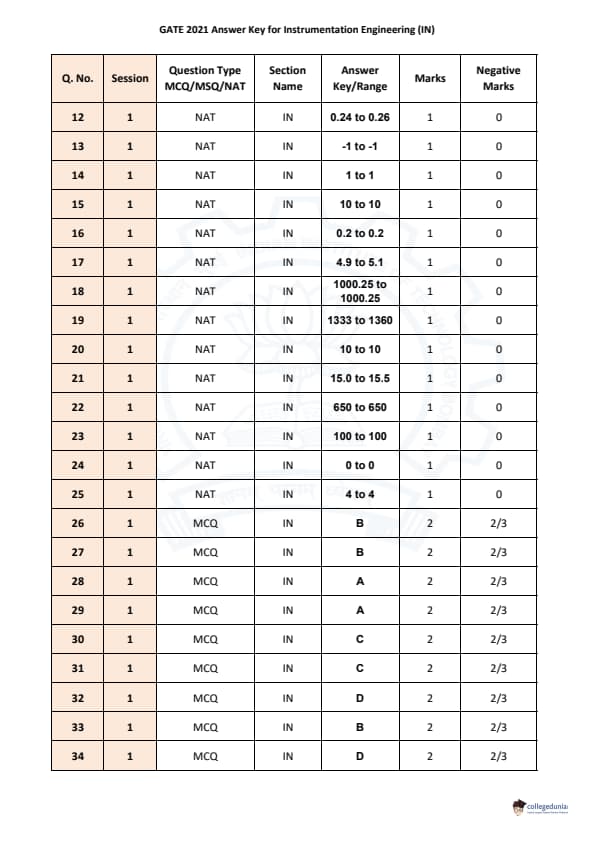

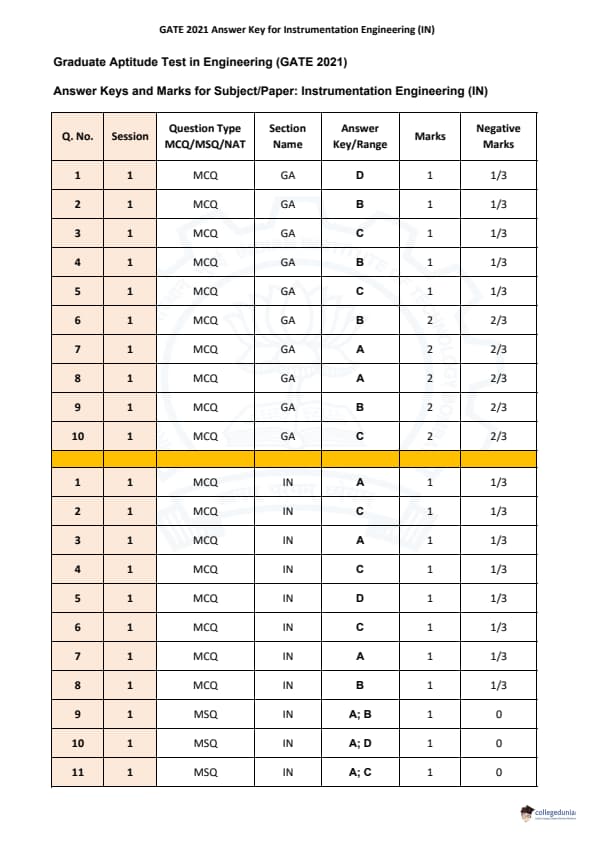

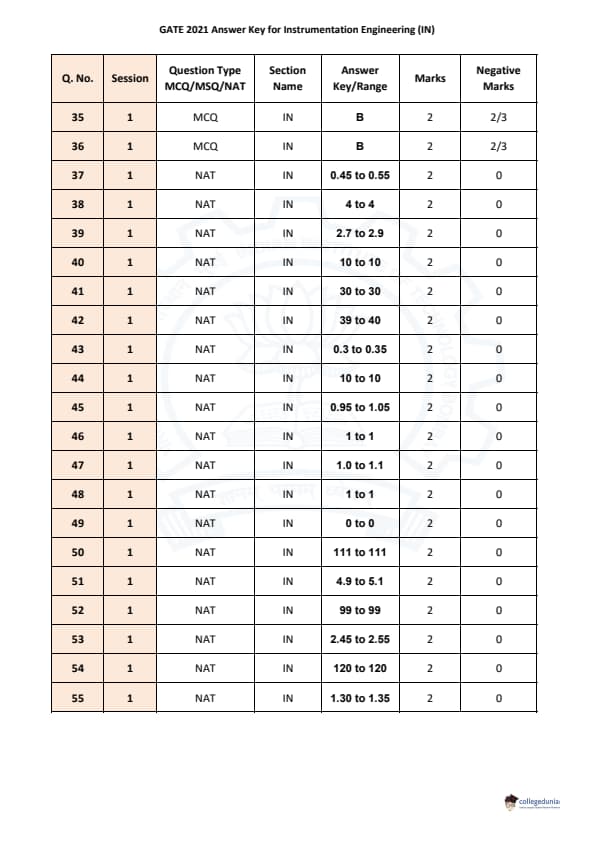

The candidates preparing for GATE 2023 must download GATE 2021 IN question paper with answer key PDFs to understand GATE exam pattern and types of questions asked.
GATE 2021 Instrumentation Engineering (IN) Question Paper with Solutions
| GATE 2021 Instrumentation Engineering (IN) Question Paper |  Download |
Check Solutions |

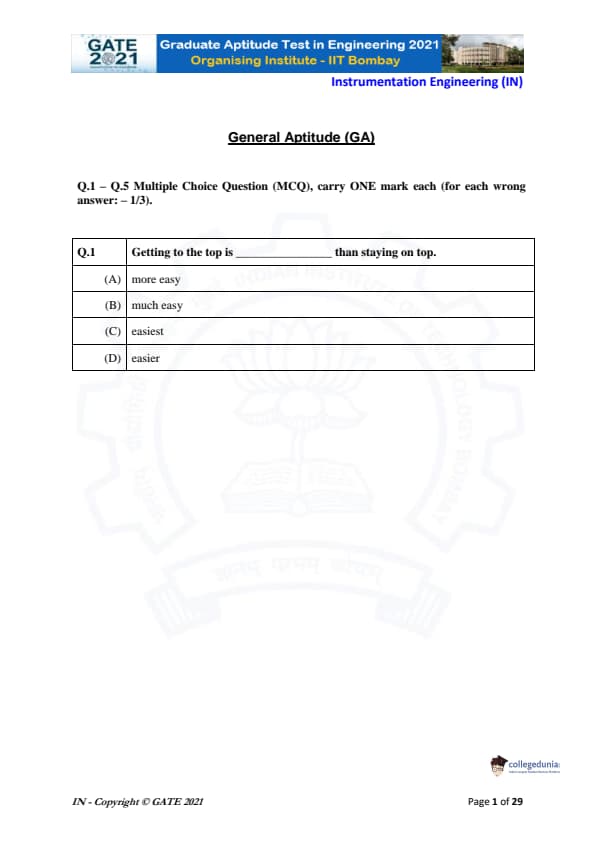

Getting to the top is _________ than staying on top.

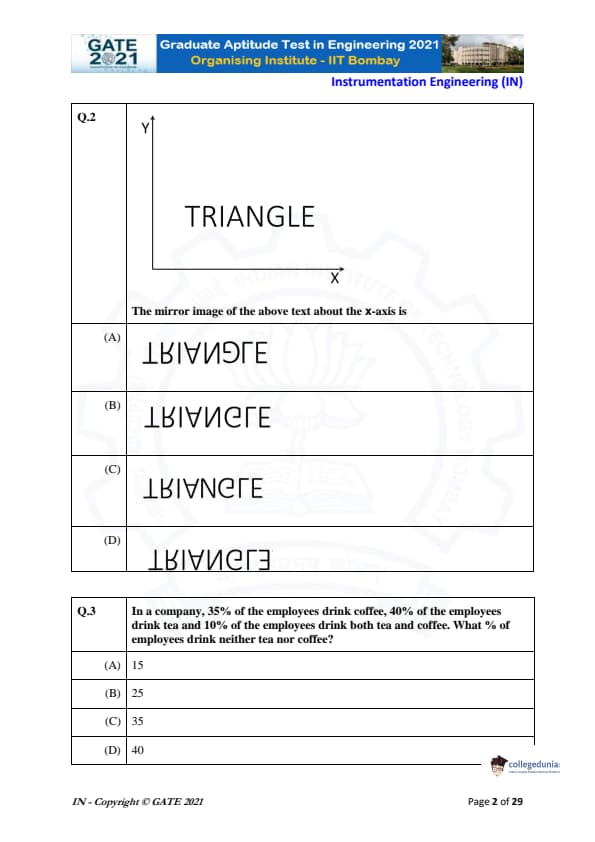

The mirror image of the above text about the x-axis is
In a company, 35% of the employees drink coffee, 40% of the employees drink tea, and 10% of the employees drink both tea and coffee. What % of employees drink neither tea nor coffee?

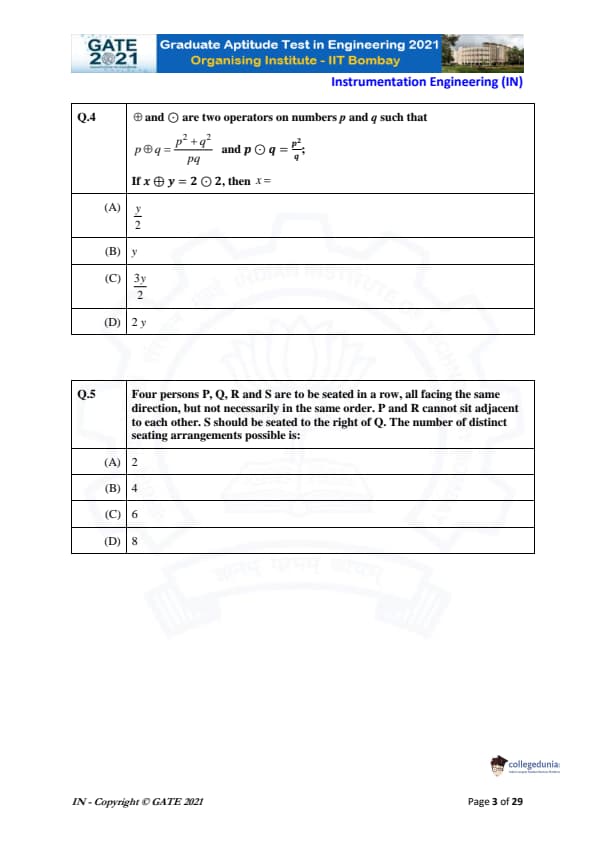

Given two operators \( \oplus \) and \( \odot \) \text{ on numbers \( p \text{ and q \) such that \[ p \oplus q = \frac{p^2 + q^2{pq} \quad and \quad p \odot q = \frac{p^2}{q}, \]
\text{if \( x \oplus y = 2 \odot 2 \), \text{then \( x = \)
Four persons P, Q, R and S are to be seated in a row, all facing the same direction, but not necessarily in the same order. P and R cannot sit adjacent to each other. S should be seated to the right of Q. The number of distinct seating arrangements possible is:
Statement: Either P marries Q or X marries Y
Among the options below, the logical NEGATION of the above statement is:
Consider two rectangular sheets, Sheet M and Sheet N of dimensions 6 cm x 4 cm each.
Folding operation 1: The sheet is folded into half by joining the short edges of the current shape.
Folding operation 2: The sheet is folded into half by joining the long edges of the current shape.
Folding operation 1 is carried out on Sheet M three times.
Folding operation 2 is carried out on Sheet N three times.
The ratio of perimeters of the final folded shape of Sheet M to the final folded shape of Sheet N is _________.

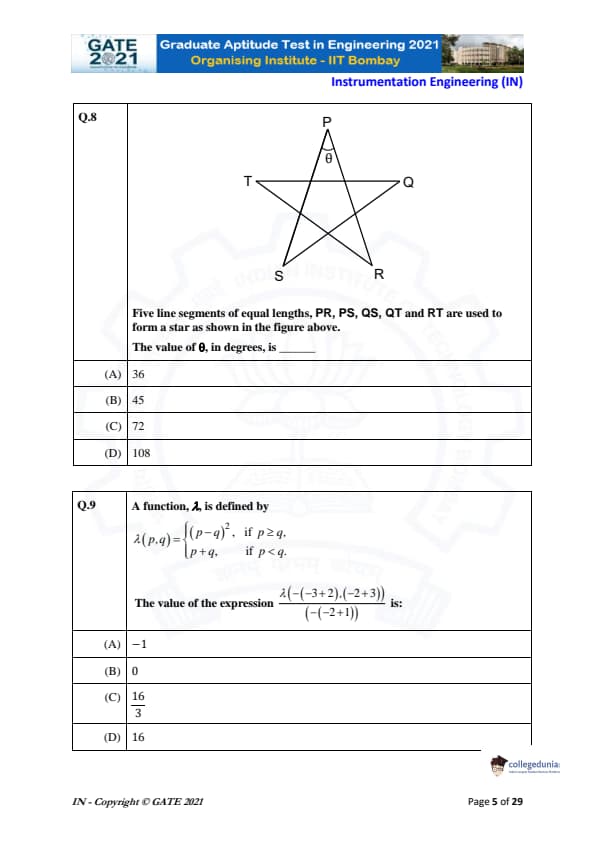

Five line segments of equal lengths, PR, PS, QS, QT and RT are used to form a star as shown in the figure above. The value of \( \theta \), in degrees, is
A function, \( \lambda \), is defined by \[ \lambda ( p,q ) = \begin{cases} (p - q)^2, & if p \geq q,
p + q, & if p < q. \end{cases} \]
The value of the expression \[ \lambda ( -3 + 2, -2 + 3 ) = \lambda ( -(-2 + 1) ) \]
is:

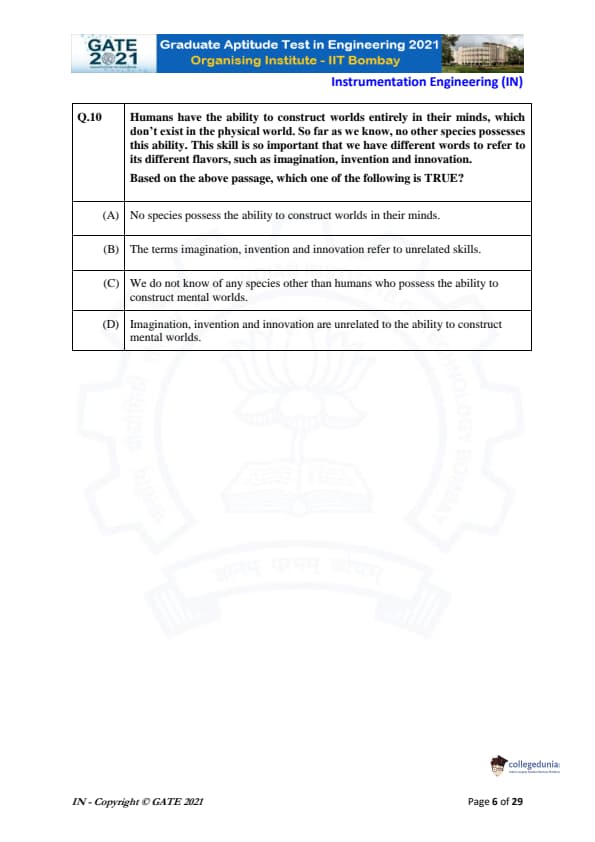

Humans have the ability to construct worlds entirely in their minds, which don’t exist in the physical world. So far as we know, no other species possesses this ability. This skill is so important that we have different words to refer to its different flavors, such as imagination, invention and innovation.
Based on the above passage, which one of the following is TRUE?

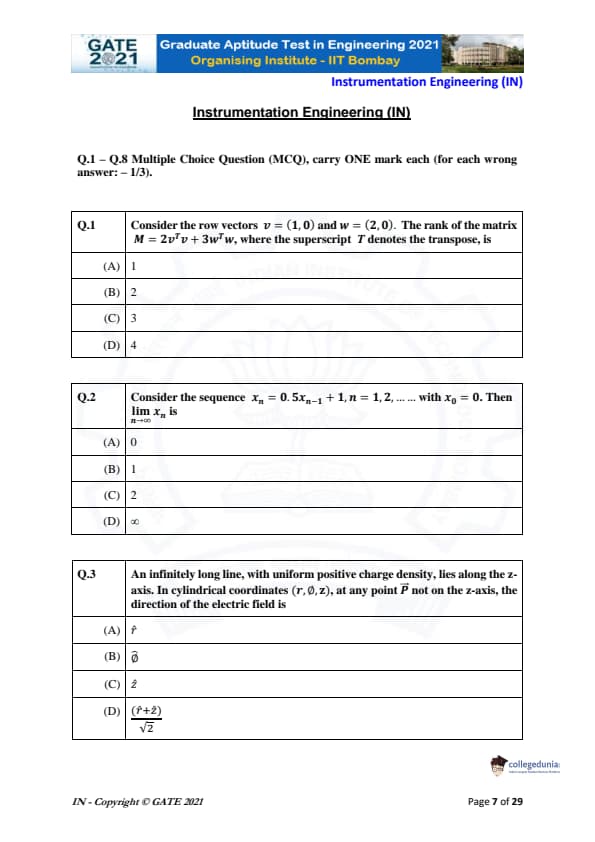

Consider the row vectors \( v = (1, 0) \) and \( w = (2, 0) \). The rank of the matrix \[ M = 2v^T v + 3w^T w \]
where the superscript \( T \) denotes the transpose, is
Consider the sequence \[ x_n = 0.5x_{n-1} + 1, \quad n = 1, 2, \ldots with x_0 = 0. Then \lim_{n \to \infty} x_n is \]
An infinitely long line, with uniform positive charge density, lies along the z-axis. In cylindrical coordinates \( (r, \phi, z) \), at any point \( \mathbf{P} \) not on the z-axis, the direction of the electric field is

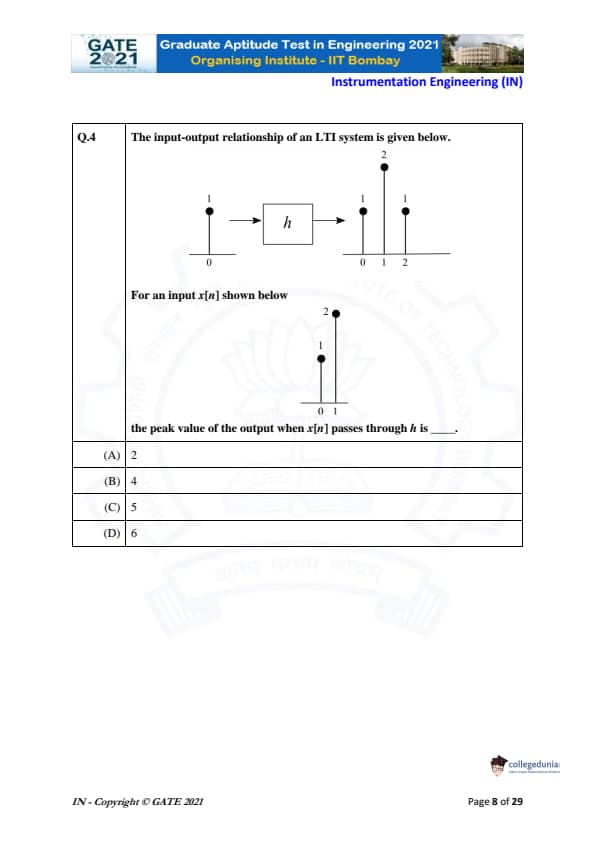

The input-output relationship of an LTI system is given below.
For an input x[n] shown below,
the peak value of the output when x[n] passes through h is:

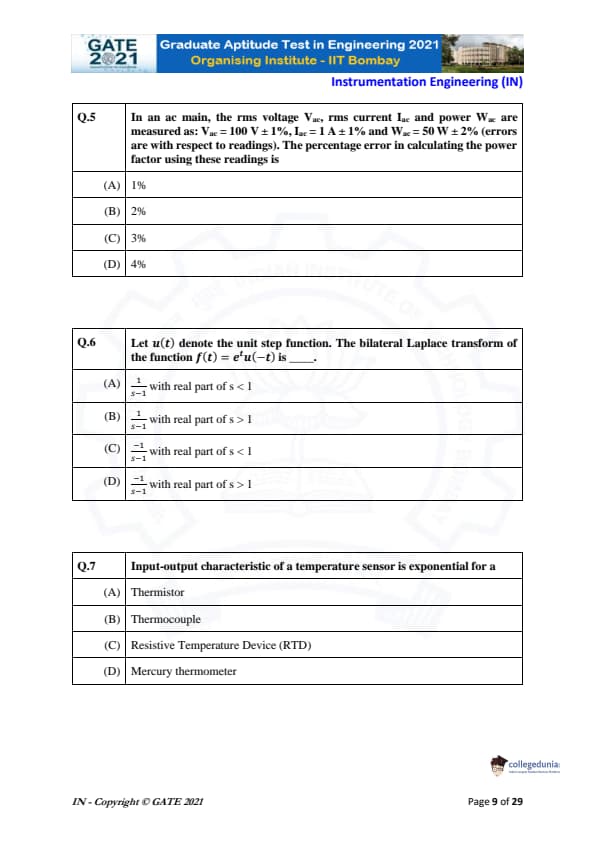

In an ac main, the rms voltage \( V_{ac} \), rms current \( I_{ac} \) and power \( W_{ac} \) are measured as:
\( V_{ac} = 100 \, V \pm 1% \), \( I_{ac} = 1 \, A \pm 1% \), \( W_{ac} = 50 \, W \pm 2% \)
The percentage error in calculating the power factor using these readings is
Let \( u(t) \) denote the unit step function. The bilateral Laplace transform of the function \( f(t) = e^t u(-t) \) is _________ .
Input-output characteristic of a temperature sensor is exponential for a

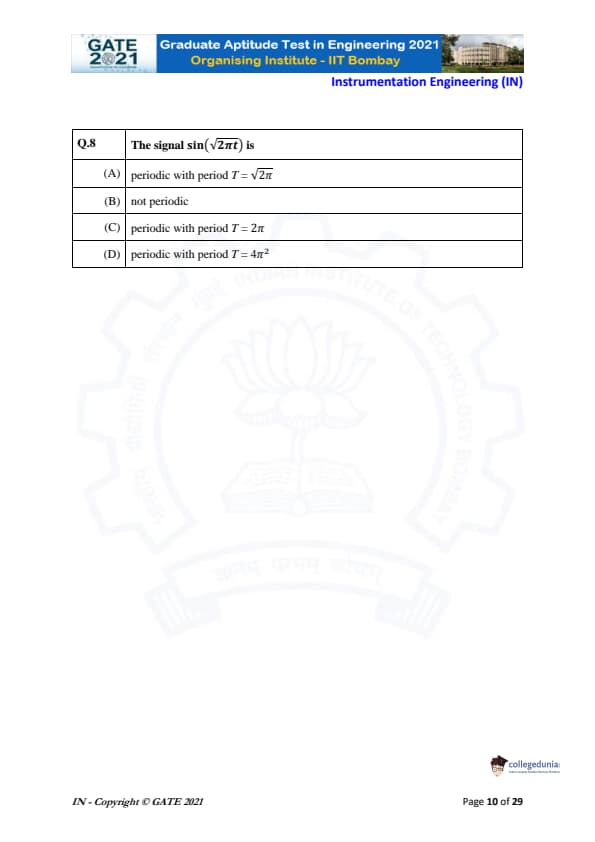

The signal \( \sin(\sqrt{2\pi t}) \) is

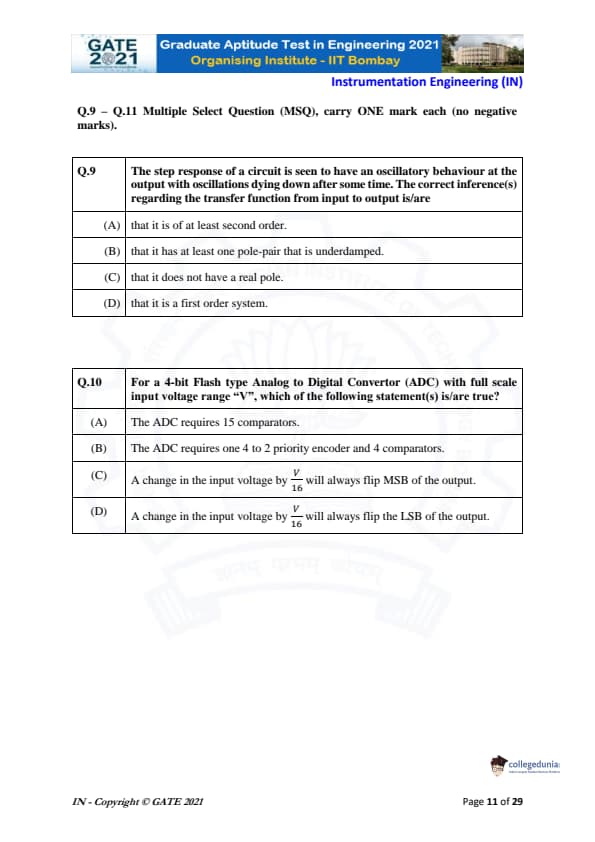

The step response of a circuit is seen to have an oscillatory behaviour at the output with oscillations dying down after some time. The correct inference(s) regarding the transfer function from input to output is/are
For a 4-bit Flash type Analog to Digital Converter (ADC) with full scale input voltage range "V", which of the following statement(s) is/are true?

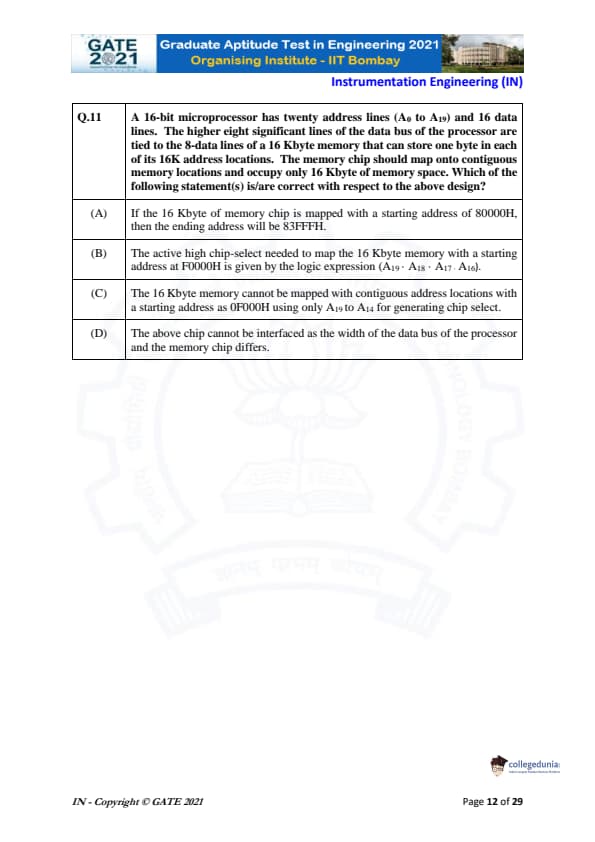

A 16-bit microprocessor has twenty address lines (A0 to A19) and 16 data lines. The higher eight significant lines of the data bus of the processor are tied to the 8-data lines of a 16 Kbyte memory that can store one byte in each of its 16K address locations. The memory chip should map onto contiguous memory locations and occupy only 16 Kbyte of memory space. Which of the following statement(s) is/are correct with respect to the above design?

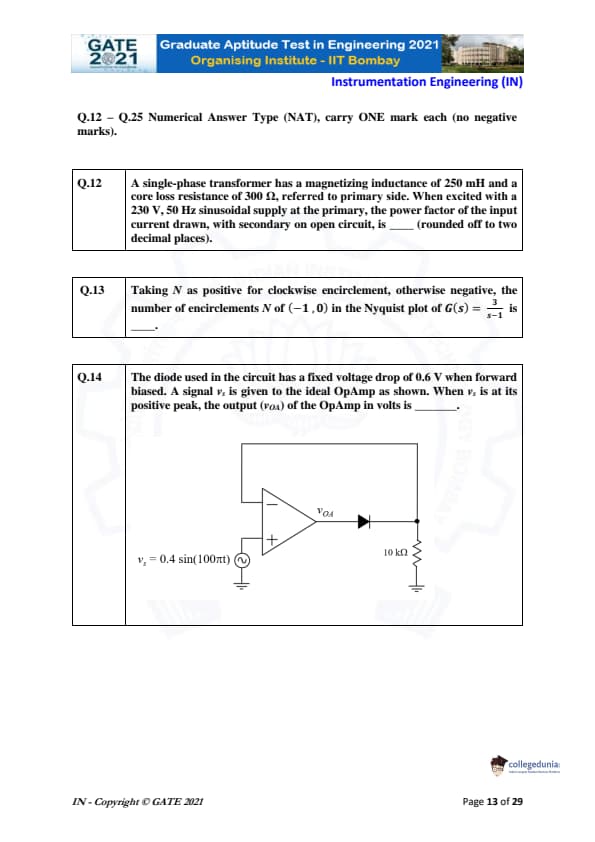

A single-phase transformer has a magnetizing inductance of 250 mH and a core loss resistance of 300 \(\Omega\), referred to primary side. When excited with a 230 V, 50 Hz sinusoidal supply at the primary, the power factor of the input current drawn, with secondary on open circuit, is ________ (rounded off to two decimal places).
Taking \( N \) as positive for clockwise encirclement, otherwise negative, the number of encirclements \( N \) of \( (-1, 0) \) in the Nyquist plot of \( G(s) = \frac{3}{s-1} \) is ________.
The diode used in the circuit has a fixed voltage drop of 0.6 V when forward biased. A signal \( v_s \) is given to the ideal OpAmp as shown. When \( v_s \) is at its positive peak, the output \( (v_{OA}) \) of the OpAmp in volts is ________.

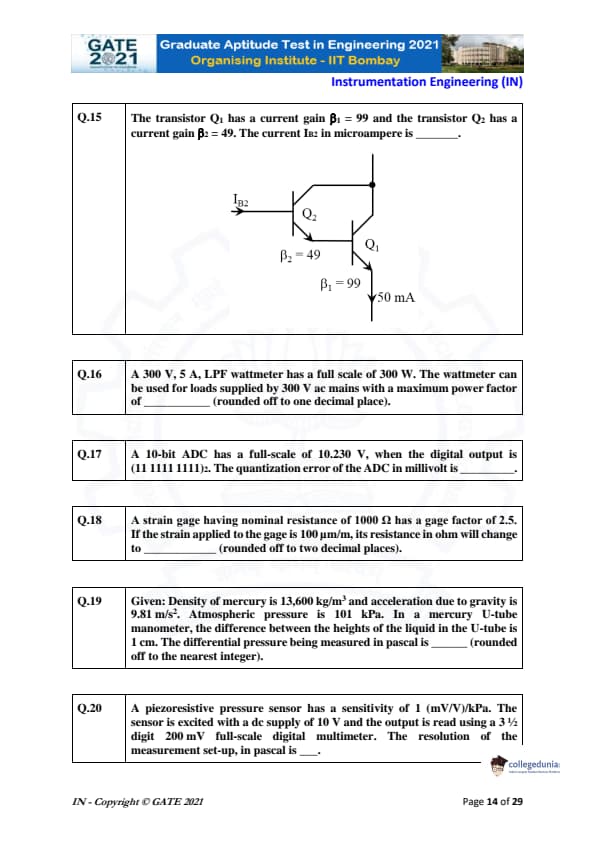

The transistor Q1 has a current gain \( \beta_1 = 99 \) and the transistor Q2 has a current gain \( \beta_2 = 49 \). The current \( I_{B2} \) in microampere is ________.
A 300 V, 5 A, LPF wattmeter has a full scale of 300 W. The wattmeter can be used for loads supplied by 300 V ac mains with a maximum power factor of ________ (rounded off to one decimal place).
A 10-bit ADC has a full-scale of 10.230 V, when the digital output is \( (11 \, 1111 \, 1111)_2 \). The quantization error of the ADC in millivolt is ________.
A strain gage having nominal resistance of 1000 \( \Omega \) has a gage factor of 2.5. If the strain applied to the gage is 100 \( \mu \)m/m, its resistance in ohm will change to ________ (rounded off to two decimal places).
Given: Density of mercury is 13,600 kg/m\(^3\) and acceleration due to gravity is 9.81 m/s\(^2\). Atmospheric pressure is 101 kPa. In a mercury U-tube manometer, the difference between the heights of the liquid in the U-tube is 1 cm. The differential pressure being measured in pascal is ________ (rounded off to the nearest integer).
A piezoresistive pressure sensor has a sensitivity of 1 (mV/V)/kPa. The sensor is excited with a dc supply of 10 V and the output is read using a 3 ½ digit 200 mV full-scale digital multimeter. The resolution of the measurement set-up, in pascal is ________.

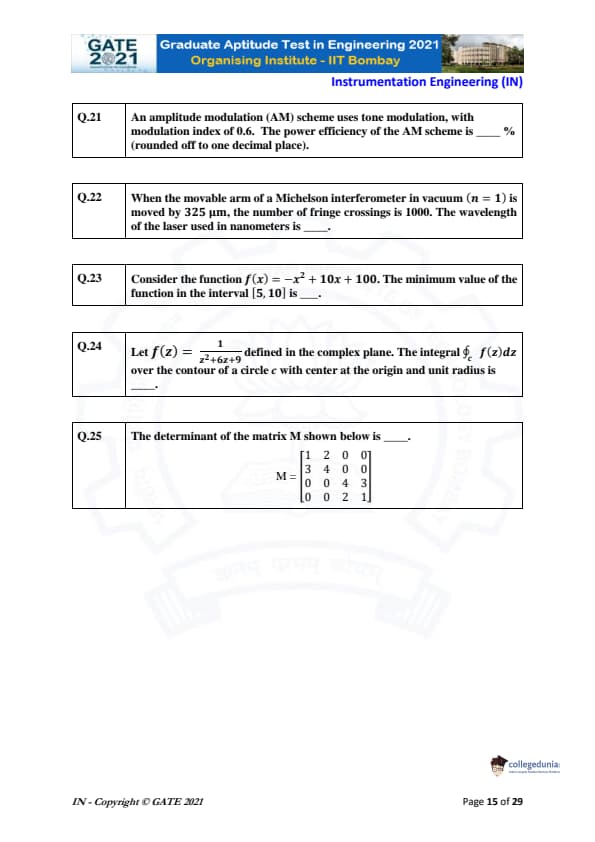

An amplitude modulation (AM) scheme uses tone modulation, with modulation index of 0.6. The power efficiency of the AM scheme is ________ % (rounded off to one decimal place).
When the movable arm of a Michelson interferometer in vacuum \( (n = 1) \) is moved by 325 \(\mu m\), the number of fringe crossings is 1000. The wavelength of the laser used in nanometers is ________.
Consider the function \( f(x) = -x^2 + 10x + 100 \). The minimum value of the function in the interval \( [5, 10] \) is ________.
Let \( f(z) = \frac{1}{z^2 + 6z + 9} \) defined in the complex plane. The integral \( \oint_{c} f(z) \, dz \) over the contour of a circle \( c \) with center at the origin and unit radius is ________.
The determinant of the matrix \( M \) shown below is ________.
\[ M = \begin{pmatrix} 1 & 2 & 0 & 0 \\
3 & 4 & 0 & 0 \\
0 & 0 & 4 & 3 \\
0 & 0 & 0 & 1 \end{pmatrix} \]

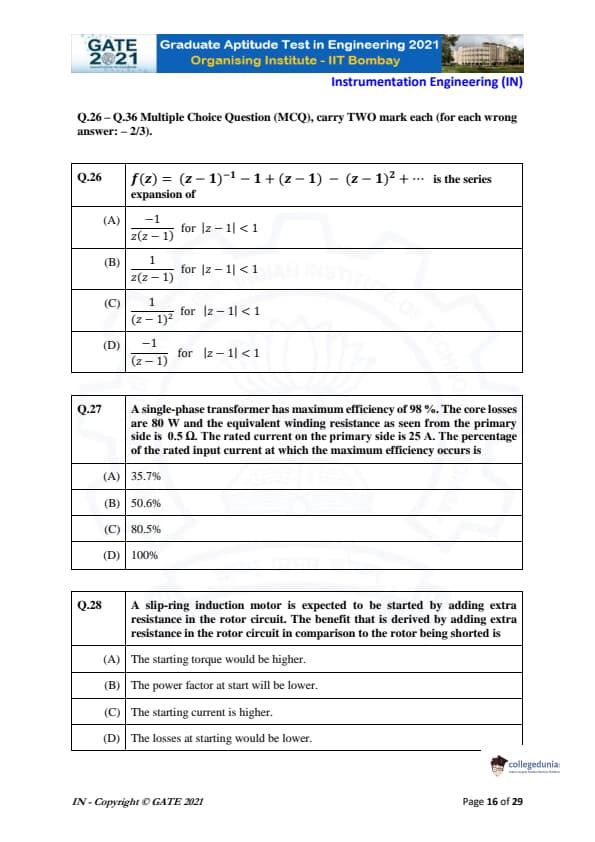

The function \[ f(z) = (z - 1)^{-1} - 1 + (z - 1) - (z - 1)^2 + \cdots \]
is the series expansion of
A single-phase transformer has maximum efficiency of 98%. The core losses are 80 W and the equivalent winding resistance as seen from the primary side is 0.5 \( \Omega \). The rated current on the primary side is 25 A. The percentage of the rated input current at which the maximum efficiency occurs is
A slip-ring induction motor is expected to be started by adding extra resistance in the rotor circuit. The benefit that is derived by adding extra resistance in the rotor circuit in comparison to the rotor being shorted is

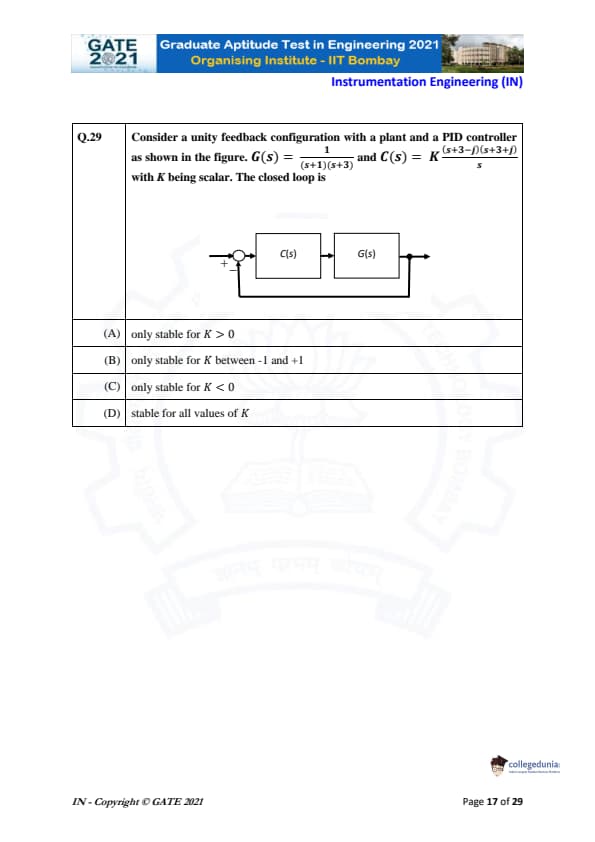

Consider a unity feedback configuration with a plant and a PID controller as shown in the figure. \[ G(s) = \frac{1}{(s+1)(s+3)} \quad and \quad C(s) = \frac{K(s+3-j)(s+3+j)}{s} \]
with \( K \) being scalar. The closed loop is

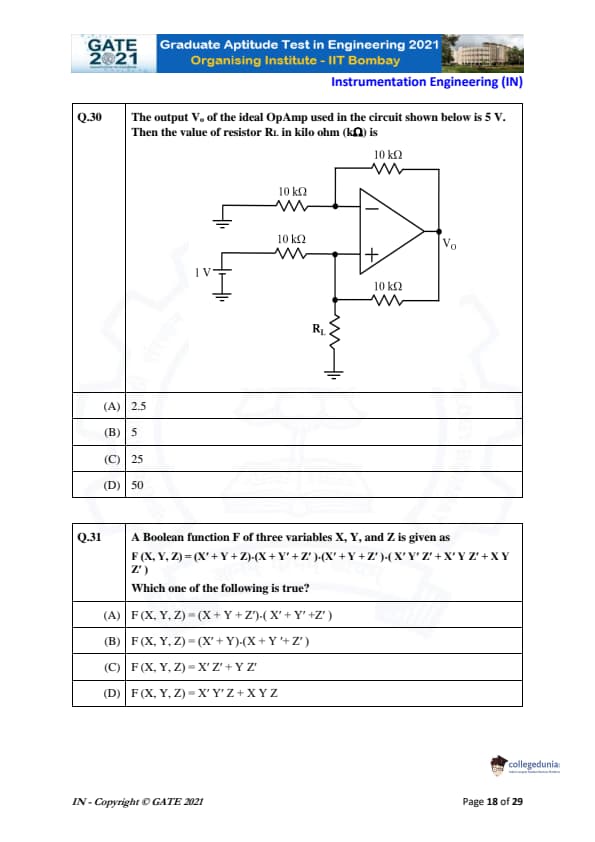

The output \( V_o \) \text{ of the ideal OpAmp used in the circuit shown below is 5 V. Then the value of resistor \( R_L \text{ in kilo ohm (kΩ) is:
A Boolean function \( F \) of three variables \( X \), \( Y \), and \( Z \) is given as \[ F(X, Y, Z) = (X' + Y + Z) \cdot (X + Y' + Z') \cdot (X' + Y + Z') \cdot (X' Y' Z' + X Y Z') \]
\text{Which one of the following is true?

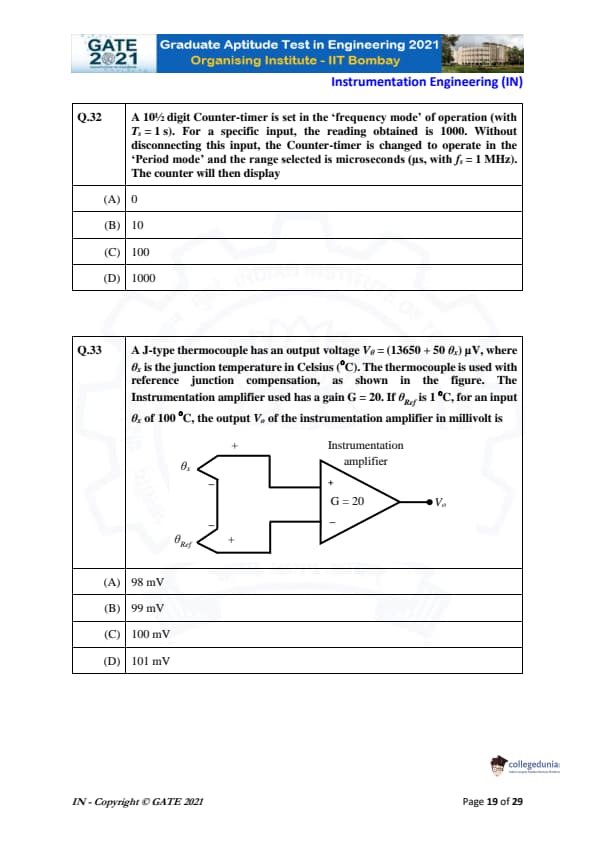

A 10½ digit Counter-timer is set in the 'frequency mode' of operation (with \( T_s = 1 \, s \)). For a specific input, the reading obtained is 1000. Without disconnecting this input, the Counter-timer is changed to operate in the 'Period mode' and the range selected is microseconds (\( \mu s \), with \( f_s = 1 \, MHz \)). The counter will then display
A J-type thermocouple has an output voltage \( V_\theta = (13650 + 50 \theta_x) \, \mu V \), where \( \theta_x \) is the junction temperature in Celsius (°C). The thermocouple is used with reference junction compensation, as shown in the figure. The instrumentation amplifier used has a gain \( G = 20 \). If \( \theta_Ref = 1 \, \degree C \), for an input \( \theta_x = 100 \, \degree C \), the output \( V_o \) of the instrumentation amplifier in millivolt is

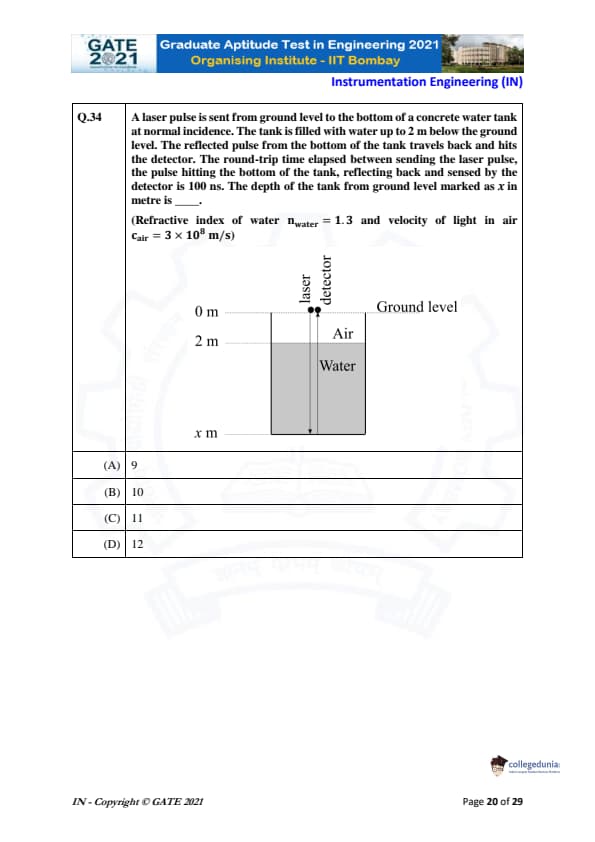

A laser pulse is sent from ground level to the bottom of a concrete water tank at normal incidence. The tank is filled with water up to 2 m below the ground level. The reflected pulse from the bottom of the tank travels back and hits the detector. The round-trip time elapsed between sending the laser pulse, the pulse hitting the bottom of the tank, reflecting back and sensed by the detector is 100 ns. The depth of the tank from ground level marked as \( x \) in metre is _________ .

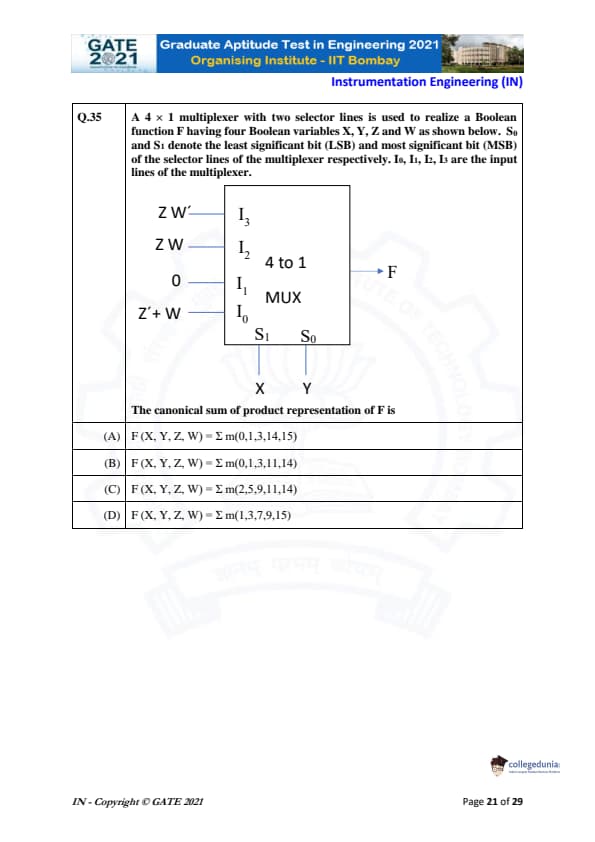

A 4 \(\times\) 1 multiplexer with two selector lines is used to realize a Boolean function \( F \) having four Boolean variables X, Y, Z and W as shown below. \( S_0 \) and \( S_1 \) denote the least significant bit (LSB) and most significant bit (MSB) of the selector lines of the multiplexer respectively. \( I_0, I_1, I_2, I_3 \) are the input lines of the multiplexer.
The canonical sum of product representation of F is

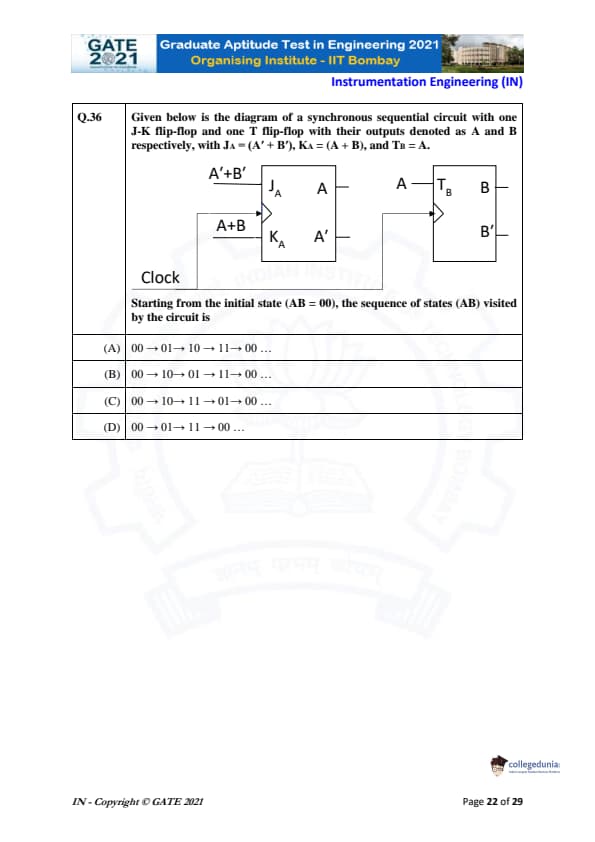

Given below is the diagram of a synchronous sequential circuit with one J-K flip-flop and one T flip-flop with their outputs denoted as A and B respectively, with \( J_A = (A' + B') \), \( K_A = (A + B) \), and \( T_B = A \). Starting from the initial state \( AB = 00 \), the sequence of states \( (AB) \) visited by the circuit is

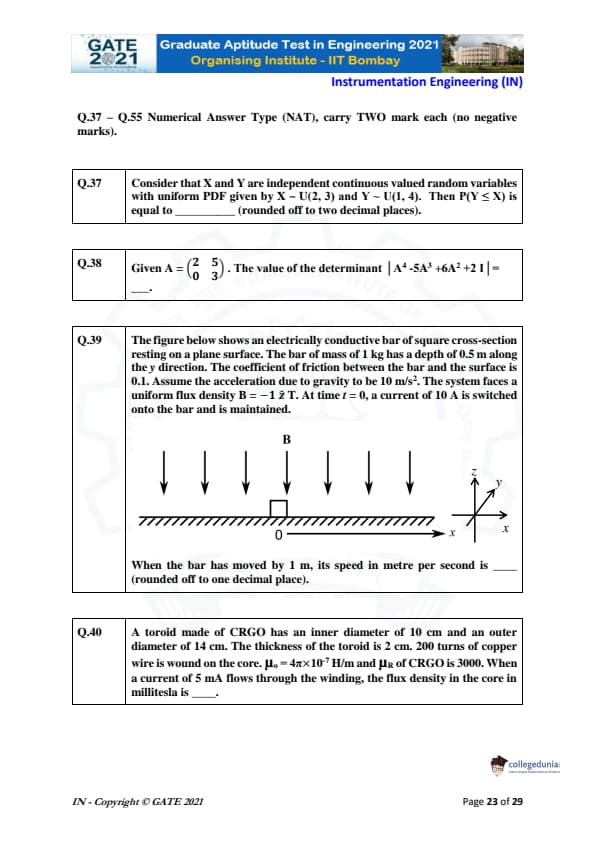

Consider that \( X \) and \( Y \) are independent continuous valued random variables with uniform PDF given by \( X \sim U(2, 3) \) and \( Y \sim U(1, 4) \). Then \( P(Y \leq X) \) is equal to ________ (rounded off to two decimal places).
Given \( A = \begin{pmatrix} 2 & 5
0 & 3 \end{pmatrix} \), the value of the determinant \( |A^4 - 5A^3 + 6A^2 + 2I| \) is ________.
The figure below shows an electrically conductive bar of square cross-section resting on a plane surface. The bar of mass of 1 kg has a depth of 0.5 m along the y direction. The coefficient of friction between the bar and the surface is 0.1. Assume the acceleration due to gravity to be 10 m/s\(^2\). The system faces a uniform flux density \( B = -1 \hat{z} \, T \). At time \( t = 0 \), a current of 10 A is switched onto the bar and is maintained. When the bar has moved by 1 m, its speed in metre per second is ________ (rounded off to one decimal place).
A toroid made of CRGO has an inner diameter of 10 cm and an outer diameter of 14 cm. The thickness of the toroid is 2 cm. 200 turns of copper wire is wound on the core. \( \mu_0 = 4\pi \times 10^{-7} \, H/m \) and \( \mu_r \) of CRGO is 3000. When a current of 5 mA flows through the winding, the flux density in the core in millitesla is ________.

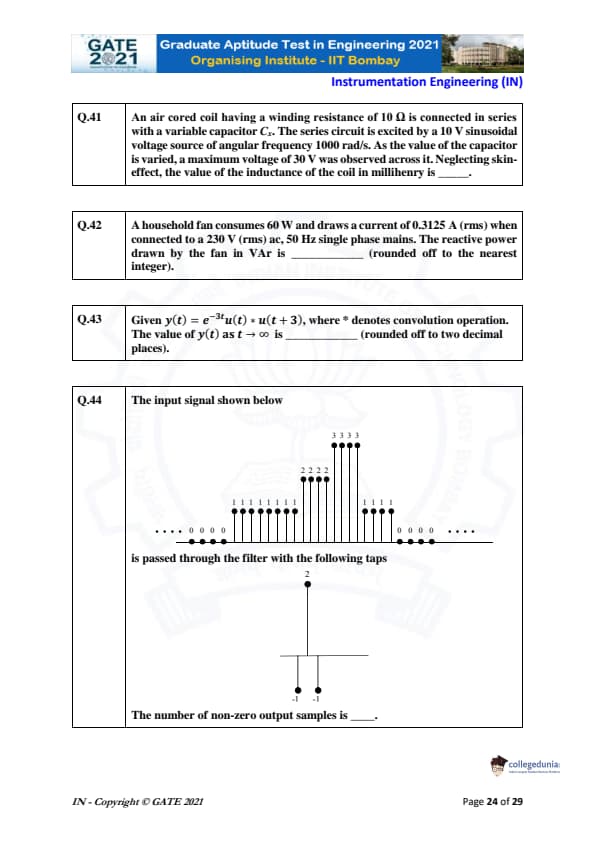

An air-cored coil having a winding resistance of 10 \(\Omega\) is connected in series with a variable capacitor \( C_x \). The series circuit is excited by a 10 V sinusoidal voltage source of angular frequency 1000 rad/s. As the value of the capacitor is varied, a maximum voltage of 30 V was observed across it. Neglecting skin effect, the value of the inductance of the coil in millihenry is ________.
A household fan consumes 60 W and draws a current of 0.3125 A (rms) when connected to a 230 V (rms) ac, 50 Hz single-phase mains. The reactive power drawn by the fan in VAr is ________ (rounded off to the nearest integer).
Given \( y(t) = e^{-3t}u(t) u(t + 3) \), where denotes convolution operation. The value of \( y(t) \) as \( t \to \infty \) is ________ (rounded off to two decimal places).
The input signal shown below
is passed through the filter with the following taps
The number of non-zero output samples is ________.

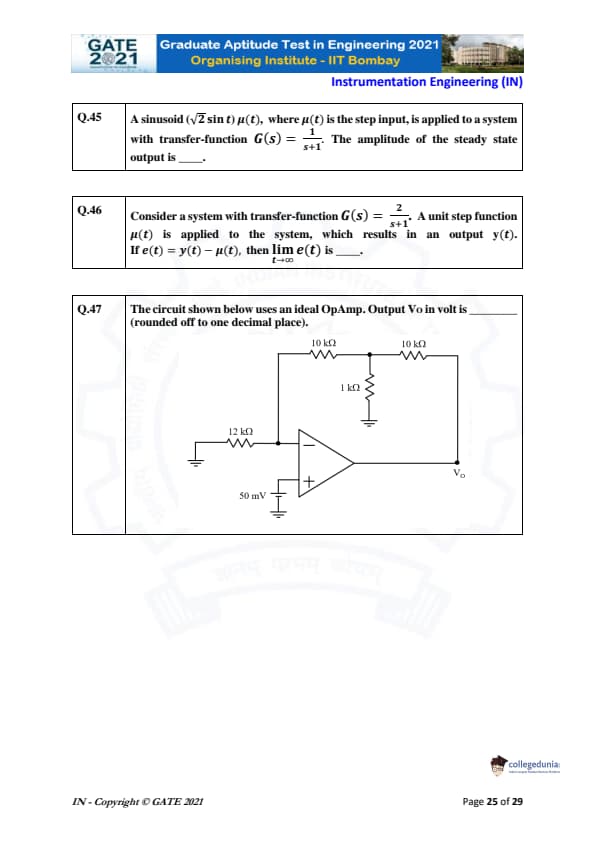

A sinusoid \( (\sqrt{2} \sin t) \mu(t) \), where \( \mu(t) \) is the step input, is applied to a system with transfer-function \( G(s) = \frac{1}{s+1} \). The amplitude of the steady-state output is ________.
Consider a system with transfer-function \( G(s) = \frac{2}{s+1} \). A unit step function \( \mu(t) \) is applied to the system, which results in an output \( y(t) \). If \( e(t) = y(t) - \mu(t) \), then \( \lim_{t \to \infty} e(t) \) is ________.
The circuit shown below uses an ideal OpAmp. Output \( V_o \) in volt is ________ (rounded off to one decimal place).

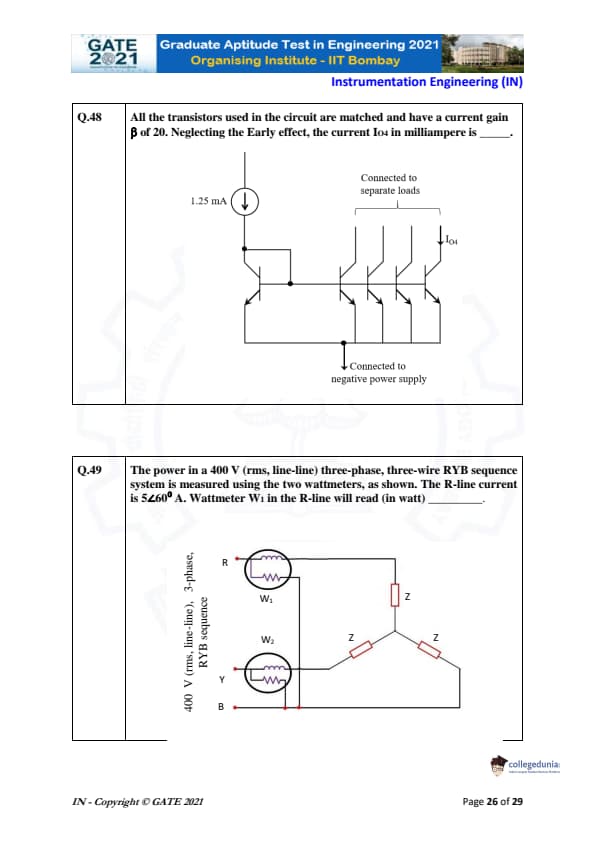

All the transistors used in the circuit are matched and have a current gain \( \beta = 20 \). Neglecting the Early effect, the current \( I_{O4} \) in milliamperes is ________.
The power in a 400 V (rms, line-line) three-phase, three-wire RYB sequence system is measured using the two wattmeters, as shown. The R-line current is \( 5 \angle 60^\circ \, A \). Wattmeter \( W_1 \) in the R-line will read (in watts) ________.

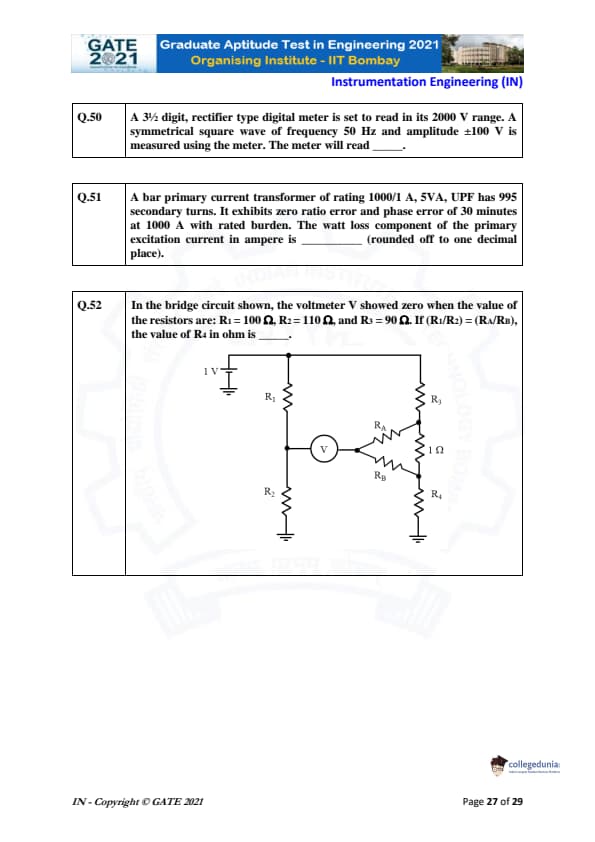

A 3¾ digit, rectifier type digital meter is set to read in its 2000 V range. A symmetrical square wave of frequency 50 Hz and amplitude \( \pm 100 \) V is measured using the meter. The meter will read ________.
A bar primary current transformer of rating 1000/1 A, 5 VA, UPF has 995 secondary turns. It exhibits zero ratio error and phase error of 30 minutes at 1000 A with rated burden. The watt loss component of the primary excitation current in amperes is ________ (rounded off to one decimal place).
In the bridge circuit shown, the voltmeter \( V \) showed zero when the value of the resistors are: \( R_1 = 100 \, \Omega \), \( R_2 = 110 \, \Omega \), and \( R_3 = 90 \, \Omega \). If \( \frac{R_1}{R_2} = \frac{R_A}{R_B} \), the value of \( R_4 \) in ohm is ________.

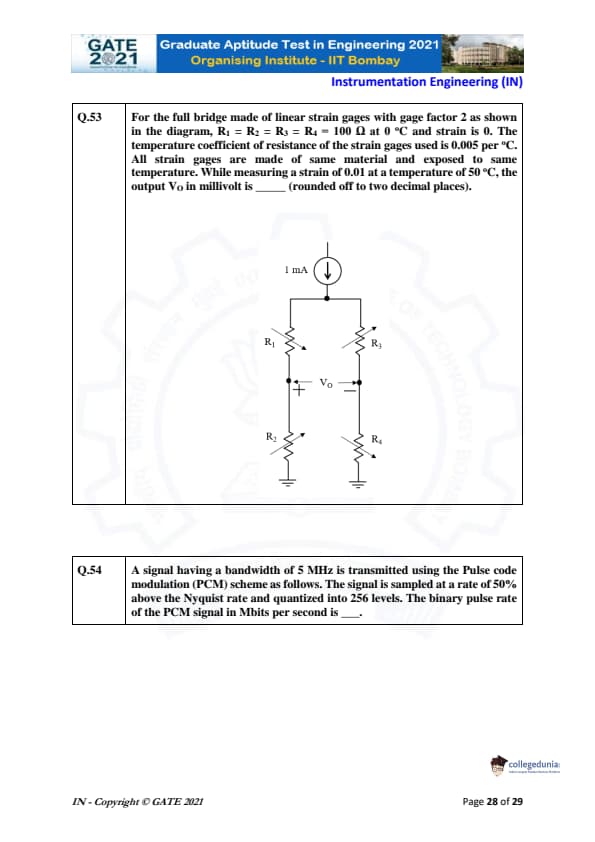

For the full bridge made of linear strain gauges with gage factor 2 as shown in the diagram, \( R_1 = R_2 = R_3 = R_4 = 100 \, \Omega \) at 0°C and strain is 0. The temperature coefficient of resistance of the strain gauges used is 0.005 per °C. All strain gauges are made of the same material and exposed to the same temperature. While measuring a strain of 0.01 at a temperature of 50°C, the output \( V_o \) in millivolt is _____ (rounded off to two decimal places).
A signal having a bandwidth of 5 MHz is transmitted using the Pulse Code Modulation (PCM) scheme as follows. The signal is sampled at a rate of 50% above the Nyquist rate and quantized into 256 levels. The binary pulse rate of the PCM signal in Mbits per second is _____.

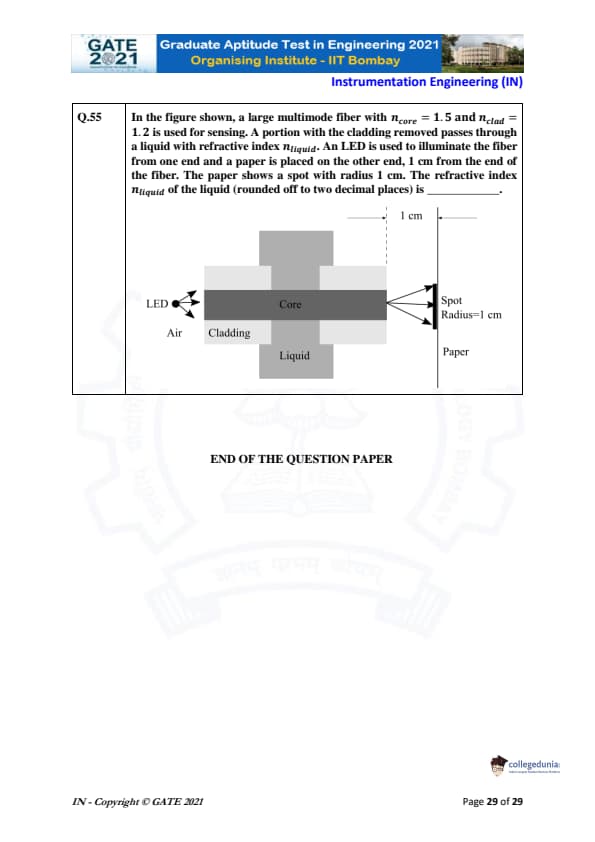

In the figure shown, a large multimode fiber with \( n_{core} = 1.5 \) and \( n_{clad} = 1.2 \) is used for sensing. A portion with the cladding removed passes through a liquid with refractive index \( n_{liquid} \). An LED is used to illuminate the fiber from one end and a paper is placed on the other end, 1 cm from the end of the fiber. The paper shows a spot with radius 1 cm. The refractive index \( n_{liquid} \) of the liquid (rounded off to two decimal places) is ________.
GATE IN 2021 February 6 (Forenoon Session): Sectional Analysis
GATE IN 2021 was conducted on February 6, 2021, in only the morning shift. In GATE IN 2021 paper, only 4 MSQs were there while the number of NATs was 22. The detailed GATE 2021 IN Exam analysis for Instrumentation engineering can be checked below:
- GATE 2021 IN paper was moderate in terms of difficulty.
- The topics holding maximum weightage include Measurements, Transducers, Analog Electronics, Signal & System, and Digital Circuit.
- Questions asked from Digital and Microprocessor, Optical Instrumentation, Transducer, Measurements, and Engineering Mathematics were quite difficult to answer.
- Candidates also found Analog circuits and Communication Systems difficult to answer.
| Features | Details |
|---|---|
| Difficulty Level of Exam | Moderate |
| Total MCQs | 39 |
| Total MSQs | 4 |
| Total NATs | 22 |
| Topics having maximum weightage | Measurements, Transducers, Analog Electronics, Signal & System, Digital Circuit |
