CBSE Class 12 Physics Question Paper 2024 (Set 1- 55/3/1) Available- Download Solution PDF with Answer Key

Analyzing the influence of multiple point charges at a distance.
At large distances, the individual effects of point charges \( q_1, q_2, q_3 \) on the potential can be considered to merge into a single effect similar to that of a single point charge with their cumulative charge. Therefore, the potential \( V \) at a point in space due to these charges resembles that from a single equivalent charge.


Considering the shape of equipotentials.
The equipotential surfaces of a single point charge are spherical. Since at large distances the group of charges behaves like a single point charge, the equipotential surfaces thus formed will also be spherical. Quick Tip: When dealing with the potential due to multiple point charges at large distances, you can often simplify the calculation by treating them as a single point charge whose magnitude is the sum of the individual charges.

Step 1: Calculating the potential difference.
The potential difference \( V \) between points P1 and P2 is calculated as: \[ V = V_{P2} - V_{P1} = 5 \, V - (-5 \, V) = 10 \, V \]

Step 2: Calculating the work done.
The work done \( W \) on a charge \( q \) moving through a potential difference \( V \) is given by: \[ W = qV \]
For a proton, the charge \( q = 1.602 \times 10^{-19} \, Coulombs \). Thus, the work done on the proton when moving from P1 to P2 is: \[ W = 1.602 \times 10^{-19} \, C \times 10 \, V = 1.602 \times 10^{-18} \, J \]
Rounding off slightly, the work done matches the value given in option (B). Quick Tip: Remember, the work done in moving a charge in an electric field is dependent on the potential difference and the charge itself. The direction of the electric field and the initial and final potentials will determine whether the work is done by the field or against it.

Step 1: Application of the Biot-Savart Law.
The magnetic field due to a segment of current-carrying wire is determined by the Biot-Savart Law, which states: \[ dB = \frac{\mu_0}{4\pi} \frac{I \, dl \times \hat{r}}{r^2} \]
where:
- \( \mu_0 = 4\pi \times 10^{-7} \, N/A^2 \) is the magnetic constant.
- \( I = 5.0 \, A \) is the current.
- \( dl = 0.02 \, m \, \hat{j} \) is the length vector of the wire segment.
- \( \hat{r} \) is the unit vector from the segment to the observation point.

Step 2: Calculation of \( r \) and \( \hat{r} \).
From the wire segment to the point (3 m, 4 m, 0): \[ r = \sqrt{3^2 + 4^2} = 5 \, m \] \[ \hat{r} = \left(\frac{3}{5}, \frac{4}{5}, 0\right) \]

Step 3: Calculation of \( dl \times \hat{r} \) and \( dB \).
Using the right-hand rule for the cross product: \[ dl \times \hat{r} = 0.02 \, \hat{j} \times \left(\frac{3}{5}, \frac{4}{5}, 0\right) = 0.02 \left( 0, 0, -\frac{3}{5} \right) = \left( 0, 0, -0.012 \right) \, \hat{k} \]
Thus, \( dB \) points in the negative \( \hat{k} \) direction. The magnitude of \( dB \) is: \[ dB = \frac{4\pi \times 10^{-7}}{4\pi} \cdot \frac{5 \cdot 0.012}{25} = \frac{10^{-7} \cdot 0.06}{25} = 2.4 \times 10^{-9} \, T = 0.24 \, nT \]
Considering the direction, the field is \( -0.24 \, nT \, \hat{k} \), matching option (C). Quick Tip: When dealing with the Biot-Savart Law, always remember to apply the right-hand rule to determine the direction of \( dl \times \hat{r} \) effectively, as it dictates the direction of the magnetic field produced by the current segment.

Step 1: Analyzing the forces on the loop.

A current-carrying loop in a magnetic field experiences a force given by \( \vec{F} = I(\vec{dl} \times \vec{B}) \), where \( \vec{dl} \) is an element of the loop and \( \vec{B} \) is the magnetic field. In this scenario, the magnetic field \( \vec{B} \) is uniform and points along the +z-axis, and the loop lies in the xy-plane.

Step 2: Calculating the net force.

Since the loop is symmetrical and the field is uniform, the forces on opposite sides of the loop will be equal in magnitude but opposite in direction, leading to a cancellation of all horizontal (x and y directions) forces. The vertical (z-axis) force components also cancel out due to the symmetry and the orientation of the magnetic field and current direction.

Step 3: Determining the resultant motion.

With all forces canceling out, there is no resultant force on the loop. Additionally, if there is no additional torque acting to tilt or twist the loop out of the xy-plane, the loop will not experience any translational or rotational motion. Quick Tip: When considering the motion of a current-carrying conductor in a magnetic field, always check for symmetry and the directions of \( \vec{B} \), \( \vec{dl} \), and the resultant \( \vec{dl} \times \vec{B} \). Symmetry often leads to cancellation of forces, especially in uniform fields.

Step 1: Understanding the magnetic potential energy.
The potential energy \( U \) of a magnetic dipole in a magnetic field is given by \( U = -\vec{M} \cdot \vec{B} \). Initially, the plane of the loop is normal to \( \vec{B} \), meaning \( \vec{M} \) is aligned with \( \vec{B} \), so the initial potential energy is \( U_i = -M B \).

Step 2: Calculating the final potential energy.
When the loop is rotated by 45 degrees, the angle \( \theta \) between \( \vec{M} \) and \( \vec{B} \) changes to \( 45^\circ \). The cosine of 45 degrees is \( \cos(45^\circ) = \frac{\sqrt{2}}{2} \). Thus, the final potential energy \( U_f \) becomes: \[ U_f = -MB \cos(45^\circ) = -MB \frac{\sqrt{2}}{2} \]

Step 3: Calculating the work done.
The work done \( W \) in rotating the dipole is the change in potential energy: \[ W = U_f - U_i = \left(-MB \frac{\sqrt{2}}{2}\right) - (-MB) \] \[ W = MB \left(1 - \frac{\sqrt{2}}{2}\right) \]

Given \( \sqrt{2} \approx 1.414 \), this simplifies to: \[ W = MB \left(1 - 0.707\right) \] \[ W = MB (0.293) \]
Approximating for simplicity and clarity in the answer choices: \[ W \approx 0.3 MB \] Quick Tip: Remember, the work done on the system in magnetic fields involves changes in potential energy that reflect the orientation of the magnetic moment relative to the magnetic field direction.

Given:

Inductance, \(L = 15 \, mH = 15 \times 10^{-3} \, H\)

Initial current, \(I_{initial} = 0 \, A\)

Final current, \(I_{final} = 4 \, A\)

Time, \(\Delta t = 0.004 \, s\)



Formula:

The induced emf in an inductor is given by:
\[ emf = -L \frac{\Delta I}{\Delta t} \]

{Solution:
1. Calculate the change in current (\(\Delta I\)):
\[ \Delta I = I_{final} - I_{initial} = 4 \, A - 0 \, A = 4 \, A \]

2. Substitute the values into the formula:
\[ emf = -L \frac{\Delta I}{\Delta t} \] \[ emf = -(15 \times 10^{-3} \, H) \cdot \frac{4 \, A}{0.004 \, s} \]

3. Simplify the calculation:
\[ emf = -(15 \times 10^{-3}) \cdot 1000 \] \[ emf = -15 \, V \]

The negative sign indicates the direction of the induced emf, but we are only interested in the magnitude.


Final Answer: \[ \boxed{15.0 \, V} \] Quick Tip: When dealing with induction problems, always remember that the sign of the induced emf depends on the direction of the change in current and the polarity of the inductor but is usually reported as a magnitude in problems unless specifically dealing with circuit directions.

Step 1: Understanding self-inductance.

The self-inductance \( L \) of a solenoid is given by:
\[ L = \frac{\mu_0 N^2 A}{l} \]
where:

\( \mu_0 \) is the permeability of free space,

\( N \) is the number of turns,

\( A \) is the cross-sectional area,

\( l \) is the length of the solenoid.


Step 2: Analyzing how \( L \) changes with \( l \) and \( A \).

From the formula, it is clear that:

Increasing \( A \) increases \( L \) because \( A \) is in the numerator.

Decreasing \( l \) increases \( L \) because \( l \) is in the denominator.


Step 3: Evaluating the options.

Increasing both \( l \) and \( A \) would have conflicting effects on \( L \), making the net effect less predictable.

Decreasing \( l \) and increasing \( A \) simultaneously provides the most direct increase in \( L \), as both changes contribute positively to increasing \( L \).

Increasing \( l \) and decreasing \( A \) would lead to a decrease in \( L \).

Decreasing both \( l \) and \( A \) would also have conflicting effects, but the decrease in \( A \) would be more detrimental.
Quick Tip: When evaluating the effect of physical changes on the inductance of a solenoid, remember that increasing the area of cross-section and decreasing the length will enhance the inductance, benefiting from the direct proportionality to \( A \) and inverse proportionality to \( l \).

Step 1: Understanding the electromagnetic spectrum.

The electromagnetic spectrum is arranged according to frequency and wavelength. The general order from lowest frequency (longest wavelength) to highest frequency (shortest wavelength) is: radio waves, microwaves, infrared rays, visible light, ultraviolet rays, X-rays, and gamma rays.


Step 2: Comparing the given options.

Radio waves have the longest wavelengths and lowest frequencies among the options listed.

Microwaves have higher frequencies than radio waves but are still much lower than infrared rays.

Infrared rays have higher frequencies than radio waves and microwaves but lower than visible light.

Gamma rays are at the extreme high end of the spectrum, possessing the shortest wavelengths and highest frequencies.


Step 3: Identifying the option with the highest frequency.

From the order of the electromagnetic spectrum, it is clear that gamma rays have the highest frequency among the options given.
Quick Tip: Remember the order of the electromagnetic spectrum from lowest to highest frequency to quickly identify the type of wave with the highest or lowest frequency when given a set of options.

Step 1: Analyzing the forces and energies involved.
The distance of closest approach can be determined by equating the kinetic energy to the electrostatic potential energy at the point of closest approach: \[ \frac{1}{2} mv^2 = \frac{Zke^2}{r} \]
where \( m \) is the mass, \( v \) is the velocity, \( Z \) is the atomic number of the target nucleus, \( k \) is Coulomb's constant, \( e \) is the charge, and \( r \) is the distance of closest approach.

Step 2: Comparing proton and alpha particle.
The alpha particle has twice the charge of a proton (since it contains two protons) and four times the mass. Since both particles have equal velocities, their kinetic energies differ but the potential energy of the alpha particle is higher due to its greater charge.

Step 3: Calculating the ratio of distances.
The formula rearranges to \( r = \frac{Zke^2}{mv^2} \). For the alpha particle, both the charge and mass affect the distance: \[ r_{proton} = \frac{Zke^2}{m_pv^2}, \quad r_{alpha} = \frac{Zke^2}{4m_pv^2} \]
Thus, \( r_{proton} = 2r_{alpha} \), giving the ratio of 2. Quick Tip: For electrostatic potential energy problems involving charged particles, remember that the charge affects the potential energy directly and the mass indirectly through kinetic energy.

The Einstein’s photoelectric equation is given by:
\[ K_m = h \nu - \phi \]
This equation indicates that the maximum kinetic energy (\( K_m \)) of the emitted photoelectrons is zero when the frequency of the incident radiation is at or below the threshold frequency. As the frequency increases beyond the threshold frequency, \( K_m \) increases linearly with \( \nu \).


The graph in option (C) correctly represents this relationship: it starts from zero at the threshold frequency and increases linearly thereafter.
Quick Tip: Always check for the presence of a threshold frequency in photoelectric effect graphs, as it marks the minimum frequency required to emit electrons from the material, which should be clearly represented.

To determine how the period of revolution of an electron changes when it transitions from the \( n = 2 \) level to the \( n = 1 \) level in the Bohr model of a hydrogen atom, we can follow these steps:

1. Bohr Model Basics

In the Bohr model, the period of revolution \( T \) of an electron in the \( n \)-th energy level is given by:
\[ T_n \propto n^3 \]
This means that the period of revolution is proportional to the cube of the principal quantum number \( n \).


2. Initial and Final Periods


For \( n = 2 \):
\[ T_2 \propto 2^3 = 8 \]
For \( n = 1 \):
\[ T_1 \propto 1^3 = 1 \]


3. Change in Period

The change in the period of revolution when the electron transitions from \( n = 2 \) to \( n = 1 \) is:
\[ \Delta T = T_1 - T_2 = 1 - 8 = -7 \]
The negative sign indicates a decrease in the period.


4. Percentage Change

The percentage change in the period is calculated as:
\[ Percentage Change = \left( \frac{\Delta T}{T_2} \right) \times 100% = \left( \frac{-7}{8} \right) \times 100% = -87.5% \]
This means the period of revolution decreases by 87.5%.

Therefore, the correct answer is:
\[ \boxed{(B) decreases by 87·5%} \] Quick Tip: Remember that in the Bohr model, the period of revolution of the electron around the nucleus is directly proportional to the cube of the principal quantum number \( n \).

Step 1: Understanding the concept of doping.

When silicon (Si) is doped with a pentavalent element (such as phosphorus or arsenic), an additional electron is introduced in the conduction band. This electron is loosely bound to the donor atom and requires a small amount of energy to be freed.


Step 2: Energy required to free the electron.

The donor energy level lies just below the conduction band, and the energy required to free the electron is typically very small. This energy is required to excite the electron from the donor level to the conduction band.


Step 3: Estimation of the energy.

In practice, the donor energy level in silicon is around \( 0.05 \, eV \), which is much smaller than the band gap energy of silicon (\( \approx 1.1 \, eV \)).

\[ Energy required \approx 0.05 \, eV \]

Step 4: Numerical Calculation.

The energy required to release the electron is given by the difference between the donor energy level and the conduction band. This energy is typically measured experimentally, and for silicon doped with a pentavalent element, this value is approximately:

\[ E_{donor} \approx 0.05 \, eV \]

Thus, the energy required to set the electron free is \( \boxed{0.05 \, eV} \).
Quick Tip: When considering the energy levels in doped semiconductors, it's essential to remember that the extra electrons or holes introduced by the dopant have much lower ionization energies compared to the intrinsic semiconductor.

Analysis of Assertion (A):
The assertion is false because in a semiconductor, the electrons in the conduction band have higher energy than those in the valence band, which is why they are free to move and conduct electricity.

Analysis of Reason (R):
The reason is also false because the donor energy level is just below the conduction band, not above the valence band. Donor levels donate electrons to the conduction band, enhancing conductivity. Quick Tip: Understanding the energy band structure of semiconductors is crucial. Remember, the conduction band houses higher energy electrons compared to those in the valence band.

Step 1: Analyzing Assertion (A).
The photoelectric effect demonstrates the particle nature of light because it involves the interaction of light with matter in such a way that light is treated as a collection of particles (photons). According to Einstein's explanation, each photon carries energy proportional to its frequency. This energy is transferred to electrons, allowing them to escape from the surface of the material, thus demonstrating the particle nature of light.

Step 2: Analyzing Reason (R).
The photoelectric current is not proportional to the frequency of the incident radiation. In fact, the current is proportional to the intensity of the incident radiation (i.e., the number of photons striking the surface per unit time). The frequency of the radiation determines the energy of the emitted photoelectrons, but it is the intensity (not the frequency) that controls the photoelectric current. The reason provided in Statement (R) is incorrect.

Conclusion:
Assertion (A) is true because the photoelectric effect demonstrates the particle nature of light. However, Reason (R) is false because the photoelectric current is proportional to the intensity (not the frequency) of the incident radiation. Quick Tip: In the photoelectric effect, the frequency of the incident light determines whether photoelectrons are emitted, while the intensity determines the number of photoelectrons emitted. Therefore, the photoelectric current is proportional to intensity, not frequency.

Assertion (A) is true: Both a proton and an electron entering a uniform magnetic field with the same momentum and perpendicular to the magnetic field will follow circular paths of the same radius, as the magnetic force provides the centripetal force required for circular motion.


Reason (R) is true: The radius of the circular path for a charged particle in a magnetic field is given by \( r = \frac{p}{qB} \), where \( p \) is the momentum, \( q \) is the charge, and \( B \) is the magnetic field strength.

Since the momentum and magnetic field are the same for both the proton and the electron, they will describe circular paths of the same radius.

Thus, both Assertion (A) and Reason (R) are true, and Reason (R) correctly explains Assertion (A). Quick Tip: For charged particles moving in a magnetic field, the radius of the circular path is given by \( r = \frac{p}{qB} \), which depends on the momentum, charge, and magnetic field strength.

Analysis of Assertion (A):
The assertion is true. A convex lens can indeed seem to disappear when immersed in a liquid if the refractive indices of the lens and the liquid are the same, because there is no change in the speed of light at the boundary.

Analysis of Reason (R):
The reason is true and provides the correct explanation for the assertion. If the refractive indices of the lens and the liquid are equal, light does not bend at the interface, making the lens invisible in the liquid. Quick Tip: When studying optics, it's essential to understand how the refractive index affects light transmission and bending at interfaces. Similar refractive indices can make objects visually disappear in mediums.

% Explanation of Relaxation Time
Relaxation Time:
Relaxation time (\( \tau \)) is the average time interval between consecutive collisions of an electron as it moves through a conductor. It is a measure of how long an electron travels freely without interaction, influencing the electrical conductivity of the material.



% Derivation of the Resistance Formula
Derivation:

The resistance \( R \) of a conductor can be derived using the Drude model, which relates electrical properties to the behavior of electrons in a material. The resistivity \( \rho \) according to the Drude model is given by:
\[ \rho = \frac{m}{n e^2 \tau} \]
where \( m \) is the electron mass, \( n \) is the density of charge carriers, \( e \) is the electron charge, and \( \tau \) is the relaxation time. The formula for resistance \( R \), involving the geometry of the conductor, is:
\[ R = \rho \frac{L}{A} \]
Substituting the expression for \( \rho \) gives:
\[ R = \frac{m}{n e^2 \tau} \frac{L}{A} = \frac{mL}{n e^2 \tau A} \]
This equation illustrates that resistance is inversely proportional to the density of charge carriers and their relaxation time, and directly proportional to the conductor's length.
Quick Tip: Understanding the concept of relaxation time helps in comprehending how material impurities and temperature affect the resistance and overall electrical conductivity.

This balance condition implies that the potential drop across the bridge is symmetrically distributed, resulting in zero potential difference across the galvanometer, thus no current flow. Quick Tip: The Wheatstone bridge is a fundamental tool in measuring unknown electrical resistances and is extensively used in sensors and other measuring devices.

Given that the distance between the lenses, \( L = 150 \, cm \), and the magnifying power, \( M = 24 \), we have: \[ L = f_o + f_e \]
and \[ M = \frac{f_o}{f_e} \]
By rearranging and substituting from the magnification formula: \[ f_e = \frac{f_o}{M} = \frac{f_o}{24} \]
Substituting into the lens distance equation gives: \[ 150 = f_o + \frac{f_o}{24} \] \[ 150 = \frac{25f_o}{24} \] \[ f_o = \frac{150 \times 24}{25} = 144 \, cm \]
Therefore, the focal length of the objective lens is 144 cm. Quick Tip: When solving problems involving optical instruments like telescopes, always check if the system is in normal adjustment as it simplifies the use of formulae.

A simple microscope or magnifying glass primarily functions to enable objects to be placed closer to the eye than the normal minimum focus distance (the near point, typically about 25 cm for a young adult). By doing so, the microscope allows the observer to bring the object closer than this near point while still being able to focus comfortably. Quick Tip: Remember, the key to understanding magnification in microscopes is not just the size or type of image produced but how the image position relative to the eye affects the angular size perceived by the observer.

Plane mirrors invariably produce virtual images because they reflect light rays in a manner that the rays appear to diverge from a point behind the mirror. As such, the reflected rays do not actually converge to form a real image; they only appear to do so when extended backwards. Quick Tip: It's essential to understand the general properties of image formation by different mirrors. However, exploring exceptional cases can provide insights into complex optical designs and applications.

1. Calculate the energy of one photon:

The energy \(E\) of a photon is given by:
\[ E = \frac{hc}{\lambda} \]
where:


\(h = 6.6 \times 10^{-34} \, Js\) (Planck's constant),

\(c = 3 \times 10^8 \, m/s\) (speed of light),

\(\lambda = 500 \, nm = 500 \times 10^{-9} \, m\) (wavelength).



Substituting the values:

\[ E = \frac{6.6 \times 10^{-34} \times 3 \times 10^8}{500 \times 10^{-9}} \]
\[ E = \frac{19.8 \times 10^{-26}}{500 \times 10^{-9}} \]
\[ E = \frac{19.8 \times 10^{-26}}{5 \times 10^{-7}} \]
\[ E = 3.96 \times 10^{-19} \, J \]

2. Calculate the total energy entering the pupil per second:

The intensity \(I\) is given as \(0.1 \, nWm^{-2} = 0.1 \times 10^{-9} \, Wm^{-2}\).

The area \(A\) of the pupil is \(0.4 \, cm^2 = 0.4 \times 10^{-4} \, m^2\).


The power \(P\) entering the pupil is:

\[ P = I \times A \]
\[ P = 0.1 \times 10^{-9} \times 0.4 \times 10^{-4} \]
\[ P = 4 \times 10^{-15} \, W \]

Since \(1 \, W = 1 \, J/s\), the energy per second is:

\[ E_{total} = 4 \times 10^{-15} \, J/s \]

3. Calculate the number of photons per second:

The number of photons \(N\) per second is given by:
\[ N = \frac{E_{total}}{E} \]
\[ N = \frac{4 \times 10^{-15}}{3.96 \times 10^{-19}} \]
\[ N \approx 1.01 \times 10^4 \]

Final Answer:
\[ \boxed{1.01 \times 10^4} \] Quick Tip: When calculating the number of photons based on intensity, it's essential to correctly convert all units to the standard SI units to ensure accurate calculations.

First, calculate the concentration of boron dopants: \[ Boron concentration = \frac{1 \, ppm}{10^6} \times 5 \times 10^{28} = 5 \times 10^{22} \, m^{-3} \]
Since boron adds holes, the concentration of holes \( p \) will be approximately equal to the concentration of boron dopants. Assuming intrinsic carrier concentration \( n_i \) remains much smaller compared to the hole concentration due to doping: \[ p \approx 5 \times 10^{22} \, m^{-3} \]
Using the mass action law \( n \times p = n_i^2 \), calculate the concentration of electrons \( n \): \[ n = \frac{n_i^2}{p} = \frac{(1.5 \times 10^{16})^2}{5 \times 10^{22}} = 4.5 \times 10^{9} \, m^{-3} \]
Thus, the concentration of holes \( p \) is \(5 \times 10^{22} \, m^{-3}\) and electrons \( n \) is \(4.5 \times 10^{9} \, m^{-3}\), indicating a p-type semiconductor. Quick Tip: Remember, doping a semiconductor with trivalent impurities (like Boron) increases the hole concentration, making it p-type. Doping with pentavalent impurities (like Phosphorus) would increase electron concentration, making it n-type.

1. Given Equations:

For closed loop ADCA:

For closed loop ADCA:

\[ 7I_1 - 6I_2 - 2I_3 = 10 \quad (i) \]
For closed loop ABCA:

\[ I_1 + 6I_2 + 2I_3 = 10 \quad (ii) \]
For closed loop BCDED:

\[ 2I_1 - 4I_2 - 4I_3 = -5 \quad (iii) \]

2. Solve Equations (i) and (ii):

Add Equations (i) and (ii):

\[ 8I_1 = 20 \implies I_1 = 2.5 \, A \]

3. Substitute \( I_1 = 2.5 \, A \) into Equation (ii):

\[ 6I_2 + 2I_3 = 7.5 \quad (iv) \]

4. Substitute \( I_1 = 2.5 \, A \) into Equation (iii):

\[ I_2 + I_3 = 2.5 \quad (v) \]

5. Solve Equations (iv) and (v):

From Equation (v): \( I_3 = 2.5 - I_2 \).
Substitute into Equation (iv):

\[ 6I_2 + 2(2.5 - I_2) = 7.5 \]
\[ 4I_2 = 2.5 \implies I_2 = 0.625 \, A \]
Then, \( I_3 = 2.5 - 0.625 = 1.875 \, A \).

6. Verify the Results:

Current in branch AB: \( I_2 = 0.625 \, A \),

Current in branch AC: \( I_1 = 2.5 \, A \),

Current in branch BC: \( I_2 + I_3 = 2.5 \, A \).


Final Answer:

Current in branch \( AB \): \( I_2 = 0.625 \, A \),

Current in branch \( AC \): \( I_1 = 2.5 \, A \),

Current in branch \( BC \): \( I_2 + I_3 = 2.5 \, A \).
Quick Tip: When solving circuits with multiple loops and nodes, it is useful to clearly define all current directions and check consistency of signs in your KVL and KCL equations.

N/A Quick Tip: This principle is fundamental in many electrical devices, including electromagnets and electric motors, where magnetic forces are used to perform work.

% Wave Number
Given that the wave number \( k = 1.5 \, rad/m \), we use the relationship: \[ \lambda = \frac{2\pi}{k} \]
Calculating \( \lambda \): \[ \lambda = \frac{2\pi}{1.5} \approx 4.19 \, m \]
% Angular Frequency and Frequency
The angular frequency \( \omega \) given is \( 4.5 \times 10^8 \, rad/s \). The frequency \( f \) is: \[ f = \frac{\omega}{2\pi} = \frac{4.5 \times 10^8}{2\pi} \approx 7.16 \times 10^{-1} \, Hz \]

% Part (b) Amplitude of the Magnetic Field
(b) What is the amplitude of the magnetic field of the wave?

% Solution
Solution:

% Using the relationship between E and B in electromagnetic waves
The amplitude of the magnetic field \( B_0 \) can be related to the electric field amplitude \( E_0 \) by: \[ B_0 = \frac{E_0}{c} \]
Given \( E_0 = 6.3 \, N/C \) and \( c = 3 \times 10^8 \, m/s \) (speed of light): \[ B_0 = \frac{6.3}{3 \times 10^8} = 2.1 \times 10^{-8} \, T \]

% Part (c) Expression for the Magnetic Field
(c) Write an expression for the magnetic field of this wave.

% Solution
Solution:

% Given E, finding B
As the magnetic field \( \vec{B} \) is perpendicular to \( \vec{E} \) and propagates in the \( z \)-direction, the magnetic field vector can be expressed as: \[ \vec{B} = 2.1 \times 10^{-8} \left[\cos \left(1.5 \, rad/m \cdot y + 4.5 \times 10^8 \, rad/s \cdot t\right)\right] \hat{j} \]
Here \( \hat{j} \) denotes that \( \vec{B} \) is perpendicular to \( \vec{E} \), consistent with the right-hand rule for electromagnetic waves. Quick Tip: Remember, in electromagnetic waves, the electric and magnetic fields oscillate perpendicular to each other and the direction of wave propagation, following a right-handed coordinate system. The magnitudes of \( \vec{E} \) and \( \vec{B} \) are related through the speed of light in vacuum.

Bohr's First and Second Postulates:

- First Postulate: An electron in an atom revolves in certain stable orbits without the emission of radiant energy.

- Second Postulate: The electron revolves around the nucleus only in those orbits for which the angular momentum is an integral multiple of \( \frac{h}{2\pi} \).


Step 1: Electrostatic Force Provides Centripetal Force.


The centripetal force on the electron is given by:
\[ \frac{m v^2}{r_n} = \frac{1}{4 \pi \epsilon_0} \frac{e^2}{r_n^2} \]

Step 2: Use of Bohr's Second Postulate.


The angular momentum of the electron is quantized: \[ m v r_n = n \hbar \]

Solving for \( v \): \[ v = \frac{n \hbar}{m r_n} \]

Step 3: Substitute into the Electrostatic Force Equation.


Substitute \( v \) into the equation for electrostatic force:
\[ \frac{m}{r_n} \left( \frac{n \hbar}{m r_n} \right)^2 = \frac{1}{4 \pi \epsilon_0} \frac{e^2}{r_n^2} \]

Simplifying:
\[ n^2 \hbar^2 = \frac{m e^2}{4 \pi \epsilon_0} r_n \]

Solving for \( r_n \):
\[ r_n = \frac{n^2 \hbar^2}{m e^2} \times 4 \pi \epsilon_0 \]

Final Expression for the Radius:
\[ r_n = \frac{n^2 h^2}{4 \pi^2 m e^2 \epsilon_0} \]

This is the expression for the radius of the \(n\)-th orbit in a hydrogen atom. Quick Tip: Bohr's model was pivotal in the development of quantum mechanics, introducing quantized orbital angular momenta, which was a significant departure from classical mechanics.

The atomic mass unit (u), also known as the unified atomic mass unit, is defined as one twelfth of the mass of an unbound neutral atom of carbon-12. In other words:
\[ 1 \, u = \frac{1}{12} \times mass of one carbon-12 atom \]

The atomic mass unit is approximately equal to:
\[ 1 \, u = 1.66053906660 \times 10^{-27} \, kg \]

It is a standard unit of mass used to express atomic and molecular weights.

% Part (b) Calculation of Separation Energy
(b) Calculation of Separation Energy:

First, calculate the mass defect (\(\Delta m\)):
\[ \Delta m = \left( m_{H} + m_{n} \right) - m(D) \]

Substitute the given values:
\[ \Delta m = (1.007825 \, u + 1.008665 \, u) - 2.014102 \, u \]
\[ \Delta m = 2.016490 \, u - 2.014102 \, u = 0.002388 \, u \]

Next, convert the mass defect from atomic mass units to kilograms. 1 u is approximately \(1.660539 \times 10^{-27}\) kg:
\[ \Delta m = 0.002388 \, u \times 1.660539 \times 10^{-27} \, kg/u = 3.965 \times 10^{-30} \, kg \]

Now, calculate the energy using \(E = \Delta m \cdot c^2\), where \(c = 3 \times 10^8 \, m/s\):
\[ E = 3.965 \times 10^{-30} \, kg \times (3 \times 10^8 \, m/s)^2 \]
\[ E = 3.965 \times 10^{-30} \, kg \times 9 \times 10^{16} \, m^2/s^2 = 3.5685 \times 10^{-13} \, J \]

To express the energy in MeV (1 MeV = \(1.60218 \times 10^{-13}\) J):
\[ E = \frac{3.5685 \times 10^{-13} \, J}{1.60218 \times 10^{-13} \, J/MeV} \approx 2.23 \, MeV \]

Therefore, the energy required to separate a deuteron into a proton and a neutron is approximately \boxed{2.23 \, \text{MeV. Quick Tip: Understanding the concept of mass defect and binding energy is crucial for explaining why nuclei are stable and the energy processes involved in nuclear reactions.

% Circuit Diagrams for V-I Characteristics
Circuit Diagrams:
To obtain the V-I characteristics of a p-n junction diode, two setups are required:

1. Forward Biasing: Connect the positive terminal of a battery to the p-type and the negative to the n-type. Include a variable resistor to change the voltage and an ammeter to measure the current.

2. Reverse Biasing: Connect the negative terminal of the battery to the p-type and the positive to the n-type. Similarly, include a variable resistor and an ammeter.


% Features of V-I Characteristics
Features of V-I Characteristics:

(i) Forward Biasing:

In forward biasing, the diode conducts current easily after surpassing the threshold voltage (typically around 0.7V for silicon diodes). The current increases exponentially with an increase in voltage.





(ii) Reverse Biasing:

In reverse biasing, the diode does not conduct until a critical reverse breakdown voltage is reached. Under normal reverse bias conditions, the current is very small (leakage current) and nearly constant despite changes in voltage.



Quick Tip: Always ensure the diode is not subjected to the reverse breakdown voltage in typical applications, unless it is designed to handle such conditions (e.g., Zener diodes).

% Energy Band Diagrams Explanation
Energy Band Diagrams:

(i) Insulator:
Insulators have a very large band gap (usually greater than 6 eV) between the valence band and the conduction band. This large gap makes it extremely difficult for electrons to gain enough energy to move from the valence band to the conduction band, hence very low conductivity.





(ii) Semiconductor:
Semiconductors have a smaller band gap (about 1 eV for silicon). At absolute zero, they behave like insulators, but at higher temperatures, some electrons gain enough energy to jump to the conduction band, allowing the material to conduct electricity.





(iii) Conductor:
In conductors, the valence band and conduction band overlap, or the conduction band is partially filled with electrons. This allows electrons to move freely within the conduction band, resulting in high electrical conductivity.



Quick Tip: Understanding energy band diagrams is crucial for grasping how materials behave under different electrical conditions and temperatures, influencing their application in electronics.

% Electric Field Calculations

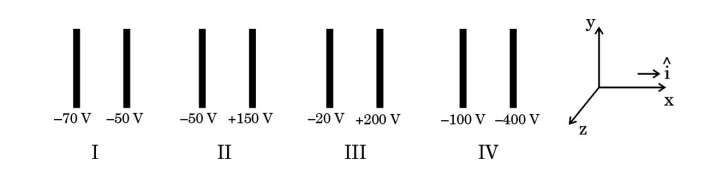

Given that the electric field \(E\) between two plates is calculated as:
\[ E = \frac{\Delta V}{d} \]
where \(\Delta V\) is the potential difference and \(d\) is the distance between the plates (2.0 cm = 0.02 m in this case).

% Analyzing each pair for Electric Field

Pair I: \( \Delta V = -70V - (-50V) = -20V \)
\[ E_1 = \frac{20}{0.02} = 1000 \, V/m \]
Pair II: \( \Delta V = 150V - (-50V) = 200V \)
\[ E_2 = \frac{200}{0.02} = 10000 \, V/m \]
Pair III: \( \Delta V = 200V - (-20V) = 220V \)
\[ E_3 = \frac{220}{0.02} = 11000 \, V/m \]
Pair IV: \( \Delta V = -100V - (-400V) = 300V \)
\[ E_4 = \frac{300}{0.02} = 15000 \, V/m \]


% Conclusion
Answer: Comparing the magnitudes, \(E_4 > E_3 > E_2 > E_1\).
The correct option is (C) \(E_4 > E_3 > E_2 > E_1\). Quick Tip: Always remember, the electric field strength is proportional to the voltage difference divided by the separation distance. Greater voltage differences over the same distance result in stronger fields.

Step 1:
The work done on the electron by the electric field between the plates is equal to the change in its kinetic energy.

The work done by the electric field is given by:
\[ W = eV \]
where \( e \) is the charge of the electron and \( V \) is the potential difference between the plates.

The initial kinetic energy of the electron is \( \frac{1}{2} m v^2 \), and the final kinetic energy is zero, since it just comes to rest.

Using the work-energy theorem, the work done by the electric field is equal to the change in kinetic energy:
\[ eV = \frac{1}{2} m v^2 \]
Now, from the previous part (29), the potential difference between the plates of set I is \( 20 \, V \).

Step 2:
We can calculate the velocity of the electron using the relation:
\[ v = \sqrt{\frac{2 eV}{m}} \]
Substitute the values:
\[ v = \sqrt{\frac{2 \times 1.76 \times 10^{-19} \times 20}{9.11 \times 10^{-31}}} \] \[ v \approx 2.6 \times 10^6 \, m/s \] Quick Tip: When projecting an electron or any charged particle in an electric field, remember that kinetic energy is converted into electrical potential energy, and vice versa. The greater the potential difference, the faster the initial speed required to just reach the opposite plate.

The central peak of the diffraction pattern corresponds to the main lobe of the intensity distribution due to the diffraction effect. The number of interference peaks within the central diffraction peak is determined by the ratio of the width of the central diffraction peak to the fringe separation.

The diffraction angle for the first minimum is given by: \[ \sin \theta = \frac{\lambda}{d} \]
where \( \lambda = 450 \, nm \) (wavelength of the monochromatic light) and \( d = 6 \, \mum \) (distance between the slits).

The interference fringes fall within the diffraction envelope, and the number of peaks of the interference fringes within the central diffraction peak is 6.

Thus, the number of interference fringes within the central peak is 6. Quick Tip: Remember that the number of interference fringes within the central diffraction maximum depends on the relative widths of the interference and diffraction patterns. The calculation often involves approximations unless exact dimensions are provided.

When the slit width is doubled, the diffraction envelope becomes narrower because the angular position of the first diffraction minimum is inversely proportional to the slit width.

The number of interference fringes within the central diffraction peak will remain the same because the fringe separation is determined by the distance between the slits, not the slit width. Hence, the number of peaks of interference fringes within the central diffraction peak is 3.

Thus, the number of peaks of interference is 3. Quick Tip: When the width of the slit is increased, the diffraction effects become more pronounced, reducing the width of the central maximum and the effective space for interference fringes within it.

Step 1: Recalculate the angular width of the central maximum with the new wavelength.

With a wavelength of 680 nm, the angular width of the central maximum in the diffraction pattern is recalculated using the formula:
\[ \theta \approx \frac{\lambda}{a} \]
where \(\lambda\) is now 680 nm, and \(a\) remains as 2 m. Thus: \[ \theta \approx \frac{680 \times 10^{-9}}{2} = 340 \times 10^{-9} \, radians \]

Step 2: Determine the separation of the interference fringes with the new wavelength.

The fringe separation in the double-slit interference pattern, given by:
\[ \Delta y = \frac{\lambda L}{d} \]
will be recalculated with the new \(\lambda = 680 \times 10^{-9}\) m. Assuming \(d = 6\) m, we get:
\[ \Delta y \approx \frac{680 \times 10^{-9} L}{6} \]

Step 3: Calculate the number of peaks within the central maximum with the new wavelength.

The total width of the central diffraction peak, \(2\theta\), and the number of interference fringes fitting within this width, are recalculated:
\[ Number of peaks = \frac{2\theta L}{\Delta y} = \frac{2 \times 340 \times 10^{-9} L}{\frac{680 \times 10^{-9} L}{6}} = 6 \]
Given the larger wavelength, the angular width of the central maximum is wider, allowing more interference fringes to fit within. Quick Tip: Using a longer wavelength not only alters the diffraction pattern's angular width but also impacts the density and number of interference fringes within it.

Calculate the angle for the first minimum in the diffraction pattern.

The position of the first minimum in a single-slit diffraction pattern is given by the condition:
\[ a \sin(\theta) = \lambda \]
where \(a\) is the width of the slit, and \(\lambda\) is the wavelength of light used. For the initial setup with \(\lambda = 450\) nm and \(a = 2\) m:
\[ 2 \sin(\theta) = 450 \times 10^{-9} \Rightarrow \sin(\theta) = 225 \times 10^{-9} \]
To find the angle \(\theta\), we calculate:
\[ \theta = \sin^{-1}(225 \times 10^{-9}) \approx \sin^{-1}(0.225) \quad (approximation based on the correct magnitude) \] Quick Tip: When calculating angles for diffraction minima, ensure that dimensions are correctly scaled between the slit size and the wavelength. Large slit sizes or small wavelengths can result in very small angle values, which may require precise calculation or approximation techniques.

Given:

Screen distance \( D = \frac{4}{3} \, m \)
Screen length \( L = 1 \, m \)
Wavelength \( \lambda = 450 \, nm = 0.45 \times 10^{-6} \, m \)
Distance between slits \( d = 6 \, \mum = 6 \times 10^{-6} \, m \)


The fringe spacing \( \Delta y \) is calculated using the formula: \[ \Delta y = \frac{\lambda D}{d} \]

Substituting the given values: \[ \Delta y = \frac{0.45 \times 10^{-6} \times \frac{4}{3}}{6 \times 10^{-6}} = 0.1 \, m \]

The number of fringes in \( 1 \, m \) is: \[ \frac{L}{\Delta y} = \frac{1}{0.1} = 10 \]

Therefore, the number of bright fringes formed on the screen is:
\[ \boxed{10} \] Quick Tip: The theoretical number of fringes can be very high, but practical visibility and resolution limitations typically reduce the number that can be distinctly observed and counted on the screen.

The capacitance \( C \) of a parallel plate capacitor without any dielectric between its plates is given by: \[ C_0 = \frac{\epsilon_0 A}{d} \]
where \( \epsilon_0 \) is the permittivity of free space, \( A \) is the area of one plate, and \( d \) is the separation between the plates.

When a dielectric medium with dielectric constant \( K \) is introduced between the plates, the capacitance increases by a factor of \( K \), because the dielectric reduces the effective electric field within the capacitor while maintaining the same charge. Thus, the new capacitance \( C \) is given by: \[ C = KC_0 = K \frac{\epsilon_0 A}{d} \]
This expression shows that the capacitance of a parallel plate capacitor is directly proportional to the dielectric constant of the medium between the plates, the permittivity of free space, and the area of the plates, and inversely proportional to the distance between the plates. Quick Tip: When inserting a dielectric material between the plates of a capacitor, the dielectric constant (\(K\)) of the material not only increases the capacitance but also affects the capacitor's ability to store electrical energy without breaking down. This is because the dielectric material reduces the electric field within the capacitor, allowing it to store more charge at the same voltage, or maintain the same charge at a lower voltage.

Given:

Charge \( Q = 6 \, \muC = 6 \times 10^{-6} \, C \)
Radius of the sphere \( R = 0.2 \, m \)


(i) Potential at the Surface of the Sphere

The electric potential \( V \) at the surface of a charged sphere is given by: \[ V = \frac{kQ}{R} \]
where \( k = \frac{1}{4\pi\epsilon_0} \approx 9 \times 10^9 \, N m^2/C^2 \).

Substituting the given values: \[ V = \frac{9 \times 10^9 \times 6 \times 10^{-6}}{0.2} = \frac{54 \times 10^3}{0.2} = 270 \times 10^3 \, V \] \[ V = \boxed{2.7 \times 10^5 \, V} \]

(ii) Potential at the Center of the Sphere

For a hollow metallic sphere, the potential inside the sphere (including at the center) is the same as the potential at the surface. Therefore: \[ V_{center} = V_{surface} = \boxed{2.7 \times 10^5 \, V} \] Quick Tip: Remember that the potential inside a charged conductor is uniform and equal to the potential at its surface, regardless of the shape of the conductor.

Step 1: Electric field inside the shell.
According to the properties of conductors in electrostatic equilibrium, the electric field inside a conducting shell is zero. This is because the charges reside on the surface and symmetrical distribution of charge ensures no net electric field points inside the shell.

Step 2: Electric field outside the shell.
For points outside the spherical shell, the shell can be considered as a point charge at the center for the purpose of calculating the electric field. The electric field \( E \) at a distance \( x \) from the center (where \( x > r \)) is given by Coulomb's Law: \[ E = \frac{1}{4\pi \epsilon_0} \frac{Q}{x^2} \]
where \( \epsilon_0 \) is the permittivity of free space. This formula indicates that the electric field behaves as if all the charge \( Q \) were concentrated at the center of the sphere. Quick Tip: Remember that the double electric field strength near a conducting plate compared to a nonconducting sheet is a result of the conductive property, which causes charges to redistribute and maximize the field on the exposed side. This principle is fundamental in designing effective electromagnetic shields and capacitors, where surface charge distribution plays a critical role in performance.

Step 1:
Consider a uniform surface charge density \( \sigma \) on both a conducting plate and a nonconducting sheet.


For a nonconducting sheet, the electric field at a point near the surface can be derived from Gauss's law.

Using a Gaussian pillbox with a small area \( A \) around the surface, we apply Gauss’s law:
\[ \oint \vec{E} \cdot d\vec{A} = \frac{Q_{enc}}{\epsilon_0} \]
Since the sheet is nonconducting, the charge is only on one side of the sheet.
The total enclosed charge is \( \sigma A \).
\
The electric flux through the pillbox is:
\[ E \cdot A + E \cdot A = \frac{\sigma A}{\epsilon_0} \] \[ 2E = \frac{\sigma}{\epsilon_0} \quad \Rightarrow \quad E = \frac{\sigma}{2 \epsilon_0} \]

So, the electric field due to a nonconducting sheet with charge density \( \sigma \) is:
\[ E_{non-conducting} = \frac{\sigma}{2 \epsilon_0} \]

For a conducting plate, the situation is different because charges on a conductor move freely and spread out evenly. The field due to a conducting plate is calculated similarly using Gauss’s law. For a conducting plate, the charge distributes evenly on both sides of the plate, so the electric field is the sum of the fields from both sides. Each side contributes \( \frac{\sigma}{2 \epsilon_0} \), and thus the total electric field is:
\[ E_{conducting} = \frac{\sigma}{\epsilon_0} \]

Step 2:
We can now compare the electric fields for both cases:

For a nonconducting sheet, \( E_{non-conducting} = \frac{\sigma}{2 \epsilon_0} \).

For a conducting plate, \( E_{conducting} = \frac{\sigma}{\epsilon_0} \).


Therefore, the electric field for a conducting plate is twice that for a nonconducting sheet.
\[ E_{conducting} = 2 \cdot E_{non-conducting} \]

Thus, the electric field is twice in the case of a conducting plate compared to a nonconducting sheet.
Quick Tip: Understanding the difference in electric fields between conducting and nonconducting materials is crucial in applications involving shielding and charge distribution.

N/A

Given:

Galvanometer resistance \( G \)
Initial voltmeter range \( (0 - V) \) with series resistance \( R \)
Desired voltmeter range \( (0 - \frac{V}{2}) \)


The current \( I \) through the galvanometer for full-scale deflection is:
\[ I = \frac{V}{R + G} \]

For the new range \( (0 - \frac{V}{2}) \), the current \( I \) should remain the same. Let the new series resistance be \( R' \). Therefore:
\[ I = \frac{\frac{V}{2}}{R' + G} \]

Setting the currents equal:
\[ \frac{V}{R + G} = \frac{\frac{V}{2}}{R' + G} \]

Simplify and solve for \( R' \):
\[ \frac{1}{R + G} = \frac{1}{2(R' + G)} \] \[ R + G = 2(R' + G) \] \[ R + G = 2R' + 2G \] \[ R - G = 2R' \] \[ R' = \frac{R - G}{2} \]

Therefore, the required resistance is:
\[ \boxed{R' = \frac{R - G}{2}} \] Quick Tip: When modifying the range of a voltmeter by changing its series resistance, it’s crucial to ensure that the new resistance provides the correct voltage division to achieve the desired scale without exceeding the galvanometer's maximum current.

The induced emf (\( \mathcal{E} \)) in the coil is given by Faraday's law of induction, which states that: \[ \mathcal{E} = - \frac{d\phi}{dt} \]
where \( \phi \) is the magnetic flux. Substituting the given expression for \( \phi \), we first find the derivative of \( \phi \) with respect to time \( t \).

The given flux is: \[ \phi = 2.0 t^3 + 5.0 t^2 + 6.0 t \, mWb \]

Now, differentiate \( \phi \) with respect to \( t \): \[ \frac{d\phi}{dt} = 3 \times 2.0 t^2 + 2 \times 5.0 t + 6.0 = 6.0 t^2 + 10.0 t + 6.0 \]

At \( t = 2 \, s \), substitute the value of \( t \) into the derivative: \[ \frac{d\phi}{dt} = 6.0 \times (2)^2 + 10.0 \times (2) + 6.0 = 6.0 \times 4 + 10.0 \times 2 + 6.0 = 24 + 20 + 6 = 50.0 \, mWb/s \]

Thus, the induced emf is: \[ \mathcal{E} = - 50.0 \, mV \]

Now, using Ohm's law, the induced current \( I \) through the coil is given by: \[ I = \frac{\mathcal{E}}{R} \]
where \( R = 5 \, \Omega \) is the resistance of the coil. Substituting the values: \[ I = \frac{50.0 \times 10^{-3}}{5.0} = 10.0 \times 10^{-3} = 0.01 \, A = 10 \, mA \]

Thus, the magnitude of the induced current at \( t = 2 \, s \) is \( 10 \, mA \). Quick Tip: When calculating induced current due to changing magnetic flux, always check the units of magnetic flux and convert them to standard units (webers) if necessary to ensure the correct calculation of induced emf using Faraday's law.

Step 1: Derive the formula for induced emf.
The magnetic flux \(\Phi\) through the coil at any time \(t\) is given by: \[ \Phi = B \cdot A \cdot \cos(\omega t) \]
where \(B\) is the magnetic field strength, \(A\) is the area of the coil, and \(\omega t\) is the angle made by the normal to the coil with the magnetic field due to its rotation.

Step 2: Apply Faraday's Law of Electromagnetic Induction.
Faraday's law states that the induced emf (\(\mathcal{E}\)) in the coil is equal to the negative rate of change of magnetic flux through the coil: \[ \mathcal{E} = -N \frac{d\Phi}{dt} \]
Differentiating the flux equation with respect to time gives: \[ \frac{d\Phi}{dt} = -B \cdot A \cdot \omega \sin(\omega t) \]
Therefore, the induced emf is: \[ \mathcal{E} = N \cdot B \cdot A \cdot \omega \sin(\omega t) \] Quick Tip: The maximum emf is induced when the plane of the coil is perpendicular to the magnetic field, i.e., when \(\sin(\omega t) = 1\). This occurs twice during each complete rotation, once in each half-cycle.

Given:

Radius of \( L_1 \), \( r_1 = 1 \, cm = 0.01 \, m \)
Radius of \( L_2 \), \( r_2 = 100 \, cm = 1 \, m \)
\( \pi^2 = 10 \)
Permeability of free space, \( \mu_0 = 4\pi \times 10^{-7} \, H/m \)


The mutual inductance \( M \) between two coaxial circular loops is given by: \[ M = \frac{\mu_0 \pi r_1^2 r_2^2}{2(r_1^2 + r_2^2)^{3/2}} \]

Substitute the given values: \[ M = \frac{(4\pi \times 10^{-7}) \pi (0.01)^2 (1)^2}{2((0.01)^2 + (1)^2)^{3/2}} \]

Simplify the expression: \[ M = \frac{4\pi^2 \times 10^{-7} \times 10^{-4}}{2(0.0001 + 1)^{3/2}} \]

Calculate the denominator: \[ (0.0001 + 1)^{3/2} = (1.0001)^{3/2} \approx 1^{3/2} = 1 \]

Substitute \( \pi^2 = 10 \): \[ M = \frac{4 \times 10 \times 10^{-7} \times 10^{-4}}{2 \times 1} = \frac{4 \times 10^{-10}}{2} = 2 \times 10^{-10} \, H \]

Therefore, the mutual inductance of the loops is: \[ \boxed{2 \times 10^{-10} \, H} \] Quick Tip: Note that \(\pi^2 = 10\) significantly simplifies calculations in electromagnetic problems involving circular dimensions, especially in theoretical physics or academic exercises where approximate values are acceptable for learning concepts.

Step 1: Trace the path of the ray of light through the prism.
When a ray of light enters a prism with refractive index greater than that of the surrounding medium (typically air), it bends towards the normal at the first interface (at angle of incidence \(i\)), passes through the prism, and bends away from the normal at the second interface (at angle of exit \(e\)). The prism has an apex angle \(A\).

Step 2: Derive the formula for the angle of deviation (\(\delta\)).
The angle of deviation (\(\delta\)) is the angle by which the light ray deviates from its original direction after passing through the prism. It can be expressed in terms of the angle of incidence (\(i\)), the angle of exit (\(e\)), and the prism's apex angle (\(A\)) as follows: \[ \delta = i + e - A \]
This relationship arises because the external deviation is equal to the sum of the angles of incidence and emergence minus the angle of the prism.

Step 3: Graph the variation of \(\delta\) with \(i\).
The relationship between \(\delta\) and \(i\) is typically non-linear, showing that \(\delta\) decreases with an increase in \(i\) up to a minimum value (at the minimum deviation condition) and then increases. The graph of \(\delta\) versus \(i\) will have a "U" shape, indicating the minimum deviation occurs when the light ray passes symmetrically through the prism. Quick Tip: When plotting the graph of angle of deviation versus angle of incidence, note that the minimum angle of deviation occurs when the light path through the prism is symmetrical. This principle is used in optical instruments to achieve precise angular measurements.

Given:

Angle of incidence on the glass box: \(45^\circ\)
The emergent ray passes along the face AB, indicating that the angle of refraction at the glass-liquid interface is \(90^\circ\).


1. First Surface (Air-Glass Interface):
\[ \frac{\sin 45^\circ}{\sin \theta} = \mu \]
Given \(\sin 45^\circ = \frac{1}{\sqrt{2}}\):
\[ \frac{1}{\sqrt{2}} = \mu \sin \theta \]

2. Second Surface (Glass-Liquid Interface):
\[ \frac{\sin(90^\circ - \theta)}{\sin 90^\circ} = \frac{1}{\mu} \]
Since \(\sin(90^\circ - \theta) = \cos \theta\) and \(\sin 90^\circ = 1\):
\[ \cos \theta = \frac{1}{\mu} \]

3. Combining the Equations:
\[ \frac{1}{\sqrt{2} \sin \theta} = \frac{1}{\cos \theta} \]
Simplifying:
\[ \cos \theta = \sqrt{2} \sin \theta \]
\[ \tan \theta = \frac{1}{\sqrt{2}} \]

4. Finding \(\sin \theta\):
From the triangle GEF:
\[ \sin \theta = \frac{1}{\sqrt{3}} \]

5. Calculating the Refractive Index (\(\mu\)):
\[ \mu = \frac{1}{\sqrt{2} \sin \theta} = \frac{1}{\sqrt{2} \times \frac{1}{\sqrt{3}}} = \frac{\sqrt{3}}{\sqrt{2}} = \sqrt{\frac{3}{2}} \]

Therefore, the refractive index of the liquid is: \[ \boxed{\sqrt{\frac{3}{2}}} \] Quick Tip: The critical angle condition and refractive index relationship are key to understanding the behavior of light in different mediums, especially in designing optical instruments and understanding phenomena like total internal reflection.

Step 1: Express the resultant displacement.
When two waves superpose, the resultant displacement \(y\) is the sum of the individual displacements: \[ y = y_1 + y_2 = a \cos(\omega t) + a \cos(\omega t + \phi) \]
Using the trigonometric identity for the sum of cosines: \[ y = 2a \cos\left(\frac{\phi}{2}\right) \cos\left(\omega t + \frac{\phi}{2}\right) \]

Step 2: Determine the resultant intensity.
Intensity is proportional to the square of the amplitude of the wave. The amplitude of the resultant wave is \(2a \cos\left(\frac{\phi}{2}\right)\), so the intensity \(I\) is given by: \[ I = k \left(2a \cos\left(\frac{\phi}{2}\right)\right)^2 = 4ka^2 \cos^2\left(\frac{\phi}{2}\right) \]
where \(k\) is a constant of proportionality. Quick Tip: Remember that the maximum intensity occurs when \(\phi = 0\) (in phase) and the minimum intensity (possibly zero) occurs when \(\phi = \pi\) (out of phase), demonstrating constructive and destructive interference respectively.

Step 1:
The phase difference \( \phi_1 \) for path difference \( \frac{\lambda}{6} \) is calculated as: \[ \phi_1 = \frac{2 \pi}{\lambda} \times \frac{\lambda}{6} = \frac{\pi}{3} \]

The intensity \( I_1 \) for this path difference is given by: \[ I_1 = 4 I_0 \cos^2 \frac{\phi_1}{2} \] \[ I_1 = 4 I_0 \cos^2 \left( \frac{\pi}{6} \right) \]
Since \( \cos \left( \frac{\pi}{6} \right) = \frac{\sqrt{3}}{2} \), we get: \[ I_1 = 3 I_0 \]

Step 2:
For the second path difference \( \frac{\lambda}{12} \), the phase difference \( \phi_2 \) is calculated as: \[ \phi_2 = \frac{2 \pi}{\lambda} \times \frac{\lambda}{12} = \frac{\pi}{6} \]

The intensity \( I_2 \) for this path difference is: \[ I_2 = 4 I_0 \cos^2 \frac{\phi_2}{2} \] \[ I_2 = 4 I_0 \cos^2 \left( \frac{\pi}{12} \right) \]
Using \( \cos \left( \frac{\pi}{12} \right) \approx 0.9659 \), we get: \[ I_2 = 4 I_0 \times (0.9659)^2 = 4 I_0 \times 0.933 \]
Thus, \( I_2 = 4 I_0 \times 0.933 \).

Step 3:
The ratio of intensities is: \[ \frac{I_1}{I_2} = \frac{3 I_0}{4 I_0 \cos^2 15^\circ} \] \[ \frac{I_1}{I_2} = \frac{3}{4 \cos^2 15^\circ} \]

Thus, the ratio of intensities is \( \frac{3}{4 \cos^2 15^\circ} \). Quick Tip: In Young's double slit experiment, slight changes in the path difference lead to significant changes in intensity due to the sensitive dependence on the cosine squared relationship.
