NEET 2023 Question Paper with Answers and Solutions PDF H1 in English

Step 1: Understanding the Question:

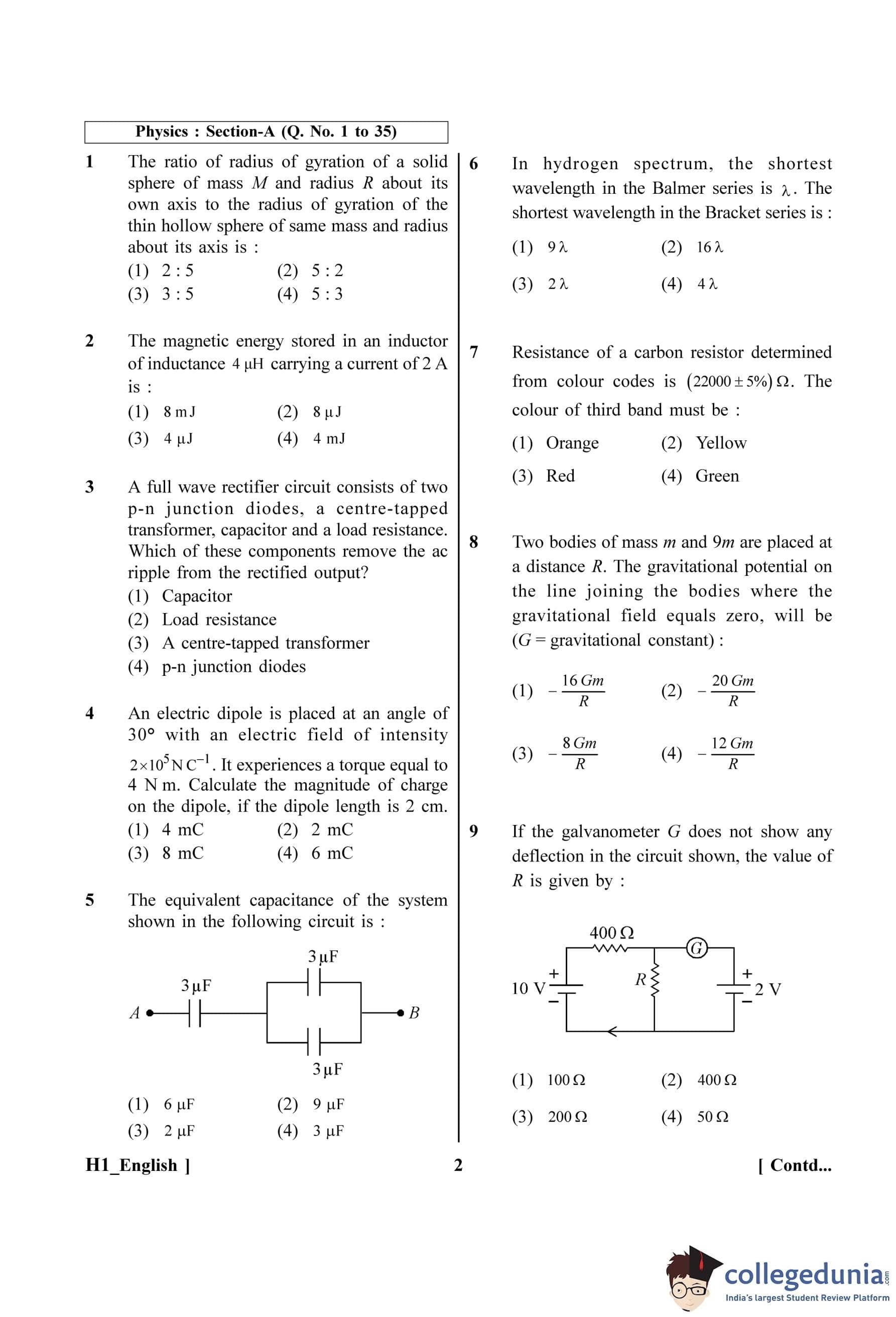

The question asks for the ratio of the radius of gyration of a solid sphere to that of a thin hollow sphere, both having the same mass (M) and radius (R), rotating about their own axes passing through their centers.


Step 2: Key Formula or Approach:

The radius of gyration (k) is related to the moment of inertia (I) and mass (M) by the formula: \[ I = Mk^2 \implies k = \sqrt{\frac{I}{M}} \]
The moment of inertia of a solid sphere about its axis is \(I_{solid} = \frac{2}{5}MR^2\).

The moment of inertia of a thin hollow sphere about its axis is \(I_{hollow} = \frac{2}{3}MR^2\).


Step 3: Detailed Explanation:

First, we find the radius of gyration for the solid sphere (\(k_{solid}\)): \[ k_{solid} = \sqrt{\frac{I_{solid}}{M}} = \sqrt{\frac{\frac{2}{5}MR^2}{M}} = \sqrt{\frac{2}{5}R^2} = R\sqrt{\frac{2}{5}} \]
Next, we find the radius of gyration for the hollow sphere (\(k_{hollow}\)): \[ k_{hollow} = \sqrt{\frac{I_{hollow}}{M}} = \sqrt{\frac{\frac{2}{3}MR^2}{M}} = \sqrt{\frac{2}{3}R^2} = R\sqrt{\frac{2}{3}} \]
Now, we find the ratio of their radii of gyration: \[ \frac{k_{solid}}{k_{hollow}} = \frac{R\sqrt{\frac{2}{5}}}{R\sqrt{\frac{2}{3}}} = \sqrt{\frac{2/5}{2/3}} = \sqrt{\frac{2}{5} \times \frac{3}{2}} = \sqrt{\frac{3}{5}} \]
The ratio is \(\sqrt{3} : \sqrt{5}\).

Step 4: Final Answer:

The ratio is \(\sqrt{3} : \sqrt{5}\).
Quick Tip: Memorize the moments of inertia for standard shapes (sphere, cylinder, ring, disc). In MCQs, if your calculated answer isn't in the options, re-read the question and check for possible alternative interpretations, like the ratio of \(I\) instead of \(k\), or \(k^2\), which is proportional to \(I\).

Step 1: Understanding the Question:

The question asks to calculate the magnetic energy stored in an inductor given its inductance and the current flowing through it.


Step 2: Key Formula or Approach:

The magnetic potential energy (U) stored in an inductor is given by the formula: \[ U = \frac{1}{2}LI^2 \]
where L is the inductance and I is the current.


Step 3: Detailed Explanation:

We are given the following values:
Inductance, \(L = 4 µH = 4 \times 10^{-6} H\).

Current, \(I = 2 A\).

Substitute these values into the formula: \[ U = \frac{1}{2} \times (4 \times 10^{-6} H) \times (2 A)^2 \] \[ U = \frac{1}{2} \times (4 \times 10^{-6}) \times 4 \] \[ U = 2 \times 10^{-6} \times 4 \] \[ U = 8 \times 10^{-6} J \]
Since \(1 µJ = 10^{-6} J\), the energy stored is 8 µJ.


Step 4: Final Answer:

The magnetic energy stored in the inductor is 8 µJ.
Quick Tip: Pay close attention to the units (µH, mJ, µJ). A common mistake is to misinterpret the prefixes. Here, 'µ' (micro) is \(10^{-6}\) and 'm' (milli) is \(10^{-3}\). Always convert to base SI units for calculations to avoid errors.

Step 1: Understanding the Question:

The question asks to identify the component in a full-wave rectifier circuit that is responsible for smoothing the output voltage, i.e., removing the AC ripple.


Step 3: Detailed Explanation:

Let's analyze the role of each component in a full-wave rectifier circuit:

p-n junction diodes: These are the core rectifying elements. They allow current to flow in only one direction, converting the bidirectional AC input into a unidirectional (but pulsating) DC output.
Centre-tapped transformer: It provides two AC signals that are 180° out of phase, which are necessary for the two diodes in a centre-tapped full-wave rectifier to conduct on alternate half-cycles of the input.
Load resistance: This is the resistance across which the output voltage is developed and the rectified current is delivered.
Capacitor: When connected in parallel with the load resistance, the capacitor acts as a filter. It charges up to the peak voltage of the pulsating DC output. When the output voltage starts to decrease, the capacitor discharges slowly through the load resistor, thus maintaining the voltage at a nearly constant level. This process significantly reduces the AC fluctuations (ripple) in the output, making it a smoother DC voltage. This is why the capacitor is called a filter capacitor.


Step 4: Final Answer:

The capacitor is the component used to remove the AC ripple from the rectified output.
Quick Tip: In rectifier circuits, the process of removing AC ripple is called 'filtering'. The most common filter is a capacitor connected in parallel with the load, often called a 'smoothing capacitor' or 'filter capacitor'.

Step 1: Understanding the Question:

The problem provides the torque experienced by an electric dipole in a uniform electric field, along with the field strength, the angle, and the dipole length. We need to find the magnitude of the charge on the dipole.


Step 2: Key Formula or Approach:

The torque (\(\tau\)) on an electric dipole in an electric field (E) is given by: \[ \tau = pE\sin\theta \]
where \(p\) is the electric dipole moment and \(\theta\) is the angle between the dipole moment and the electric field.

The electric dipole moment \(p\) is defined as the product of the magnitude of one of the charges (\(q\)) and the distance between the charges (dipole length, \(d\)): \[ p = q \times d \]
Combining these, we get: \[ \tau = (q \times d) E\sin\theta \]

Step 3: Detailed Explanation:

We are given:
Angle, \(\theta = 30^\circ\).

Electric field, \(E = 2 \times 10^5 N C^{-1}\).

Torque, \(\tau = 4 Nm\).

Dipole length, \(d = 2 cm = 2 \times 10^{-2} m\).

We need to find the charge \(q\). Rearranging the formula: \[ q = \frac{\tau}{d \cdot E \cdot \sin\theta} \]
Substitute the given values into the equation: \[ q = \frac{4}{(2 \times 10^{-2}) \times (2 \times 10^5) \times \sin(30^\circ)} \]
We know that \(\sin(30^\circ) = 0.5 = \frac{1}{2}\). \[ q = \frac{4}{(2 \times 10^{-2}) \times (2 \times 10^5) \times 0.5} \] \[ q = \frac{4}{(4 \times 10^{3}) \times 0.5} \] \[ q = \frac{4}{2 \times 10^{3}} = 2 \times 10^{-3} C \]
Since \(1 mC = 10^{-3} C\), the charge is 2 mC.


Step 4: Final Answer:

The magnitude of the charge on the dipole is 2 mC.
Quick Tip: Always ensure that all quantities are in their base SI units before performing calculations. In this case, the dipole length was given in cm and needed to be converted to meters. This is a common source of error in physics problems.

Step 1: Understanding the Question:

The question asks for the equivalent capacitance between points A and B for the given circuit diagram. All capacitors have a capacitance of 3 µF.


Step 2: Key Formula or Approach:

For capacitors in series, the equivalent capacitance \(C_{ser}\) is given by: \[ \frac{1}{C_{ser}} = \frac{1}{C_1} + \frac{1}{C_2} + \dots \]
For capacitors in parallel, the equivalent capacitance \(C_{par}\) is given by: \[ C_{par} = C_1 + C_2 + \dots \]

Step 3: Detailed Explanation:

Let's analyze the circuit diagram. The circuit can be simplified by identifying series and parallel combinations.

The top 3 µF capacitor and the bottom 3 µF capacitor in the H-shaped structure are connected to the same two points. Let's call the junction after the first capacitor 'X' and the terminal 'B'. The top capacitor is between X and B. The bottom capacitor is also between X and B. The diagram shows them joining at point B. This means they are in parallel.
The middle vertical 3 µF capacitor is connected between the top and bottom wires. Since both these wires connect to point B, this capacitor is short-circuited (the potential difference across it is zero) and can be ignored.

So, let's simplify the parallel part first. The equivalent capacitance of the top and bottom 3 µF capacitors in parallel is: \[ C_{par} = 3 µF + 3 µF = 6 µF \]
Now, this parallel combination (\(C_{par} = 6 µF\)) is in series with the leftmost 3 µF capacitor.
Let's find the total equivalent capacitance (\(C_{eq}\)) between A and B: \[ \frac{1}{C_{eq}} = \frac{1}{3 µF} + \frac{1}{C_{par}} \] \[ \frac{1}{C_{eq}} = \frac{1}{3} + \frac{1}{6} \]
To add these fractions, we find a common denominator, which is 6. \[ \frac{1}{C_{eq}} = \frac{2}{6} + \frac{1}{6} = \frac{3}{6} = \frac{1}{2} \]
Therefore, the equivalent capacitance is: \[ C_{eq} = 2 µF \]

Step 4: Final Answer:

The equivalent capacitance of the system is 2 µF.
Quick Tip: When a circuit diagram looks complex, try to redraw it by labeling the nodes (junctions). This helps in clearly identifying which components are in series and which are in parallel. Also, look for short-circuited components, like the middle capacitor in this problem.

Step 1: Understanding the Question:

The question relates the shortest wavelength of the Balmer series to the shortest wavelength of the Bracket series in the hydrogen spectrum.


Step 2: Key Formula or Approach:

The Rydberg formula for the wavelength (\(\lambda\)) of spectral lines in the hydrogen atom is: \[ \frac{1}{\lambda} = R \left( \frac{1}{n_f^2} - \frac{1}{n_i^2} \right) \]
where R is the Rydberg constant, \(n_f\) is the principal quantum number of the final state, and \(n_i\) is the principal quantum number of the initial state.

The shortest wavelength (series limit) in any series occurs when the electron transitions from an initial state of \(n_i = \infty\). The formula simplifies to: \[ \frac{1}{\lambda_{min}} = \frac{R}{n_f^2} \]

Step 3: Detailed Explanation:

For the Balmer series, the final state is \(n_f = 2\). The shortest wavelength is given as \(\lambda\).
Using the simplified formula for the series limit: \[ \frac{1}{\lambda} = \frac{R}{2^2} = \frac{R}{4} \quad (Equation 1) \]
For the Bracket series, the final state is \(n_f = 4\). Let its shortest wavelength be \(\lambda_{Bracket}\).
Using the formula again: \[ \frac{1}{\lambda_{Bracket}} = \frac{R}{4^2} = \frac{R}{16} \quad (Equation 2) \]
To find \(\lambda_{Bracket}\) in terms of \(\lambda\), we can divide Equation 1 by Equation 2: \[ \frac{1/\lambda}{1/\lambda_{Bracket}} = \frac{R/4}{R/16} \] \[ \frac{\lambda_{Bracket}}{\lambda} = \frac{16}{4} = 4 \] \[ \lambda_{Bracket} = 4\lambda \]

Step 4: Final Answer:

The shortest wavelength in the Bracket series is \(4\lambda\).
Quick Tip: Remember the final states for the main spectral series of hydrogen: Lyman (\(n_f=1\)), Balmer (\(n_f=2\)), Paschen (\(n_f=3\)), Brackett (\(n_f=4\)), and Pfund (\(n_f=5\)). The shortest wavelength corresponds to the highest energy transition (\(n_i = \infty\)), and the longest wavelength corresponds to the lowest energy transition (\(n_i = n_f + 1\)).

Step 1: Understanding the Question:

The question provides the resistance value and tolerance of a carbon resistor and asks for the color of the third band based on the standard resistor color code.


Step 2: Key Formula or Approach:

The resistance of a four-band carbon resistor is given by the formula \(R = (AB) \times 10^{C} \pm D%\), where:

A is the first significant digit (first band color).
B is the second significant digit (second band color).
C is the multiplier (third band color).
D is the tolerance (fourth band color).

The color codes for digits 0-9 are: Black (0), Brown (1), Red (2), Orange (3), Yellow (4), Green (5), Blue (6), Violet (7), Grey (8), White (9).


Step 3: Detailed Explanation:

The given resistance is \(22000 \, \Omega\). We can write this in scientific notation to match the color code format: \[ R = 22 \times 10^3 \, \Omega \]
Let's decode this value:

First significant digit (A) is 2. The color for 2 is Red.
Second significant digit (B) is 2. The color for 2 is Red.
The multiplier is \(10^3\). The exponent is C = 3. The color for 3 is Orange.
The tolerance is given as \(\pm 5%\). The color for \(\pm 5%\) tolerance is Gold.

The question specifically asks for the color of the third band, which represents the multiplier. The multiplier is \(10^3\), which corresponds to the color Orange.


Step 4: Final Answer:

The colour of the third band must be Orange.
Quick Tip: A useful mnemonic to remember the resistor color code is: "BB ROY of Great Britain has a Very Good Wife". (Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Grey, White). Remember that the third band represents the number of zeros to add after the first two digits.

Step 1: Understanding the Question:

We have two masses, m and 9m, separated by a distance R. We first need to find the point on the line joining them where the net gravitational field is zero. Then, we need to calculate the net gravitational potential at that specific point.


Step 2: Key Formula or Approach:

Gravitational field due to a point mass M at a distance r is \(E = \frac{GM}{r^2}\).

Gravitational potential due to a point mass M at a distance r is \(V = -\frac{GM}{r}\).

The net field is the vector sum of individual fields. The net potential is the scalar sum of individual potentials.


Step 3: Detailed Explanation:

Part 1: Find the point of zero gravitational field.

Let the mass \(m\) be at the origin (x=0) and the mass \(9m\) be at x=R. The point of zero field must lie between the two masses. Let this point be at a distance \(r\) from mass \(m\). Its distance from mass \(9m\) will be \((R-r)\).
At this point, the magnitudes of the gravitational fields due to both masses are equal: \[ E_m = E_{9m} \] \[ \frac{Gm}{r^2} = \frac{G(9m)}{(R-r)^2} \]
Canceling G and m from both sides: \[ \frac{1}{r^2} = \frac{9}{(R-r)^2} \]
Taking the square root of both sides: \[ \frac{1}{r} = \frac{3}{R-r} \] \[ R - r = 3r \implies R = 4r \implies r = \frac{R}{4} \]
So, the point is at a distance \(r = R/4\) from mass m and \((R - R/4) = 3R/4\) from mass 9m.


Part 2: Calculate the gravitational potential at this point.

The total potential \(V_{total}\) is the sum of the potentials due to each mass at that point. \[ V_{total} = V_m + V_{9m} \] \[ V_{total} = \left(-\frac{Gm}{r}\right) + \left(-\frac{G(9m)}{R-r}\right) \]
Substitute the values of \(r\) and \((R-r)\) we found: \[ V_{total} = \left(-\frac{Gm}{R/4}\right) + \left(-\frac{9Gm}{3R/4}\right) \] \[ V_{total} = -\frac{4Gm}{R} - \frac{36Gm}{3R} \] \[ V_{total} = -\frac{4Gm}{R} - \frac{12Gm}{R} \] \[ V_{total} = -\frac{(4+12)Gm}{R} = -\frac{16Gm}{R} \]

Step 4: Final Answer:

The gravitational potential at the point where the gravitational field is zero is \(-\frac{16Gm}{R}\).
Quick Tip: Remember the distinction between gravitational field (a vector) and potential (a scalar). When finding the zero-field point, you equate magnitudes. When calculating total potential, you add the scalar values (which are always negative for attractive forces).

Step 1: Understanding the Question:

The problem describes a circuit and states that the galvanometer shows no deflection. This is the key condition. No deflection means there is no current flowing through the galvanometer. We need to find the value of the unknown resistance R based on this condition.


Step 2: Key Formula or Approach:

We will use Ohm's Law (\(V=IR\)) and Kirchhoff's laws. The condition \(I_G = 0\) (current through galvanometer is zero) is crucial. It implies that the potential difference across the branch containing the galvanometer is equal to the EMF in that branch.


Step 3: Detailed Explanation:

Let's denote the junction point between the 400 \(\Omega\) resistor, resistor R, and the galvanometer branch as P. Let the potential of the negative terminal of the 10V battery be the reference potential, 0 V. Consequently, the potential at the positive terminal is 10 V.

Condition for no deflection in G:
If there is no current flowing through the galvanometer (\(I_G = 0\)), then the potential difference across the terminals of the branch containing G and the 2V battery must be balanced by the EMF of the 2V battery.
The potential at the bottom wire is 0 V. The 2V battery has its positive terminal connected to point P. For \(I_G = 0\), the potential at point P must be equal to the potential provided by the 2V source relative to the 0V line.
Therefore, the potential at point P is \(V_P = 2 V\).

Current through the 400 \(\Omega\) resistor:
The potential difference across the 400 \(\Omega\) resistor is the difference between the potential at the positive terminal of the 10V battery and the potential at point P. \[ \Delta V_{400\Omega} = 10 V - V_P = 10 V - 2 V = 8 V \]
The current flowing through the 400 \(\Omega\) resistor (\(I_{total}\)) can be found using Ohm's law: \[ I_{total} = \frac{\Delta V_{400\Omega}}{400 \, \Omega} = \frac{8 V}{400 \, \Omega} = \frac{1}{50} A \]

Current through resistor R:
At junction P, the total current \(I_{total}\) splits into the current through R (\(I_R\)) and the current through the galvanometer (\(I_G\)).
According to Kirchhoff's current law: \(I_{total} = I_R + I_G\).
Since \(I_G = 0\), all the current flows through R: \(I_R = I_{total} = \frac{1}{50} A\).

Finding the value of R:
The potential difference across resistor R is \(V_P - 0 V = 2 V\).
Using Ohm's law for resistor R: \[ V_P = I_R \times R \] \[ 2 V = \left(\frac{1}{50} A\right) \times R \] \[ R = 2 \times 50 = 100 \, \Omega \]

Step 4: Final Answer:

The value of R is 100 \(\Omega\).
Quick Tip: The condition "galvanometer shows no deflection" is a very common setup in problems involving Wheatstone bridges or potentiometers. It always means that the current through the galvanometer is zero, which in turn implies that the potential at the two points connected by the galvanometer branch is equal (if there's no battery in the branch) or differs by the EMF of the battery in that branch.

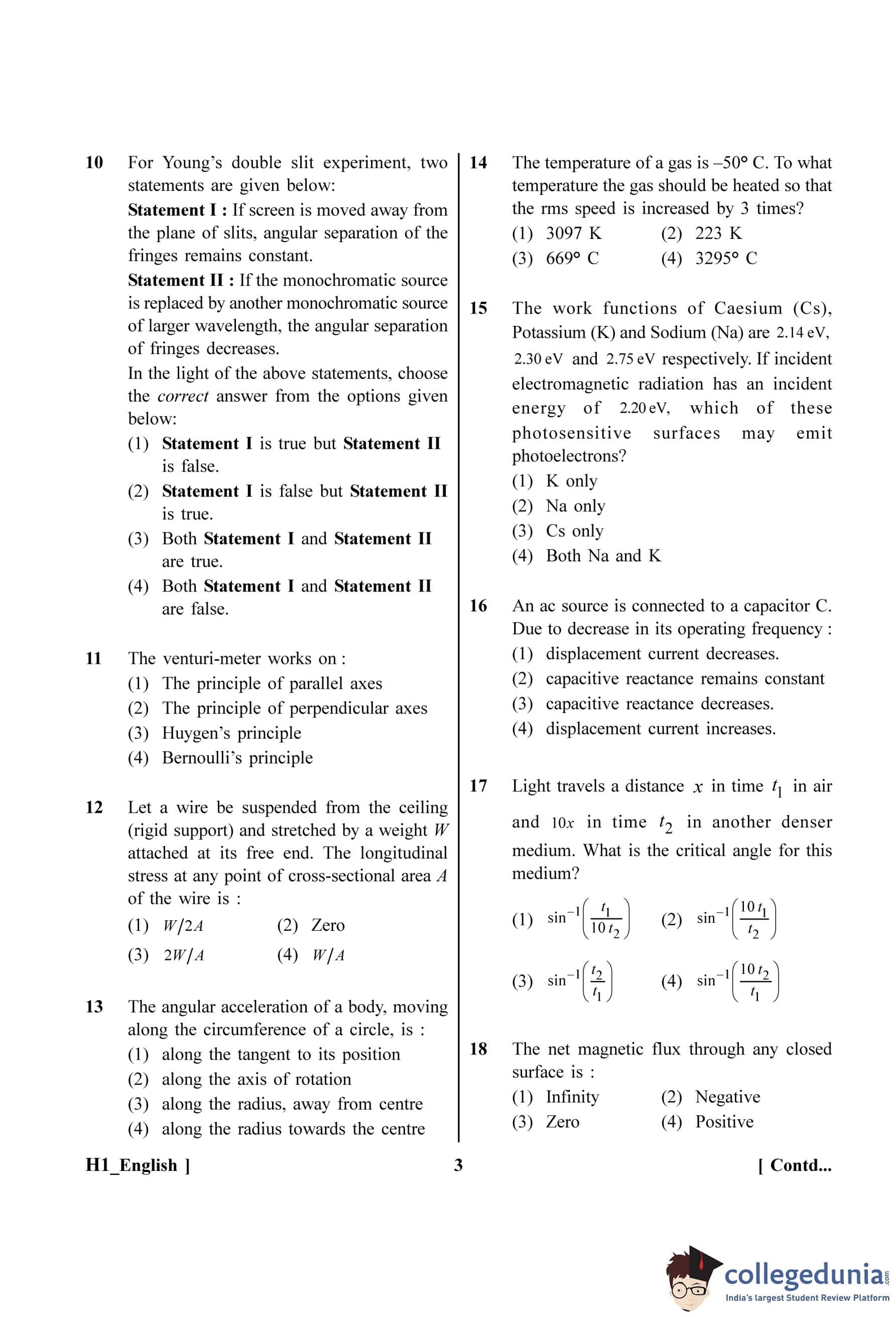

Step 1: Understanding the Question:

The question asks us to evaluate two statements related to the angular separation of fringes in a Young's double-slit experiment (YDSE).


Step 2: Key Formula or Approach:

The angular separation (\(\theta\)) between adjacent bright or dark fringes in YDSE is given by: \[ \theta \approx \frac{\lambda}{d} \]
where \(\lambda\) is the wavelength of the light used, and \(d\) is the distance between the two slits.

The linear fringe width (\(\beta\)) is given by \(\beta = \frac{\lambda D}{d}\), where \(D\) is the distance between the slits and the screen. The angular separation can also be expressed as \(\theta = \frac{\beta}{D}\).


Step 3: Detailed Explanation:

Analysis of Statement I:
The formula for angular separation is \(\theta = \frac{\lambda}{d}\).

This formula shows that the angular separation depends only on the wavelength (\(\lambda\)) and the slit separation (\(d\)).

It does not depend on the distance \(D\) of the screen from the slits.

Therefore, if the screen is moved away from the plane of the slits (i.e., \(D\) is changed), the angular separation \(\theta\) remains constant.

Thus, Statement I is true.


Analysis of Statement II:
The formula for angular separation is \(\theta = \frac{\lambda}{d}\).

This shows that angular separation \(\theta\) is directly proportional to the wavelength \(\lambda\).

If the monochromatic source is replaced by another source of larger wavelength (\(\lambda\) increases), the angular separation \(\theta\) will increase.

The statement says that the angular separation decreases, which is incorrect.

Thus, Statement II is false.


Step 4: Final Answer:

Based on the analysis, Statement I is true and Statement II is false.
Quick Tip: Distinguish carefully between angular separation (\(\theta\)) and linear fringe width (\(\beta\)). Angular separation (\(\theta = \lambda/d\)) is independent of the screen distance \(D\), while the linear width (\(\beta = \lambda D/d\)) is directly proportional to \(D\). This is a common point of confusion.

Step 1: Understanding the Question:

The question asks for the underlying physical principle behind the operation of a venturi-meter.


Step 3: Detailed Explanation:

A venturi-meter is a device used to measure the rate of flow of a fluid in a pipe. It consists of a tube with a constricted section called the throat.

As the fluid flows from the wider section to the narrower throat, its speed increases due to the principle of continuity (\(A_1v_1 = A_2v_2\)).

According to Bernoulli's principle, for a horizontal pipe, where the pressure is higher, the speed is lower, and vice versa. The principle states that the sum of pressure energy, kinetic energy, and potential energy per unit volume is constant for an ideal fluid in streamline flow. \[ P + \frac{1}{2}\rho v^2 + \rho gh = constant \]
In the venturi-meter, the increase in speed at the throat leads to a decrease in pressure. This pressure difference between the wider section and the throat is measured and used to calculate the flow rate of the fluid.

Therefore, the operation of a venturi-meter is a direct application of Bernoulli's principle.


Step 4: Final Answer:

The venturi-meter works on Bernoulli's principle.
Quick Tip: Remember the applications of Bernoulli's principle: atomizers/sprayers, lift on an airfoil (wing of an airplane), and the venturi-meter. Associating devices with their principles helps in quick recall during exams.

Step 1: Understanding the Question:

The question asks for the definition of longitudinal stress in a wire that is being stretched by a weight.


Step 2: Key Formula or Approach:

Stress is defined as the internal restoring force per unit area of a body. \[ Stress = \frac{Force}{Area} \]
Longitudinal stress occurs when the force is applied perpendicular to the cross-sectional area, causing a change in length.


Step 3: Detailed Explanation:

The wire is stretched by a weight \(W\) attached to its free end. This weight acts as the external deforming force.

In equilibrium, the internal restoring force developed within the wire is equal in magnitude to the applied deforming force.

So, the force (\(F\)) acting on any cross-section of the wire is equal to the weight \(W\).

The cross-sectional area of the wire is given as \(A\).

Using the formula for stress: \[ Longitudinal Stress = \frac{Force}{Area} = \frac{W}{A} \]
This stress is uniform at any point of the cross-sectional area, assuming the wire's own weight is negligible compared to \(W\).


Step 4: Final Answer:

The longitudinal stress at any point of the cross-sectional area A is W/A.
Quick Tip: Stress is always Force/Area. The type of stress (longitudinal, shear, volume) depends on how the force is applied relative to the area. In this case, the force is pulling along the length, so it's longitudinal stress.

Step 1: Understanding the Question:

The question asks for the direction of the angular acceleration vector for a body in circular motion.


Step 3: Detailed Explanation:

In rotational motion, angular quantities like angular displacement (\(\Delta \theta\)), angular velocity (\(\omega\)), and angular acceleration (\(\alpha\)) are axial vectors.

Their direction is defined to be along the axis of rotation.

The specific direction (e.g., up or down along the axis) is determined by the right-hand rule. If you curl the fingers of your right hand in the direction of rotation, your thumb points in the direction of the angular velocity vector.

Angular acceleration (\(\alpha = \frac{d\omega}{dt}\)) is the rate of change of angular velocity. If the body is speeding up, \(\alpha\) is in the same direction as \(\omega\). If it is slowing down, \(\alpha\) is in the opposite direction to \(\omega\).

In either case, the angular acceleration vector lies along the axis of rotation.

The other options describe linear quantities:
(A) Tangential acceleration is along the tangent.
(C) & (D) Centripetal (or radial) acceleration is along the radius, towards the center.


Step 4: Final Answer:

The angular acceleration is directed along the axis of rotation.
Quick Tip: Remember the distinction between linear and angular vectors in circular motion. Linear vectors (position, velocity, acceleration) lie in the plane of motion. Angular vectors (angular velocity, angular acceleration, torque) are axial vectors, perpendicular to the plane of motion, i.e., along the axis of rotation.

Step 1: Understanding the Question:

We are given an initial temperature and asked to find the final temperature at which the root-mean-square (rms) speed of gas molecules is "increased by 3 times" its initial value.


Step 2: Key Formula or Approach:

The rms speed (\(v_{rms}\)) of a gas is related to its absolute temperature (T) by the formula: \[ v_{rms} = \sqrt{\frac{3RT}{M}} \]
where R is the ideal gas constant and M is the molar mass. From this, we can see that \(v_{rms} \propto \sqrt{T}\).

Therefore, \(\frac{v_2}{v_1} = \sqrt{\frac{T_2}{T_1}}\), where T must be in Kelvin.


Step 3: Detailed Explanation:

First, convert the initial temperature to Kelvin: \[ T_1 = -50^\circ C + 273.15 \approx 223 K \]
The phrase "increased by 3 times" means the final speed \(v_2\) is the initial speed \(v_1\) plus three times the initial speed. \[ v_2 = v_1 + 3v_1 = 4v_1 \]
So, the ratio of the speeds is \(\frac{v_2}{v_1} = 4\).

Now, use the relationship between speed and temperature: \[ \frac{v_2}{v_1} = \sqrt{\frac{T_2}{T_1}} \] \[ 4 = \sqrt{\frac{T_2}{223}} \]
Square both sides to solve for \(T_2\): \[ 16 = \frac{T_2}{223} \] \[ T_2 = 16 \times 223 = 3568 K \]
The question asks for the temperature, and one option is in Celsius. Let's convert \(T_2\) back to Celsius: \[ T_2 (in ^\circC) = 3568 - 273 = 3295^\circ C \]
This matches option (D).


Step 4: Final Answer:

The gas should be heated to a temperature of 3295° C.
Quick Tip: Always convert temperatures to Kelvin for gas law calculations. Also, pay very close attention to wording like "increased by a factor of X" (means final = (X+1) * initial) versus "increased to a factor of X" (means final = X * initial). Here "increased by 3 times" means the final value is 4 times the initial value.

Step 1: Understanding the Question:

The question is about the photoelectric effect. We need to determine which of the given metals will show photoemission when illuminated with light of a specific energy.


Step 2: Key Formula or Approach:

The condition for the photoelectric effect to occur is that the energy of the incident photon (\(E\)) must be greater than or equal to the work function (\(\phi\)) of the material. \[ E \geq \phi \]
If \(E > \phi\), photoelectrons are emitted with a maximum kinetic energy of \(K_{max} = E - \phi\). If \(E < \phi\), no photoelectrons are emitted.


Step 3: Detailed Explanation:

We are given:

Incident photon energy, \(E = 2.20 eV\).
Work function of Caesium, \(\phi_{Cs} = 2.14 eV\).
Work function of Potassium, \(\phi_{K} = 2.30 eV\).
Work function of Sodium, \(\phi_{Na} = 2.75 eV\).

Let's check the condition \(E > \phi\) for each metal:

For Caesium (Cs): Is \(2.20 eV > 2.14 eV\)? Yes. Photoemission will occur.
For Potassium (K): Is \(2.20 eV > 2.30 eV\)? No. Photoemission will not occur.
For Sodium (Na): Is \(2.20 eV > 2.75 eV\)? No. Photoemission will not occur.

Only Caesium satisfies the condition for photoemission.


Step 4: Final Answer:

Only the Caesium (Cs) surface will emit photoelectrons.
Quick Tip: The work function is the minimum energy required to eject an electron. Think of it as an "energy price" to be paid. If the incident photon's energy is less than this price, no electron can be "bought" or ejected.

Step 1: Understanding the Question:

The question asks what happens in a simple AC circuit with a capacitor when the frequency of the AC source is decreased.


Step 2: Key Formula or Approach:

1. The capacitive reactance (\(X_C\)) is given by \(X_C = \frac{1}{\omega C} = \frac{1}{2\pi f C}\), where \(f\) is the operating frequency.

2. The current (\(I\)) in the circuit is given by Ohm's law for AC circuits: \(I = \frac{V}{X_C}\), where \(V\) is the rms voltage of the source.

3. For a capacitor, the displacement current (\(I_D\)) between the plates is equal to the conduction current (\(I\)) in the wires connecting to it. So, \(I_D = I\).


Step 3: Detailed Explanation:

We are given that the operating frequency \(f\) decreases. Let's analyze the effect on other quantities:


Capacitive Reactance (\(X_C\)): Since \(X_C = \frac{1}{2\pi f C}\), reactance is inversely proportional to frequency (\(X_C \propto 1/f\)). If \(f\) decreases, \(X_C\) will increase. Therefore, options (B) and (C) are incorrect.
Current (\(I\)): The current is \(I = \frac{V}{X_C} = V(2\pi f C)\). The current is directly proportional to the frequency (\(I \propto f\)). If \(f\) decreases, the current \(I\) will decrease.
Displacement Current (\(I_D\)): Since \(I_D = I\), if the conduction current \(I\) decreases, the displacement current \(I_D\) will also decrease. Therefore, option (A) is correct and option (D) is incorrect.


Step 4: Final Answer:

Due to a decrease in operating frequency, the displacement current decreases.
Quick Tip: Remember the frequency dependence of reactance for capacitors and inductors. Capacitor: \(X_C \propto 1/f\) (high-pass filter behavior). Inductor: \(X_L \propto f\) (low-pass filter behavior). This helps in quickly determining how current changes with frequency.

Step 1: Understanding the Question:

We are given information about the speed of light in air and in a denser medium. We need to find the critical angle for the interface between this medium and air.


Step 2: Key Formula or Approach:

1. Speed of light, \(v = \frac{distance}{time}\).

2. Refractive index of a medium, \(n = \frac{speed of light in air (c)}{speed of light in medium (v)}\).

3. The critical angle (\(\theta_c\)) for light going from a denser medium (refractive index \(n\)) to a rarer medium (air, refractive index \(n_{air} \approx 1\)) is given by Snell's law:
\[ \sin(\theta_c) = \frac{n_{air}}{n} = \frac{1}{n} \]

Step 3: Detailed Explanation:

First, let's calculate the speed of light in air and in the medium.
Speed in air, \(c = \frac{x}{t_1}\).

Speed in the denser medium, \(v = \frac{10x}{t_2}\).

Next, calculate the refractive index (\(n\)) of the denser medium: \[ n = \frac{c}{v} = \frac{x/t_1}{10x/t_2} \] \[ n = \frac{x}{t_1} \times \frac{t_2}{10x} = \frac{t_2}{10t_1} \]
Now, we can find the critical angle using the formula \(\sin(\theta_c) = 1/n\). \[ \sin(\theta_c) = \frac{1}{\frac{t_2}{10t_1}} = \frac{10t_1}{t_2} \]
Therefore, the critical angle \(\theta_c\) is: \[ \theta_c = \sin^{-1}\left(\frac{10t_1}{t_2}\right) \]

Step 4: Final Answer:

The critical angle for this medium is \(\sin^{-1}\left(\frac{10t_1}{t_2}\right)\).
Quick Tip: The critical angle formula \(\sin(\theta_c) = n_{rarer}/n_{denser}\) is fundamental. The rest of the problem is just about finding the refractive index from the given information about speed. Remember that \(n = c/v\), so \(n\) is inversely proportional to the speed of light in the medium.

Step 1: Understanding the Question:

The question asks for the value of the net magnetic flux passing through any arbitrary closed surface.


Step 2: Key Formula or Approach:

This question relates to one of Maxwell's equations, specifically Gauss's law for magnetism. The law is mathematically stated as: \[ \Phi_B = \oint \vec{B} \cdot d\vec{A} = 0 \]
where \(\Phi_B\) is the magnetic flux, \(\vec{B}\) is the magnetic field, and the integral is taken over a closed surface \(A\).


Step 3: Detailed Explanation:

Gauss's law for magnetism states that the net magnetic flux through any closed surface is always zero.

The physical reason for this law is the experimental observation that magnetic monopoles (isolated north or south poles) do not exist.

Magnetic field lines are always continuous closed loops; they do not start or end at any point.

Consequently, for any closed surface, the number of magnetic field lines entering the surface is always equal to the number of magnetic field lines leaving the surface.

This results in a net magnetic flux of zero.


Step 4: Final Answer:

The net magnetic flux through any closed surface is zero.
Quick Tip: Contrast this with Gauss's law for electricity: \(\oint \vec{E} \cdot d\vec{A} = Q_{enc}/\epsilon_0\). The electric flux is non-zero if there is a net charge inside, because electric charges (monopoles) exist. The magnetic flux is always zero because magnetic monopoles do not. This is a key difference between electricity and magnetism.

Step 1: Understanding the Question:

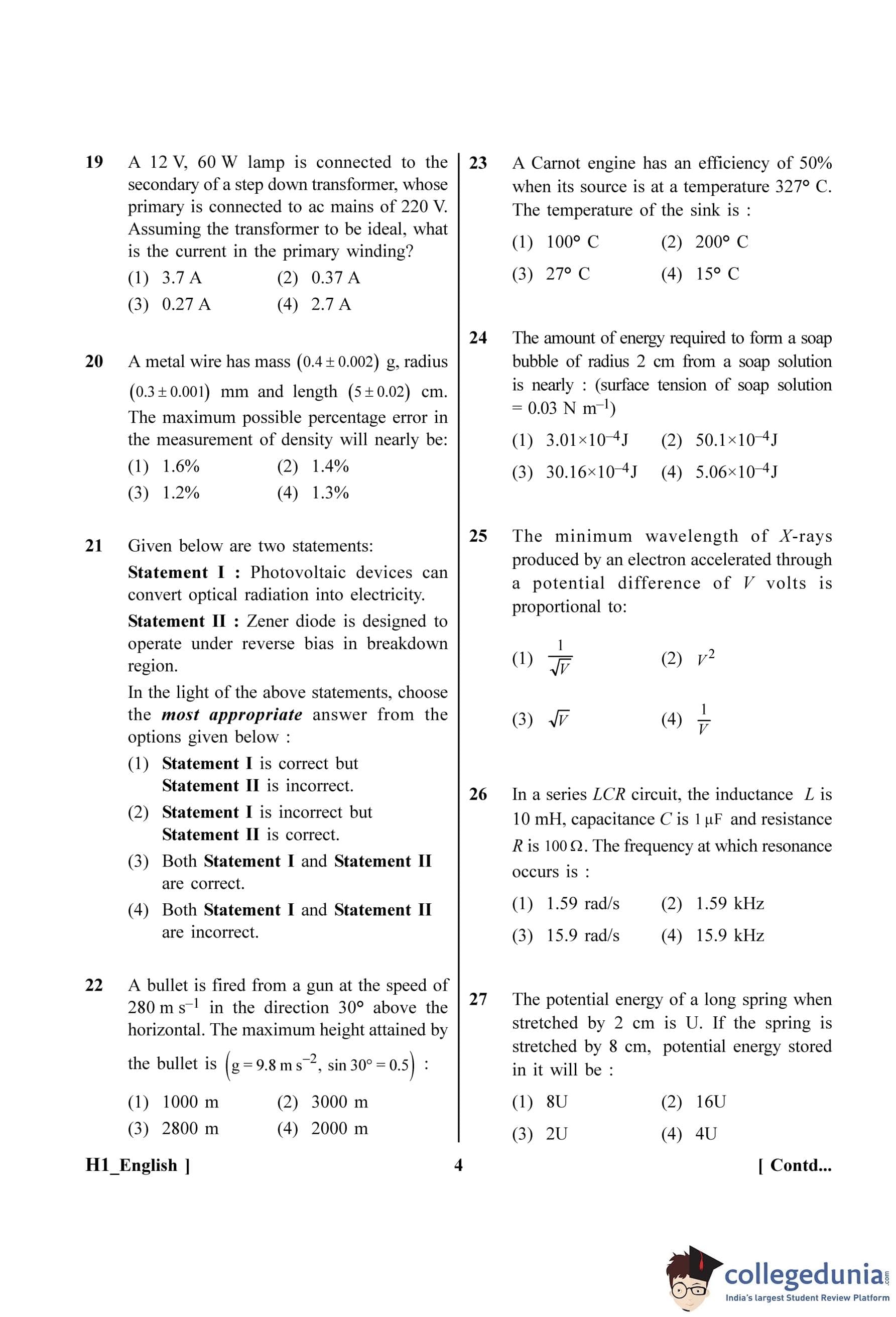

We are given the specifications of a lamp connected to the secondary coil of an ideal transformer and the voltage of the primary coil. We need to find the current in the primary coil.


Step 2: Key Formula or Approach:

For an ideal transformer, there is no power loss. Therefore, the power input to the primary coil is equal to the power output from the secondary coil. \[ P_{primary} = P_{secondary} \]
Also, power is given by \(P = V \times I\).
So, \(V_p I_p = V_s I_s\).


Step 3: Detailed Explanation:

We are given the following information:

Secondary coil output (for the lamp): \(V_s = 12 V\), \(P_s = 60 W\).
Primary coil input voltage: \(V_p = 220 V\).

Since the transformer is ideal, the power in the primary is equal to the power in the secondary. \[ P_p = P_s = 60 W \]
Now, we can find the primary current (\(I_p\)) using the power formula for the primary coil: \[ P_p = V_p \times I_p \] \[ 60 W = 220 V \times I_p \]
Solving for \(I_p\): \[ I_p = \frac{60}{220} A = \frac{6}{22} A = \frac{3}{11} A \] \[ I_p \approx 0.2727... A \]
Rounding to two decimal places, we get \(I_p = 0.27 A\).


Step 4: Final Answer:

The current in the primary winding is 0.27 A.
Quick Tip: For an ideal transformer, the quickest way to solve such problems is to use the power conservation principle: \(P_{in} = P_{out}\). You are directly given \(P_{out}\) (the lamp's power) and \(V_{in}\). The calculation is a simple one-step division.

Step 1: Understanding the Question:

We are given the measured values and absolute errors for the mass, radius, and length of a wire. We need to calculate the maximum percentage error in the calculated density.


Step 2: Key Formula or Approach:

1. The density (\(\rho\)) is given by mass (\(m\)) divided by volume (\(V\)): \(\rho = \frac{m}{V}\).

2. The wire is a cylinder, so its volume is \(V = \pi r^2 l\), where \(r\) is the radius and \(l\) is the length.

3. Substituting for volume, we get \(\rho = \frac{m}{\pi r^2 l}\).

4. For a quantity \(X = \frac{A^a B^b}{C^c}\), the maximum fractional error is given by \(\frac{\Delta X}{X} = a\frac{\Delta A}{A} + b\frac{\Delta B}{B} + c\frac{\Delta C}{C}\).

5. Applying this to density, the maximum fractional error is \(\frac{\Delta \rho}{\rho} = \frac{\Delta m}{m} + 2\frac{\Delta r}{r} + \frac{\Delta l}{l}\).

6. The percentage error is this fractional error multiplied by 100.


Step 3: Detailed Explanation:

First, calculate the fractional error for each measurement:

Mass (\(m\)): \(\frac{\Delta m}{m} = \frac{0.002}{0.4} = \frac{2}{400} = \frac{1}{200} = 0.005\)
Radius (\(r\)): \(\frac{\Delta r}{r} = \frac{0.001}{0.3} = \frac{1}{300} \approx 0.00333\)
Length (\(l\)): \(\frac{\Delta l}{l} = \frac{0.02}{5} = \frac{2}{500} = \frac{1}{250} = 0.004\)

Note that for fractional errors, the units of the measurement and its error must be the same, which they are in each case.
Now, use the formula for the fractional error in density: \[ \frac{\Delta \rho}{\rho} = \frac{\Delta m}{m} + 2\frac{\Delta r}{r} + \frac{\Delta l}{l} \] \[ \frac{\Delta \rho}{\rho} = 0.005 + 2\left(\frac{1}{300}\right) + 0.004 \] \[ \frac{\Delta \rho}{\rho} = 0.009 + \frac{2}{300} \approx 0.009 + 0.00667 = 0.01567 \]
To find the percentage error, multiply by 100: \[ % Error = 0.01567 \times 100% = 1.567% \]
This is approximately 1.6%.


Step 4: Final Answer:

The maximum possible percentage error in the measurement of density is nearly 1.6%.
Quick Tip: When calculating percentage error, remember to multiply the fractional error of each component by its power in the formula (e.g., radius is squared, so its error term is multiplied by 2). Errors are always added to find the maximum possible error.

Step 1: Understanding the Question:

The question asks to evaluate the correctness of two separate statements concerning semiconductor devices.


Step 3: Detailed Explanation:

Analysis of Statement I:
A photovoltaic device, commonly known as a solar cell or photodiode operating in photovoltaic mode, is designed to generate a voltage and current when exposed to light (optical radiation). This process is called the photovoltaic effect, which is the direct conversion of light energy into electrical energy. Therefore, the statement "Photovoltaic devices can convert optical radiation into electricity" is correct.


Analysis of Statement II:
A Zener diode is a special type of diode that is designed to have a sharp, well-defined reverse breakdown voltage (called the Zener voltage). Its primary application is as a voltage regulator, where it is intentionally operated in the reverse-biased breakdown region. In this region, it maintains a nearly constant voltage across its terminals despite large changes in the current flowing through it. Therefore, the statement "Zener diode is designed to operate under reverse bias in breakdown region" is also correct.


Step 4: Final Answer:

Both Statement I and Statement II are correct descriptions of their respective devices.
Quick Tip: Memorize the primary function and operating principle of common semiconductor devices: - \textbf{p-n junction diode:} Rectification (forward bias conduction). - \textbf{Zener diode:} Voltage regulation (reverse bias breakdown). - \textbf{Photodiode:} Light detection (reverse bias). - \textbf{LED:} Light emission (forward bias). - \textbf{Solar Cell (Photovoltaic device):} Light to electricity conversion (no bias).

Step 1: Understanding the Question:

This is a standard projectile motion problem. We are given the initial velocity and launch angle, and we need to calculate the maximum vertical height reached.


Step 2: Key Formula or Approach:

The formula for the maximum height (\(H\)) reached by a projectile launched with initial speed \(u\) at an angle \(\theta\) to the horizontal is: \[ H = \frac{u^2 \sin^2\theta}{2g} \]

Step 3: Detailed Explanation:

We are given the following values:

Initial speed, \(u = 280 m/s\).
Launch angle, \(\theta = 30^\circ\).
Acceleration due to gravity, \(g = 9.8 m/s^2\).
We are also given \(\sin 30^\circ = 0.5\).

Substitute these values into the maximum height formula: \[ H = \frac{(280)^2 (\sin 30^\circ)^2}{2 \times 9.8} \] \[ H = \frac{(280)^2 (0.5)^2}{19.6} \] \[ H = \frac{78400 \times 0.25}{19.6} \] \[ H = \frac{19600}{19.6} \] \[ H = 1000 m \]

Step 4: Final Answer:

The maximum height attained by the bullet is 1000 m.
Quick Tip: Remember the three key formulas for projectile motion: 1. Maximum Height: \(H = \frac{u^2 \sin^2\theta}{2g}\) 2. Time of Flight: \(T = \frac{2u \sin\theta}{g}\) 3. Horizontal Range: \(R = \frac{u^2 \sin(2\theta)}{g}\) Knowing these by heart will save you valuable time in exams.

Step 1: Understanding the Question:

We are given the efficiency of a Carnot engine and the temperature of its hot source. We need to find the temperature of its cold sink.


Step 2: Key Formula or Approach:

The efficiency (\(\eta\)) of a Carnot engine is given by the formula: \[ \eta = 1 - \frac{T_C}{T_H} \]
where \(T_C\) is the absolute temperature of the cold sink and \(T_H\) is the absolute temperature of the hot source. All temperatures must be in Kelvin.


Step 3: Detailed Explanation:

First, convert the given information to the required units.

Efficiency, \(\eta = 50% = 0.5\).
Source temperature, \(T_H = 327^\circ C\).

Convert the source temperature to Kelvin: \[ T_H = 327 + 273 = 600 K \]
Now, substitute the values into the efficiency formula: \[ 0.5 = 1 - \frac{T_C}{600} \]
Rearrange the equation to solve for \(T_C\): \[ \frac{T_C}{600} = 1 - 0.5 \] \[ \frac{T_C}{600} = 0.5 \] \[ T_C = 0.5 \times 600 = 300 K \]
The options are given in degrees Celsius, so convert the sink temperature back to Celsius: \[ T_C (in ^\circC) = 300 - 273 = 27^\circ C \]

Step 4: Final Answer:

The temperature of the sink is 27° C.
Quick Tip: The most common mistake in thermodynamics problems is forgetting to convert temperatures from Celsius to Kelvin. Always perform this conversion before using formulas like the Carnot efficiency or ideal gas law.

Step 1: Understanding the Question:

We need to calculate the work done (or surface energy stored) in creating a soap bubble of a given radius and surface tension.


Step 2: Key Formula or Approach:

The work done (\(W\)) or energy required to create a surface is given by the product of the surface tension (\(S\)) and the increase in the surface area (\(\Delta A\)). \[ W = S \times \Delta A \]
A soap bubble has two surfaces: an inner surface and an outer surface. Therefore, the total surface area of a bubble of radius \(r\) is \(A = 2 \times (4\pi r^2) = 8\pi r^2\).
Assuming we start from zero area, the increase in area is \(\Delta A = 8\pi r^2\).
So, \(W = S \times (8\pi r^2)\).


Step 3: Detailed Explanation:

First, convert the given radius to SI units (meters). \[ r = 2 cm = 0.02 m \]
We are given the surface tension: \[ S = 0.03 N m^{-1} \]
Now, calculate the work done: \[ W = S \times 8\pi r^2 \] \[ W = (0.03) \times 8 \times \pi \times (0.02)^2 \] \[ W = 0.24 \times \pi \times (0.0004) \] \[ W = 0.24 \times \pi \times 4 \times 10^{-4} \] \[ W = 0.96 \times \pi \times 10^{-4} \]
Using the approximation \(\pi \approx 3.14159\): \[ W \approx 0.96 \times 3.14159 \times 10^{-4} \] \[ W \approx 3.0159 \times 10^{-4} J \]
This value is very close to 3.01×10⁻⁴ J.


Step 4: Final Answer:

The energy required is nearly 3.01×10⁻⁴ J.
Quick Tip: A crucial point in problems involving soap bubbles is to remember that they have two surfaces (inner and outer). For a liquid drop, there is only one surface. So, for a soap bubble, the surface area is \(2 \times 4\pi r^2\), while for a drop it's just \(4\pi r^2\). This is a common trap.

Step 1: Understanding the Question:

The question asks for the relationship between the minimum wavelength (\(\lambda_{min}\)) of X-rays produced in an X-ray tube and the accelerating potential difference (\(V\)) applied to the electrons.


Step 2: Key Formula or Approach:

The production of X-rays involves the conversion of the kinetic energy of electrons into the energy of photons.
1. An electron accelerated through a potential difference \(V\) gains kinetic energy \(K.E. = eV\), where \(e\) is the charge of the electron.
2. The energy of an X-ray photon is given by \(E = hf = \frac{hc}{\lambda}\), where \(h\) is Planck's constant and \(c\) is the speed of light.
3. The minimum wavelength (or maximum frequency) occurs when the electron loses all its kinetic energy in a single collision to produce one photon. This is the principle of conservation of energy. \[ eV = \frac{hc}{\lambda_{min}} \]

Step 3: Detailed Explanation:

From the energy conservation equation derived above: \[ eV = \frac{hc}{\lambda_{min}} \]
We can rearrange this equation to solve for \(\lambda_{min}\): \[ \lambda_{min} = \frac{hc}{eV} \]
Here, \(h\), \(c\), and \(e\) are all fundamental constants. Therefore, the minimum wavelength \(\lambda_{min}\) is inversely proportional to the accelerating voltage \(V\). \[ \lambda_{min} \propto \frac{1}{V} \]

Step 4: Final Answer:

The minimum wavelength of X-rays is proportional to \(\frac{1}{V}\).
Quick Tip: This relationship, often written as \(\lambda_{min} (in Å) \approx \frac{12400}{V (in volts)}\), is a very useful shortcut for calculations involving the cutoff wavelength of X-rays. It directly shows the inverse proportionality.

Step 1: Understanding the Question:

We are given the values of L, C, and R for a series LCR circuit and asked to find the resonance frequency.


Step 2: Key Formula or Approach:

Resonance in a series LCR circuit occurs when the inductive reactance (\(X_L\)) equals the capacitive reactance (\(X_C\)). This happens at a specific resonance frequency.
The angular resonance frequency (\(\omega_0\)) is given by: \[ \omega_0 = \frac{1}{\sqrt{LC}} \]
The resonance frequency (\(f_0\)) is related to the angular frequency by \(\omega_0 = 2\pi f_0\), so: \[ f_0 = \frac{1}{2\pi\sqrt{LC}} \]
The resistance \(R\) does not affect the resonance frequency, but it does affect the sharpness (Q-factor) of the resonance.


Step 3: Detailed Explanation:

First, convert the given values of L and C to their base SI units.

Inductance, \(L = 10 mH = 10 \times 10^{-3} H = 10^{-2} H\).
Capacitance, \(C = 1 µF = 1 \times 10^{-6} F\).

Now, calculate the resonance frequency \(f_0\): \[ f_0 = \frac{1}{2\pi\sqrt{LC}} = \frac{1}{2\pi\sqrt{10^{-2} \times 10^{-6}}} \] \[ f_0 = \frac{1}{2\pi\sqrt{10^{-8}}} = \frac{1}{2\pi \times 10^{-4}} = \frac{10^4}{2\pi} Hz \] \[ f_0 \approx \frac{10000}{2 \times 3.14159} \approx \frac{10000}{6.283} \approx 1591.5 Hz \]
This is approximately 1.59 \(\times\) 10³ Hz, which is 1.59 kHz.


Step 4: Final Answer:

The frequency at which resonance occurs is 1.59 kHz.
Quick Tip: The options often include both angular frequency (rad/s) and frequency (Hz or kHz). Be careful to calculate the quantity the question asks for. If you calculate \(\omega_0 = 10^4\) rad/s, don't get confused. Convert it to Hz by dividing by \(2\pi\) to match the options.

Step 1: Understanding the Question:

The question relates the potential energy stored in a spring to its extension. We are given the energy for an initial extension and asked to find the new energy for a larger extension.


Step 2: Key Formula or Approach:

The elastic potential energy (\(E_p\)) stored in a spring is given by the formula: \[ E_p = \frac{1}{2}kx^2 \]
where \(k\) is the spring constant and \(x\) is the extension (or compression) from its equilibrium position.
From this formula, we can see that the potential energy is directly proportional to the square of the extension (\(E_p \propto x^2\)).


Step 3: Detailed Explanation:

Let the initial state be denoted by subscript 1 and the final state by subscript 2.
We are given:

Initial stretch, \(x_1 = 2 cm\).
Initial potential energy, \(E_{p1} = U\).
Final stretch, \(x_2 = 8 cm\).

We need to find the final potential energy, \(E_{p2}\).
Since \(E_p \propto x^2\), we can set up a ratio: \[ \frac{E_{p2}}{E_{p1}} = \frac{\frac{1}{2}kx_2^2}{\frac{1}{2}kx_1^2} = \left(\frac{x_2}{x_1}\right)^2 \]
Substitute the given values: \[ \frac{E_{p2}}{U} = \left(\frac{8 cm}{2 cm}\right)^2 \]
The units (cm) cancel out. \[ \frac{E_{p2}}{U} = (4)^2 = 16 \]
Solving for \(E_{p2}\): \[ E_{p2} = 16U \]

Step 4: Final Answer:

The potential energy stored in the spring when stretched by 8 cm will be 16U.
Quick Tip: For problems involving proportions, using ratios is often faster than calculating the constant (like 'k' here) and then recalculating the final value. The relation \(E_p \propto x^2\) directly gives the answer.

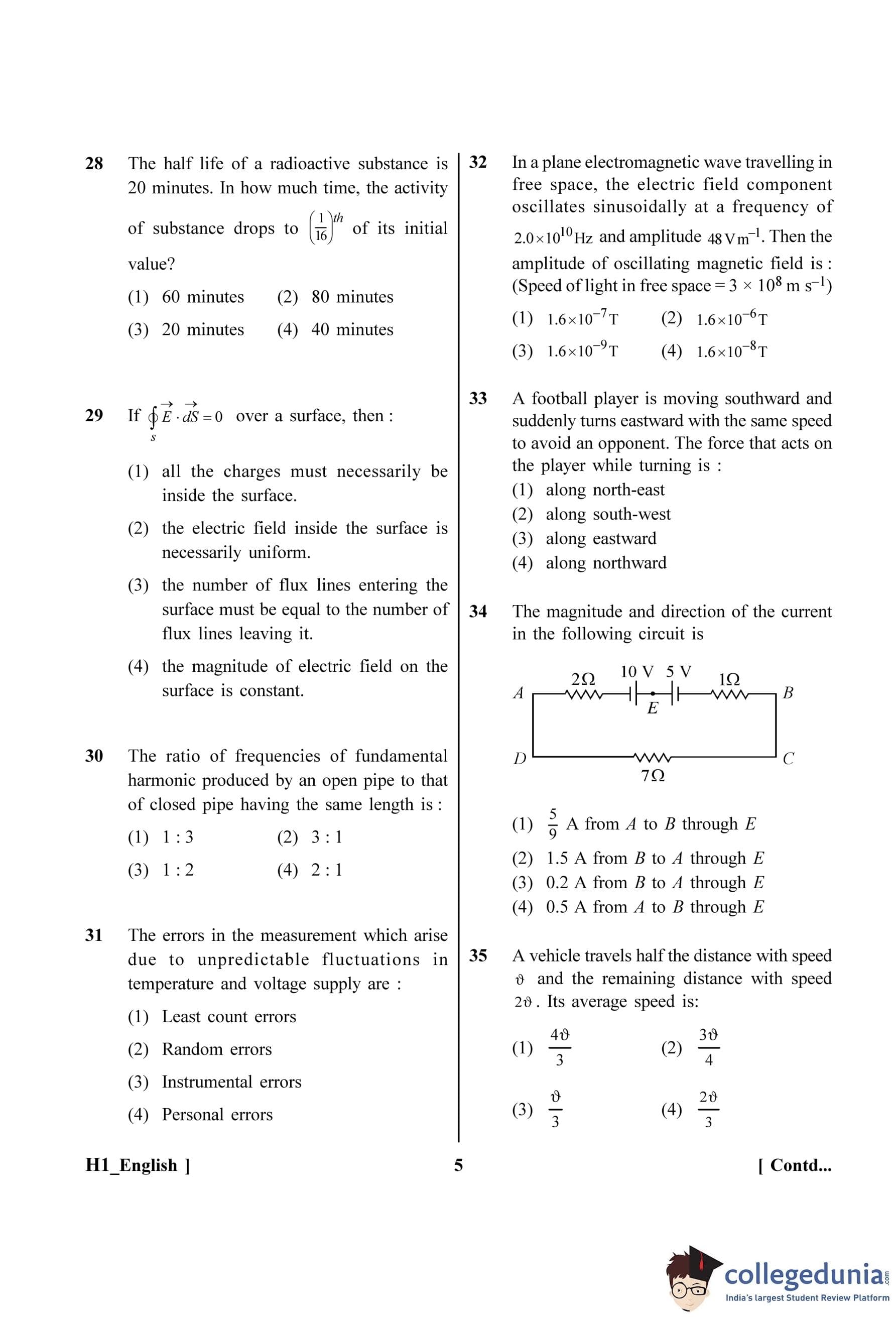

Step 1: Understanding the Question:

We are given the half-life of a radioactive substance and asked to find the total time it takes for its activity to reduce to a specific fraction (1/16) of its initial activity.


Step 2: Key Formula or Approach:

The activity \(A\) of a radioactive substance at time \(t\) is related to its initial activity \(A_0\) and the number of half-lives, \(n\), by the formula: \[ \frac{A}{A_0} = \left(\frac{1}{2}\right)^n \]
The total time \(t\) is the number of half-lives multiplied by the duration of one half-life (\(T_{1/2}\)): \[ t = n \times T_{1/2} \]

Step 3: Detailed Explanation:

We are given that the activity drops to \(\frac{1}{16}\) of its initial value, so \(\frac{A}{A_0} = \frac{1}{16}\).

Using the formula, we can find the number of half-lives, \(n\): \[ \frac{1}{16} = \left(\frac{1}{2}\right)^n \]
Since \(16 = 2^4\), we can write: \[ \left(\frac{1}{2}\right)^4 = \left(\frac{1}{2}\right)^n \]
By comparing the exponents, we find that \(n = 4\).

This means 4 half-lives have passed.

The half-life \(T_{1/2}\) is given as 20 minutes.

Now, calculate the total time \(t\): \[ t = n \times T_{1/2} = 4 \times 20 minutes = 80 minutes \]

Step 4: Final Answer:

The total time taken for the activity to drop to 1/16th of its initial value is 80 minutes.
Quick Tip: For fractions that are powers of 2 (like 1/2, 1/4, 1/8, 1/16, etc.), you can quickly determine the number of half-lives by finding the power of 2 in the denominator. For 1/16, it's \(2^4\), so it's 4 half-lives.

Step 1: Understanding the Question:

The question asks for the physical interpretation of the condition that the total electric flux through a closed surface is zero.


Step 2: Key Formula or Approach:

The expression \(\oint_S \vec{E} \cdot d\vec{S}\) represents the net electric flux (\(\Phi_E\)) through a closed surface S.

According to Gauss's Law in electrostatics, this net flux is related to the net charge enclosed (\(Q_{enc}\)) by the surface: \[ \Phi_E = \oint_S \vec{E} \cdot d\vec{S} = \frac{Q_{enc}}{\epsilon_0} \]

Step 3: Detailed Explanation:

Given the condition \(\oint_S \vec{E} \cdot d\vec{S} = 0\), we can deduce from Gauss's Law that the net charge enclosed by the surface is zero (\(Q_{enc} = 0\)).

Let's analyze the options based on this deduction:

(A) is incorrect. Charges can be inside the surface as long as their net sum is zero (e.g., an electric dipole inside). Also, charges can exist outside the surface.
(B) is incorrect. The electric field inside is not necessarily uniform. For example, with an electric dipole at the center, the field inside is non-uniform, but the net enclosed charge is zero.
(C) is a direct physical interpretation of zero net flux. Electric flux represents the number of electric field lines passing through a surface. If the net flux is zero, it means that for every field line that enters the closed surface, there is a corresponding field line that leaves it. Thus, the number of entering lines equals the number of leaving lines. This statement is always true when the net flux is zero.
(D) is incorrect. The magnitude of the electric field on the surface can vary from point to point. The integral being zero only implies a condition on the net value over the entire surface.


Step 4: Final Answer:

The condition of zero net electric flux implies that the number of flux lines entering the surface must be equal to the number of flux lines leaving it.
Quick Tip: Remember the visual meaning of flux. Inward flux is negative (lines entering), and outward flux is positive (lines leaving). Zero total flux means the positive and negative contributions cancel out perfectly, which is what option (C) describes.

Step 1: Understanding the Question:

The question asks for the ratio of the fundamental frequency of an organ pipe open at both ends to that of an organ pipe closed at one end, given that both pipes have the same length.


Step 2: Key Formula or Approach:

The fundamental frequency (\(f_1\)) corresponds to the longest wavelength (\(\lambda_1\)) that can form a standing wave in the pipe.

For an open pipe (open at both ends) of length L, the fundamental mode has an antinode at each end and a node in the middle. The wavelength is \(\lambda_1 = 2L\). The fundamental frequency is \(f_{open} = \frac{v}{\lambda_1} = \frac{v}{2L}\), where \(v\) is the speed of sound.
For a closed pipe (closed at one end, open at the other) of length L, the fundamental mode has a node at the closed end and an antinode at the open end. The wavelength is \(\lambda_1 = 4L\). The fundamental frequency is \(f_{closed} = \frac{v}{\lambda_1} = \frac{v}{4L}\).


Step 3: Detailed Explanation:

We need to find the ratio \(\frac{f_{open}}{f_{closed}}\).
Using the formulas from Step 2: \[ \frac{f_{open}}{f_{closed}} = \frac{\left(\frac{v}{2L}\right)}{\left(\frac{v}{4L}\right)} \] \[ \frac{f_{open}}{f_{closed}} = \frac{v}{2L} \times \frac{4L}{v} = \frac{4}{2} = 2 \]
So, the ratio of the frequencies is 2:1.


Step 4: Final Answer:

The required ratio of frequencies is 2:1.
Quick Tip: A simple way to remember this is that the fundamental frequency of an open pipe is double that of a closed pipe of the same length. Also, remember that open pipes produce all harmonics (\(f, 2f, 3f, ...\)), while closed pipes produce only odd harmonics (\(f, 3f, 5f, ...\)).

Step 1: Understanding the Question:

The question asks to classify the type of error that results from unpredictable changes in experimental conditions like temperature and voltage.


Step 3: Detailed Explanation:

Let's define the different types of errors:

Systematic Errors: These are errors that occur in one direction, either always positive or always negative. Instrumental errors (due to faulty calibration) and personal errors (due to a consistent bias of the observer) are types of systematic errors.
Random Errors: These errors are irregular and occur by chance. They are unpredictable and can be either positive or negative. Fluctuations in experimental conditions such as temperature, pressure, or voltage supply are classic examples of sources of random errors. They can be minimized by taking multiple readings and averaging them.
Least Count Errors: This is a type of random error associated with the resolution of the measuring instrument. It is the smallest value that can be measured by the instrument.

Since the fluctuations mentioned (temperature, voltage) are unpredictable, the errors they cause are random in nature.


Step 4: Final Answer:

Errors arising from unpredictable fluctuations are classified as random errors.
Quick Tip: A key feature of random errors is their unpredictability. If an error source is predictable and consistent (e.g., a clock that is always 5 minutes fast), it's a systematic error. If it's unpredictable (e.g., small air currents affecting a balance), it's a random error.

Step 1: Understanding the Question:

We are given the amplitude of the electric field component of an electromagnetic wave and need to find the amplitude of the magnetic field component. The frequency information is not needed for this calculation.


Step 2: Key Formula or Approach:

In an electromagnetic wave traveling in a vacuum (free space), the amplitudes of the electric field (\(E_0\)) and magnetic field (\(B_0\)) are related by the speed of light (\(c\)): \[ \frac{E_0}{B_0} = c \quad or \quad E_0 = c B_0 \]

Step 3: Detailed Explanation:

We are given:

Amplitude of the electric field, \(E_0 = 48 V/m\).
Speed of light, \(c = 3 \times 10^8 m/s\).

We need to find the amplitude of the magnetic field, \(B_0\). Rearranging the formula: \[ B_0 = \frac{E_0}{c} \]
Substitute the given values: \[ B_0 = \frac{48}{3 \times 10^8} \] \[ B_0 = 16 \times 10^{-8} T \]
To express this in standard scientific notation, we can write it as: \[ B_0 = 1.6 \times 10^1 \times 10^{-8} T = 1.6 \times 10^{-7} T \]

Step 4: Final Answer:

The amplitude of the oscillating magnetic field is 1.6×10⁻⁷ T.
Quick Tip: Remember the simple relation \(E = cB\) for electromagnetic waves in a vacuum. The electric field amplitude is much larger than the magnetic field amplitude because the speed of light \(c\) is a very large number.

Step 1: Understanding the Question:

The question asks for the direction of the net force acting on a player during a change in direction, which implies a change in velocity (acceleration).


Step 2: Key Formula or Approach:

According to Newton's second law, the net force \(\vec{F}\) on an object is proportional to its acceleration \(\vec{a}\) (\(\vec{F} = m\vec{a}\)). Therefore, the direction of the net force is the same as the direction of the acceleration.

Acceleration is the rate of change of velocity: \(\vec{a} = \frac{\Delta\vec{v}}{\Delta t} = \frac{\vec{v}_{final} - \vec{v}_{initial}}{\Delta t}\). The direction of \(\vec{a}\) is the direction of the change in velocity vector, \(\Delta\vec{v}\).


Step 3: Detailed Explanation:

Let's define a coordinate system: let the positive y-axis be North (\(+\hat{j}\)) and the positive x-axis be East (\(+\hat{i}\)).
Let the speed of the player be \(v\).

The initial velocity (\(\vec{v}_{initial}\)) is southward: \(\vec{v}_{initial} = -v\hat{j}\).
The final velocity (\(\vec{v}_{final}\)) is eastward: \(\vec{v}_{final} = v\hat{i}\).

Now, find the change in velocity vector \(\Delta\vec{v}\): \[ \Delta\vec{v} = \vec{v}_{final} - \vec{v}_{initial} \] \[ \Delta\vec{v} = (v\hat{i}) - (-v\hat{j}) = v\hat{i} + v\hat{j} \]
The direction of the force is the direction of \(\Delta\vec{v}\). The vector \(v(\hat{i} + \hat{j})\) has a positive x-component (East) and a positive y-component (North). This vector points in the North-East direction.


Step 4: Final Answer:

The force that acts on the player while turning is directed along the north-east.
Quick Tip: When dealing with changes in vector quantities, always perform vector subtraction (\(\vec{V}_{final} - \vec{V}_{initial}\)). A helpful way to visualize this is to draw the vectors: draw \(\vec{v}_{final}\) and then add \(-\vec{v}_{initial}\) to its tail. The resultant vector gives the direction of the change. Here, \(-\vec{v}_{initial}\) would be a vector pointing North. Adding an East vector and a North vector gives a North-East resultant.

Step 1: Understanding the Question:

The question asks for the current (magnitude and direction) in the given electrical circuit. The diagram shows a single-loop circuit.


Step 2: Key Formula or Approach:

We will apply Kirchhoff's Voltage Law (KVL) to the single loop. KVL states that the algebraic sum of the changes in potential around any closed circuit loop is zero. The current \(I\) in a simple loop is given by Ohm's law for the entire circuit: \[ I = \frac{Net EMF}{Total Resistance} \]

Step 3: Detailed Explanation:

First, identify all the components in the single loop:

Resistors: There are three resistors connected in series: 2 \(\Omega\), 1 \(\Omega\), and 7 \(\Omega\).
Total Resistance (\(R_{total}\)): Since they are in series, we add their resistances.
\[ R_{total} = 2\,\Omega + 1\,\Omega + 7\,\Omega = 10\,\Omega \]
EMF Sources (Batteries): There are two batteries, 10 V and 5 V. Let's determine the net EMF. If we trace the loop clockwise, we go from - to + for the 10V battery (a voltage gain of +10V) and from + to - for the 5V battery (a voltage drop of -5V). They are connected in opposition.
Net EMF (\(V_{net}\)): The net electromotive force is the difference between the two EMFs.
\[ V_{net} = 10\,V - 5\,V = 5\,V \]

The direction of the current will be determined by the stronger battery. Since the 10 V battery is stronger, it will push the current out of its positive terminal, meaning the current will flow in a clockwise direction through the loop. This corresponds to the current flowing from A, through E, to B.

Now, calculate the magnitude of the current \(I\): \[ I = \frac{V_{net}}{R_{total}} = \frac{5\,V}{10\,\Omega} = 0.5\,A \]

Step 4: Final Answer:

The magnitude of the current is 0.5 A, and its direction is from A to B through E.
Quick Tip: For a single-loop circuit, quickly find the total resistance by summing all resistors. Then, find the net EMF by adding the EMFs that push in one direction and subtracting those that oppose. The direction of the current will be dictated by the larger net EMF.

Step 1: Understanding the Question:

The question asks for the average speed of a vehicle that covers a journey in two halves of equal distance but at different speeds.


Step 2: Key Formula or Approach:

The definition of average speed is the total distance traveled divided by the total time taken. \[ v_{avg} = \frac{Total Distance}{Total Time} \]
It is NOT the arithmetic average of the speeds.


Step 3: Detailed Explanation:

Let the total distance of the journey be \(2d\).

The first half of the distance is \(d\), traveled at speed \(v\). The time taken for this part is \(t_1 = \frac{distance}{speed} = \frac{d}{v}\).
The second half of the distance is \(d\), traveled at speed \(2v\). The time taken for this part is \(t_2 = \frac{d}{2v}\).

Now, calculate the total distance and total time for the entire journey.

Total Distance = \(d + d = 2d\).
Total Time = \(t_1 + t_2 = \frac{d}{v} + \frac{d}{2v}\).

To add the times, find a common denominator: \[ Total Time = \frac{2d}{2v} + \frac{d}{2v} = \frac{3d}{2v} \]
Now, calculate the average speed: \[ v_{avg} = \frac{Total Distance}{Total Time} = \frac{2d}{\frac{3d}{2v}} \] \[ v_{avg} = 2d \times \frac{2v}{3d} = \frac{4dv}{3d} = \frac{4v}{3} \]

Step 4: Final Answer:

The average speed of the vehicle is \(\frac{4v}{3}\).
Quick Tip: For journeys split by distance (e.g., half distance at \(v_1\), half at \(v_2\)), the average speed is the harmonic mean of the speeds: \(v_{avg} = \frac{2}{\frac{1}{v_1} + \frac{1}{v_2}} = \frac{2v_1v_2}{v_1+v_2}\). For this problem, \(v_1=v\) and \(v_2=2v\), giving \(v_{avg} = \frac{2(v)(2v)}{v+2v} = \frac{4v^2}{3v} = \frac{4v}{3}\).

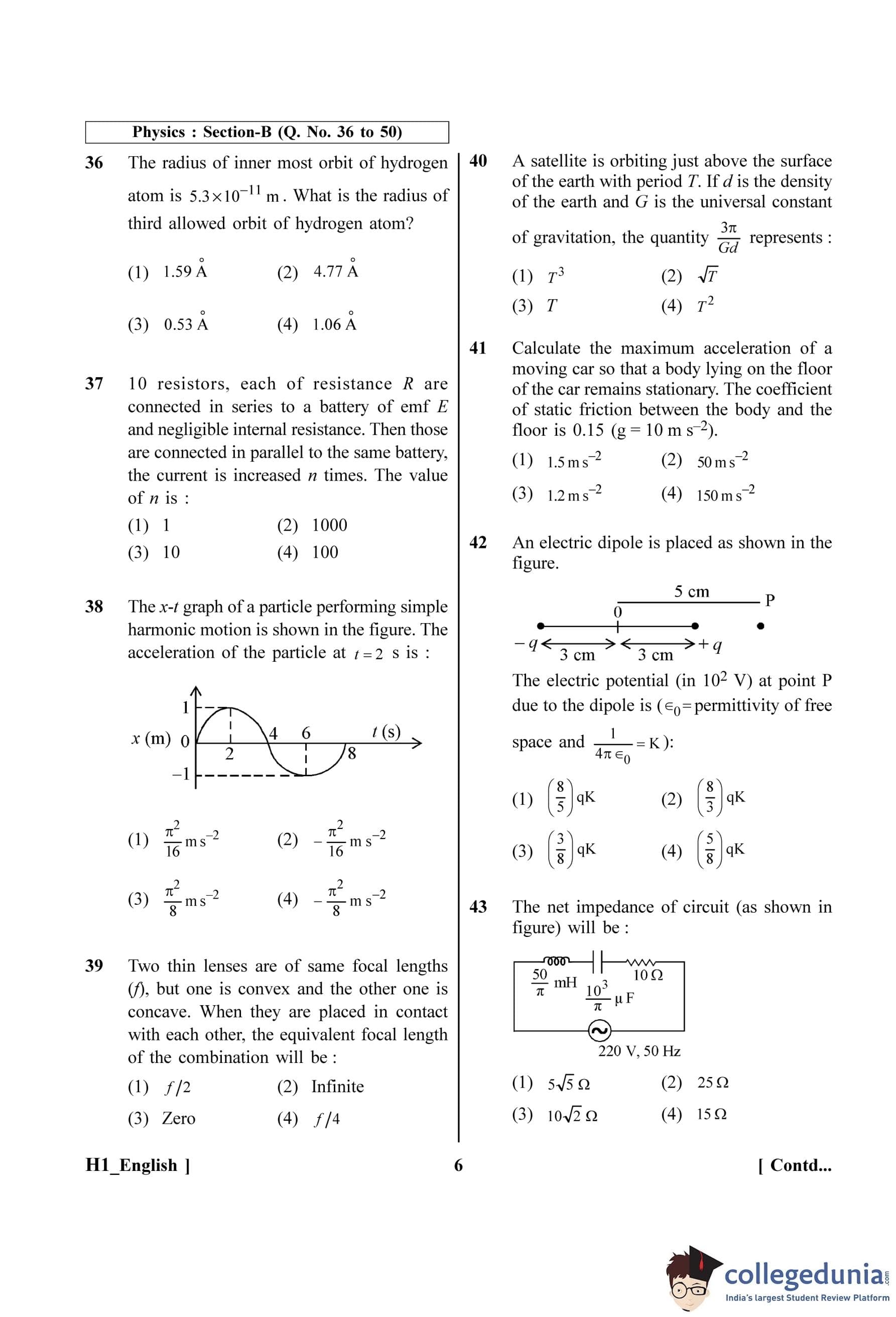

Step 1: Understanding the Question:

This question applies Bohr's model for the hydrogen atom. We are given the radius of the first orbit (ground state) and asked to find the radius of the third orbit.


Step 2: Key Formula or Approach:

According to Bohr's atomic model, the radius of the \(n\)-th allowed orbit for a hydrogen-like atom is proportional to the square of the principal quantum number, \(n\). \[ r_n \propto n^2 \]
So, the radius of the n-th orbit can be expressed in terms of the first orbit's radius (\(r_1\), also known as the Bohr radius) as: \[ r_n = r_1 \cdot n^2 \]

Step 3: Detailed Explanation:

We are given:

Radius of the innermost orbit (\(n=1\)), \(r_1 = 5.3 \times 10^{-11} m\).

We need to find the radius of the third allowed orbit, which corresponds to \(n=3\).
Using the formula: \[ r_3 = r_1 \cdot (3)^2 = r_1 \cdot 9 \]
Substitute the value of \(r_1\): \[ r_3 = (5.3 \times 10^{-11} m) \times 9 = 47.7 \times 10^{-11} m \]
The options are given in Angstroms (Å), where \(1 Å = 10^{-10} m\). Let's convert our answer to Angstroms. \[ r_3 = 4.77 \times 10^{-10} m = 4.77 Å \]

Step 4: Final Answer:

The radius of the third allowed orbit of the hydrogen atom is 4.77 Å.
Quick Tip: Remember the key dependencies for Bohr's model: radius \(r_n \propto n^2\) and energy \(E_n \propto 1/n^2\). Knowing these proportions is often sufficient to solve ratio-based problems quickly without using the full formulas.

Step 1: Understanding the Question:

The problem compares the current drawn from a battery by a set of resistors when they are connected first in series and then in parallel. We need to find the ratio of the parallel current to the series current.


Step 2: Key Formula or Approach:

1. The equivalent resistance of \(N\) resistors of resistance \(R\) in series is \(R_{series} = NR\).
2. The equivalent resistance of \(N\) resistors of resistance \(R\) in parallel is \(R_{parallel} = \frac{R}{N}\).
3. The current from a battery of emf \(E\) is given by Ohm's Law, \(I = \frac{E}{R_{eq}}\).


Step 3: Detailed Explanation:

In this problem, we have \(N=10\) resistors, each with resistance \(R\).

Case 1: Series Connection
The total resistance is \(R_{series} = 10R\).
The current drawn from the battery is \(I_{series} = \frac{E}{R_{series}} = \frac{E}{10R}\).

Case 2: Parallel Connection
The total resistance is \(R_{parallel} = \frac{R}{10}\).
The current drawn from the battery is \(I_{parallel} = \frac{E}{R_{parallel}} = \frac{E}{R/10} = \frac{10E}{R}\).

Finding n
We are told that the current is increased \(n\) times, which means \(I_{parallel} = n \times I_{series}\). \[ n = \frac{I_{parallel}}{I_{series}} \]
Substitute the expressions for the currents: \[ n = \frac{\left(\frac{10E}{R}\right)}{\left(\frac{E}{10R}\right)} = \frac{10E}{R} \times \frac{10R}{E} = 10 \times 10 = 100 \]

Step 4: Final Answer:

The value of n is 100.
Quick Tip: For \(N\) identical resistors, the ratio of parallel current to series current is always \(n = N^2\). This is because \(I_p \propto 1/R_p = N/R\) and \(I_s \propto 1/R_s = 1/(NR)\), so the ratio is \((N/R) / (1/NR) = N^2\). Here, \(N=10\), so \(n = 10^2 = 100\).

Step 1: Understanding the Question:

We are given the position-time (x-t) graph of a particle in Simple Harmonic Motion (SHM) and need to find its acceleration at a specific time, t = 2 s.


Step 2: Key Formula or Approach:

The acceleration (\(a\)) of a particle in SHM is related to its displacement (\(x\)) by the formula: \[ a = -\omega^2 x \]
where \(\omega\) is the angular frequency. The angular frequency can be found from the time period \(T\) using \(\omega = \frac{2\pi}{T}\).


Step 3: Detailed Explanation:

First, we need to extract information from the graph.

Time Period (T): The graph shows that the particle completes one full oscillation (from 0, to +1, to 0, to -1, and back to 0) in 8 seconds. So, the time period is \(T = 8\) s.
Angular Frequency (\(\omega\)): We can calculate \(\omega\) from \(T\).
\[ \omega = \frac{2\pi}{T} = \frac{2\pi}{8} = \frac{\pi}{4} rad/s \]
Displacement at t = 2 s: Looking at the graph, at time \(t = 2\) s, the particle is at its maximum positive displacement. The amplitude is \(A = 1\) m, so \(x(t=2s) = 1\) m.

Now, we can calculate the acceleration at \(t = 2\) s using the formula \(a = -\omega^2 x\). \[ a(t=2s) = - \left(\frac{\pi}{4}\right)^2 \times x(t=2s) \] \[ a(t=2s) = - \frac{\pi^2}{16} \times (1) = -\frac{\pi^2}{16} m s^{-2} \]

Step 4: Final Answer:

The acceleration of the particle at t = 2 s is \(-\frac{\pi^2}{16} m s^{-2}\).
Quick Tip: In SHM, acceleration is always directed towards the mean position and is maximum at the extreme positions. At the positive extreme (\(x=+A\)), the acceleration is maximum negative (\(a = -\omega^2 A\)). At the negative extreme (\(x=-A\)), the acceleration is maximum positive (\(a = +\omega^2 A\)).

Step 1: Understanding the Question:

We have a combination of two thin lenses in contact: a convex lens and a concave lens, both with the same magnitude of focal length. We need to find the focal length of this combination.


Step 2: Key Formula or Approach:

The equivalent power (\(P_{eq}\)) of a combination of thin lenses in contact is the algebraic sum of their individual powers. The equivalent focal length (\(F_{eq}\)) is given by the formula: \[ \frac{1}{F_{eq}} = \frac{1}{f_1} + \frac{1}{f_2} \]
By convention, the focal length of a convex lens is positive, and that of a concave lens is negative.


Step 3: Detailed Explanation:

Let the focal length of the convex lens be \(f_1\). According to the sign convention, \(f_1 = +f\).

Let the focal length of the concave lens be \(f_2\). According to the sign convention, \(f_2 = -f\).

Now, use the formula for the equivalent focal length: \[ \frac{1}{F_{eq}} = \frac{1}{f_1} + \frac{1}{f_2} = \frac{1}{+f} + \frac{1}{-f} \] \[ \frac{1}{F_{eq}} = \frac{1}{f} - \frac{1}{f} = 0 \]
The equivalent power of the combination is zero (\(P_{eq} = 0\)).

To find the equivalent focal length, we take the reciprocal: \[ F_{eq} = \frac{1}{0} \rightarrow \infty \]
A lens system with zero power and infinite focal length behaves like a plane glass slab; it does not converge or diverge parallel rays of light.


Step 4: Final Answer:

The equivalent focal length of the combination will be infinite.
Quick Tip: Power of a lens is \(P=1/f\). A combination of a convex and a concave lens of the same focal length has powers \(+P\) and \(-P\). The total power is \(+P - P = 0\). Zero power means infinite focal length. Such a combination is called an 'achromatic doublet' if made of different materials to reduce chromatic aberration, though here it simply results in a plane slab behavior.

Step 1: Understanding the Question:

The question asks to relate a given expression involving the density of the Earth (\(d\)) and the gravitational constant (\(G\)) to the orbital period (\(T\)) of a satellite orbiting very close to the Earth's surface.


Step 2: Key Formula or Approach:

1. The time period \(T\) of a satellite in a circular orbit of radius \(R\) around a planet of mass \(M\) is given by Kepler's third law: \[ T^2 = \frac{4\pi^2}{GM}R^3 \]
For a satellite orbiting "just above the surface", the orbital radius \(R\) can be approximated as the radius of the Earth, \(R_E\). \[ T = 2\pi\sqrt{\frac{R_E^3}{GM}} \]
2. The mass of the Earth \(M\) can be expressed in terms of its density \(d\) and radius \(R_E\): \[ M = Volume \times Density = \left(\frac{4}{3}\pi R_E^3\right)d \]

Step 3: Detailed Explanation:

Let's start with the formula for the time period: \[ T = 2\pi\sqrt{\frac{R_E^3}{GM}} \]
Now, substitute the expression for the mass \(M\) in terms of density \(d\): \[ T = 2\pi\sqrt{\frac{R_E^3}{G \left(\frac{4}{3}\pi R_E^3 d\right)}} \]
The \(R_E^3\) term cancels out: \[ T = 2\pi\sqrt{\frac{1}{G \frac{4}{3}\pi d}} = 2\pi\sqrt{\frac{3}{4G\pi d}} \]
To relate this to the given expression, let's square both sides: \[ T^2 = (2\pi)^2 \left(\frac{3}{4G\pi d}\right) = 4\pi^2 \frac{3}{4G\pi d} \]
Cancel \(4\pi\) from the numerator and denominator: \[ T^2 = \frac{3\pi}{Gd} \]
Thus, the given quantity \(\frac{3\pi}{Gd}\) is equal to \(T^2\).


Step 4: Final Answer:

The quantity \(\frac{3\pi}{Gd}\) represents \(T^2\).
Quick Tip: This derivation shows that the orbital period of a satellite near the surface of a planet depends only on the planet's average density, not its radius or mass individually. This is a classic result often tested in competitive exams.

Step 1: Understanding the Question:

We need to find the maximum acceleration a car can have without an object on its floor slipping. The object's acceleration is provided by the static friction force.


Step 2: Key Formula or Approach:

Let \(m\) be the mass of the body. The force required to accelerate the body along with the car is \(F = ma\). This force is provided by static friction, \(f_s\).
The maximum possible static friction force is given by \(f_{s, max} = \mu_s N\), where \(\mu_s\) is the coefficient of static friction and \(N\) is the normal force.
For the body not to slip, \(F \leq f_{s, max}\).
The maximum acceleration occurs when \(F = f_{s, max}\).


Step 3: Detailed Explanation:

The body is on a horizontal floor. The normal force \(N\) acting on the body is equal to its weight, \(mg\). \[ N = mg \]
The maximum static friction force is: \[ f_{s, max} = \mu_s N = \mu_s mg \]
For the body to accelerate with the car at its maximum acceleration \(a_{max}\), the force required is \(ma_{max}\). This force must be equal to the maximum available static friction. \[ ma_{max} = f_{s, max} \] \[ ma_{max} = \mu_s mg \]
The mass \(m\) cancels out from both sides: \[ a_{max} = \mu_s g \]
Now, substitute the given values:

\(\mu_s = 0.15\)
\(g = 10 m s^{-2}\)
\[ a_{max} = 0.15 \times 10 = 1.5 m s^{-2} \]

Step 4: Final Answer:

The maximum acceleration of the car is 1.5 m s\(^{-2}\).
Quick Tip: This is a common setup in friction problems. The maximum possible acceleration for an object resting on another accelerating object (without slipping) is simply \(a_{max} = \mu_s g\). The mass of the object does not matter.

Step 1: Understanding the Question:

We are asked to find the net electric potential at a point P located on the axis of an electric dipole.


Step 2: Key Formula or Approach:

The electric potential is a scalar quantity. The total potential at a point due to a system of charges is the algebraic sum of the potentials due to individual charges. The potential \(V\) at a distance \(r\) from a point charge \(Q\) is given by: \[ V = K \frac{Q}{r} \]
where \(K = \frac{1}{4\pi\epsilon_0}\).


Step 3: Detailed Explanation:

From the figure, we have:

A negative charge \(-q\) and a positive charge \(+q\).
The center of the dipole is at O. The distance from O to each charge is 3 cm.
The point P is on the axial line of the dipole at a distance of 5 cm from the center O.

Let's find the distance of point P from each charge. We can work with the distances in cm and the result will be a ratio, so the units will cancel.

Distance of P from the positive charge \(+q\): \(r_+ = 5 cm - 3 cm = 2 cm\).
Distance of P from the negative charge \(-q\): \(r_- = 5 cm + 3 cm = 8 cm\).

Now, calculate the total potential at P: \[ V_P = V_{+q} + V_{-q} \] \[ V_P = K \frac{+q}{r_+} + K \frac{-q}{r_-} \] \[ V_P = Kq \left( \frac{1}{r_+} - \frac{1}{r_-} \right) \]
Substitute the distances: \[ V_P = Kq \left( \frac{1}{2} - \frac{1}{8} \right) \]
To subtract the fractions, find a common denominator (which is 8): \[ V_P = Kq \left( \frac{4}{8} - \frac{1}{8} \right) = Kq \left( \frac{3}{8} \right) \] \[ V_P = \left(\frac{3}{8}\right)qK \]
The note in the question "(in 10² V)" seems to be extra information or a potential distractor, as the options are expressions, not numerical values.


Step 4: Final Answer:

The electric potential at point P is \((\frac{3}{8})qK\).
Quick Tip: For calculating potential (a scalar), simply add the potentials from each charge algebraically. Be careful with the signs of the charges and the distances. For an axial point at distance \(r\) from the center of a dipole of length \(2a\), the exact potential is \(V = \frac{K (q \cdot 2a)}{r^2 - a^2}\). Using \(r=5, a=3\), this gives \(V = \frac{Kq(6)}{25-9} = \frac{6}{16}Kq = \frac{3}{8}Kq\).

Step 1: Understanding the Question:

The question asks to calculate the net impedance of a series LCR circuit with given values for resistance (R), inductance (L), capacitance (C), and source frequency (f).


Step 2: Key Formula or Approach:

The impedance \(Z\) of a series LCR circuit is given by: \[ Z = \sqrt{R^2 + (X_L - X_C)^2} \]
where \(X_L\) is the inductive reactance and \(X_C\) is the capacitive reactance. \[ X_L = \omega L = 2\pi f L \] \[ X_C = \frac{1}{\omega C} = \frac{1}{2\pi f C} \]

Step 3: Detailed Explanation:

First, list the given values and convert them to SI units:

Resistance, \(R = 10\,\Omega\).
Inductance, \(L = \frac{50}{\pi} mH = \frac{50}{\pi} \times 10^{-3} H\).
Capacitance, \(C = \frac{10^3}{\pi} µF = \frac{1000}{\pi} \times 10^{-6} F = \frac{10^{-3}}{\pi} F\).
Frequency, \(f = 50 Hz\).

Next, calculate the reactances \(X_L\) and \(X_C\):

Inductive Reactance:
\[ X_L = 2\pi f L = 2\pi (50) \left(\frac{50}{\pi} \times 10^{-3}\right) = 100\pi \left(\frac{50}{\pi} \times 10^{-3}\right) = 5000 \times 10^{-3} = 5\,\Omega \]
Capacitive Reactance:
\[ X_C = \frac{1}{2\pi f C} = \frac{1}{2\pi (50) \left(\frac{10^{-3}}{\pi}\right)} = \frac{1}{100\pi \left(\frac{10^{-3}}{\pi}\right)} = \frac{1}{100 \times 10^{-3}} = \frac{1}{10^{-1}} = 10\,\Omega \]

Finally, calculate the impedance \(Z\): \[ Z = \sqrt{R^2 + (X_L - X_C)^2} = \sqrt{(10)^2 + (5 - 10)^2} \] \[ Z = \sqrt{100 + (-5)^2} = \sqrt{100 + 25} = \sqrt{125} \]
To simplify \(\sqrt{125}\), we can write it as \(\sqrt{25 \times 5}\). \[ Z = 5\sqrt{5}\,\Omega \]

Step 4: Final Answer:

The net impedance of the circuit is \(5\sqrt{5}\,\Omega\).
Quick Tip: The presence of \(\pi\) in the values of L and C is a common trick in exam questions. It's designed to simplify the calculation, as the \(2\pi f\) term often has the \(\pi\) cancel out, leading to clean integer values for the reactances.

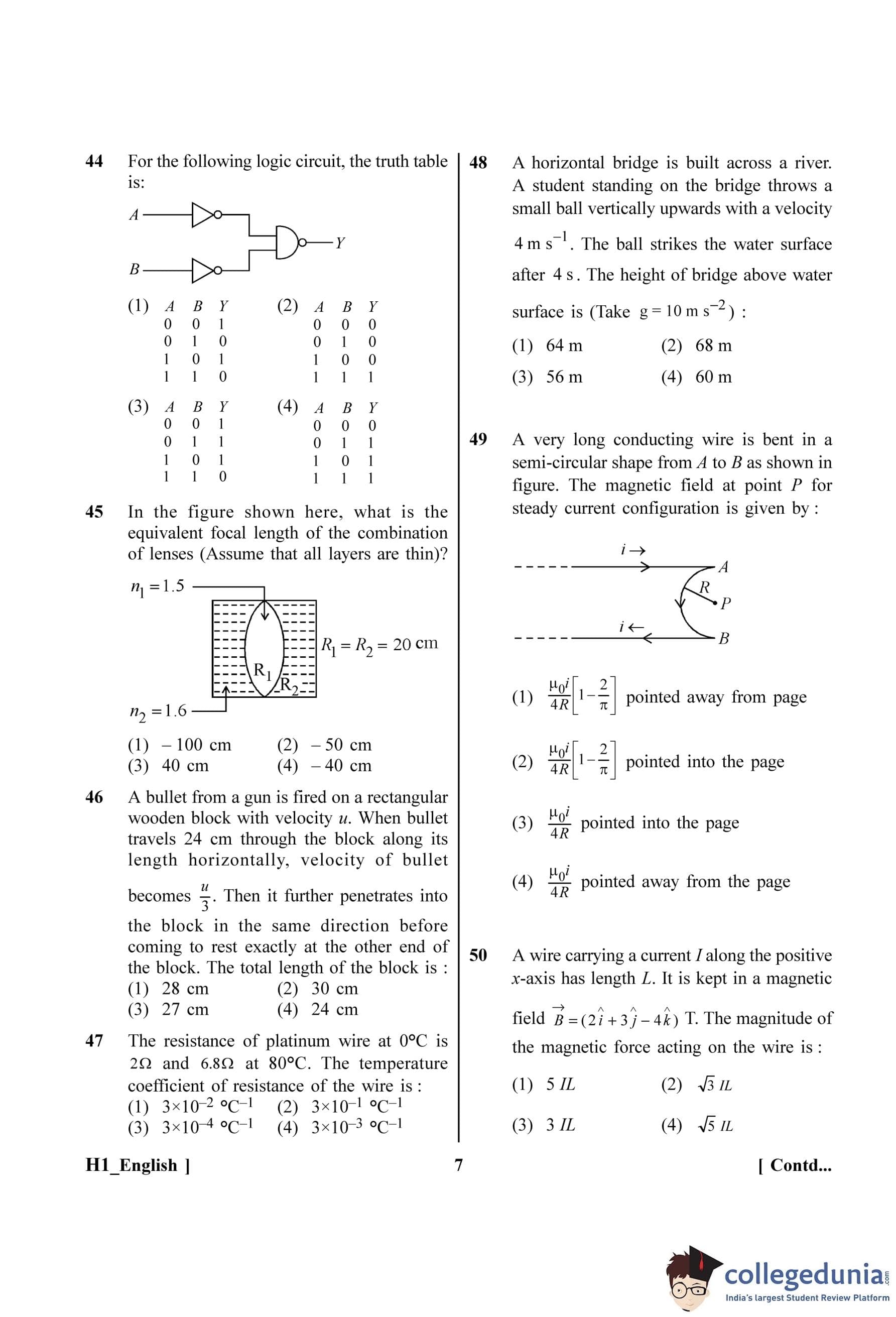

Step 1: Understanding the Question:

The question asks for the truth table of the given digital logic circuit. The circuit consists of two NOT gates followed by a NAND gate.


Step 2: Key Formula or Approach:

We need to determine the output Y for all possible combinations of inputs A and B. Let's trace the logic step-by-step.

Input A goes into a NOT gate, producing an output \(A' = \overline{A}\).
Input B goes into a NOT gate, producing an output \(B' = \overline{B}\).
These two outputs, \(A'\) and \(B'\), become the inputs to a NAND gate.
The final output is \(Y = \overline{A' \cdot B'} = \overline{\overline{A} \cdot \overline{B}}\).

Using De Morgan's theorem, we can simplify the expression: \[ Y = \overline{\overline{A}} + \overline{\overline{B}} = A + B \]
This shows that the given circuit is equivalent to an OR gate.


Step 3: Detailed Explanation:

Let's construct the truth table by evaluating the output for each input combination:

Case 1: A = 0, B = 0

\(A' = \overline{0} = 1\)
\(B' = \overline{0} = 1\)
\(Y = \overline{A' \cdot B'} = \overline{1 \cdot 1} = \overline{1} = 0\)

Case 2: A = 0, B = 1

\(A' = \overline{0} = 1\)
\(B' = \overline{1} = 0\)
\(Y = \overline{A' \cdot B'} = \overline{1 \cdot 0} = \overline{0} = 1\)

Case 3: A = 1, B = 0

\(A' = \overline{1} = 0\)
\(B' = \overline{0} = 1\)
\(Y = \overline{A' \cdot B'} = \overline{0 \cdot 1} = \overline{0} = 1\)

Case 4: A = 1, B = 1

\(A' = \overline{1} = 0\)
\(B' = \overline{1} = 0\)
\(Y = \overline{A' \cdot B'} = \overline{0 \cdot 0} = \overline{0} = 1\)


The final truth table is:
\begin{tabular{|c|c|c|
\hline
A & B & Y
\hline
0 & 0 & 0

0 & 1 & 1

1 & 0 & 1

1 & 1 & 1
\hline

This matches the truth table of an OR gate.


Step 4: Final Answer:

Comparing our derived truth table with the options, it matches option (D).
Quick Tip: The combination of a NAND gate with inverted inputs is known as a "bubbled AND" gate, which is logically equivalent to an OR gate according to De Morgan's laws. Recognizing these equivalences can speed up circuit analysis.

Step 1: Understanding the Question:

The setup consists of three thin lenses in contact. We need to find the equivalent focal length of the combination. The system can be seen as a biconcave lens of refractive index \(n_2=1.6\) sandwiched between two plano-convex lenses of refractive index \(n_1=1.5\).


Step 2: Key Formula or Approach:

1. Use the Lens Maker's formula for each lens: \(\frac{1}{f} = (n-1)\left(\frac{1}{R_1} - \frac{1}{R_2}\right)\). We'll use the sign convention that light travels from left to right.
2. For thin lenses in contact, the equivalent focal length \(F_{eq}\) is given by: \(\frac{1}{F_{eq}} = \frac{1}{f_1} + \frac{1}{f_2} + \frac{1}{f_3}\).


Step 3: Detailed Explanation:

Let's calculate the focal length of each of the three lenses.

Lens 1 (Left, Plano-Convex):
\(n = 1.5\). The first surface is plane (\(R_1 = \infty\)). The second surface is convex with radius 20 cm, so its center of curvature is to the right (\(R_2 = -20\) cm).
\[ \frac{1}{f_1} = (1.5 - 1)\left(\frac{1}{\infty} - \frac{1}{-20}\right) = 0.5 \left(\frac{1}{20}\right) = \frac{1}{40} \implies f_1 = +40 cm \]
Lens 2 (Middle, Biconcave):
\(n = 1.6\). The first surface is concave with radius 20 cm, its center is to the left (\(R_1 = -20\) cm). The second surface is concave with radius 20 cm, its center is to the right (\(R_2 = +20\) cm).
\[ \frac{1}{f_2} = (1.6 - 1)\left(\frac{1}{-20} - \frac{1}{20}\right) = 0.6 \left(-\frac{2}{20}\right) = 0.6 \left(-\frac{1}{10}\right) = -0.06 = -\frac{6}{100} = -\frac{3}{50} \]
\[ f_2 = -\frac{50}{3} cm \]
Lens 3 (Right, Convexo-Plane):
\(n = 1.5\). The first surface is convex with radius 20 cm, its center is to the left (\(R_1 = +20\) cm). The second surface is plane (\(R_2 = \infty\)).
\[ \frac{1}{f_3} = (1.5 - 1)\left(\frac{1}{20} - \frac{1}{\infty}\right) = 0.5 \left(\frac{1}{20}\right) = \frac{1}{40} \implies f_3 = +40 cm \]

Now, find the equivalent focal length of the combination: \[ \frac{1}{F_{eq}} = \frac{1}{f_1} + \frac{1}{f_2} + \frac{1}{f_3} = \frac{1}{40} + \left(-\frac{3}{50}\right) + \frac{1}{40} \] \[ \frac{1}{F_{eq}} = \frac{2}{40} - \frac{3}{50} = \frac{1}{20} - \frac{3}{50} \]
The least common multiple of 20 and 50 is 100. \[ \frac{1}{F_{eq}} = \frac{5}{100} - \frac{6}{100} = -\frac{1}{100} \] \[ F_{eq} = -100 cm \]

Step 4: Final Answer:

The equivalent focal length of the combination of lenses is -100 cm.
Quick Tip: Be very careful with the sign convention for the radii of curvature. A surface that is convex towards the incident light has a positive radius, while a concave surface has a negative radius. The center of curvature's position determines the sign.

Step 1: Understanding the Question:

This problem involves motion with constant deceleration. A bullet enters a block, loses some velocity over a certain distance, and then travels a further distance until it stops. We need to find the total distance traveled inside the block.


Step 2: Key Formula or Approach:

Assuming the block provides a constant resistive force, the bullet experiences constant deceleration, \(a\). We can use the third equation of motion: \[ v^2 = u^2 + 2as \]
where \(u\) is initial velocity, \(v\) is final velocity, \(a\) is acceleration, and \(s\) is displacement. We can also use the work-energy theorem. The work done by the resistive force equals the change in kinetic energy.


Step 3: Detailed Explanation:

Let's analyze the motion in two parts. Let the constant deceleration be \(a\).

Part 1: From entry to 24 cm

Initial velocity: \(u_1 = u\)
Final velocity: \(v_1 = u/3\)
Distance: \(s_1 = 24 cm\)

Using \(v^2 = u^2 + 2as\):
\[ (u/3)^2 = u^2 + 2a(24) \]
\[ \frac{u^2}{9} = u^2 + 48a \]
\[ \frac{u^2}{9} - u^2 = 48a \implies -\frac{8u^2}{9} = 48a \]
\[ 2a = -\frac{16u^2}{9 \times 48} = -\frac{u^2}{27} \]
Part 2: From 24 cm to rest

Initial velocity: \(u_2 = u/3\)
Final velocity: \(v_2 = 0\)
Distance: \(s_2\) (this is the remaining distance)

Using \(v^2 = u^2 + 2as\):
\[ 0^2 = (u/3)^2 + 2as_2 \]
\[ -\frac{u^2}{9} = 2as_2 \]
Now, substitute the value of \(2a\) from Part 1:
\[ -\frac{u^2}{9} = \left(-\frac{u^2}{27}\right)s_2 \]
Cancel \( -u^2 \) from both sides:
\[ \frac{1}{9} = \frac{s_2}{27} \implies s_2 = \frac{27}{9} = 3 cm \]

The total length of the block is the total distance the bullet travels inside it. \[ Total Length = s_1 + s_2 = 24 cm + 3 cm = 27 cm \]

Step 4: Final Answer:

The total length of the block is 27 cm.
Quick Tip: For constant deceleration problems where velocity changes over distances, using the work-energy theorem can be intuitive. The work done by friction is proportional to the distance, \(W = F \cdot s\). The change in kinetic energy is \(\Delta K\).
For the first part: \(F \cdot s_1 = K_i - K_f = \frac{1}{2}mu^2 - \frac{1}{2}m(u/3)^2 = \frac{1}{2}mu^2(1 - 1/9) = \frac{8}{9}K_i\).
For the second part: \(F \cdot s_2 = \frac{1}{2}m(u/3)^2 - 0 = \frac{1}{9}K_i\).
The ratio is \(\frac{s_1}{s_2} = \frac{8/9}{1/9} = 8\). So \(s_2 = s_1/8 = 24/8 = 3\) cm. Total length = \(24+3 = 27\) cm.

Step 1: Understanding the Question:

We are given the resistance of a wire at two different temperatures and asked to find its temperature coefficient of resistance.


Step 2: Key Formula or Approach:

The resistance \(R_T\) at a temperature \(T\) is related to the resistance \(R_0\) at a reference temperature \(T_0\) (usually 0°C) by the linear approximation formula: \[ R_T = R_0 (1 + \alpha \Delta T) \]
where \(\alpha\) is the temperature coefficient of resistance and \(\Delta T = T - T_0\).


Step 3: Detailed Explanation:

We are given the following data:

Reference temperature, \(T_0 = 0^\circC\).
Resistance at reference temperature, \(R_0 = 2\,\Omega\).
Final temperature, \(T = 80^\circC\).
Resistance at final temperature, \(R_T = 6.8\,\Omega\).
The change in temperature is \(\Delta T = 80^\circC - 0^\circC = 80^\circC\).

We can rearrange the formula to solve for \(\alpha\): \[ \frac{R_T}{R_0} = 1 + \alpha \Delta T \] \[ \alpha = \frac{\frac{R_T}{R_0} - 1}{\Delta T} = \frac{R_T - R_0}{R_0 \Delta T} \]
Substitute the given values: \[ \alpha = \frac{6.8 - 2}{2 \times (80)} \] \[ \alpha = \frac{4.8}{160} \] \[ \alpha = \frac{48}{1600} = \frac{3 \times 16}{100 \times 16} = \frac{3}{100} \] \[ \alpha = 0.03 ^\circC^{-1} = 3 \times 10^{-2} ^\circC^{-1} \]

Step 4: Final Answer:

The temperature coefficient of resistance of the wire is \(3 \times 10^{-2} ^\circC^{-1}\).
Quick Tip: The formula \(\alpha = \frac{\Delta R}{R_0 \Delta T}\) is a direct way to calculate the temperature coefficient. It represents the fractional change in resistance per unit change in temperature.

Step 1: Understanding the Question:

This is a problem of one-dimensional motion under constant acceleration (gravity). We need to find the net displacement of a ball thrown upwards from a bridge, which will give the height of the bridge.


Step 2: Key Formula or Approach:

We will use the second equation of motion for constant acceleration: \[ s = ut + \frac{1}{2}at^2 \]
We need to establish a sign convention. Let's take the upward direction as positive and the point of throw (the bridge) as the origin (\(s=0\)).


Step 3: Detailed Explanation:

According to our sign convention:

Initial velocity, \(u = +4 m/s\) (since it's thrown upwards).
Time of flight, \(t = 4 s\).
Acceleration, \(a = -g = -10 m/s^2\) (since gravity acts downwards).

We need to find the displacement, \(s\), which represents the final position of the ball (the water surface) relative to the initial position (the bridge).
Substitute the values into the equation: \[ s = (+4)(4) + \frac{1}{2}(-10)(4)^2 \] \[ s = 16 + (-5)(16) \] \[ s = 16 - 80 \] \[ s = -64 m \]
The negative sign indicates that the final position (water surface) is 64 meters below the initial position (the bridge). Therefore, the height of the bridge is 64 meters.


Step 4: Final Answer:

The height of the bridge above the water surface is 64 m.
Quick Tip: Consistently applying a sign convention is crucial in kinematics. Choosing the starting point as the origin and one direction as positive simplifies the problem. A negative final displacement simply means the object ended up on the negative side of the origin.

Step 1: Understanding the Question:

The problem asks for the net magnetic field at point P, which is the center of a semi-circular bend in a very long wire. The diagram shows the straight parts of the wire are collinear with P.


Step 2: Key Formula or Approach:

The total magnetic field at P is the vector sum of the fields from three parts: the straight wire segment before A, the semi-circular arc from A to B, and the straight wire segment after B.

The magnetic field due to a straight current-carrying wire at a point along its axis is zero.
The magnetic field at the center of a full circular loop is \(B = \frac{\mu_0 I}{2R}\). For a semi-circular arc, it's half of this value.


Step 3: Detailed Explanation:

Let's analyze the contribution from each part of the wire:

Straight part before A: The point P lies on the axis of this straight segment. Therefore, the magnetic field produced by this part at P is zero.
Straight part after B: Similarly, the point P lies on the axis of this straight segment. Its contribution to the magnetic field at P is also zero.
Semi-circular arc from A to B: The magnetic field at the center of a semi-circular arc of radius R carrying current I is given by:
\[ B_{semi} = \frac{1}{2} \times B_{full\_circle} = \frac{1}{2} \left( \frac{\mu_0 I}{2R} \right) = \frac{\mu_0 I}{4R} \]
The direction of the field is found using the right-hand grip rule. If you curl your fingers in the direction of the current (clockwise from A to B), your thumb points into the page.

The total magnetic field at P is the sum of these contributions: \[ \vec{B}_P = \vec{B}_{straight,1} + \vec{B}_{semi} + \vec{B}_{straight,2} = 0 + \frac{\mu_0 I}{4R} (into page) + 0 \] \[ \vec{B}_P = \frac{\mu_0 I}{4R} , directed into the page. \]

Step 4: Final Answer:

The magnetic field at point P is \(\frac{\mu_0 i}{4R}\) pointed into the page. This matches option (C).
Quick Tip: Remember the Biot-Savart Law in its practical applications: the field from a straight wire at a point on its extension is zero. This simplifies many problems involving complex wire shapes.

Step 1: Understanding the Question:

We need to find the magnitude of the magnetic force on a straight current-carrying wire placed in a uniform magnetic field.


Step 2: Key Formula or Approach:

The magnetic force \(\vec{F}\) on a straight wire segment with length vector \(\vec{L}\) carrying current \(I\) in a uniform magnetic field \(\vec{B}\) is given by the Lorentz force law for a wire: \[ \vec{F} = I(\vec{L} \times \vec{B}) \]
The magnitude is \(F = ILB\sin\theta\), but using the vector cross product is more direct when components are given.


Step 3: Detailed Explanation:

First, define the length vector \(\vec{L}\). The wire has length L and is oriented along the positive x-axis. \[ \vec{L} = L\hat{i} \]
The magnetic field vector is given as: \[ \vec{B} = 2\hat{i} + 3\hat{j} - 4\hat{k} \]
Next, calculate the cross product \(\vec{L} \times \vec{B}\): \[ \vec{L} \times \vec{B} = (L\hat{i}) \times (2\hat{i} + 3\hat{j} - 4\hat{k}) \]
Distribute the cross product: \[ = L(\hat{i} \times 2\hat{i}) + L(\hat{i} \times 3\hat{j}) + L(\hat{i} \times -4\hat{k}) \] \[ = 2L(\hat{i} \times \hat{i}) + 3L(\hat{i} \times \hat{j}) - 4L(\hat{i} \times \hat{k}) \]
Using the properties of unit vector cross products (\(\hat{i} \times \hat{i} = 0\), \(\hat{i} \times \hat{j} = \hat{k}\), \(\hat{i} \times \hat{k} = -\hat{j}\)): \[ = 2L(0) + 3L(\hat{k}) - 4L(-\hat{j}) = 3L\hat{k} + 4L\hat{j} \]
Now, find the force vector \(\vec{F}\): \[ \vec{F} = I(\vec{L} \times \vec{B}) = I(4L\hat{j} + 3L\hat{k}) = IL(4\hat{j} + 3\hat{k}) \]
Finally, find the magnitude of the force vector: \[ |\vec{F}| = |IL(4\hat{j} + 3\hat{k})| = IL\sqrt{4^2 + 3^2} \] \[ |\vec{F}| = IL\sqrt{16 + 9} = IL\sqrt{25} = 5IL \]

Step 4: Final Answer:

The magnitude of the magnetic force acting on the wire is 5 IL.
Quick Tip: When a current-carrying element is parallel to a component of the magnetic field, that component exerts no force. Here, the current is along \(\hat{i}\), so the \(2\hat{i}\) component of \(\vec{B}\) produces no force. The force comes only from the components of \(\vec{B}\) perpendicular to the current, which are \(3\hat{j}\) and \(-4\hat{k}\).

Step 1: Understanding the Question:

This is an Assertion-Reason question. We need to evaluate the correctness of both Assertion A and Reason R and determine if R is the correct explanation for A.


Step 3: Detailed Explanation:

Analysis of Assertion A:

The assertion states that a reaction can have zero activation energy (\(E_a\)).

In general, chemical reactions involve the breaking of existing bonds and the formation of new ones. This process requires the reactant molecules to pass through a high-energy transition state. The energy required to reach this transition state from the reactant state is the activation energy.

Therefore, for most chemical reactions, the activation energy is a positive value, meaning an energy barrier must be overcome.

While some specific, very fast reactions (like the recombination of free radicals) are considered to have zero or near-zero activation energy, in the general context of chemical kinetics taught in standard curricula, it's considered that reactions have a non-zero activation energy barrier. Hence, the assertion is generally considered false.


Analysis of Reason R:

The reason provides the definition of activation energy. It states that activation energy is the minimum extra amount of energy that reactant molecules must absorb to reach the threshold energy level (the energy of the transition state).

This is the correct and standard definition of activation energy. Thus, Reason R is a true statement.


Step 4: Final Answer:

Since Assertion A is false and Reason R is true, the correct option is (B).
Quick Tip: In assertion-reason questions, first determine the truth value of each statement independently. If one is true and the other is false, the answer is straightforward. If both are true, you then need to assess if the reason correctly explains the assertion.

Step 1: Understanding the Question:

The question asks for the correct sequence of molecular orbitals (MOs) in increasing order of their energy for the dinitrogen (N\(_2\)) molecule.


Step 2: Key Formula or Approach:

According to Molecular Orbital Theory (MOT), the energy order of MOs for diatomic molecules depends on the extent of s-p orbital mixing.

For lighter diatomic molecules like B\(_2\), C\(_2\), and N\(_2\) (up to 14 electrons), significant s-p mixing occurs. This mixing raises the energy of the \(\sigma2p_z\) orbital above that of the \(\pi2p_x\) and \(\pi2p_y\) orbitals.

For heavier diatomic molecules like O\(_2\) and F\(_2\), s-p mixing is less significant, and the \(\sigma2p_z\) orbital has lower energy than the \(\pi\) orbitals.


Step 3: Detailed Explanation:

The N\(_2\) molecule has a total of 14 electrons. Due to s-p mixing, the correct energy order of its molecular orbitals is: \[ \sigma1s < \sigma^*1s < \sigma2s < \sigma^*2s < (\pi2p_x = \pi2p_y) < \sigma2p_z < (\pi^*2p_x = \pi^*2p_y) < \sigma^*2p_z \]
Let's compare this correct order with the given options.

Option (A) places \(\sigma2p_z\) before \((\pi2p_x = \pi2p_y)\). This is incorrect for N\(_2\).
Option (B) has an unusual order with antibonding \(\pi^*\) orbitals before the bonding \(\sigma2p_z\). This is incorrect.
Option (C) matches the correct energy order for N\(_2\) derived from the principle of s-p mixing.
Option (D) is identical to option (A) and is incorrect. (Note: There might be a typo in the original question options, but (C) is the only one that represents the correct order for N\(_2\)).


Step 4: Final Answer:

The correct order of energies of molecular orbitals of the N\(_2\) molecule is given in option (C).
Quick Tip: A simple way to remember the MO order is to check the total number of electrons. For diatomic molecules with \(\leq 14\) electrons, the \(\pi2p\) orbitals are filled before the \(\sigma2p_z\) orbital. For molecules with \(> 14\) electrons, the \(\sigma2p_z\) is filled first.

Step 1: Understanding the Question:

The question asks to classify the given organic halide based on the position of the halogen atom (X) relative to a carbon-carbon double bond.


Step 3: Detailed Explanation:

Let's define the different types of halides mentioned:

Vinylic halide: The halogen atom is bonded directly to one of the sp\(^2\)-hybridized carbon atoms of a C=C double bond.
Allylic halide: The halogen atom is bonded to an sp\(^3\)-hybridized carbon atom which is adjacent to a C=C double bond. This carbon is called the allylic carbon.
Benzylic halide: The halogen atom is bonded to an sp\(^3\)-hybridized carbon atom which is directly attached to a benzene ring.
Aryl halide: The halogen atom is bonded directly to an sp\(^2\)-hybridized carbon atom of a benzene ring.

Now let's analyze the given structure: CH\(_2\)=CH-CH(X)-CH\(_2\)CH\(_3\).

The halogen atom X is attached to the third carbon atom in the chain.
This carbon atom is sp\(^3\)-hybridized (it forms four single bonds).
This sp\(^3\)-hybridized carbon is directly attached to the sp\(^2\)-hybridized carbon of the CH\(_2\)=CH- double bond.

This fits the definition of an allylic halide perfectly.


Step 4: Final Answer:

The given compound is an example of an allylic halide.
Quick Tip: To quickly classify halides, look at the carbon atom attached to the halogen. If it's sp\(^3\) and next to a C=C bond, it's allylic. If it's sp\(^2\) and part of a C=C bond, it's vinylic. If it's sp\(^3\) and next to a benzene ring, it's benzylic. If it's sp\(^2\) and part of a benzene ring, it's aryl.

Step 1: Understanding the Question:

The question asks us to identify the homoleptic complex among the given options.


Step 2: Key Formula or Approach:

A homoleptic complex is a coordination compound in which the central metal ion is coordinated to only one type of ligand.

A heteroleptic complex is a coordination compound in which the central metal ion is coordinated to more than one type of ligand.


Step 3: Detailed Explanation:

Let's analyze the ligands in each complex:

(A) Pentaamminecarbonatocobalt (III) chloride: The complex ion is [Co(NH\(_3\))\(_{5}\)(CO\(_3\))]Cl. The ligands attached to the cobalt ion are ammine (NH\(_3\)) and carbonato (CO\(_3\)\(^{2-}\)). Since there are two different types of ligands, this is a heteroleptic complex.
(B) Triamminetriaquachromium (III) chloride: The complex ion is [Cr(NH\(_3\))\(_{3}\)(H\(_2\)O)\(_3\)]Cl\(_3\). The ligands attached to the chromium ion are ammine (NH\(_3\)) and aqua (H\(_2\)O). Since there are two different types of ligands, this is a heteroleptic complex.
(C) Potassium trioxalatoaluminate (III): The formula is K\(_3\)[Al(C\(_2\)O\(_4\))\(_{3}\)]. The complex ion is [Al(C\(_2\)O\(_4\))\(_{3}\)]\(^{3-}\). The only ligand attached to the aluminum ion is oxalato (C\(_2\)O\(_4\)\(^{2-}\)). Since there is only one type of ligand, this is a homoleptic complex.
(D) Diamminechloridonitrito - N - platinum (II): The complex is [Pt(NH\(_3\))\(_{2}\)Cl(NO\(_2\))]. The ligands attached to the platinum ion are ammine (NH\(_3\)), chlorido (Cl\(^{-}\)), and nitrito-N (NO\(_2\)\(^{-}\)). Since there are three different types of ligands, this is a heteroleptic complex.


Step 4: Final Answer:

Potassium trioxalatoaluminate (III) is the only homoleptic complex among the choices.
Quick Tip: Remember "homo" means same and "hetero" means different. In coordination chemistry, "leptic" refers to the ligands. So, homoleptic means "same ligands" and heteroleptic means "different ligands".

Step 1: Understanding the Question:

This is a stoichiometry problem. We need to calculate the mass of carbon dioxide (CO\(_2\)) produced from the thermal decomposition of an impure sample of limestone (calcium carbonate, CaCO\(_3\)).


Step 2: Key Formula or Approach:

1. Calculate the mass of the pure reactant from the total mass and purity percentage.
2. Use the balanced chemical equation to establish the molar relationship between the reactant and the product.
3. Convert mass to moles, use the molar ratio, and then convert moles back to mass.


Step 3: Detailed Explanation:

Part 1: Find the mass of pure CaCO\(_3\).

Total mass of limestone sample = 20 g.

Purity of limestone = 20 %.

Mass of pure CaCO\(_3\) = 20 g \(\times \frac{20}{100} = 4\) g.


Part 2: Use stoichiometry.

The balanced chemical equation is: \[ CaCO_3(s) \rightarrow CaO(s) + CO_2(g) \]
This shows that 1 mole of CaCO\(_3\) produces 1 mole of CO\(_2\).


Part 3: Molar mass calculation.

Molar mass of CaCO\(_3\) = 40 (Ca) + 12 (C) + 3 \(\times\) 16 (O) = 100 g/mol.

Molar mass of CO\(_2\) = 12 (C) + 2 \(\times\) 16 (O) = 44 g/mol.


Part 4: Calculate the mass of CO\(_2\) produced.

From the stoichiometry, 100 g of CaCO\(_3\) produces 44 g of CO\(_2\).
We have 4 g of pure CaCO\(_3\). We can set up a proportion: \[ \frac{mass of CO_2}{mass of CaCO_3} = \frac{44 g}{100 g} \] \[ mass of CO_2 = \frac{44}{100} \times (mass of CaCO_3) \] \[ mass of CO_2 = \frac{44}{100} \times 4 g = 0.44 \times 4 g = 1.76 g \]

Step 4: Final Answer:

The mass of CO\(_2\) produced is 1.76 g.
Quick Tip: In stoichiometry problems involving purity, always calculate the mass of the pure substance first. The impurities do not participate in the reaction.

Step 1: Understanding the Question:

The question asks for the mathematical relationship between the azimuthal quantum number (\(l\)) and the total number of possible values for the magnetic quantum number (\(m_l\)), which is denoted here as \(n_m\).


Step 2: Key Formula or Approach:

The rules for quantum numbers state that for a given value of the azimuthal quantum number, \(l\), the magnetic quantum number, \(m_l\), can take any integer value from \(-l\) to \(+l\), including zero.
\[ m_l = -l, -l+1, ..., 0, ..., l-1, l \]

Step 3: Detailed Explanation:

To find the total number of permissible values (\(n_m\)), we can count the values in the sequence.

There are \(l\) positive values (from 1 to \(l\)).
There are \(l\) negative values (from -1 to \(-l\)).
There is one zero value.

Total number of values, \(n_m = l + l + 1 = 2l + 1\).

So the correct relationship is \(n_m = 2l + 1\).

Now, we must check the given options to see which one is equivalent to this relationship.

(A) \(n_m = 2l^2 + 1\): Incorrect.
(B) \(n_m = l+2\): Incorrect.
(C) \(l = \frac{n_m - 1}{2}\): Let's rearrange this equation to solve for \(n_m\).
\[ 2l = n_m - 1 \]
\[ n_m = 2l + 1 \]
This matches our derived relationship. So, this option is correct.
(D) \(l = 2n_m + 1\): Incorrect.


Step 4: Final Answer:

The correct relation is given by option (C).
Quick Tip: Remember the dependencies of quantum numbers: \(n\) determines the range of \(l\) (0 to n-1), and \(l\) determines the range of \(m_l\) (-l to +l). The number of orbitals in a subshell \(l\) is \(2l+1\), and the number of orbitals in a shell \(n\) is \(n^2\).

Step 1: Understanding the Question:

We need to evaluate a list of five statements related to atomic structure and theory and identify the combination of correct statements.


Step 3: Detailed Explanation:

Let's analyze each statement:

Statement A: Atoms of all elements are composed of two fundamental particles.

This is false. Atoms are generally composed of three fundamental particles: protons, neutrons, and electrons. An exception is the protium isotope of hydrogen (\(^1\)H), which has one proton and one electron but no neutron. However, the statement claims this for "all elements," which is incorrect.
Statement B: The mass of the electron is 9.10939 × 10\(^{-31}\) kg.

This is true. This is the experimentally determined and accepted value for the rest mass of an electron.
Statement C: All the isotopes of a given element show same chemical properties.

This is true. Isotopes are atoms of the same element with the same number of protons but different numbers of neutrons. Since they have the same number of protons, they also have the same number of electrons in their neutral state. Chemical properties are primarily determined by the electronic configuration, which is the same for all isotopes of an element.
Statement D: Protons and electrons are collectively known as nucleons.

This is false. The term "nucleons" refers to the particles found in the atomic nucleus, which are protons and neutrons. Electrons are not nucleons; they orbit the nucleus.
Statement E: Dalton's atomic theory, regarded the atom as an ultimate particle of matter.

This is true. One of the key postulates of John Dalton's original atomic theory (early 19th century) was that atoms are fundamental, indivisible particles. Although we now know atoms are divisible, the statement correctly describes a core aspect of Dalton's theory.

So, the correct statements are B, C, and E.


Step 4: Final Answer:

The correct option is (B), which includes statements B, C, and E.
Quick Tip: When evaluating historical scientific theories like Dalton's, answer based on the theory's original postulates, not our modern understanding. The statement about Dalton's theory is correct in its historical context.

Step 1: Understanding the Question:

The question asks us to identify an example of heterogeneous catalysis from the given options.


Step 2: Key Formula or Approach:

Catalysis is classified based on the physical state (phase) of the reactants and the catalyst.

Homogeneous catalysis: The reactants and the catalyst are in the same phase (e.g., all are gases, or all are in the same liquid solution).
Heterogeneous catalysis: The reactants and the catalyst are in different phases (e.g., gaseous reactants with a solid catalyst).


Step 3: Detailed Explanation:

Let's analyze the phase of reactants and catalysts in each option:

(A) Decomposition of ozone in presence of nitrogen monoxide.

Reaction: \(2O_3(g) \xrightarrow{NO(g)} 3O_2(g)\).

Reactant (Ozone) is a gas, and the catalyst (NO) is also a gas. Since they are in the same phase, this is homogeneous catalysis.
(B) Combination between dinitrogen and dihydrogen to form ammonia in the presence of finely divided iron.

This is the Haber-Bosch process: \(N_2(g) + 3H_2(g) \xrightarrow{Fe(s)} 2NH_3(g)\).

Reactants (N\(_2\), H\(_2\)) are gases, but the catalyst (Iron) is a solid. Since the reactants and catalyst are in different phases, this is heterogeneous catalysis.
(C) Oxidation of sulphur dioxide into sulphur trioxide in the presence of oxides of nitrogen.

This is the lead chamber process: \(2SO_2(g) + O_2(g) \xrightarrow{NO(g)} 2SO_3(g)\).

Reactants (SO\(_2\), O\(_2\)) are gases, and the catalyst (NO) is also a gas. This is homogeneous catalysis.
(D) Hydrolysis of sugar catalysed by H\(^+\) ions.

Reaction: \(C_{12}H_{22}O_{11}(aq) + H_2O(l) \xrightarrow{H^+(aq)} C_6H_{12}O_6(aq) + C_6H_{12}O_6(aq)\).

The reactant (sugar) and the catalyst (H\(^+\) ions) are both dissolved in the same aqueous solution. This is homogeneous catalysis.


Step 4: Final Answer:

The Haber-Bosch process for ammonia synthesis is the correct example of heterogeneous catalysis.
Quick Tip: Heterogeneous catalysis often involves a solid catalyst and gaseous or liquid reactants. This is very common in industrial processes (like the Haber-Bosch process or catalytic converters in cars) because it makes separating the catalyst from the products easier.

Step 1: Understanding the Question:

The question asks for the mass of two moles of the organic product formed from a specific chemical reaction: heating sodium ethanoate with soda-lime.


Step 2: Key Formula or Approach:

1. Identify the reaction. Heating a sodium salt of a carboxylic acid with soda-lime (a mixture of NaOH and CaO) is a standard method for the decarboxylation of carboxylic acids, producing an alkane with one less carbon atom.
2. Write the balanced chemical equation.
3. Identify the organic product.
4. Calculate the molar mass of the product.
5. Calculate the mass of two moles of the product.


Step 3: Detailed Explanation:

Part 1: The Reaction

The reaction is the decarboxylation of sodium ethanoate (CH\(_3\)COONa) using soda-lime (NaOH + CaO). \[ CH_3COONa + NaOH \xrightarrow{CaO, \Delta} CH_4 + Na_2CO_3 \]
The organic product formed is methane (CH\(_4\)).


Part 2: Molar Mass of the Product

The molar mass of methane (CH\(_4\)) is:
Molar Mass = 12.01 (C) + 4 \(\times\) 1.01 (H) \(\approx\) 16 g/mol.


Part 3: Mass of Two Moles

The question asks for the weight of two moles of the organic compound.
Mass = number of moles \(\times\) molar mass
Mass = 2 mol \(\times\) 16 g/mol = 32 g.


Step 4: Final Answer:

The weight of two moles of the organic compound (methane) is 32 g.
Quick Tip: Decarboxylation with soda-lime is a "step-down" reaction. It removes the -COO group and replaces it with an H atom, effectively reducing the carbon chain length by one. For example, sodium propanoate would yield ethane.

Step 1: Understanding the Question:

We need to count the number of sigma (\(\sigma\)) bonds, pi (\(\pi\)) bonds, and lone pairs of electrons in the structure of pyridine.


Step 2: Key Formula or Approach:

1. Draw the Lewis structure of pyridine (C\(_5\)H\(_5\)N).
2. Count the bonds and lone pairs based on the structure.

Every single bond is one \(\sigma\) bond.
Every double bond consists of one \(\sigma\) bond and one \(\pi\) bond.
Every triple bond consists of one \(\sigma\) bond and two \(\pi\) bonds.
Determine the lone pairs on the heteroatom (Nitrogen) based on its valency.


Step 3: Detailed Explanation:

The structure of pyridine is a six-membered aromatic ring containing five carbon atoms and one nitrogen atom. Each carbon is bonded to one hydrogen atom.

Let's count the bonds:

\(\sigma\) bonds:

There are 5 C-H single bonds. (5 \(\sigma\) bonds)
Within the ring, there are 4 C-C single bonds and 2 C-N single bonds. (6 \(\sigma\) bonds)
Total \(\sigma\) bonds = 5 (C-H) + 6 (in-ring single bonds) = 11 \(\sigma\) bonds.

Alternatively, for a cyclic molecule, the number of \(\sigma\) bonds equals the number of atoms. Pyridine has 5 C + 5 H + 1 N = 11 atoms, so there are 11 \(\sigma\) bonds. This shortcut works for single rings.
\(\pi\) bonds:

Pyridine has three double bonds in the ring to satisfy aromaticity. Each double bond contains one \(\pi\) bond.
Total \(\pi\) bonds = 3.

Lone pairs:

Carbon has 4 valence electrons and forms 4 bonds, so no lone pairs on carbon.
Nitrogen is in group 15 and has 5 valence electrons. In pyridine, it forms three bonds (two single, one double). So, the number of non-bonding electrons = 5 - 3 = 2.
This corresponds to one lone pair of electrons.


So, the counts are: 11 \(\sigma\) bonds, 3 \(\pi\) bonds, and 1 lone pair.


Step 4: Final Answer:

The correct combination is 11, 3, 1.
Quick Tip: For polyatomic molecules, a quick way to count \(\sigma\) bonds is: (Total number of atoms) - 1 for acyclic molecules, or (Total number of atoms) for monocyclic molecules. The number of \(\pi\) bonds is easily counted from the double and triple bonds in the structure.

Step 1: Understanding the Question:

The question asks to identify the monomer unit that polymerizes to form neoprene.


Step 3: Detailed Explanation:

Let's identify the polymers formed from each monomer:

Neoprene is a synthetic rubber. It is the polymer of the monomer chloroprene. The chemical structure of chloroprene is 2-chloro-1,3-butadiene.
\[ H_2C=C(Cl)-CH=CH_2 \]
This matches option (D).

Let's analyze the other options for context:

Option (A) is vinylacetylene.
Option (B) is isoprene (2-methyl-1,3-butadiene). Polymerization of isoprene gives polyisoprene, which is the chemical constituent of natural rubber.
Option (C) is 1,3-butadiene. Polymerization of this monomer gives polybutadiene, another type of synthetic rubber.


Step 4: Final Answer:

The molecule that polymerizes to produce neoprene is chloroprene, which is H\(_2\)C=C(Cl)-CH=CH\(_2\).
Quick Tip: Memorize the monomers of important addition polymers: Polyethene \(\leftarrow\) Ethene Teflon \(\leftarrow\) Tetrafluoroethene PVC \(\leftarrow\) Vinyl chloride Natural Rubber \(\leftarrow\) Isoprene Neoprene \(\leftarrow\) Chloroprene Buna-S \(\leftarrow\) 1,3-Butadiene + Styrene Buna-N \(\leftarrow\) 1,3-Butadiene + Acrylonitrile

Step 1: Understanding the Question:

The question asks for the reason why the Cu\(^{2+}\) ion is more stable than the Cu\(^+\) ion specifically in aqueous solutions, despite the fact that removing a second electron from copper requires more energy.


Step 3: Detailed Explanation:

Let's analyze the factors involved:

Ionization Enthalpy: The electronic configuration of Cu is [Ar] 3d\(^{10}\) 4s\(^1\).

The first ionization enthalpy (IE\(_1\)) to form Cu\(^+\) ([Ar] 3d\(^{10}\)) is relatively low.
The second ionization enthalpy (IE\(_2\)) to form Cu\(^{2+}\) ([Ar] 3d\(^9\)) is very high because it involves removing an electron from a very stable, completely filled d-orbital.

Based on ionization enthalpies alone, Cu\(^+\) should be much more stable than Cu\(^{2+}\). This contradicts the observation in aqueous solution. Therefore, (B) and (C) are not the reasons for the stability of Cu\(^{2+}\); in fact, they argue against it.
Hydration Energy (Enthalpy): When ions are dissolved in water, they become hydrated, and this process releases energy. This released energy is called hydration energy. The magnitude of hydration energy depends on the charge density of the ion (charge/size ratio).

The Cu\(^{2+}\) ion has a greater positive charge (+2) and a smaller ionic radius compared to the Cu\(^+\) ion (+1).
This gives Cu\(^{2+}\) a much higher charge density than Cu\(^+\).
Consequently, the hydration enthalpy of Cu\(^{2+}\) is much more negative (i.e., much more energy is released) than that of Cu\(^+\).

Overall Stability: The high amount of energy released during the hydration of Cu\(^{2+}\) more than compensates for the high second ionization enthalpy required to form it. This large negative hydration enthalpy makes the overall process of forming hydrated Cu\(^{2+}\) from Cu(s) more favorable than forming hydrated Cu\(^+\), thus making Cu\(^{2+}\) more stable in aqueous solutions.
Enthalpy of atomization is the energy required to convert a substance from its standard state to gaseous atoms. While part of the overall Born-Haber cycle, it is not the primary differentiating factor for the stability of the two ions in solution.


Step 4: Final Answer:

The greater stability of Cu\(^{2+}\) in aqueous solution is due to its much higher hydration energy.
Quick Tip: Stability of ions can be different in the gaseous phase versus aqueous solution. In the gas phase, stability is governed mainly by ionization energy (favoring Cu\(^+\)). In aqueous solution, the hydration energy term becomes dominant and can reverse the stability order (favoring Cu\(^{2+}\)).

Step 1: Understanding the Question:

The question asks for the final product [C] of a two-step reaction sequence starting from cyclohexanone [A].


Step 2: Key Formula or Approach:

The reaction sequence involves two key transformations:
1. Cyanohydrin formation: A ketone reacts with HCN to form a cyanohydrin.
2. Acid hydrolysis and dehydration: The cyanohydrin is treated with concentrated acid (H\(_2\)SO\(_4\)) and heat. The nitrile group (-CN) hydrolyzes to a carboxylic acid (-COOH), and the tertiary alcohol group (-OH) undergoes dehydration to form an alkene.


Step 3: Detailed Explanation:

Step I: Formation of Cyanohydrin [B]

The carbonyl group of cyclohexanone [A] is attacked by the nucleophilic cyanide ion (from HCN) to form cyclohexanone cyanohydrin [B].
\[ [A: Cyclohexanone] \xrightarrow{HCN} [B: 1-hydroxycyclohexanecarbonitrile] \]
The structure of [B] has both a hydroxyl (-OH) group and a nitrile (-CN) group attached to the same carbon atom (C1) of the ring.


Step II: Formation of Product [C]

Product [B] is heated with concentrated sulfuric acid. Two reactions occur simultaneously:

Hydrolysis of Nitrile: The nitrile group (-C\(\equiv\)N) is completely hydrolyzed by the strong acid to a carboxylic acid group (-COOH).

Dehydration of Alcohol: The hydroxyl group (-OH) is on a tertiary carbon, making it susceptible to dehydration (elimination of a water molecule) in the presence of a strong acid like conc. H\(_2\)SO\(_4\) and heat. A double bond is formed between C1 and an adjacent carbon (C2 or C6) of the ring.

The combined result is the formation of cyclohex-1-ene-1-carboxylic acid.
\[ [B] \xrightarrow{conc. H_2SO_4, \Delta} [C: Cyclohex-1-ene-1-carboxylic acid] + NH_4HSO_4 + H_2O \]

Step 4: Final Answer:

The final product [C] is cyclohex-1-ene-1-carboxylic acid, which corresponds to the structure shown in option (1). Quick Tip: When faced with a confusing or seemingly incorrect diagram in a multiple-choice question, try to identify the types of reactions indicated by the reagents (e.g., HCN addition, acid hydrolysis). Then, see if any of the options represent a logical final product for such a reaction type, even if the specific intermediates shown don't make sense.

Step 1: Understanding the Question:

The question asks to identify which of the given reactions does not produce a primary amine.


Step 2: Key Formula or Approach:

We need to know the products of the reduction of isonitriles, amides, and nitriles, as well as the product of the Hofmann bromamide degradation.

Primary amine: An amine where the nitrogen atom is bonded to one alkyl/aryl group and two hydrogen atoms (R-NH\(_2\)).
Secondary amine: An amine where the nitrogen atom is bonded to two alkyl/aryl groups and one hydrogen atom (R\(_2\)NH).
Tertiary amine: An amine where the nitrogen atom is bonded to three alkyl/aryl groups (R\(_3\)N).


Step 3: Detailed Explanation:

Let's analyze each reaction:

(A) Reduction of Methyl isocyanide (CH\(_3\)NC): Isonitriles (or isocyanides) on reduction with LiAlH\(_4\) are converted to secondary amines.
\[ CH_3-N\equivC \xrightarrow{LiAlH_4} CH_3-NH-CH_3 \]
The product is N-methylmethanamine (dimethylamine), which is a secondary amine. Thus, this reaction does not give a primary amine.
(B) Reduction of Acetamide (CH\(_3\)CONH\(_2\)): Amides are reduced by LiAlH\(_4\) to amines. The C=O group is reduced to a CH\(_2\) group.
\[ CH_3CONH_2 \xrightarrow{LiAlH_4} CH_3CH_2NH_2 \]
The product is ethanamine, which is a primary amine.
(C) Hofmann Bromamide Degradation of Acetamide (CH\(_3\)CONH\(_2\)): This reaction converts an amide to a primary amine with one less carbon atom.
\[ CH_3CONH_2 + Br_2 + 4KOH \rightarrow CH_3NH_2 + 2KBr + K_2CO_3 + 2H_2O \]
The product is methanamine, which is a primary amine.
(D) Reduction of Acetonitrile (CH\(_3\)CN): Nitriles (or cyanides) are reduced by LiAlH\(_4\) to primary amines. The C\(\equiv\)N group is reduced to a CH\(_2\)NH\(_2\) group.
\[ CH_3CN \xrightarrow{LiAlH_4} CH_3CH_2NH_2 \]
The product is ethanamine, which is a primary amine.


Step 4: Final Answer:

The reduction of methyl isocyanide is the only reaction that does not yield a primary amine; it yields a secondary amine.
Quick Tip: A key distinction to remember for reductions: Reduction of Cyanides (R-CN) gives primary amines (R-CH\(_2\)NH\(_2\)). Reduction of Isocyanides (R-NC) gives secondary amines (R-NH-CH\(_3\)). The carbon in the isocyanide group becomes a methyl group attached to the nitrogen.

Step 1: Understanding the Question:

This is an Assertion-Reason question about the use of helium in diving gas mixtures. We need to evaluate both statements.


Step 3: Detailed Explanation:

Analysis of Assertion A:

The assertion states that helium is used to dilute oxygen in diving apparatus. This is true. For deep-sea diving, compressed air is used. However, at high pressures underwater, the nitrogen from the air dissolves in the bloodstream. When the diver ascends, the pressure decreases, and the dissolved nitrogen comes out of solution as bubbles, leading to a painful and dangerous condition called "the bends" or decompression sickness. To avoid this, diving gas mixtures often replace nitrogen with helium. The mixture is called heliox.


Analysis of Reason R:

The reason states that helium has high solubility in O\(_2\). This statement is confusingly worded. The relevant property is not the solubility of helium in oxygen, but the solubility of helium in blood. Helium has very low solubility in blood, even at high pressures. This low solubility is the primary reason it is used to replace nitrogen in diving gas. Because very little helium dissolves in the blood, the problem of gas bubbles forming during decompression is minimized. The statement given in the reason, "Helium has high solubility in O\(_2\)", is irrelevant and also physically incorrect in the context of explaining its use. The key property is its low solubility in blood. Therefore, the reason is false.


Step 4: Final Answer:

Assertion A is a true statement, but Reason R is a false statement.
Quick Tip: The use of helium in diving tanks is a classic application of Henry's Law, which relates the solubility of a gas in a liquid to the partial pressure of the gas above the liquid. Helium's low solubility in blood is the key reason for its use to prevent "the bends".

Step 1: Understanding the Question:

This is a multi-step organic synthesis problem starting from benzenediazonium chloride. We need to follow the sequence of reactions to identify the final product.


Step 2: Key Formula or Approach:

We need to identify the purpose of each reagent in the sequence.

Step (i) Cu\(_2\)Br\(_2\)/HBr: This is the Sandmeyer reaction, which replaces the diazonium group (-\(N_2^+Cl^-\)) with a bromine atom.
Step (ii) Mg/dry ether: This reagent is used to form a Grignard reagent from an aryl or alkyl halide.
Step (iii) H\(_2\)O: This is the workup step. Adding water to a Grignard reagent protonates it, replacing the -MgBr group with a hydrogen atom.


Step 3: Detailed Explanation:

Let's trace the reaction step-by-step:

Starting Material: Benzenediazonium chloride.
Step (i): Reaction with Cu\(_2\)Br\(_2\)/HBr.
\[ C_6H_5N_2^+Cl^- \xrightarrow{Cu_2Br_2/HBr} C_6H_5Br + N_2 + CuCl \]
The product of the first step is Bromobenzene.
Step (ii): The bromobenzene is then treated with magnesium in dry ether.
\[ C_6H_5Br + Mg \xrightarrow{dry ether} C_6H_5MgBr \]
This reaction forms the Grignard reagent, phenylmagnesium bromide.
Step (iii): The Grignard reagent is then treated with water. Grignard reagents are strong bases and react with any source of acidic protons, like water.
\[ C_6H_5MgBr + H_2O \rightarrow C_6H_6 + Mg(OH)Br \]
The phenyl group acts as a carbanion and abstracts a proton from water, forming benzene (C\(_6\)H\(_6\)).

The final product of the entire sequence is Benzene.


Step 4: Final Answer:

The final product is Benzene.
Quick Tip: This reaction sequence illustrates important name reactions. The Sandmeyer reaction is a key method to introduce various functional groups onto a benzene ring via a diazonium salt. Remember that Grignard reagents are highly reactive towards protic solvents like water, alcohols, and acids, leading to the formation of the corresponding alkane or arene.

Step 1: Understanding the Question:

This is a reaction of a secondary alcohol with hydrogen bromide (HBr). We need to predict the major product, which involves understanding the reaction mechanism.


Step 2: Key Formula or Approach:

The reaction of an alcohol with a hydrogen halide (like HBr) proceeds via a carbocation intermediate (for secondary and tertiary alcohols, following an S\(_N\)1 mechanism).
The mechanism involves three steps:
1. Protonation of the alcohol's hydroxyl group by H\(^+\) to form a good leaving group (water).
2. Loss of the leaving group (H\(_2\)O) to form a carbocation.
3. Attack of the nucleophile (Br\(^-\)) on the carbocation.
A key feature of this mechanism is the possibility of carbocation rearrangement to form a more stable carbocation. The stability of carbocations follows the order: tertiary > secondary > primary.


Step 3: Detailed Explanation:

Step 1: Protonation

The oxygen atom of the -OH group in 3-methylbutan-2-ol gets protonated by HBr. \[ CH_3-CH(CH_3)-CH(OH)-CH_3 + H^+ \rightarrow CH_3-CH(CH_3)-CH(OH_2^+)-CH_3 \]
Step 2: Formation of Carbocation

The protonated alcohol loses a water molecule to form a secondary carbocation. \[ CH_3-CH(CH_3)-CH(OH_2^+)-CH_3 \rightarrow CH_3-CH(CH_3)-CH^+-CH_3 + H_2O \]
This is a secondary (2°) carbocation.

Step 3: Carbocation Rearrangement

We must check if this carbocation can rearrange to a more stable one. A hydride shift (1,2-hydride shift) from the adjacent carbon (carbon-3) can occur. \[ CH_3-\overset{H}{\overset{|}{C}}(CH_3)-\overset{+}{C}H-CH_3 \xrightarrow{1,2-hydride shift} CH_3-\overset{+}{C}(CH_3)-CH_2-CH_3 \]
The new carbocation formed is a tertiary (3°) carbocation, which is significantly more stable than the initial secondary carbocation. This rearrangement will be the major pathway.

Step 4: Nucleophilic Attack

The bromide ion (Br\(^-\)) now attacks the more stable tertiary carbocation. \[ CH_3-\overset{+}{C}(CH_3)-CH_2-CH_3 + Br^- \rightarrow CH_3-C(Br)(CH_3)-CH_2-CH_3 \]
The major product is 2-bromo-2-methylbutane. This matches the structure in option (C).

The product in option (A) would be formed if no rearrangement occurred, making it the minor product. Option (D) is an elimination product, which is less likely under these conditions.


Step 4: Final Answer:

The major product (P) is 2-bromo-2-methylbutane, formed via a carbocation rearrangement.
Quick Tip: Whenever a reaction proceeds through a carbocation intermediate (like S\(_N\)1 reactions of alcohols or additions to alkenes), always check for the possibility of rearrangement (hydride or alkyl shift) to form a more stable carbocation. This is a very common topic for questions.

Step 1: Understanding the Question:

The question shows a reaction involving a diketone and asks to identify the product (A). We need to recognize the reagents and the transformation they cause.


Step 2: Key Formula or Approach:

The reagents used are Zn-Hg (zinc amalgam) and concentrated HCl. This set of reagents is used for the Clemmensen reduction.

The Clemmensen reduction is a chemical reaction used to reduce aldehydes or ketones to the corresponding alkanes. It completely removes the oxygen from the carbonyl group (C=O) and replaces it with two hydrogen atoms (CH\(_2\)). \[ R-CO-R' \xrightarrow{Zn-Hg, conc. HCl} R-CH_2-R' \]

Step 3: Detailed Explanation:

The starting material has two ketone (carbonyl) groups: one on the cyclohexyl ring and one on the benzene ring. Both of these ketone groups will be reduced by the Clemmensen reagents.

The acetyl group (-COCH\(_3\)) on the cyclohexyl ring will be reduced to an ethyl group (-CH\(_2\)CH\(_3\)).
The acetyl group (-COCH\(_3\)) on the benzene ring will also be reduced to an ethyl group (-CH\(_2\)CH\(_3\)).

The overall transformation is: \[ Structure with two -COCH_3 groups \xrightarrow{Zn-Hg, conc. HCl} Structure with two -CH_2CH_3 groups \]
The product (A) will be the original carbon skeleton but with two ethyl groups instead of the two acetyl groups.
Let's analyze the options:

(1) Shows reduction to secondary alcohols followed by dehydration and rearrangement. Incorrect.
(2) and (3) both show the correct product, which is the starting molecule with both C=O groups reduced to CH\(_2\). So, the acetyl groups become ethyl groups. Let's assume (3) is the intended correct representation.
(4) Shows reduction of the ketones to secondary alcohols. This would be the product of reduction with a milder reducing agent like NaBH\(_4\), not the Clemmensen reduction.


Step 4: Final Answer:

The Clemmensen reduction reduces both ketone groups to methylene groups, converting the two acetyl groups into two ethyl groups. The correct product is shown in option (3).
Quick Tip: Remember the two main reactions for reducing carbonyls to alkanes: \textbf{Clemmensen Reduction:} Zn-Hg, conc. HCl. Works under acidic conditions. Not suitable for acid-sensitive substrates. \textbf{Wolff-Kishner Reduction:} NH\(_2\)NH\(_2\), KOH, heat. Works under basic conditions. Not suitable for base-sensitive substrates. Both achieve the same C=O \(\rightarrow\) CH\(_2\) transformation.

Step 1: Understanding the Question:

The question asks to identify the correct stability relationship for halides of Group 13 elements. This relates to the concept of the inert pair effect.


Step 2: Key Formula or Approach:

The inert pair effect describes the increasing stability of the lower oxidation state (n-2) compared to the higher group oxidation state (n) as we move down a p-block group. For Group 13 (B, Al, Ga, In, Tl), the group oxidation state is +3, and the lower oxidation state is +1.

The inert pair effect becomes significant for the heavier elements in the group. This means that for Thallium (Tl), the +1 oxidation state is more stable than the +3 oxidation state. For the lighter elements like Aluminum (Al), the +3 oxidation state is the most stable.


Step 3: Detailed Explanation:

Let's analyze the stability of the oxidation states for the elements in the options:

Aluminum (Al): It is in the 3rd period. The inert pair effect is negligible. The +3 oxidation state is much more stable than the +1 state. Therefore, AlCl\(_3\) is much more stable than AlCl. The relationship AlCl > AlCl\(_3\) is incorrect.
Indium (In): It is in the 5th period. The inert pair effect starts to become significant. Both +1 and +3 oxidation states exist, but the +3 state is still generally more stable than the +1 state. However, with large anions like iodide (I\(^-\)), the In\(^{3+}\) ion has high polarizing power and can oxidize I\(^-\) to I\(_2\). InI\(_3\) is less stable than InI. The relationship InI\(_3\) > InI is incorrect. In fact, InI is more stable.
Thallium (Tl): It is in the 6th period. The inert pair effect is very strong. The +1 oxidation state is significantly more stable than the +3 oxidation state.

Comparing TlCl\(_3\) and TlCl: TlCl (+1 state) is more stable than TlCl\(_3\) (+3 state). TlCl\(_3\) is a strong oxidizing agent and is thermally unstable. The relationship TlCl\(_3\) > TlCl is incorrect.
Comparing TlI\(_3\) and TlI: The +1 state is much more stable. Furthermore, Tl\(^{3+}\) is a strong oxidizing agent, and I\(^-\) is a good reducing agent. Tl\(^{3+}\) would oxidize I\(^-\) to I\(_2\). In fact, the compound written as TlI\(_3\) does not contain the Tl\(^{3+}\) ion; it exists as Tl\(^+\)(I\(_3\)\(^-\)), an ionic compound of thallium(I) and the triiodide ion. Therefore, TlI, containing the stable Tl\(^+\) ion, is much more stable than a hypothetical TlI\(_3\) containing Tl\(^{3+}\). The relationship TlI > TlI\(_3\) is correct.



Step 4: Final Answer:

Due to the inert pair effect, the +1 oxidation state is most stable for thallium. Therefore, TlI is more stable than TlI\(_3\).
Quick Tip: Remember the trend for the inert pair effect: stability of the lower oxidation state increases down the group in the p-block. For Group 13, the stability order of the +1 state is Al\(^+\) < Ga\(^+\) < In\(^+\) < Tl\(^+\). For Tl, the +1 state is the most stable.

Step 1: Understanding the Question:

The question provides the conductivity (\(\kappa\)) and resistance (\(R\)) of a KCl solution in a conductivity cell and asks for the value of the cell constant (\(G^*\)).


Step 2: Key Formula or Approach:

The relationship between conductivity (\(\kappa\)), resistance (\(R\)), and the cell constant (\(G^*\)) is given by the formula: \[ \kappa = \frac{1}{R} \times G^* \]
The cell constant is defined as the ratio of the distance between the electrodes (\(l\)) to their cross-sectional area (\(A\)), i.e., \(G^* = \frac{l}{A}\).


Step 3: Detailed Explanation:

We are given the following values:

Conductivity, \(\kappa = 0.0210 \, \Omega^{-1} cm^{-1}\).
Resistance, \(R = 60 \, \Omega\).

We need to find the cell constant, \(G^*\).
Rearranging the formula: \[ G^* = \kappa \times R \]
Substitute the given values into the equation: \[ G^* = (0.0210 \, \Omega^{-1} cm^{-1}) \times (60 \, \Omega) \] \[ G^* = 0.0210 \times 60 cm^{-1} \] \[ G^* = 1.26 cm^{-1} \]
The information about the concentration ("centimolar solution") is not required for this specific calculation.


Step 4: Final Answer:

The value of the cell constant is 1.26 cm\(^{-1}\).
Quick Tip: Remember the fundamental equation for conductivity measurements: Conductivity = Conductance \(\times\) Cell Constant. Since conductance is the reciprocal of resistance (\(G=1/R\)), this becomes \(\kappa = (1/R) \times G^*\). This formula is key to solving most problems involving conductivity cells.

Step 1: Understanding the Question:

The question asks to identify the correct statement among four options related to the biological roles of calcium and magnesium.


Step 3: Detailed Explanation:

Let's analyze each statement:

(A) The bone in human body is an inert and unchanging substance.

This is false. Bone is a dynamic living tissue that is constantly being remodeled (broken down and rebuilt) throughout life. It is not inert.
(B) Mg plays roles in neuromuscular function and interneuronal transmission.

This is true. Magnesium ions (Mg\(^{2+}\)) are crucial for many biological processes. They act as a physiological calcium channel blocker and are essential for nerve impulse transmission, muscle contraction (neuromuscular function), and maintaining a normal heart rhythm.
(C) The daily requirement of Mg and Ca in the human body is estimated to be 0.2 - 0.3 g.

This is false. The daily requirement for an adult for calcium is much higher, typically around 1000-1200 mg (1.0-1.2 g). For magnesium, it is around 300-400 mg (0.3-0.4 g). The given range of 200-300 mg (0.2-0.3 g) is too low, especially for calcium.
(D) All enzymes that utilise ATP in phosphate transfer require Ca as the cofactor.

This is false. Most enzymes that utilize ATP in phosphate transfer (kinases) require Magnesium (Mg\(^{2+}\)) as the cofactor. The Mg\(^{2+}\) ion complexes with the phosphate groups of ATP, stabilizing the negative charges and facilitating the nucleophilic attack for phosphate transfer.


Step 4: Final Answer:

The only correct statement is (B).
Quick Tip: Remember the key biological roles: Calcium (Ca\(^{2+}\)) is primarily associated with bones, teeth, muscle contraction signaling, and blood clotting. Magnesium (Mg\(^{2+}\)) is a critical cofactor for ATP-dependent enzymes and plays a key role in nerve and muscle function.

Step 1: Understanding the Question:

This is a matching question where we need to correctly pair different forms of carbon (allotropes and an amorphous form) with their characteristic properties or uses.


Step 3: Detailed Explanation:

Let's match each item in List-I with its correct description in List-II.

A. Coke: Coke is an amorphous form of carbon produced by heating coal in the absence of air. It is a key material in metallurgy, where it acts as a reducing agent to reduce metal oxides to metals (e.g., in a blast furnace). So, A matches with III.
B. Diamond: Diamond is a crystalline allotrope of carbon. In its structure, each carbon atom is bonded to four other carbon atoms in a tetrahedral arrangement. This corresponds to sp\(^3\) hybridization. So, B matches with I.
C. Fullerene: Fullerenes (like C\(_60\)) are crystalline allotropes of carbon where the atoms are arranged in a hollow sphere or ellipsoid. These are described as cage-like molecules (often called buckyballs). So, C matches with IV.
D. Graphite: Graphite is a crystalline allotrope of carbon with a layered structure. The layers can slide easily over one another, which makes graphite soft and an excellent dry lubricant. So, D matches with II.

The correct matching is: A-III, B-I, C-IV, D-II.


Step 4: Final Answer:

Comparing our matching with the options, option (A) is the correct one.
Quick Tip: Associate the structure of carbon allotropes with their properties: \textbf{Diamond:} 3D network, sp\(^3\), hard. \textbf{Graphite:} 2D layers, sp\(^2\), soft, lubricant, conductive. \textbf{Fullerene:} Cage-like, sp\(^2\), buckyballs. \textbf{Coke/Charcoal:} Amorphous, porous, good reducing agent/adsorbent.

Step 1: Understanding the Question:

This Assertion-Reason question deals with the properties of solutions of alkali metals in liquid ammonia. We need to evaluate both statements.


Step 3: Detailed Explanation:

Analysis of Assertion A:

The assertion states that sodium metal dissolves in liquid ammonia to form a deep blue, paramagnetic solution. This is a well-known characteristic property of alkali metals. \[ Na(s) + (x+y)NH_3(l) \rightarrow [Na(NH_3)_x]^+ + [e(NH_3)_y]^- \]
The dissolution produces solvated cations (ammoniated cations) and solvated electrons (ammoniated electrons).

The presence of unpaired ammoniated electrons makes the solution paramagnetic.
These ammoniated electrons absorb energy in the visible region of the electromagnetic spectrum, and the transmitted light is deep blue.

Therefore, Assertion A is true.


Analysis of Reason R:

The reason claims that the deep blue color is due to the formation of amide.
Sodium amide (NaNH\(_2\)) is formed when the solution is allowed to stand for a long time or in the presence of a catalyst (like Fe\(^{3+}\) ions), as the ammoniated electron slowly reduces ammonia: \[ [e(NH_3)_y]^- + NH_3 \rightarrow NH_2^- + \frac{1}{2}H_2 + (y-1)NH_3 \]
This is a decomposition reaction that causes the blue color to fade. The amide ion (NH\(_2^-\)) itself is not responsible for the initial deep blue color. The color is due to the ammoniated electrons.
Therefore, Reason R is false.


Step 4: Final Answer:

Assertion A is true, but Reason R is false.
Quick Tip: Remember the key species in alkali metal-ammonia solutions: \textbf{Dilute solutions:} Blue color and paramagnetism due to ammoniated electrons. \textbf{Concentrated solutions:} Bronze color and diamagnetism due to the formation of electron pairs and metal clusters. \textbf{Decomposition product:} Sodium amide (NaNH\(_2\)), which is colorless.

Step 1: Understanding the Question:

We need to identify the incorrect statements about hydrogen and its compounds from the given list of five statements.


Step 3: Detailed Explanation:

Let's evaluate each statement:

A. Hydrogen is used to reduce heavy metal oxides to metals.

This is correct. Hydrogen is a good reducing agent and is used in metallurgy to reduce oxides of less reactive metals (like Cu, Pb, Sn) to their respective metals. E.g., CuO + H\(_2\) \(\rightarrow\) Cu + H\(_2\)O.
B. Heavy water is used to study reaction mechanism.

This is correct. Heavy water (D\(_2\)O) is used as a tracer to study the mechanism of chemical reactions. By replacing hydrogen with deuterium, chemists can track the path of the hydrogen atoms through the reaction.
C. Hydrogen is used to make saturated fats from oils.

This is correct. This process is called hydrogenation of oils. Unsaturated fats (containing C=C double bonds) in vegetable oils are reacted with hydrogen in the presence of a catalyst (like Ni, Pt, or Pd) to produce saturated fats (like vanaspati ghee).
D. The H-H bond dissociation enthalpy is lowest as compared to a single bond between two atoms of any element.

This is false. The H-H bond dissociation enthalpy is very high (435.88 kJ/mol). It is one of the strongest single bonds known, not the lowest. For example, the C-C bond (\(\sim\)348 kJ/mol) and Cl-Cl bond (\(\sim\)242 kJ/mol) are weaker.
E. Hydrogen reduces oxides of metals that are more active than iron.

This is false. Hydrogen can only reduce the oxides of metals that are less reactive than it. In the reactivity series, metals like Na, K, Ca, Mg, Al, and Fe are more reactive than hydrogen. Their oxides are very stable and cannot be reduced by hydrogen. Hydrogen can reduce oxides of metals like copper, lead, and tin, which are less reactive than iron.

The statements that are NOT correct are D and E.


Step 4: Final Answer:

The incorrect statements are D and E. This corresponds to option (A).
Quick Tip: To decide if hydrogen can reduce a metal oxide, use the electrochemical/reactivity series. Hydrogen can generally reduce the oxides of metals placed below it in the series, but not those placed significantly above it.

Step 1: Understanding the Question:

The question asks which of the given elements will form the largest ion when it achieves a noble gas configuration.


Step 2: Key Formula or Approach:

1. Determine the stable ion each element forms to achieve a noble gas configuration.
2. Compare the sizes of these ions.
3. For isoelectronic species (ions with the same number of electrons), the ionic radius decreases as the nuclear charge (number of protons) increases. This is because the electrons are pulled more strongly towards the nucleus.
4. For anions, the radius increases with increasing negative charge, as the added electrons increase electron-electron repulsion and are held less tightly by the nucleus.


Step 3: Detailed Explanation:

Let's find the ion formed by each element and its electronic configuration:

N (Nitrogen): Atomic number (Z) = 7. It is in Group 15. To achieve the nearest noble gas configuration (of Neon, 10 electrons), it will gain 3 electrons to form the nitride ion, N\(^{3-}\). It has 7 protons and 10 electrons.
Na (Sodium): Atomic number (Z) = 11. It is in Group 1. To achieve the nearest noble gas configuration (of Neon, 10 electrons), it will lose 1 electron to form the sodium ion, Na\(^+\). It has 11 protons and 10 electrons.
O (Oxygen): Atomic number (Z) = 8. It is in Group 16. To achieve the nearest noble gas configuration (of Neon, 10 electrons), it will gain 2 electrons to form the oxide ion, O\(^{2-}\). It has 8 protons and 10 electrons.
F (Fluorine): Atomic number (Z) = 9. It is in Group 17. To achieve the nearest noble gas configuration (of Neon, 10 electrons), it will gain 1 electron to form the fluoride ion, F\(^-\). It has 9 protons and 10 electrons.

All four ions formed (N\(^{3-}\), O\(^{2-}\), F\(^-\), Na\(^+\)) are isoelectronic, as they all have 10 electrons.

To compare their sizes, we look at the number of protons (nuclear charge):

N\(^{3-}\): 7 protons
O\(^{2-}\): 8 protons
F\(^-\): 9 protons
Na\(^+\): 11 protons

For isoelectronic species, the ion with the fewest protons will have the weakest pull on its electrons, resulting in the largest ionic radius. The N\(^{3-}\) ion has only 7 protons holding 10 electrons, so it will be the largest. The Na\(^+\) ion has 11 protons holding 10 electrons, so it will be the smallest.

The order of ionic radii is: N\(^{3-}\) > O\(^{2-}\) > F\(^-\) > Na\(^+\).


Step 4: Final Answer:

Nitrogen (N) will form the largest ion (N\(^{3-}\)) to achieve the nearest noble gas configuration.
Quick Tip: For isoelectronic ions, remember the simple rule: \textbf{more protons = smaller ion}. The greater the nuclear charge, the stronger the attraction for the same number of electrons, pulling the electron cloud closer.

Step 1: Understanding the Question:

This question is about the qualitative analysis of organic compounds, specifically the Lassaigne's test for nitrogen and sulphur when present together. We need to identify the chemical species responsible for the blood-red color.


Step 2: Key Formula or Approach:

In Lassaigne's test, the organic compound is fused with sodium metal.

If nitrogen is present, sodium cyanide (NaCN) is formed.
If sulphur is present, sodium sulfide (Na\(_2\)S) is formed.
If both nitrogen and sulphur are present, sodium thiocyanate (NaSCN) is formed.
\[ Na + C + N + S \rightarrow NaSCN \]

The test for thiocyanate involves adding a neutral or slightly acidic solution of iron(III) chloride (FeCl\(_3\)).


Step 3: Detailed Explanation:

When the Lassaigne's extract containing sodium thiocyanate (NaSCN) is treated with Fe\(^{3+}\) ions, a complex is formed. The thiocyanate ion (SCN\(^-\)) reacts with the ferric ion (Fe\(^{3+}\)) to produce a range of iron(III) thiocyanate complexes, which are intensely blood-red in color. \[ Fe^{3+} + SCN^- \rightleftharpoons [Fe(SCN)]^{2+} \]
Further reactions can form [Fe(SCN)\(_2\)]\(^+\), [Fe(SCN)\(_3\)], etc., all of which contribute to the blood-red coloration. The simplest and most commonly written product is [Fe(SCN)]\(^{2+}\).
Let's analyze the options:

(A) [Fe(CN)\(_5\)NOS]\(^{4-}\): This is the sodium nitroprusside complex, which gives a violet color with sulfide ions (S\(^{2-}\)), not a blood-red color with Fe\(^{3+}\).
(B) [Fe(SCN)]\(^{2+}\): This is the iron(III) thiocyanate complex, which is responsible for the characteristic blood-red color. This is the correct answer.
(C) Fe\(_4\)[Fe(CN)\(_6\)]\(_3\)\(\cdot\)xH\(_2\)O: This is Prussian blue, formed when nitrogen alone is present (as NaCN) and treated with FeSO\(_4\) followed by FeCl\(_3\).
(D) NaSCN: This is the substance formed during the sodium fusion, but it is colorless. The color appears only after adding Fe\(^{3+}\).


Step 4: Final Answer:

The formation of the complex ion [Fe(SCN)]\(^{2+}\) is responsible for the blood-red color.
Quick Tip: Remember the key colorimetric tests in Lassaigne's analysis: N only: Prussian blue with FeSO\(_4\)/FeCl\(_3\). S only: Violet color with sodium nitroprusside. N and S together: Blood-red color with FeCl\(_3\). Halogens: White/Yellow precipitate with AgNO\(_3\).

Step 1: Understanding the Question:

The question asks to identify which forces from the given list are classified as intermolecular forces.


Step 3: Detailed Explanation:

Let's define each force type and determine if it is intermolecular or intramolecular.

Intermolecular forces (IMFs) are forces that exist \textit{between molecules. They are generally weaker than intramolecular forces.
Intramolecular forces are forces that exist \textit{within a molecule, holding the atoms together (i.e., chemical bonds).

Now let's classify the given forces:

A. dipole - dipole forces: These are attractive forces between the positive end of one polar molecule and the negative end of another polar molecule. This is an intermolecular force.
B. dipole - induced dipole forces: These occur when a polar molecule induces a temporary dipole in a nonpolar molecule, leading to an attraction. This is an intermolecular force.
C. hydrogen bonding: This is a special, strong type of dipole-dipole interaction that occurs between a hydrogen atom bonded to a highly electronegative atom (N, O, or F) and another nearby electronegative atom. This is an intermolecular force.
D. covalent bonding: This is the force that holds atoms together within a molecule through the sharing of electrons. This is an intramolecular force, not an intermolecular one.
E. dispersion forces (London forces): These are weak forces arising from temporary, induced dipoles in atoms or molecules. They are present between all types of molecules. This is an intermolecular force.

The forces classified as intermolecular forces are A, B, C, and E. Covalent bonding (D) is an intramolecular force. Therefore, we should choose the option that includes A, B, C, and E, but excludes D.


Step 4: Final Answer:

The correct set of intermolecular forces is A, B, C, and E. This corresponds to option (A).
Quick Tip: A simple way to distinguish is to ask: "Does this force hold a molecule together, or does it attract one molecule to another?" Covalent, ionic, and metallic bonds hold molecules/crystals together (intramolecular). Van der Waals forces (dipole-dipole, London) and hydrogen bonds attract separate molecules to each other (intermolecular).

Step 1: Understanding the Question:

The question asks us to identify and count the number of molecules from a given list that do not follow the octet rule (i.e., the central atom does not have exactly 8 valence electrons).


Step 3: Detailed Explanation:

Let's draw the Lewis structure for each species and count the valence electrons around the central atom.

NH\(_3\) (Ammonia): The central atom is Nitrogen (N). N is in Group 15, so it has 5 valence electrons. It forms 3 single bonds with 3 H atoms and has 1 lone pair.
Total electrons around N = 3 (from bonds) \(\times\) 2 + 2 (lone pair) = 8 electrons. (Obeys octet rule)
AlCl\(_3\) (Aluminum Chloride): The central atom is Aluminum (Al). Al is in Group 13, so it has 3 valence electrons. It forms 3 single bonds with 3 Cl atoms.
Total electrons around Al = 3 (from bonds) \(\times\) 2 = 6 electrons. This is an electron-deficient molecule. (Does NOT obey octet rule)
BeCl\(_2\) (Beryllium Chloride): The central atom is Beryllium (Be). Be is in Group 2, so it has 2 valence electrons. It forms 2 single bonds with 2 Cl atoms.
Total electrons around Be = 2 (from bonds) \(\times\) 2 = 4 electrons. This is an electron-deficient molecule. (Does NOT obey octet rule)
CCl\(_4\) (Carbon Tetrachloride): The central atom is Carbon (C). C is in Group 14, so it has 4 valence electrons. It forms 4 single bonds with 4 Cl atoms.
Total electrons around C = 4 (from bonds) \(\times\) 2 = 8 electrons. (Obeys octet rule)
PCl\(_5\) (Phosphorus Pentachloride): The central atom is Phosphorus (P). P is in Group 15, so it has 5 valence electrons. It forms 5 single bonds with 5 Cl atoms.
Total electrons around P = 5 (from bonds) \(\times\) 2 = 10 electrons. This is a hypervalent molecule (expanded octet). (Does NOT obey octet rule)

The species that do not have eight electrons around the central atom are AlCl\(_3\) (6 electrons), BeCl\(_2\) (4 electrons), and PCl\(_5\) (10 electrons).

The total number of such species is 3.


Step 4: Final Answer:

There are 3 species in the list that do not have an octet of electrons around the central atom.
Quick Tip: Exceptions to the octet rule fall into three main categories: 1. \textbf{Incomplete Octet:} Central atoms with fewer than 8 electrons (common for elements in Groups 2, 13 like Be, B, Al). 2. \textbf{Expanded Octet (Hypervalent):} Central atoms with more than 8 electrons (possible for elements in Period 3 and below, like P, S, Cl). 3. \textbf{Odd-Electron Molecules:} Molecules with an odd total number of valence electrons (e.g., NO, ClO\(_2\)).

Step 1: Understanding the Question:

This is a solid-state chemistry problem. We need to determine the empirical formula of a compound based on the crystal lattice structure formed by its constituent elements.


Step 2: Key Formula or Approach:

1. In a close-packed structure (like CCP or FCC), if there are N atoms forming the lattice, then:

The number of octahedral voids is N.
The number of tetrahedral voids is 2N.

2. The cubic close-packed (CCP) structure is the same as the face-centered cubic (FCC) structure. The effective number of atoms per unit cell for CCP is N=4. We can work with a general N and the ratio will be the same.
3. Determine the number of atoms of A and B per unit cell based on the information given.
4. Find the simplest whole-number ratio of A to B to get the formula A\(_x\)B\(_y\).


Step 3: Detailed Explanation:

Let's assume the number of atoms of element B forming the CCP lattice is N.

Number of B atoms = N.

The number of tetrahedral voids in this lattice is 2N.

Atoms of element A occupy 1/3 of these tetrahedral voids.

Number of A atoms = \(\frac{1}{3} \times (Number of tetrahedral voids) = \frac{1}{3} \times (2N) = \frac{2N}{3}\).

Now, we find the ratio of the number of atoms of A to B: \[ Ratio A : B = \frac{2N}{3} : N \]
To get a simple ratio, we can divide by N: \[ Ratio A : B = \frac{2}{3} : 1 \]
To express this in whole numbers, we multiply by 3: \[ Ratio A : B = 2 : 3 \]
So, the empirical formula of the compound is A\(_2\)B\(_3\).

The question gives the formula as A\(_x\)B\(_y\). By comparing, we have \(x=2\) and \(y=3\).

We need to find the value of \(x+y\). \[ x + y = 2 + 3 = 5 \]

Step 4: Final Answer:

The value of x + y is 5.
Quick Tip: In lattice problems, it's often easiest to assume the number of lattice-forming atoms (N) is 1 and work with fractions. - B atoms = 1 - Tetrahedral voids = 2 - A atoms = (1/3) * 2 = 2/3 - Ratio A:B = 2/3 : 1 = 2:3. This method avoids carrying 'N' through the calculation.

Step 1: Understanding the Question:

The question asks to identify the correct graphical representation of Boyle's Law from the given options. Boyle's law describes the relationship between pressure (P) and volume (V) of a gas at constant temperature.


Step 2: Key Formula or Approach:

Boyle's Law states that for a fixed amount of gas at constant temperature, the pressure is inversely proportional to the volume. \[ P \propto \frac{1}{V} \quad or \quad PV = k \quad (where k is a constant) \]
From the ideal gas law, \(PV = nRT\), we can see that the constant \(k = nRT\). This means that for a fixed amount of gas (\(n\)), the value of the constant \(k\) is directly proportional to the absolute temperature (\(T\)).


Step 3: Detailed Explanation:

Let's analyze the graphs provided:

The graphs plot Pressure (P) on the y-axis and either Volume (V) or 1/V on the x-axis. The different curves on each graph represent different constant temperatures (isotherms).
Graph of P vs V: According to Boyle's law, \(P = k/V\). This represents a hyperbolic relationship. The graphs in options (1) and (3) show this hyperbolic shape.
Graph of P vs 1/V: According to Boyle's law, \(P = k \times (1/V)\). This is of the form \(y = mx\), which is a straight line passing through the origin with a slope of \(m=k\). The graphs in options (2) and (4) plot P vs T (incorrect for Boyle's law) or P vs 1/V. Graph (4) shows P vs 1/V as a straight line through the origin, which is correct.

Now let's consider the effect of temperature.

For P vs V graphs (1 and 3): The constant \(k = nRT\). As temperature \(T\) increases, the value of \(PV\) increases. This means that for a given volume V, a higher temperature T will result in a higher pressure P. Therefore, the isotherm for a higher temperature should lie above the isotherm for a lower temperature.

In Graph (1), for a fixed V, the pressure on the T\(_1\) curve is the highest, implying T\(_1\) > T\(_2\) > T\(_3\). This contradicts the label T\(_3\) > T\(_2\) > T\(_1\). So, (1) is incorrect.
In Graph (3), for a fixed V, the pressure on the T\(_3\) curve is the highest, followed by T\(_2\), and then T\(_1\). This corresponds to the relationship T\(_3\) > T\(_2\) > T\(_1\), which is given in the label. So, (3) is the correct representation.

For P vs 1/V graph (4): The slope of the line is \(k = nRT\). A higher temperature T should result in a steeper slope. In Graph (4), the line for T\(_3\) has the shallowest slope, while T\(_1\) has the steepest. This would mean T\(_1\) > T\(_2\) > T\(_3\). This contradicts the label T\(_3\) > T\(_2\) > T\(_1\). So, (4) is incorrect.
Graph (2) plots P vs T at constant volume (Gay-Lussac's Law), not Boyle's Law.


Step 4: Final Answer:

Graph (3) correctly shows the hyperbolic relationship between P and V, and also correctly depicts the relative positions of the isotherms for different temperatures (higher temperature isotherm is further from the origin).
Quick Tip: To quickly check the temperature dependence on a P-V graph, remember the ideal gas law \(PV=nRT\). For a higher T, the product PV must be larger. This means the curve (isotherm) for a higher T must be "further out" from the origin than the curve for a lower T.

Step 1: Understanding the Question:

The question asks us to identify which of the given tranquilizers is a derivative of barbituric acid, i.e., a barbiturate.


Step 3: Detailed Explanation:

Tranquilizers are a class of drugs that reduce stress, anxiety, and tension. They can be broadly classified into different chemical groups. Let's analyze the given options:

Valium (Diazepam) and Chlordiazepoxide: These are well-known tranquilizers belonging to the benzodiazepine class of drugs. They are not barbiturates.
Meprobamate: This is also a widely used tranquilizer, but it is classified as a carbamate. It is not a barbiturate.
Veronal (Barbital): This is one of the first synthesized barbiturates. Barbiturates are derivatives of barbituric acid and act as central nervous system depressants. Other examples include Luminal (phenobarbital) and Seconal.

Therefore, Veronal is the only barbiturate in the given list.


Step 4: Final Answer:

Veronal is the tranquilizer that belongs to the class of barbiturates.
Quick Tip: It is helpful to memorize the major classes of psychoactive drugs and one or two examples from each class. For tranquilizers, the main classes to know are benzodiazepines (e.g., Valium, Chlordiazepoxide) and barbiturates (e.g., Veronal, Luminal).

Step 1: Understanding the Question:

This is an Assertion-Reason question concerning the relationship between Gibbs free energy (\(\Delta_rG\)) and cell potential (\(E_{cell}\)) in electrochemistry. We need to evaluate the truth of both statements and their relationship.


Step 3: Detailed Explanation:

Analysis of Assertion A:

The assertion states that in the equation \(\Delta_rG = -nFE_{cell}\), the value of \(\Delta_rG\) depends on \(n\).
Here, \(n\) represents the number of moles of electrons transferred in the balanced redox reaction for which \(\Delta_rG\) is being calculated.
The equation clearly shows that \(\Delta_rG\) is directly proportional to \(n\). If you double the stoichiometric coefficients in the balanced reaction, the value of \(n\) doubles, and consequently, the value of \(\Delta_rG\) also doubles.
Therefore, Assertion A is true.


Analysis of Reason R:

The reason states that \(E_{cell}\) is an intensive property and \(\Delta_rG\) is an extensive property.

An intensive property is a property of matter that does not depend on the amount of substance present. Examples include temperature, pressure, and concentration. Cell potential (\(E_{cell}\)) is an intensive property because it is a potential difference and does not change if you increase the size of the electrochemical cell or the amount of reactants (as long as concentrations remain the same).
An extensive property is a property that depends on the amount of substance. Examples include mass, volume, and energy. Gibbs free energy (\(\Delta_rG\)) is an extensive property because it represents the total energy change for the reaction as written, which is proportional to the amount of substance reacting (represented by \(n\)).

Both parts of this statement are correct. Reason R is true.


Analysis of the relationship:

Now, we must determine if R is the correct explanation for A.

Assertion A is true: \(\Delta G\) is directly proportional to \(n\), as seen in the equation.
Reason R is true: \(\Delta G\) is an extensive property (depends on amount) and \(E_{cell}\) is an intensive property (does not depend on amount).
However, R is not the direct explanation for A. A is a mathematical fact derived from the equation itself. R provides a classification of the terms involved. While related, one isn't the direct cause of the other in a simple sense. The dependence on \(n\) makes \(\Delta G\) extensive, so A is a specific instance of the general property mentioned in R. It's more like A is an example of R, not that R is the reason for A. Hence, R is not the correct explanation of A.


Step 4: Final Answer:

Both Assertion A and Reason R are true statements. However, the reason (a statement about the nature of the properties) is not considered the direct explanation for the assertion (a mathematical dependence evident from the formula itself).
Quick Tip: Remember the difference between intensive and extensive properties. Intensive properties (like potential, density, temperature) are independent of system size. Extensive properties (like energy, mass, volume) are proportional to system size. In \(\Delta G = -nFE_{cell}\), the equation correctly balances, as an extensive quantity (\(\Delta G\)) is equated to the product of an intensive quantity (\(E_{cell}\)) and an extensive quantity (\(nF\)).

Step 1: Understanding the Question:

The question asks us to evaluate two statements regarding the definitions of nucleosides and nucleotides.


Step 3: Detailed Explanation:

Analysis of Statement I:

A nucleoside is a structural subunit of nucleic acids (DNA and RNA). It consists of two components: a nitrogenous base (a purine or a pyrimidine) and a five-carbon sugar (ribose in RNA or deoxyribose in DNA). The nitrogenous base is attached to the 1' carbon of the sugar via an N-glycosidic bond. This statement accurately defines a nucleoside. Therefore, Statement I is true.


Analysis of Statement II:

A nucleotide is formed when a phosphate group is attached to a nucleoside. The phosphate group is linked to the sugar moiety, typically at the 5' position, via a phosphoester bond. The statement says that the nucleoside is linked to phosphorous acid. This is incorrect. The phosphate group in a nucleotide is derived from phosphoric acid (H\(_3\)PO\(_4\)), not phosphorous acid (H\(_3\)PO\(_3\)).
Therefore, Statement II is false.


Step 4: Final Answer:

Statement I is true, but Statement II is false.
Quick Tip: Remember the building blocks of nucleic acids: Base + Sugar = Nucleo\textbf{s}ide Base + Sugar + Pho\textbf{s}phate = Nucleo\textbf{t}ide (The 't' in nucleotide can remind you of the 'three' components). Also, be mindful of the difference between phosphoric acid (H\(_3\)PO\(_4\)) and phosphorous acid (H\(_3\)PO\(_3\)).

Step 1: Understanding the Question:

This is a chemical kinetics problem. We are given a rate law and asked to determine how the reaction rate changes when the concentration of one of the reactants is changed.


Step 2: Key Formula or Approach:

The rate law is given as: Rate = \(k[A]^2[B]\).
We need to compare the initial rate with the new rate after changing the concentration of A.
Let the initial rate be Rate\(_1\). \[ Rate_1 = k[A]^2[B] \]
Let the new rate be Rate\(_2\), where the concentration of A is tripled. The new concentration of A, [A]\(_{new}\), is 3[A]. The concentration of B remains constant. \[ Rate_2 = k[A]_{new}^2[B] = k(3[A])^2[B] \]

Step 3: Detailed Explanation:

Let's calculate the new rate, Rate\(_2\): \[ Rate_2 = k(3[A])^2[B] = k(9[A]^2)[B] = 9 \times (k[A]^2[B]) \]
We know that Rate\(_1 = k[A]^2[B]\). So, we can substitute this into the equation for Rate\(_2\): \[ Rate_2 = 9 \times Rate_1 \]
This shows that the new rate is nine times the initial rate. The rate increases by a factor of nine.


Step 4: Final Answer:

The initial rate would increase by a factor of nine.
Quick Tip: To find the effect of changing a reactant's concentration, simply look at its order in the rate law. If the concentration of a reactant is changed by a factor 'x' and its order is 'n', the rate will change by a factor of \(x^n\). In this case, [A] is tripled (x=3) and its order is 2 (n=2), so the rate changes by a factor of \(3^2 = 9\).

Step 1: Understanding the Question:

The question asks to identify the Lewis acid from a given list of species.


Step 2: Key Formula or Approach:

Let's define Lewis acids and bases:

A Lewis acid is a chemical species that is an electron-pair acceptor. Typically, these are species with an incomplete octet of electrons on the central atom or with vacant d-orbitals.
A Lewis base is a chemical species that is an electron-pair donor. Typically, these are species with lone pairs of electrons.


Step 3: Detailed Explanation:

Let's analyze each option:

(A) BF\(_3\) (Boron trifluoride): The central atom is Boron (B). Boron is in Group 13 and has 3 valence electrons. In BF\(_3\), it forms three single bonds with three fluorine atoms. The total number of electrons around the Boron atom is 3 \(\times\) 2 = 6. Since Boron has an incomplete octet, it can accept a pair of electrons to complete its octet. Therefore, BF\(_3\) acts as a Lewis acid.
(B) OH\(^-\) (Hydroxide ion): The oxygen atom has two lone pairs of electrons and a negative charge. It can readily donate an electron pair to form a coordinate bond. Therefore, OH\(^-\) acts as a Lewis base.
(C) NH\(_3\) (Ammonia): The central nitrogen atom has one lone pair of electrons. It can donate this electron pair. Therefore, NH\(_3\) acts as a Lewis base.
(D) H\(_2\)O (Water): The central oxygen atom has two lone pairs of electrons. It can donate one of these electron pairs. Therefore, H\(_2\)O acts as a Lewis base. It can also act as a Brønsted-Lowry acid, but its primary Lewis character is basic.


Step 4: Final Answer:

Among the given options, only BF\(_3\) is an electron-pair acceptor and thus acts as a Lewis acid.
Quick Tip: Look for the defining feature: Lewis bases almost always have lone pairs of electrons (e.g., NH\(_3\), H\(_2\)O, OH\(^-\), Cl\(^-\)). Lewis acids often have an incomplete octet (e.g., BF\(_3\), AlCl\(_3\)), are cations (e.g., H\(^+\), Ag\(^+\)), or have central atoms with vacant d-orbitals that can accept electrons (e.g., SiF\(_4\), SnCl\(_4\)).

Step 1: Understanding the Question:

The question asks to identify the incorrect statements among the given options related to the properties of transition metal oxides. We need to analyze each statement individually.


Step 2: Detailed Explanation of Each Statement:

Statement A: All the transition metals except scandium form MO oxides which are ionic.

Scandium (Sc) primarily exists in the +3 oxidation state, forming Sc\(_2\)O\(_3\), not ScO. Other first-row transition metals (Ti, V, Cr, Mn, Fe, Co, Ni, Cu) do form oxides of the type MO (e.g., TiO, VO, FeO, CuO). In these oxides, the metal is in a lower oxidation state (+2), and these oxides are predominantly ionic and basic in nature. So, statement A is correct.


Statement B: The highest oxidation number corresponding to the group number in transition metal oxides is attained in Sc\(_2\)O\(_3\) to Mn\(_2\)O\(_7\).

Let's check the group number and highest oxidation state for elements from Sc to Mn:

- Scandium (Group 3): Highest oxidation state is +3 (in Sc\(_2\)O\(_3\)). Correct.

- Titanium (Group 4): Highest oxidation state is +4 (in TiO\(_2\)). Correct.

- Vanadium (Group 5): Highest oxidation state is +5 (in V\(_2\)O\(_5\)). Correct.

- Chromium (Group 6): Highest oxidation state is +6 (in CrO\(_3\)). Correct.

- Manganese (Group 7): Highest oxidation state is +7 (in Mn\(_2\)O\(_7\)). Correct.

This trend holds true up to manganese. After manganese, the highest oxidation state is generally lower than the group number (e.g., Fe in Group 8 has a maximum oxidation state of +6, not +8). The statement correctly describes the range from Sc to Mn. So, statement B is correct.


Statement C: Basic character increases from V\(_2\)O\(_3\) to V\(_2\)O\(_4\) to V\(_2\)O\(_5\).

The acidic/basic character of metal oxides depends on the oxidation state of the metal. As the oxidation state increases, the covalent character of the M-O bond increases, and the oxide becomes more acidic.

- V\(_2\)O\(_3\) (V is +3): Basic

- V\(_2\)O\(_4\) (V is +4): Amphoteric

- V\(_2\)O\(_5\) (V is +5): Acidic

Therefore, the basic character decreases as we go from V\(_2\)O\(_3\) to V\(_2\)O\(_5\). The statement claims it increases. So, statement C is incorrect.


Statement D: V\(_2\)O\(_4\) dissolves in acids to give VO\(_4^{3-\) salts.

V\(_2\)O\(_4\) is an oxide where Vanadium is in the +4 oxidation state. When it dissolves in acids, it forms vanadyl salts containing the vanadyl ion, [VO]\(^{2+}\), where V is still in the +4 oxidation state. The ion mentioned, VO\(_4^{3-}\) (orthovanadate), has Vanadium in the +5 oxidation state. Dissolving in a non-oxidizing acid does not change the oxidation state. Therefore, the product formed is incorrect. So, statement D is incorrect.


Statement E: CrO is basic but Cr\(_2\)O\(_3\) is amphoteric.

Similar to vanadium, the character of chromium oxides depends on the oxidation state.

- CrO (Cr is +2): Basic

- Cr\(_2\)O\(_3\) (Cr is +3): Amphoteric

- CrO\(_3\) (Cr is +6): Acidic

The statement is consistent with this trend. So, statement E is correct.


Step 3: Final Answer:

The incorrect statements are C and D. Therefore, the correct option is (1).
Quick Tip: Remember the general trend for metal oxides: as the oxidation state of the metal increases, the ionic character decreases, and the acidic character increases. Lower oxidation state oxides are basic, intermediate ones are amphoteric, and higher oxidation state oxides are acidic.

Step 1: Understanding the Question:

The question asks for the contribution of a single octahedral void located at the center of an edge to one face-centered cubic (fcc) unit cell.


Step 2: Location of Octahedral Voids in FCC:

In an fcc lattice, octahedral voids are located at two types of positions:

1. At the body center of the cube.

2. At the center of each of the 12 edges of the cube.


Step 3: Contribution of an Edge-Centered Void:

An atom or void located at the center of an edge of a cubic unit cell is shared by the four unit cells that meet at that edge. Imagine a cube; one edge is also the edge for three other cubes (one adjacent, one above, and one adjacent to the one above).

Therefore, any particle or void at an edge center contributes only \(\frac{1}{4}\) of its volume to a single unit cell.


Step 4: Final Answer:

The fraction of one edge-centered octahedral void that lies within one unit cell is \(\frac{1}{4}\).
Quick Tip: To solve problems on solid state, visualize the unit cell and remember the contribution of particles at different positions: Corner = 1/8, Face Center = 1/2, Body Center = 1, Edge Center = 1/4. This applies to both atoms and voids.

Step 1: Understanding the Question:

The task is to match each oxoacid of sulphur from List-I with the correct description of its chemical bonds from List-II. This requires knowledge of the structures of these acids.


Step 2: Analyzing the Structure of Each Oxoacid:

A. Peroxodisulphuric acid (H\(_2\)S\(_2\)O\(_8\), Marshall's acid):

The structure contains a peroxide linkage (-O-O-) connecting two SO\(_3\)H groups.

Structure: HO-SO\(_2\)-O-O-SO\(_2\)-OH.

Bonds: Two S-OH bonds, four S=O bonds, and one S-O-O-S chain (which implies a central peroxide bond). This matches description III.


B. Sulphuric acid (H\(_2\)SO\(_4\)):

The structure has a central sulphur atom double-bonded to two oxygen atoms and single-bonded to two hydroxyl (-OH) groups.

Structure: (HO)\(_2\)SO\(_2\).

Bonds: Two S-OH bonds and two S=O bonds. This matches description IV.


C. Pyrosulphuric acid (H\(_2\)S\(_2\)O\(_7\), Oleum):

This acid is formed by joining two sulphuric acid molecules with the removal of one water molecule. It contains an S-O-S linkage.

Structure: HO-SO\(_2\)-O-SO\(_2\)-OH.

Bonds: Two S-OH bonds, four S=O bonds, and one S-O-S bridge. This matches description I.


D. Sulphurous acid (H\(_2\)SO\(_3\)):

The structure has a central sulphur atom double-bonded to one oxygen atom and single-bonded to two hydroxyl (-OH) groups. Sulphur also has a lone pair of electrons.

Structure: (HO)\(_2\)SO.

Bonds: Two S-OH bonds and one S=O bond. This matches description II.


Step 3: Matching and Final Answer:

Based on the analysis:

- A matches with III.

- B matches with IV.

- C matches with I.

- D matches with II.

The correct combination is A-III, B-IV, C-I, D-II, which corresponds to option (4).
Quick Tip: Drawing the Lewis structures for oxoacids is the key to solving such matching problems. Remember the common linkages: S-O-S for 'pyro' acids and -O-O- for 'peroxo' or 'peroxy' acids.

Step 1: Understanding the Question:

The reaction shows o-phthalaldehyde reacting with Tollens' reagent ([Ag(NH\(_3\))\(_2\)]\(^+\)) in a basic medium (OH\(^-\)). We need to identify the major product.


Step 2: Analyzing the Reactants and Reagents:

Reactant: o-phthalaldehyde, which has two aldehyde (-CHO) groups on a benzene ring at adjacent positions.

Reagent: Tollens' reagent ([Ag(NH\(_3\))\(_2\)]\(^+\)). This is a mild oxidizing agent used to test for aldehydes. It oxidizes an aldehyde to a carboxylate anion (R-CHO \(\rightarrow\) R-COO\(^-\)).

Stoichiometry: The reaction specifies `+ 2[Ag(NH\(_3\))\(_2\)]\(^+\)`. The balanced reaction for the oxidation of one aldehyde group is:
\[ R-CHO + 2[Ag(NH_3)_2]^+ + 3OH^- \rightarrow R-COO^- + 2Ag(s) + 4NH_3 + 2H_2O \]
This shows that 2 moles of Tollens' reagent are required to oxidize 1 mole of an aldehyde group.


Step 3: Applying Stoichiometry to the Reaction:

The starting material, o-phthalaldehyde, has two aldehyde groups. To oxidize both groups, we would need \(2 \times 2 = 4\) moles of [Ag(NH\(_3\))\(_2\)]\(^+\).

However, the question explicitly provides only 2 moles of [Ag(NH\(_3\))\(_2\)]\(^+\). This means the Tollens' reagent is the limiting reagent, and it has just enough quantity to oxidize only one of the two aldehyde groups.

Therefore, one -CHO group will be oxidized to a -COO\(^-\) group, while the other -CHO group will remain unchanged.
\[ C_6H_4(CHO)_2 + 2[Ag(NH_3)_2]^+ + 3OH^- \rightarrow C_6H_4(CHO)(COO^-) + 2Ag(s) + 4NH_3 + 2H_2O \]

Step 4: Final Answer:

The major product is the 2-formylbenzoate anion. This structure is shown in option (1). Note that other reactions like the Cannizzaro reaction are possible in basic medium, but the presence and specific stoichiometry of the oxidizing agent (Tollens' reagent) dictate the course of this reaction.
Quick Tip: In organic chemistry reactions, always pay close attention to the stoichiometry of the reagents provided. It can act as a crucial hint to determine the product, especially when multiple reactive sites are present in the substrate. Here, the limited amount of oxidant leads to partial oxidation.

Step 1: Understanding the Question:

The question asks us to count how many of the given seven species are aromatic based on Hückel's rule.


Step 2: Key Formula or Approach:

Hückel's rule states that for a species to be aromatic, it must satisfy four conditions:
1. It must be cyclic.
2. It must be planar.
3. It must be completely conjugated (every atom in the ring must have a p-orbital).
4. It must contain (4n + 2) \(\pi\) electrons, where n is a non-negative integer (0, 1, 2, ...).


Step 3: Detailed Explanation:

Let's analyze each species:


i. Naphthalene: It is cyclic, planar, and fully conjugated. It has 10 \(\pi\) electrons. For 4n + 2 = 10, 4n = 8, so n = 2. It obeys Hückel's rule. (Aromatic)

ii. Cyclopentadienyl anion: It is cyclic, planar, and fully conjugated. It has 6 \(\pi\) electrons (4 from double bonds, 2 from the lone pair/negative charge). For 4n + 2 = 6, 4n = 4, so n = 1. It obeys Hückel's rule. (Aromatic)

iii. Cyclopropenyl cation: It is a three-membered ring with a positive charge. It is cyclic, planar, and fully conjugated. It has 2 \(\pi\) electrons. For 4n + 2 = 2, 4n = 0, so n = 0. It obeys Hückel's rule. (Aromatic)

iv. Bicyclo[1.1.0]butane: This is a bicyclic, non-planar molecule. It is not aromatic. (Non-aromatic)

v. Cyclopropenyl cation: This appears to be the same as species iii. Assuming it's a distinct species intended, like cyclobutadiene, which has 4\(\pi\) electrons (anti-aromatic), or some other non-aromatic species, it doesn't add to the count. Let's assume it is just a repeated structure.

vi. Cyclooctatetraene (COT): It is cyclic and has 8 \(\pi\) electrons (a 4n system, where n=2). To avoid the instability of being anti-aromatic, it adopts a non-planar, tub-like shape. Since it's not planar, it is not aromatic. (Non-aromatic)

vii. Anthracene: It is cyclic, planar, and fully conjugated. It has 14 \(\pi\) electrons. For 4n + 2 = 14, 4n = 12, so n = 3. It obeys Hückel's rule. (Aromatic)



Step 4: Final Answer:

The species that are aromatic are i, ii, iii, and vii. Counting these, we find there are 4 aromatic species. This corresponds to option (3). Quick Tip: When applying Hückel's rule, check all four conditions: cyclic, planar, conjugated, and the \((4n+2)\) \(\pi\) electron count. Be aware that polycyclic systems like naphthalene and anthracene are also considered aromatic and are generally treated as obeying the rule in this context. If your count doesn't match the options, re-check for potential ambiguities or common exam question errors.

Step 1: Understanding the Question:

The question asks for the mathematical relationship between the change in enthalpy (\(\Delta H\)) and the change in internal energy (\(\Delta U\)) for a chemical reaction.


Step 2: Key Formula or Approach:

The definition of enthalpy (H) is given by the equation:
\[ H = U + PV \]
where U is the internal energy, P is the pressure, and V is the volume.

For a change in the system, this relationship can be written as:
\[ \Delta H = \Delta U + \Delta(PV) \]

Step 3: Detailed Explanation:

For a chemical reaction involving gases, we can assume ideal gas behavior. The ideal gas equation is \(PV = nRT\).

Substituting this into the enthalpy change equation:
\[ \Delta H = \Delta U + \Delta(nRT) \]
If the reaction occurs at a constant temperature (T), R and T can be taken out of the delta operator:
\[ \Delta H = \Delta U + RT \Delta n \]
Here, \(\Delta n\) represents the change in the number of moles of gaseous components in the reaction. It is denoted as \(\Delta n_g\).
\[ \Delta n_g = (moles of gaseous products) - (moles of gaseous reactants) \]
Thus, the final relationship is:
\[ \Delta H = \Delta U + \Delta n_g RT \]

Step 4: Final Answer:

Comparing this derived equation with the given options, we find that option (4) is the correct relation.
Quick Tip: When using the formula \(\Delta H = \Delta U + \Delta n_g RT\), remember that \(\Delta n_g\) only includes the change in the number of moles of \textbf{gaseous} substances. Moles of solids and liquids are not considered in this term.

Step 1: Understanding the Question:

The question presents two statements about the environmental phenomenon of eutrophication and asks to evaluate their correctness.


Step 2: Detailed Explanation:

Analysis of Statement I:

"The nutrient deficient water bodies lead to eutrophication."

Eutrophication is the process of nutrient enrichment of a water body, typically with nitrates and phosphates. This excess of nutrients promotes excessive growth of algae and other aquatic plants (algal bloom). Therefore, eutrophication is caused by nutrient-rich, not nutrient-deficient, conditions. Thus, Statement I is incorrect.


Analysis of Statement II:

"Eutrophication leads to decrease in the level of oxygen in the water bodies."

The algal blooms caused by eutrophication eventually die off. The dead organic matter is then decomposed by aerobic bacteria. This decomposition process consumes large amounts of dissolved oxygen from the water. The depletion of oxygen can lead to hypoxic (low oxygen) or anoxic (no oxygen) conditions, which is harmful to fish and other aquatic life. Thus, Statement II is correct.


Step 3: Final Answer:

Based on the analysis, Statement I is incorrect and Statement II is true. This corresponds to option (2).
Quick Tip: Remember that "Eutrophication" means "well-nourished". This term directly points to nutrient enrichment, not deficiency. The subsequent oxygen depletion is a key consequence of this process.

Step 1: Understanding the Question:

The question asks to classify pumice stone based on its colloidal nature.


Step 2: Detailed Explanation:

Colloidal systems are classified based on the physical state of the dispersed phase and the dispersion medium. Let's analyze the structure of pumice stone and the given options.

Pumice stone: It is a volcanic rock formed when super-heated, highly pressurized rock is violently ejected from a volcano. The porous texture is due to gas bubbles being trapped in the rock as it cooled. Therefore, it consists of a gaseous phase (dispersed phase) trapped within a solid phase (dispersion medium).


Let's define the given colloid types:

- Solid sol: Dispersed phase is solid, dispersion medium is solid (e.g., colored gemstones).

- Foam: Dispersed phase is gas, dispersion medium is liquid (e.g., whipped cream). A system with gas dispersed in a solid is called a solid foam.

- Sol: Dispersed phase is solid, dispersion medium is liquid (e.g., paint).

- Gel: A liquid is dispersed in a solid medium in such a way that it forms a semi-solid network (e.g., jelly, cheese).


Step 3: Final Answer:

Since pumice stone is a dispersion of gas in a solid, it is an example of a solid foam. The general term "foam" is used in the options to represent this class of colloids. Therefore, option (2) is the correct answer.
Quick Tip: Create a table to remember the types of colloids. For example: Dispersed Phase / Dispersion Medium \(\rightarrow\) Colloid Type (Example). Gas / Solid \(\rightarrow\) Solid foam (Pumice stone, Styrofoam). This makes recalling examples easier.

Step 1: Understanding the Question:

The question asks to identify the most stable coordination compound among the given options.


Step 2: Key Formula or Approach:

The stability of a coordination compound is significantly influenced by the chelate effect. The chelate effect refers to the enhanced stability of complexes containing chelating ligands (ligands that can bind to the central metal ion through more than one donor atom, forming a ring). These complexes, called chelates, are more stable than similar complexes with monodentate ligands.


Step 3: Detailed Explanation:

Let's analyze the ligands in each complex:

- (1) [CoCl\(_2\)(en)\(_2\)]NO\(_3\): The ligands are Cl\(^-\) (monodentate) and 'en' which stands for ethylenediamine (NH\(_2\)-CH\(_2\)-CH\(_2\)-NH\(_2\)). Ethylenediamine is a bidentate ligand, meaning it binds to the cobalt ion at two points, forming a stable five-membered ring. This is a chelate.

- (2) [Co(NH\(_3\))\(_6\)]\(_2\)(SO\(_4\))\(_3\): The ligand is NH\(_3\) (ammonia), which is a monodentate ligand. No chelate rings are formed.

- (3) [Co(NH\(_3\))\(_4\)(H\(_2\)O)Br](NO\(_3\))\(_2\): The ligands are NH\(_3\), H\(_2\)O, and Br\(^-\), all of which are monodentate. No chelate rings are formed.

- (4) [Co(NH\(_3\))\(_3\)(NO\(_3\))\(_3\):] The ligands are NH\(_3\) and NO\(_3{^{-}}\) (acting as a monodentate ligand here). No chelate rings are formed.


Step 4: Final Answer:

Since the complex in option (1) is the only one containing a chelating ligand (ethylenediamine), it will be the most stable due to the chelate effect. The formation of these rings increases the thermodynamic stability of the complex.
Quick Tip: When comparing the stability of coordination compounds, always look for the presence of polydentate (chelating) ligands like ethylenediamine (en), oxalate (ox), EDTA, etc. Complexes with these ligands are almost always more stable than those with only monodentate ligands.

Step 1: Understanding the Question:

The question asks to identify which of the given chemical reactions does not occur in the higher temperature zone (900 K to 1500 K) of a blast furnace used for iron extraction.


Step 2: Detailed Explanation:

The blast furnace has different temperature zones where specific reactions occur.

Lower Temperature Zone (500 K - 800 K): This is the upper part of the furnace. Here, the iron ore (mainly Fe\(_2\)O\(_3\)) is reduced in steps by carbon monoxide (CO).
\[ 3Fe_2O_3 + CO \rightarrow 2Fe_3O_4 + CO_2 \] \[ Fe_3O_4 + CO \rightarrow 3FeO + CO_2 \] \[ FeO + CO \rightarrow Fe + CO_2 \]
The reaction Fe\(_2\)O\(_3\) + CO \(\rightarrow\) 2FeO + CO\(_2\) is a summary of the initial reduction steps that occur at these lower temperatures.


Higher Temperature Zone (900 K - 1500 K): This is the central and lower part of the furnace.

- Slag Formation: Limestone (CaCO\(_3\)) decomposes to CaO, which then reacts with silica impurities (SiO\(_2\)) to form molten slag (CaSiO\(_3\)). This happens around 1200 K. So, reaction (2) occurs in this range.
\[ CaO + SiO_2 \rightarrow CaSiO_3 \]
- CO Generation (Boudouard reaction): Carbon dioxide reacts with hot coke to form carbon monoxide. This reaction is endothermic and favored at high temperatures (\(>\) 1000 K). So, reaction (1) occurs in this range.
\[ C + CO_2 \rightarrow 2CO \]
- Final Reduction: The final reduction of iron oxide (FeO) to molten iron occurs here, primarily by CO and also by direct reduction with carbon. So, reaction (4) also occurs in this range.
\[ FeO + CO \rightarrow Fe + CO_2 \]

Step 3: Final Answer:

Based on the analysis of the temperature zones, the reduction of Fe\(_2\)O\(_3\) (reaction 3) primarily takes place in the cooler, upper part of the furnace, at temperatures below 900 K. Therefore, it is the reaction that does not take place in the 900 K to 1500 K range.
Quick Tip: To remember the reactions in a blast furnace, think of it as a top-to-bottom process. The ore enters at the top (cooler region) and gets pre-heated and partially reduced. As it moves down, the temperature increases, and the final reduction and melting occur at the bottom (hottest region).

Step 1: Understanding the Question:

We are given the equilibrium concentrations for a reaction and asked to calculate the standard Gibbs free energy change (\(\Delta G^\circ\)).


Step 2: Key Formula or Approach:

The relationship between the standard Gibbs free energy change and the equilibrium constant (K) is given by:
\[ \Delta G^\circ = -RT \ln(K) \]
First, we need to calculate the equilibrium constant (K\(_c\)) from the given concentrations. For the reaction A + B \(\rightleftharpoons\) C + D, the expression for K\(_c\) is:
\[ K_c = \frac{[C][D]}{[A][B]} \]

Step 3: Detailed Explanation:

Part A: Calculate the equilibrium constant (K\(_c\))

Given equilibrium concentrations:

[A] = 2 mol L\(^{-1}\)

[B] = 3 mol L\(^{-1}\)

[C] = 10 mol L\(^{-1}\)

[D] = 6 mol L\(^{-1}\)

Substituting these values into the K\(_c\) expression:
\[ K_c = \frac{(10)(6)}{(2)(3)} = \frac{60}{6} = 10 \]

Part B: Calculate \(\Delta\)G\(^{\circ}\)

Given values:

R = 2 cal / mol K

T = 300 K

K\(_c\) = 10

Using the formula \(\Delta G^\circ = -RT \ln(K)\):
\[ \Delta G^\circ = -(2 cal/mol K) \times (300 K) \times \ln(10) \] \[ \Delta G^\circ = -600 \times \ln(10) cal/mol \]
We know that \(\ln(10) \approx 2.303\).
\[ \Delta G^\circ = -600 \times 2.303 cal/mol \] \[ \Delta G^\circ = -1381.8 cal/mol \]

Step 4: Final Answer:

The standard Gibbs free energy change for the reaction is -1381.80 cal. This matches option (1).
Quick Tip: Remember the sign convention for \(\Delta G^\circ\). If K > 1, the reaction favors products, \(\ln(K)\) is positive, and \(\Delta G^\circ\) is negative (spontaneous under standard conditions). If K < 1, \(\ln(K)\) is negative, and \(\Delta G^\circ\) is positive.

Step 1: Understanding the Question:

The question shows the reaction of benzyl phenyl ether with hydrogen iodide (HI) and asks to identify the two products, A and B. This is a classic example of ether cleavage.


Step 2: Key Formula or Approach:

The cleavage of ethers by strong acids like HI involves two main steps:
1. Protonation of the ether oxygen to make it a better leaving group.
2. Nucleophilic attack by the iodide ion (I\(^-\)) on one of the carbon atoms attached to the oxygen, breaking the C-O bond. The attack follows either an S\(_N\)1 or S\(_N\)2 mechanism depending on the structure of the ether.


Step 3: Detailed Explanation:

The starting material is benzyl phenyl ether: C\(_6\)H\(_5\)-O-CH\(_2\)-C\(_6\)H\(_5\).
The ether oxygen is bonded to a phenyl group (an sp\(^2\)-hybridized carbon) and a benzyl group (an sp\(^3\)-hybridized carbon).

There are two possible C-O bonds to cleave:

1. Aryl-Oxygen bond (C\(_6\)H\(_5\)--O): This bond is very strong and difficult to break. The carbon atom of the benzene ring is sp\(^2\) hybridized and has partial double-bond character due to resonance with the oxygen lone pairs. S\(_N\)2 attack is not possible, and formation of a phenyl cation for an S\(_N\)1 reaction is extremely unfavorable.

2. Benzyl-Oxygen bond (-CH\(_2\)C\(_6\)H\(_5\)--O): This is a standard alkyl-oxygen single bond. The benzylic carbon is a good site for nucleophilic substitution. The iodide ion (I\(^-\)) will attack the less sterically hindered and more electrophilic benzylic carbon.

The reaction proceeds as follows:
- The oxygen is protonated by HI.
- The I\(^-\) ion attacks the benzylic carbon (-CH\(_2\)-), breaking the C-O bond.
- The products formed are benzyl iodide (C\(_6\)H\(_5\)CH\(_2\)I) and phenol (C\(_6\)H\(_5\)OH).


Step 4: Final Answer:

The products are benzyl iodide and phenol. Comparing this with the options, option (1) correctly identifies A as benzyl iodide and B as phenol.
Quick Tip: A key rule for ether cleavage with HX: an aryl-oxygen bond in an aryl alkyl ether is never cleaved. The halogen always attaches to the alkyl group, and a phenol is formed.

Step 1: Understanding the Question:

The question asks to identify which of the given alcohols will undergo acid-catalyzed dehydration most readily.


Step 2: Key Formula or Approach:

The acid-catalyzed dehydration of alcohols typically proceeds via an E1 mechanism for secondary and tertiary alcohols. The rate-determining step of this mechanism is the formation of a carbocation intermediate after the protonated hydroxyl group leaves as water. Therefore, the rate of dehydration is directly related to the stability of the carbocation formed. The more stable the carbocation, the faster the reaction.

The stability of carbocations is influenced by:
- Inductive effect: Electron-donating groups (EDG) like alkyl groups (+I effect) stabilize carbocations. Electron-withdrawing groups (EWG) like -NO\(_2\) (-I effect) destabilize them.
- Resonance/Mesomeric effect: Resonance can delocalize the positive charge, greatly increasing stability. EWGs like -NO\(_2\) also have a strong -R effect, which destabilizes adjacent carbocations.
- Hyperconjugation: C-H bonds adjacent to the positively charged carbon can also help delocalize the charge.


Step 3: Detailed Explanation:

Let's analyze the most stable carbocation that can be formed from each alcohol:

- (1): This is a diol. Loss of the OH at C-1 would form a secondary carbocation that is severely destabilized by the strongly electron-withdrawing -NO\(_2\) group on the same carbon. Loss of the OH at C-2 would form a primary carbocation. Both are very unstable.

- (2): Loss of the OH group forms a secondary carbocation. This carbocation is destabilized by the inductive effect (-I) of the nitrophenyl group, even though it's not directly adjacent.

- (3): Loss of the OH group forms a secondary carbocation. It is stabilized by the methyl group (+I effect, hyperconjugation) but strongly destabilized by the adjacent -NO\(_2\) group (-I, -R effects). The destabilizing effect of the nitro group is dominant.

- (4): This is a diol (propane-1,2-diol). Loss of the OH group from C-2 would form a secondary carbocation. Loss of the OH group from C-1 would also form a secondary carbocation. Let's consider the loss of OH from C-2. The resulting carbocation at C-2 is stabilized by the adjacent methyl group (+I effect and hyperconjugation). There are no strong electron-withdrawing groups present. This carbocation is the most stable among all the possibilities.


Step 4: Final Answer:

Comparing the stability of the carbocation intermediates, the one formed from alcohol (4) is the most stable due to the stabilizing effect of the methyl group and the absence of any destabilizing electron-withdrawing groups. Therefore, compound (4) will be dehydrated most readily.
Quick Tip: When assessing the rate of reactions that proceed through carbocation intermediates (like S\(_N\)1 and E1), always focus on the stability of the carbocation. Look for stabilizing factors (alkyl groups, resonance) and destabilizing factors (electron-withdrawing groups).

Step 1: Understanding the Question:

The question presents a multi-step reaction sequence and asks for the structure of the final product [D].


Step 2: Key Formula or Approach:

We need to identify the product of each step in the sequence. The key reactions are reduction of an aldehyde, dehydration of an alcohol, addition of HBr to an alkene, and a Wurtz-Fittig reaction.


Step 3: Detailed Explanation:


Step 1: CH\(_3\)CHO \(\xrightarrow{i) LiAlH_4 ii) H_3O^+}\) [A]

Lithium aluminium hydride (LiAlH\(_4\)) is a strong reducing agent that reduces the aldehyde ethanal (CH\(_3\)CHO) to a primary alcohol.
\[ [A] is CH_3CH_2OH (Ethanol) \]
Step 2: [A] \(\xrightarrow{H_2SO_4, \Delta}\) [B]

Ethanol is dehydrated by concentrated sulfuric acid upon heating to form an alkene.
\[ [B] is CH_2=CH_2 (Ethene) \]
Step 3: [B] \(\xrightarrow{HBr}\) [C]

Ethene undergoes electrophilic addition with hydrogen bromide.
\[ [C] is CH_3CH_2Br (Bromoethane) \]
Step 4: [C] + Bromobenzene \(\xrightarrow{Na/dry ether}\) [D]

This is a Wurtz-Fittig reaction. Bromoethane (an alkyl halide) reacts with bromobenzene (an aryl halide) and sodium metal in dry ether to form an alkylbenzene. The ethyl group from bromoethane attaches to the phenyl ring from bromobenzene.
\[ CH_3CH_2Br + C_6H_5Br + 2Na \xrightarrow{dry ether} C_6H_5-CH_2CH_3 + 2NaBr \]
\[ [D] is Ethylbenzene \]


Step 4: Final Answer:

The final product [D] is ethylbenzene, which is represented by the structure in option (2).
Quick Tip: Pay close attention to the layout of reaction schemes. The reaction of an alkyl halide and an aryl halide with sodium in ether is a specific named reaction called the Wurtz-Fittig reaction, which is used to synthesize alkylbenzenes.

Step 1: Understanding the Question:

The task is to balance the given redox reaction in an acidic medium and find the values of the stoichiometric coefficients a, b, and c.


Step 2: Key Formula or Approach:

We will use the ion-electron method (half-reaction method) to balance the equation.

1. Separate the overall reaction into oxidation and reduction half-reactions.

2. Balance atoms other than O and H.

3. Balance O atoms by adding H\(_2\)O.

4. Balance H atoms by adding H\(^+\).

5. Balance the charge by adding electrons (e\(^-\)).

6. Multiply the half-reactions by integers to make the number of electrons equal in both.

7. Add the balanced half-reactions and cancel out common species.


Step 3: Detailed Explanation:

The unbalanced reaction is: Cr\(_2\)O\(_7^{2-}\) + SO\(_3^{2-}\) \(\rightarrow\) Cr\(^{3+}\) + SO\(_4^{2-}\)


Reduction Half-Reaction:

Cr\(_2\)O\(_7^{2-}\) \(\rightarrow\) Cr\(^{3+}\)

- Balance Cr: Cr\(_2\)O\(_7^{2-}\) \(\rightarrow\) 2Cr\(^{3+}\)

- Balance O: Cr\(_2\)O\(_7^{2-}\) \(\rightarrow\) 2Cr\(^{3+}\) + 7H\(_2\)O

- Balance H: Cr\(_2\)O\(_7^{2-}\) + 14H\(^+\) \(\rightarrow\) 2Cr\(^{3+}\) + 7H\(_2\)O

- Balance charge: The left side has a charge of (-2) + (+14) = +12. The right side has 2 \(\times\) (+3) = +6. Add 6e\(^-\) to the left side.

Cr\(_2\)O\(_7^{2-}\) + 14H\(^+\) + 6e\(^-\) \(\rightarrow\) 2Cr\(^{3+}\) + 7H\(_2\)O


Oxidation Half-Reaction:

SO\(_3^{2-}\) \(\rightarrow\) SO\(_4^{2-}\)

- S is already balanced.

- Balance O: SO\(_3^{2-}\) + H\(_2\)O \(\rightarrow\) SO\(_4^{2-}\)

- Balance H: SO\(_3^{2-}\) + H\(_2\)O \(\rightarrow\) SO\(_4^{2-}\) + 2H\(^+\)

- Balance charge: The left side has a charge of -2. The right side has (-2) + (+2) = 0. Add 2e\(^-\) to the right side.

SO\(_3^{2-}\) + H\(_2\)O \(\rightarrow\) SO\(_4^{2-}\) + 2H\(^+\) + 2e\(^-\)


Combine the Half-Reactions:

To equalize the electrons, multiply the oxidation half-reaction by 3.

Reduction: Cr\(_2\)O\(_7^{2-}\) + 14H\(^+\) + 6e\(^-\) \(\rightarrow\) 2Cr\(^{3+}\) + 7H\(_2\)O

Oxidation (\(\times\) 3): 3SO\(_3^{2-}\) + 3H\(_2\)O \(\rightarrow\) 3SO\(_4^{2-}\) + 6H\(^+\) + 6e\(^-\)

Adding them together:

Cr\(_2\)O\(_7^{2-}\) + 14H\(^+\) + 3SO\(_3^{2-}\) + 3H\(_2\)O \(\rightarrow\) 2Cr\(^{3+}\) + 7H\(_2\)O + 3SO\(_4^{2-}\) + 6H\(^+\)

Cancel common species (H\(^+\), H\(_2\)O, e\(^-\)):

1 Cr\(_2\)O\(_7^{2-}\) + 3 SO\(_3^{2-}\) + 8 H\(^+\) \(\rightarrow\) 2 Cr\(^{3+}\) + 3 SO\(_4^{2-}\) + 4 H\(_2\)O


Step 4: Final Answer:

Comparing the balanced equation with the given format:

a Cr\(_2\)O\(_7^{2-}\) + b SO\(_3^{2-}\) + c H\(^+\) \(\rightarrow\) ...

We find that a = 1, b = 3, and c = 8.

This corresponds to option (3).
Quick Tip: After balancing a redox reaction, always perform a final check of both atom balance and charge balance. In the final equation: Left charge = (1 \(\times\) -2) + (3 \(\times\) -2) + (8 \(\times\) +1) = -2 - 6 + 8 = 0. Right charge = (2 \(\times\) +3) + (3 \(\times\) -2) = +6 - 6 = 0. The charges are balanced.

Step 1: Understanding the Statements

The question presents an Assertion (A) about the characteristics of late wood and a Reason (R) explaining the activity of cambium in winter. We need to evaluate if both statements are true and if the reason correctly explains the assertion.


Step 2: Detailed Explanation

Assertion A: Late wood, also known as autumn wood, is formed during the later part of the growing season (autumn/winter). During this period, the environmental conditions are less favourable for growth. This results in the formation of fewer xylary elements, and the vessels (or tracheids) that are formed are narrower in diameter. So, Assertion A is true.


Reason R: The cambium is a layer of actively dividing cells responsible for secondary growth (increase in girth). Its activity is influenced by physiological and environmental factors, such as temperature and water availability. In winters, the conditions are harsh, and the cambium becomes less active. This reduced activity leads to the formation of late wood. So, Reason R is also true.


Connecting A and R: Because the cambium is less active in winters (Reason R), it produces fewer xylem elements with narrow vessels, which is the characteristic feature of late wood (Assertion A). Therefore, Reason R is the correct explanation for Assertion A.


Step 3: Final Answer

Both Assertion A and Reason R are true, and Reason R correctly explains Assertion A. Thus, option (C) is the correct answer.
Quick Tip: For Assertion-Reason questions, first check the validity of each statement independently. Then, check if the Reason provides a direct explanation for the Assertion by asking "Why?" about the Assertion. If the Reason answers "Why?", it is the correct explanation.

Step 1: Understanding the Question

The question asks for the year in which the Earth Summit, where the Convention on Biological Diversity (CBD) was established, was held in Rio de Janeiro.


Step 2: Detailed Explanation

The United Nations Conference on Environment and Development (UNCED), popularly known as the Earth Summit, was a major international conference held in Rio de Janeiro, Brazil.

This summit took place from June 3 to June 14, 1992.

One of the key outcomes of this summit was the opening for signature of the Convention on Biological Diversity (CBD).

Therefore, the historic event occurred in 1992.


Step 3: Final Answer

Based on historical facts, the Earth Summit in Rio de Janeiro was held in 1992. Hence, option (D) is the correct answer.
Quick Tip: Memorize the years and locations of major environmental summits and protocols, such as the Earth Summit (1992, Rio), the World Summit on Sustainable Development (2002, Johannesburg), the Kyoto Protocol (1997), and the Montreal Protocol (1987).

Step 1: Understanding the Question

The question asks to identify the term 'R' in the ecological equation relating Gross Primary Productivity (GPP) and Net Primary Productivity (NPP).


Step 2: Key Formula or Approach

The relationship between GPP, NPP, and R is given by the equation:
\[ NPP = GPP - R \]


Step 3: Detailed Explanation

Gross Primary Productivity (GPP): This is the rate at which solar energy is captured in sugar molecules during photosynthesis by producers (like plants). It represents the total amount of energy produced.

Net Primary Productivity (NPP): This is the energy that remains as biomass after the producers have met their own energetic needs. It is the energy available to the consumers in the ecosystem.

Producers use a significant portion of the energy they produce (GPP) for their own metabolic activities, primarily cellular respiration. The energy consumed during respiration is lost as heat.

This loss of energy through respiration is represented by 'R'.

So, the equation states that Net Primary Productivity is what's left of the Gross Primary Productivity after the Respiratory losses are accounted for.

Therefore, R stands for Respiratory loss.


Step 4: Final Answer

In the given equation, R represents the energy lost by the producers through respiration. Thus, option (A) is correct.
Quick Tip: Think of GPP as the 'gross income' of an ecosystem and NPP as the 'net income' or 'take-home pay'. The difference, 'R', is the 'expenditure' needed to run the system (i.e., respiration).

Step 1: Understanding the Question

The question asks for the function of "tassels in the corn cob". It's important to note the specific botanical structures of a corn plant (maize).


Step 2: Detailed Explanation

There appears to be a biological inaccuracy in the question's phrasing. In a corn plant:

Tassel: This is the male inflorescence located at the top of the plant. Its primary function is to produce and disperse a large amount of pollen grains. This corresponds to option (A).

Corn Cob/Ear: This is the female inflorescence located lower on the stalk. It develops into the fruit (the corn we eat). From the tip of the cob emerge long, silky threads called silks.

Silks: Each silk is a stigma and style. The function of the silks is to trap the airborne pollen grains dispersed from the tassels. This corresponds to option (D).


The question incorrectly links "tassels" with the "corn cob". However, given the options, the question is likely asking about the function of the structures associated with the cob that are involved in pollination, which are the silks. The function of the silks is to trap pollen grains. The provided answer key indicates (D) is correct, reinforcing the interpretation that the question, despite its flawed terminology, refers to the function of the silks on the cob.


Step 3: Final Answer

Assuming the question mistakenly refers to the silks on the corn cob instead of the tassels, their function is to trap pollen grains. Therefore, option (D) is the intended correct answer.
Quick Tip: In competitive exams, be aware of potentially poorly phrased questions. Analyze all options and choose the one that is most biologically plausible in the context, even if the terminology is slightly incorrect. In maize, remember: Tassel (male, top) disperses pollen; Silk (female, on cob) traps pollen.

Step 1: Understanding the Question

The question asks to identify the specific types of RNA molecules that are transcribed by the enzyme RNA polymerase III in eukaryotic cells.


Step 2: Detailed Explanation

In eukaryotes, there are three main types of RNA polymerases, each with distinct roles in transcription:

RNA Polymerase I: Located in the nucleolus, it is responsible for transcribing most of the ribosomal RNA (rRNA) genes, specifically the 28S, 18S, and 5.8S rRNA molecules. This eliminates option (C).

RNA Polymerase II: Located in the nucleoplasm, its primary role is to transcribe the genes that code for proteins. This means it synthesizes the precursors of messenger RNA (pre-mRNA or hnRNA) and also most small nuclear RNAs (snRNAs). This eliminates option (A).

RNA Polymerase III: Also located in the nucleoplasm, it transcribes genes for smaller RNA molecules. Its main products are transfer RNA (tRNA), 5S ribosomal RNA (5S rRNA), and some small nuclear RNAs (snRNAs, such as U6 snRNA).


Comparing these roles with the given options:

(A) Precursor of mRNA is transcribed by RNA Pol II.

(B) "Only snRNAs" is incorrect; RNA Pol II also transcribes snRNAs, and RNA Pol III transcribes more than just snRNAs.

(C) 28S, 18S, and 5.8S rRNAs are transcribed by RNA Pol I.

(D) tRNA, 5S rRNA, and snRNA are the correct products of RNA Polymerase III.


Step 3: Final Answer

The role of RNA polymerase III is the transcription of tRNA, 5S rRNA, and some snRNAs. Therefore, option (D) is the correct answer.
Quick Tip: Use the mnemonic "1-2-3, R-M-T" to remember the main products of the eukaryotic RNA polymerases: Pol \textbf{I} -> \textbf{r}RNA, Pol \textbf{II} -> \textbf{m}RNA, Pol \textbf{III} -> \textbf{t}RNA. This helps to quickly recall their primary functions.

Step 1: Understanding the Question

The question asks for the color of fluorescence observed when DNA stained with ethidium bromide (EtBr) is exposed to ultraviolet (UV) light. This is a standard technique in molecular biology.


Step 2: Detailed Explanation

Agarose Gel Electrophoresis: This technique is used to separate DNA fragments based on their size.

Staining with Ethidium Bromide (EtBr): After electrophoresis, the DNA in the gel is invisible. To visualize it, the gel is soaked in a solution containing ethidium bromide. EtBr is a fluorescent dye that intercalates, or inserts itself, between the base pairs of the DNA double helix.

Visualization under UV Light: The EtBr-DNA complex absorbs UV radiation at a wavelength of around 300-360 nm. Upon absorption of this energy, it fluoresces, emitting light in the visible spectrum. The emitted light has a longer wavelength, which appears as a characteristic bright orange colour. This allows the separated DNA bands to be seen and photographed.


Step 3: Final Answer

DNA stained with ethidium bromide fluoresces bright orange when exposed to UV radiation. Thus, option (B) is the correct answer.
Quick Tip: Associate specific stains with their resulting colors in molecular biology techniques. For example, Ethidium Bromide + DNA + UV light = Bright Orange. This is a very common and frequently asked question from biotechnology.

Step 1: Understanding the Question

The question asks for the standard unit of measurement for the thickness of the atmospheric ozone layer.


Step 2: Detailed Explanation

Let's analyze the given units:

(A) Decameter: A unit of length, equal to 10 meters. It is not used for measuring atmospheric gases.

(B) Kilobase (kb): A unit used in molecular biology to measure the length of DNA or RNA molecules, equal to 1000 base pairs. It is irrelevant to atmospheric science.

(C) Dobson Units (DU): This is the standard unit used to measure the total amount of ozone in a vertical column of the atmosphere (the ozone column). One Dobson Unit is defined as the thickness (in units of 10 µm) of the layer of pure ozone that would be formed if all the ozone in the column were compressed to standard temperature (0°C) and pressure (1 atm). For example, 300 DU corresponds to a 3 mm thick layer of pure ozone.

(D) Decibels (dB): A logarithmic unit used to measure the intensity of sound or the power level of an electrical signal. It is unrelated to ozone measurement.


Step 3: Final Answer

The correct unit for measuring the thickness of the ozone layer is the Dobson unit. Therefore, option (C) is the correct answer.
Quick Tip: For environmental science topics, create a list of important quantities and their specific units of measurement. For instance: Ozone layer - Dobson Units; Sound intensity - Decibels; Radioactivity - Becquerel/Curie.

Step 1: Understanding the Question

The question asks for the definition of pleiotropism (or pleiotropy) in genetics.


Step 2: Detailed Explanation

Let's define the terms in the options:

(A) a single gene affecting multiple phenotypic expression: This is the definition of pleiotropy. A single gene can influence several different, often unrelated, traits. A classic example is the gene for phenylketonuria (PKU), which causes mental retardation, reduced hair pigmentation, and skin pigmentation.

(B) more than two genes affecting a single character: This describes polygenic inheritance. Traits like height, skin color, and weight are controlled by the cumulative effect of many genes.

(C) presence of several alleles of a single gene controlling a single crossover: This option is confusing and does not describe a standard genetic phenomenon. The presence of several alleles of a single gene is called multiple allelism. Crossover is a separate process.

(D) presence of two alleles, each of the two genes controlling a single trait: This is also an incorrectly phrased option. It seems to mix ideas of alleles and multiple genes.


Based on standard genetic definitions, pleiotropy is when one gene influences multiple traits.


Step 3: Final Answer

The correct definition of pleiotropism is a single gene affecting multiple phenotypic expressions. Therefore, option (A) is the correct answer.
Quick Tip: To avoid confusion, clearly distinguish between pleiotropy and polygenic inheritance.
\textbf{Pleiotropy:} One gene \(\rightarrow\) Many traits.
\textbf{Polygenic Inheritance:} Many genes \(\rightarrow\) One trait.

Step 1: Understanding the Question

The question asks which plant hormone is used to speed up the maturation process in juvenile conifers to promote early seed production.


Step 2: Detailed Explanation

Let's examine the functions of the listed phytohormones:

(A) Zeatin: A type of cytokinin, primarily involved in promoting cell division (cytokinesis), chloroplast development, and delaying senescence. It does not primarily hasten maturity.

(B) Abscisic Acid (ABA): Generally considered a plant growth inhibitor. It promotes dormancy, stomatal closure under stress, and senescence. It would be counterproductive for hastening maturity for seed production.

(C) Indole-3-butyric Acid (IBA): A type of auxin, mainly used to promote root formation in plant cuttings. It is involved in cell elongation and apical dominance but not in hastening the reproductive phase.

(D) Gibberellic Acid (GA): Gibberellins have several roles, including stem elongation (bolting), breaking dormancy, and promoting flowering and fruit development. A key application in horticulture and forestry is spraying juvenile conifers with GAs to overcome the juvenile phase and induce early flowering and seed production. This is commercially important for breeding programs.


Step 3: Final Answer

Gibberellic acid is the phytohormone used to hasten the maturity period in juvenile conifers, leading to early seed production. Hence, option (D) is correct.
Quick Tip: For exams, create a table summarizing the major functions and commercial applications of the five main classes of plant hormones: Auxins, Gibberellins, Cytokinins, Abscisic Acid, and Ethylene. This will help you quickly recall their specific roles.

Step 1: Understanding the Statements

The question presents an Assertion (A) about the protonema being the first stage of the moss gametophyte and a Reason (R) explaining its origin from a spore. We need to assess the truthfulness of both and their relationship.


Step 2: Detailed Explanation

Moss Life Cycle: The life cycle of a moss (a bryophyte) involves an alternation of generations between a haploid gametophyte and a diploid sporophyte.

1. The diploid sporophyte, which remains attached to the gametophyte, has a structure called a capsule. Meiosis occurs within the capsule to produce haploid spores.

2. When a haploid spore lands on a suitable substrate, it germinates.

3. The spore develops into a filamentous, green, creeping structure called the protonema. This is the juvenile gametophyte stage. So, Reason R, which states that the protonema develops directly from spores produced in the capsule, is correct.

4. The protonema is indeed the very first stage of the gametophyte generation. Later, leafy buds arise from this protonema, which develop into the mature, upright, leafy gametophyte (the main moss plant). Therefore, Assertion A is also correct.


Connecting A and R: The reason the protonema is the first stage of the gametophyte (Assertion A) is precisely because it is the structure that directly emerges from the germinating spore (Reason R). The spore is the beginning of the gametophytic generation. Thus, Reason R provides the correct explanation for Assertion A.


Step 3: Final Answer

Both Assertion A and Reason R are correct statements, and Reason R is the correct explanation for Assertion A. Therefore, option (C) is the correct answer.
Quick Tip: To master plant life cycles, draw them out. For mosses, remember the sequence: Spore (n) \(\rightarrow\) Protonema (n) \(\rightarrow\) Leafy Gametophyte (n) \(\rightarrow\) Gametes (n) \(\rightarrow\) Zygote (2n) \(\rightarrow\) Sporophyte (2n) \(\rightarrow\) Spore (n). This visual map helps in answering any related question.

Step 1: Understanding the Question

The question asks which biological macromolecule is precipitated out from a solution by adding chilled ethanol during the purification step in recombinant DNA technology. This is a standard step in DNA isolation protocols.


Step 2: Detailed Explanation

The process of isolating DNA from cells involves several steps:

1. Lysis: Breaking open the cells to release their contents, including DNA, RNA, proteins, and lipids.

2. Removal of other macromolecules: Enzymes like proteases (to digest proteins like histones) and RNase (to digest RNA) are often added.

3. Precipitation of DNA: After other major contaminants are removed, the DNA is in an aqueous solution. DNA is insoluble in alcohols like ethanol or isopropanol. When chilled ethanol is added to the aqueous solution, the DNA precipitates out as a fine, white, thread-like mass. The low temperature reduces the solubility further, enhancing precipitation. Other soluble components like salts and sugars remain in the solution.


Therefore, the addition of chilled ethanol is the specific step used to precipitate and collect the purified DNA.


Step 3: Final Answer

Based on the principles of DNA isolation, chilled ethanol is used to precipitate DNA from the solution. Hence, option (D) is the correct answer.
Quick Tip: Remember that DNA is insoluble in alcohol. This is a fundamental principle used in almost all DNA extraction kits and protocols. The precipitated DNA can often be visualized as a cloudy or thread-like substance and can be spooled onto a glass rod.

Step 1: Understanding the Question

The question asks for the specific wavelength of light at which the reaction centre of Photosystem II (PS II) shows maximum absorption.


Step 2: Detailed Explanation

In photosynthesis, there are two photosystems, PS I and PS II, each with a reaction centre composed of a special pair of chlorophyll 'a' molecules. These reaction centres are named after their characteristic absorption peaks in the red region of the light spectrum.

Photosystem II (PS II): Its reaction centre is called P680 because it absorbs light most effectively at a wavelength of 680 nm.

Photosystem I (PS I): Its reaction centre is called P700 because it absorbs light most effectively at a wavelength of 700 nm.


Therefore, the absorption maximum for the reaction centre in PS II is 680 nm.


Step 3: Final Answer

The reaction centre in PS II is known as P680, indicating its absorption maxima is at 680 nm. Thus, option (C) is correct.
Quick Tip: A simple way to remember is that in the non-cyclic electron flow (Z-scheme), PS II comes before PS I. Similarly, the number 680 comes before 700. So, PS II corresponds to P680 and PS I corresponds to P700.

Step 1: Understanding the Question

The question asks to identify the specific characteristics of the androecium (stamens) that are unique to the family Fabaceae when compared to Solanaceae and Liliaceae.


Step 2: Detailed Explanation

Let's analyze the stamen characteristics of each family:

Family Fabaceae (Subfamily Papilionoideae): The androecium typically consists of ten stamens. A key feature is that they are diadelphous, meaning they are united into two bundles. The common arrangement is (9)+1, where nine stamens are fused to form a tube and one is free. The anthers are dithecous (having two lobes).

Family Solanaceae: The androecium has five stamens which are epipetalous (attached to the petals). They are not fused into bundles.

Family Liliaceae: The androecium has six stamens, arranged in two whorls of three (3+3). They are often epiphyllous or epitepalous (attached to the tepals).


Now let's evaluate the options:

(A) Monoadelphous (stamens in one bundle) is characteristic of Malvaceae.

(B) Epiphyllous condition is characteristic of Liliaceae.

(C) Diadelphous condition is a hallmark of Fabaceae and is not found in Solanaceae or Liliaceae. Dithecous anthers are common, but the diadelphous arrangement is the distinguishing feature.

(D) Polyadelphous (stamens in many bundles) is found in families like Rutaceae (e.g., Citrus). Epipetalous condition is found in Solanaceae.


Step 3: Final Answer

The diadelphous condition of stamens is a specific characteristic of family Fabaceae that distinguishes it from Solanaceae and Liliaceae. Thus, option (C) is the correct answer.
Quick Tip: When studying plant families, focus on unique floral characteristics. For Fabaceae, remember the vexillary aestivation of the corolla and the diadelphous (9)+1 arrangement of stamens. These are frequently tested features.

Step 1: Understanding the Question

The question asks to identify the micronutrient that plays a crucial role in the photolysis (splitting) of water during the light-dependent reactions of photosynthesis.


Step 2: Detailed Explanation

The splitting of water molecules occurs in Photosystem II (PS II) and is catalyzed by a protein complex called the Oxygen-Evolving Complex (OEC). The reaction is:
\[ 2H_2O \rightarrow 4H^+ + O_2 + 4e^- \]

This process requires the presence of specific inorganic ions as cofactors. The core of the OEC contains a cluster of four manganese (Mn) ions and one calcium (Ca\(^{2+}\)) ion. Chloride ions (Cl\(^-\)) are also essential for this process.

Let's look at the roles of the other options:

(A) Magnesium (Mg): It is the central atom in the chlorophyll molecule, essential for capturing light energy, but not for splitting water.

(B) Copper (Cu): It is a component of plastocyanin, an electron carrier protein that transfers electrons from cytochrome b6f complex to PS I.

(D) Molybdenum (Mo): It is a component of enzymes like nitrate reductase and nitrogenase, involved in nitrogen metabolism.


Step 3: Final Answer

Manganese (Mn) is the essential micronutrient required for the enzymatic splitting of water in photosynthesis. Therefore, option (C) is correct.
Quick Tip: Create a list matching essential micronutrients to their key functions in plants. For example: Mn \(\rightarrow\) Photolysis of water; Zn \(\rightarrow\) Auxin synthesis; Mo \(\rightarrow\) Nitrogen fixation; B \(\rightarrow\) Pollen germination. This is a high-yield topic for exams.

Step 1: Understanding the Question

The question asks to identify the most significant driver of species extinction among the four major causes collectively known as 'The Evil Quartet'.


Step 2: Detailed Explanation

'The Evil Quartet' is a term used to describe the four main human-caused drivers of biodiversity loss:

1. Habitat loss and fragmentation: This involves the destruction or division of natural habitats (e.g., deforestation, urbanization, conversion to agriculture). It is widely regarded by ecologists as the single greatest threat to biodiversity globally. When an organism's home is destroyed or broken into small, isolated patches, its populations decline, and it becomes vulnerable to extinction.

2. Over-exploitation: This refers to harvesting species from the wild at rates faster than natural populations can recover (e.g., overfishing, overhunting). It is a major threat to many large animals and commercially valuable species.

3. Alien species invasions: The introduction of non-native species into an ecosystem can disrupt food webs, outcompete native species for resources, and introduce diseases, leading to the decline and extinction of native species.

4. Co-extinctions: This occurs when the extinction of one species causes the extinction of another species that depended on it (e.g., a specialist parasite losing its only host).


While all four are serious threats, habitat loss and fragmentation affects the largest number of species across all taxa and is the primary cause of the current extinction crisis.


Step 3: Final Answer

Among the four major causes of biodiversity loss, habitat loss and fragmentation is considered the most important driver of species extinction. Thus, option (C) is correct.
Quick Tip: When thinking about threats to biodiversity, always consider habitat loss as the number one factor. The other threats often exacerbate the problem created by a shrinking and fragmented habitat.

Step 1: Understanding the Question

The key phrase in the question is "against their concentration gradient". This means moving substances from an area of lower concentration to an area of higher concentration. We need to identify the transport mechanism that allows this.


Step 2: Detailed Explanation

Let's define the different types of membrane transport:

(A) Passive Transport: The movement of substances across a membrane down the concentration gradient (from high to low concentration). It does not require metabolic energy.

(C) Osmosis: A specific type of passive transport involving the movement of water across a semipermeable membrane down its water potential gradient.

(D) Facilitated Diffusion: A type of passive transport where substances move down the concentration gradient with the help of membrane proteins (channels or carriers). It does not require energy.

(B) Active Transport: The movement of substances across a membrane against their concentration gradient (from low to high concentration). This process is like moving something "uphill" and requires carrier proteins and the expenditure of metabolic energy, typically in the form of ATP.


The accumulation of ions against a gradient is a hallmark of active transport.


Step 3: Final Answer

The movement of ions against a concentration gradient requires energy and is defined as Active Transport. Therefore, option (B) is the correct answer.
Quick Tip: Remember the key distinction: \textbf{Passive} = Downhill, no energy. \textbf{Active} = Uphill, requires energy (ATP). The phrase "against the concentration gradient" is a direct indicator of active transport.

Step 1: Understanding the Question

The question describes the process in plant tissue culture where specialized cells (leaf mesophyll) are induced to form a mass of unspecialized, dividing cells (callus). We need to identify the correct biological term for this process.


Step 2: Detailed Explanation

Let's define the relevant terms:

Differentiation: The process by which cells become specialized in structure and function (e.g., a meristematic cell becomes a mesophyll cell).

Dedifferentiation: The process by which mature, differentiated cells lose their specialization and revert to a meristematic state, regaining the capacity for cell division. This is exactly what happens when a mesophyll cell (a differentiated cell) is placed on a suitable nutrient medium and forms a callus (an undifferentiated mass of cells).

Redifferentiation: The process where dedifferentiated cells (like those in a callus) divide and differentiate again to form new specialized cells, tissues, and organs, eventually forming a new plantlet.

Senescence: The process of aging in cells or organisms.


The phenomenon described in the question is the reversal of differentiation.


Step 3: Final Answer

The conversion of differentiated mesophyll cells into an undifferentiated callus is known as dedifferentiation. Therefore, option (D) is the correct answer.
Quick Tip: Memorize the sequence of events in micropropagation via callus formation: 1. \textbf{Explant} (differentiated tissue) 2. \textbf{Dedifferentiation} \(\rightarrow\) \textbf{Callus} (undifferentiated) 3. \textbf{Redifferentiation} \(\rightarrow\) \textbf{Plantlet} (differentiated organs)

Step 1: Understanding the Question

The question asks to identify the specific substage of Prophase I of meiosis where recombination nodules are observed.


Step 2: Detailed Explanation

Prophase I is the longest phase of meiosis and is divided into five substages:

1. Leptotene: Chromosomes start to condense and become visible.

2. Zygotene: Homologous chromosomes pair up in a process called synapsis, forming structures called bivalents.

3. Pachytene: This is a relatively long stage where the paired homologous chromosomes (bivalents) are clearly visible as tetrads. During this stage, crossing over occurs. This is the exchange of genetic material between non-sister chromatids of homologous chromosomes. The sites where crossing over occurs are marked by the appearance of protein complexes called recombination nodules.

4. Diplotene: The synaptonemal complex dissolves, and the homologous chromosomes start to separate, except at the sites of crossing over. These X-shaped structures are called chiasmata.

5. Diakinesis: Chromosomes become fully condensed, and the chiasmata terminalize. The nuclear envelope breaks down.


The appearance of recombination nodules is directly associated with the process of crossing over, which is the characteristic event of the pachytene stage.


Step 3: Final Answer

Recombination nodules, the sites of crossing over, appear during the Pachytene substage of Prophase I. Therefore, option (D) is correct.
Quick Tip: Use the mnemonic "Lazy Zebra Pushes Down Donkey" to remember the order of Prophase I substages: Leptotene, Zygotene, Pachytene, Diplotene, Diakinesis. Associate \textbf{P}achytene with \textbf{P}airing and crossing over.

Step 1: Analyzing the Statements

We need to evaluate the scientific accuracy of both Statement I and Statement II regarding the effects of transpiration.


Step 2: Evaluation of Statement I

This statement refers to the transpiration pull model, also known as the cohesion-tension theory. This theory explains the ascent of sap in tall trees. The key forces involved are:

- Cohesion: Strong mutual attraction between water molecules.

- Adhesion: Attraction of water molecules to the polar surfaces of xylem vessels.

- Tension (Transpiration Pull): A negative pressure potential created in the xylem as water evaporates from the leaves.

These properties give water high tensile strength, allowing it to form an unbroken column that can be pulled up from the roots to the top of the tallest trees. The tallest trees, like the Coast Redwood (Sequoia sempervirens), can exceed 115 meters. The transpiration pull is strong enough to lift water to these heights and even higher (theoretically up to several hundred meters), so lifting it over 130 meters is physically possible. Therefore, Statement I is correct.


Step 3: Evaluation of Statement II

This statement describes the cooling effect of transpiration. When water changes from a liquid to a gas (evaporation) on the leaf surface, it absorbs a significant amount of energy from the leaf. This is called the latent heat of vaporization. This loss of heat energy cools the leaf surface, preventing it from getting damaged by high temperatures, especially under intense sunlight. A cooling effect of 10 to 15 degrees Celsius is a well-documented and accepted phenomenon. Therefore, Statement II is also correct.


Step 4: Final Answer

Since both Statement I and Statement II are factually correct, the correct option is (C).
Quick Tip: Remember the dual importance of transpiration: it's the 'engine' that pulls water and minerals up the plant (ascent of sap), and it's the plant's 'air conditioner' that prevents leaves from overheating.

Step 1: Understanding the Question

The question asks to identify the group of plants from the given options that all exhibit axile placentation. Placentation refers to the arrangement of ovules within the ovary.


Step 2: Defining Axile Placentation

In axile placentation, the ovary is partitioned by septa into two or more chambers (locules). The placenta is located on the central axis where the septa meet, and the ovules are attached to this central axis within each locule.


Step 3: Analyzing the Options

Let's determine the type of placentation for each plant in the options:

(A) Tomato, Dianthus and Pea:

- Tomato: Axile placentation.

- Dianthus: Free-central placentation.

- Pea: Marginal placentation.

This option is incorrect as it contains three different types.


(B) China rose, Petunia and Lemon:

- China rose (Hibiscus): Axile placentation.

- Petunia (from Solanaceae family): Axile placentation.

- Lemon (Citrus): Axile placentation.

This option is correct as all three plants show axile placentation.


(C) Mustard, Cucumber and Primrose:

- Mustard: Parietal placentation.

- Cucumber: Parietal placentation.

- Primrose: Free-central placentation.

This option is incorrect.


(D) China rose, Beans and Lupin:

- China rose: Axile placentation.

- Beans (like Pea): Marginal placentation.

- Lupin: Marginal placentation.

This option is incorrect.


Step 4: Final Answer

The only group where all plants listed exhibit axile placentation is China rose, Petunia, and Lemon. Therefore, option (B) is the correct answer.
Quick Tip: To master placentation, associate each type with a common fruit or vegetable you can visualize: - \textbf{Axile:} Sliced tomato or lemon. - \textbf{Marginal:} Pea pod. - \textbf{Parietal:} Sliced cucumber or papaya. - \textbf{Free-central:} Primrose flower. - \textbf{Basal:} Sunflower seed in the head.

Step 1: Understanding the Question

The question asks to identify the specific stage in the meiotic process where the centromeres split.


Step 2: Differentiating Meiosis I and Meiosis II

Meiosis consists of two successive divisions, Meiosis I and Meiosis II.

Meiosis I (Reductional Division): The primary event in Anaphase I is the separation of homologous chromosomes. The sister chromatids of each chromosome remain attached at their centromeres. Thus, the centromeres do not divide in Meiosis I.

Meiosis II (Equational Division): This division is very similar to mitosis. In Metaphase II, individual chromosomes (each consisting of two sister chromatids) align at the equatorial plate. In Anaphase II, the centromere of each chromosome finally divides, allowing the sister chromatids to separate and move to opposite poles. These separated chromatids are now considered individual chromosomes.


Step 3: Analyzing the Stages

- Metaphase I: Homologous pairs align; centromeres do not divide.

- Metaphase II: Individual chromosomes align; centromeres do not divide yet.

- Anaphase II: Centromeres divide, and sister chromatids separate.

- Telophase: Division is nearly complete; this phase follows the separation of chromatids.


Step 4: Final Answer

The division of the centromere, which leads to the separation of sister chromatids, occurs during Anaphase II. Therefore, option (A) is correct.
Quick Tip: A key difference to remember: - \textbf{Anaphase I} separates \textbf{homologous chromosomes}. - \textbf{Anaphase II} separates \textbf{sister chromatids} (due to centromere division). This distinction is fundamental to understanding meiosis.

Step 1: Understanding the Question

The question asks to identify the scientist who first proposed and used the frequency of genetic recombination to determine the relative distances between genes on a chromosome, a technique known as gene mapping.


Step 2: Reviewing the Contributions of the Scientists

(D) Sutton and Boveri: They independently proposed the Chromosomal Theory of Inheritance around 1902, stating that genes are located on chromosomes.

(B) Henking: In 1891, while studying spermatogenesis, he observed a specific nuclear structure which he named the X body. This was later identified as the X chromosome.

(C) Thomas Hunt Morgan: Working with fruit flies (Drosophila melanogaster), he provided experimental proof for the Chromosomal Theory of Inheritance. He discovered concepts like linkage (genes on the same chromosome tend to be inherited together) and recombination (crossing over can break linkages). His work laid the foundation for gene mapping.

(A) Alfred Sturtevant: He was a student in T.H. Morgan's lab. In 1913, he had the crucial insight that the frequency of recombination between linked genes was a function of their physical distance from each other on the chromosome. He used recombination data to construct the very first genetic linkage map.


Step 3: Final Answer

While Morgan's work was foundational, it was his student, Alfred Sturtevant, who first used recombination frequencies as a measure of distance to create a gene map. Therefore, option (A) is the correct answer.
Quick Tip: Associate the scientists with their key "firsts": - \textbf{Sutton \& Boveri:} First to propose the Chromosomal Theory. - \textbf{Morgan:} First to experimentally prove linkage and recombination in Drosophila. - \textbf{Sturtevant:} First to create a genetic map using recombination frequency.

Step 1: Understanding the Question

The question asks for the reason why cellulose does not give a positive result (blue-black colour) with the iodine test, unlike starch.


Step 2: Detailed Explanation

The iodine test is specific for the presence of starch. The principle behind this test lies in the structure of the polysaccharide.

Starch: Starch consists of two components, amylose and amylopectin. Amylose is an unbranched polymer of \(\alpha\)-glucose units linked by \(\alpha\)-1,4 glycosidic bonds. This structure causes the amylose chain to form a complex helical (coiled) shape. Iodine molecules (specifically, the I\(_3^-\) and I\(_5^-\) ions in the iodine solution) can fit inside this helix, forming a starch-iodine complex. This complex absorbs light, resulting in the characteristic blue-black colour.

Cellulose: Cellulose is a polymer of \(\beta\)-glucose units linked by \(\beta\)-1,4 glycosidic bonds. This type of linkage results in a straight, linear chain rather than a helix. The chains are arranged parallel to each other and are held by extensive hydrogen bonds, forming strong microfibrils. Because cellulose does not have the complex helical structure of amylose, it cannot trap or hold iodine molecules to form the colored complex.


Analyzing the options:

(A) This correctly states that cellulose lacks complex helices and thus cannot hold iodine.

(B) Cellulose is a very stable polymer and does not break down upon reaction with iodine.

(C) Cellulose is a polysaccharide, not a disaccharide.

(D) Cellulose is a linear, uncoiled molecule, not helical.


Step 3: Final Answer

The absence of a helical structure in cellulose prevents the formation of an iodine complex, so it does not turn blue. Thus, option (A) is correct.
Quick Tip: Remember the key structural difference: Starch (\(\alpha\)-glucose) = Helical = Traps Iodine = Blue colour. Cellulose (\(\beta\)-glucose) = Linear = No trapping = No blue colour. This structural difference also explains why humans can digest starch but not cellulose.

Step 1: Understanding the Question

The question asks to identify the metals used as microparticles in the gene gun method for genetic transformation.


Step 2: Detailed Explanation

The gene gun method, also known as biolistics or microprojectile bombardment, is a direct method of gene transfer, primarily used for transforming plant cells.

Principle: The method involves coating microscopic particles of a heavy metal with the desired DNA (the "alien" DNA or transgene). These DNA-coated microparticles are then accelerated to a high velocity and fired into the target host cells or tissues. The particles penetrate the cell walls and membranes, carrying the DNA into the cell's interior, where it can be incorporated into the host genome.

Choice of Metal: The microparticles must be dense enough to achieve the necessary momentum to penetrate the cell wall, but also small enough not to cause excessive damage. Most importantly, they must be biologically inert so they don't cause a toxic reaction within the cell. Gold (Au) and Tungsten (W) fit these criteria perfectly. They are very dense and chemically non-reactive. Silver, copper, and zinc are generally too reactive or toxic to be used for this purpose.


Step 3: Final Answer

Gold and tungsten are the standard metals used for coating with DNA in the gene gun method. Therefore, option (A) is the correct answer.
Quick Tip: Associate "gene gun" with "golden bullets". This mnemonic helps to remember that gold is one of the primary metals used, along with tungsten, for the microprojectiles in biolistics.

Step 1: Understanding the Question

The question requires identifying a pair of pteridophytes that are both heterosporous.


Step 2: Detailed Explanation

Pteridophytes are classified based on the types of spores they produce:

Homosporous Pteridophytes: These plants produce only one type of spore, which grows into a bisexual (monoecious) gametophyte that bears both antheridia and archegonia. The majority of pteridophytes are homosporous. Examples include Psilotum, Lycopodium, and Equisetum.

Heterosporous Pteridophytes: These plants produce two distinct types of spores: smaller microspores and larger megaspores. Microspores germinate to form male gametophytes, and megaspores germinate to form female gametophytes. This condition is a precursor to the seed habit seen in gymnosperms and angiosperms. Key examples of heterosporous pteridophytes are Selaginella, Salvinia, Azolla, and Marsilea.


Analyzing the options:

(A) Psilotum is homosporous, Salvinia is heterosporous.

(B) Equisetum is homosporous, Salvinia is heterosporous.

(C) Lycopodium is homosporous, Selaginella is heterosporous.

(D) Selaginella is heterosporous, and Salvinia is also heterosporous.


Step 3: Final Answer

Both Selaginella and Salvinia are examples of heterosporous pteridophytes. Therefore, option (D) is the correct pair.
Quick Tip: For exams, remember the main examples for each category. A good mnemonic for heterosporous pteridophytes is "Selaginella, Salvinia, Azolla, Marsilea". Most other common pteridophytes like Pteris, Dryopteris, Equisetum, and Lycopodium are homosporous.

Step 1: Understanding the Question

The question asks to identify the scientists who provided the definitive or "unequivocal" proof that DNA is the substance of heredity.


Step 2: Detailed Explanation

The discovery of DNA as the genetic material was a gradual process with contributions from several scientists:

(C) Frederick Griffith (1928): His "transforming principle" experiment with *Streptococcus pneumoniae* showed that a substance from dead pathogenic bacteria could transform living non-pathogenic bacteria, but he did not identify the substance.

(A) Avery, Macleod, and McCarthy (1944): They expanded on Griffith's work and showed through systematic experiments using enzymes (proteases, RNases, DNases) that the transforming principle was DNA. This was strong evidence, but not universally accepted, as some scientists still believed that protein contaminants might be responsible.

(D) Alfred Hershey and Martha Chase (1952): They conducted the famous "blender experiment" using bacteriophages (viruses that infect bacteria). They used radioactive isotopes to label the two main components of the virus:

- Protein coat was labeled with radioactive sulfur (\(^{35}S\)), as sulfur is present in proteins but not DNA.

- DNA core was labeled with radioactive phosphorus (\(^{32}P\)), as phosphorus is present in DNA but not proteins.

They found that only the radioactive phosphorus (\(^{32}P\)) entered the bacterial cells, while the radioactive sulfur (\(^{35}S\)) remained outside. Since the bacteria produced new viruses, it was the DNA that must have carried the genetic information. This experiment provided the clear, unambiguous, and unequivocal proof that DNA is the genetic material.

(B) Wilkins and Franklin: They were instrumental in determining the structure of DNA using X-ray diffraction, which was crucial for Watson and Crick's model, but they did not conduct experiments to prove it was the genetic material.


Step 3: Final Answer

The Hershey-Chase experiment is considered the conclusive evidence that established DNA as the genetic material. Therefore, option (D) is correct.
Quick Tip: Remember the progression of discovery: Griffith showed something transformed bacteria. Avery et al. showed it was probably DNA. Hershey and Chase showed it was definitively DNA by tracking radio-labeled components.

Step 1: Understanding the Question

The question asks for the total number of ATP and NADPH\(_2\) molecules required to produce one molecule of glucose via the Calvin cycle.


Step 2: Key Formula or Approach

The synthesis of one molecule of glucose (\(C_6H_{12}O_6\)) requires the fixation of 6 molecules of carbon dioxide (\(CO_2\)). We need to calculate the energy requirement for 6 turns of the Calvin cycle.


Step 3: Detailed Explanation

The Calvin cycle has three main stages:

1. Carboxylation: 1 \(CO_2\) combines with 1 RuBP. No energy is used here.

2. Reduction: In this stage, the product of carboxylation (2 molecules of 3-PGA) is reduced to 2 molecules of triose phosphate (G3P). This process requires energy for each molecule of \(CO_2\) fixed:

- 2 ATP are used for phosphorylation.

- 2 NADPH\(_2\) are used for reduction.

3. Regeneration: To regenerate the initial \(CO_2\) acceptor (RuBP) from the triose phosphates, more energy is required. For each molecule of \(CO_2\) fixed:

- 1 ATP is used.


Calculation for 1 turn (1 \(CO_2\)):

- Total ATP used = 2 (from Reduction) + 1 (from Regeneration) = 3 ATP

- Total NADPH\(_2\) used = 2 NADPH\(_2\) (from Reduction)


Calculation for 6 turns (to produce 1 Glucose):

To synthesize one molecule of glucose (\(C_6\)), the cycle must fix 6 molecules of \(CO_2\). Therefore, we multiply the requirements for one turn by 6:

- Total ATP = 6 turns \(\times\) 3 ATP/turn = 18 ATP

- Total NADPH\(_2\) = 6 turns \(\times\) 2 NADPH\(_2\)/turn = 12 NADPH\(_2\)


Step 4: Final Answer

The synthesis of one molecule of glucose requires 18 ATP and 12 NADPH\(_2\). Therefore, option (D) is the correct answer.
Quick Tip: For a quick check, remember the ratio for one CO\(_2\) fixed is 3 ATP : 2 NADPH\(_2\). To make a 6-carbon glucose, multiply by 6, which gives 18 ATP : 12 NADPH\(_2\).

Step 1: Understanding the Question

The question asks to identify the correct statements about the process of decomposition from a given list of five statements.


Step 2: Detailed Explanation

Let's analyze each statement:

A. Detrivores perform fragmentation. This is correct. Fragmentation is the physical breakdown of large pieces of dead organic matter (detritus) into smaller particles. This is done by detritivores like earthworms and termites, which increases the surface area for microbial action.

B. The humus is further degraded by some microbes during mineralization. This is correct. Humus is a dark, amorphous, colloid-like substance that is highly resistant to microbial action and decomposes very slowly. The slow process by which microbes eventually degrade humus to release inorganic nutrients is called mineralization.

C. Water soluble inorganic nutrients go down into the soil and get precipitated by a process called leaching. This statement is largely correct. Leaching is the process where water-soluble nutrients percolate down through the soil profile and can become unavailable to plants. The term "precipitated" might be slightly imprecise in some contexts, but the core idea of nutrients moving down into the soil is correct.

D. The detritus food chain begins with living organisms. This is incorrect. The detritus food chain (DFC) begins with dead organic matter (detritus). The grazing food chain (GFC) begins with living organisms (producers).

E. Earthworms break down detritus into smaller particles by a process called catabolism. This is incorrect. Earthworms break down detritus by fragmentation. Catabolism is the enzymatic breakdown of complex organic matter into simpler inorganic substances by decomposer organisms like bacteria and fungi.


Step 3: Final Answer

Statements A, B, and C are correct, while D and E are incorrect. Therefore, the correct option is (C) A, B, C only.
Quick Tip: Remember the key steps in decomposition: 1. \textbf{Fragmentation} (physical breakdown by detritivores). 2. \textbf{Leaching} (water-soluble nutrients move down). 3. \textbf{Catabolism} (enzymatic breakdown by microbes). 4. \textbf{Humification} (formation of humus). 5. \textbf{Mineralization} (release of inorganic nutrients from humus).

Step 1: Understanding the Question

The question asks to identify a sequence of structures from a fertilized embryo sac that are haploid (n), diploid (2n), and triploid (3n), respectively.


Step 2: Detailed Explanation

Let's determine the ploidy level of the key structures in an angiosperm embryo sac after fertilization:

Haploid (n) structures: Before fertilization, the egg cell, synergids, and antipodal cells are all haploid. After fertilization, the synergids and antipodals typically degenerate, but they are still considered haploid structures of the embryo sac.

Diploid (2n) structures: The zygote is the primary diploid structure, formed by the fusion of one male gamete (n) with the egg cell (n). It develops into the embryo.

Triploid (3n) structures: The Primary Endosperm Nucleus (PEN) is the primary triploid structure. It is formed by the fusion of the second male gamete (n) with the diploid central cell (which contains two polar nuclei, n + n). The PEN develops into the endosperm, which provides nourishment to the developing embryo.


Now let's evaluate the options based on the required sequence (haploid, diploid, triploid):

(A) Synergids (n), Zygote (2n), Primary endosperm nucleus (3n). This sequence matches the n, 2n, 3n pattern correctly.

(B) Synergids (n), antipodals (n), Polar nuclei (n+n, so diploid before fusion). This is not the correct sequence.

(C) Synergids (n), Primary endosperm nucleus (3n), zygote (2n). The order is incorrect.

(D) Antipodals (n), synergids (n), primary endosperm nucleus (3n). This does not follow the n, 2n, 3n pattern.


Step 3: Final Answer

The correct sequence of haploid, diploid, and triploid structures is Synergids, Zygote, and Primary endosperm nucleus. Therefore, option (A) is correct.
Quick Tip: Remember the "double fertilization" process: - 1st fertilization: Male gamete (n) + Egg (n) \(\rightarrow\) Zygote (2n) - 2nd fertilization: Male gamete (n) + Central Cell (2n) \(\rightarrow\) PEN (3n) This is the source of the diploid and triploid structures. Any remaining cells of the original embryo sac (synergids, antipodals) are haploid.

Step 1: Understanding the Statements

The question presents an Assertion (A) stating that ATP is consumed at two points in glycolysis, and a Reason (R) that specifies these two points. We must evaluate their accuracy and relationship.


Step 2: Detailed Explanation

Assertion A: ATP is used at two steps in glycolysis.

This statement is true. Glycolysis is divided into a preparatory (investment) phase and a payoff phase. During the preparatory phase, the cell invests two molecules of ATP to activate the glucose molecule.


Reason R: First ATP is used in converting glucose into glucose-6-phosphate and second ATP is used in conversion of fructose-6-phosphate into fructose-1-6-diphosphate.

Let's analyze the two parts of this reason:
1. The first ATP is indeed used to phosphorylate glucose to glucose-6-phosphate, a reaction catalyzed by hexokinase. This part is correct.
2. The second ATP is used to phosphorylate fructose-6-phosphate to fructose-1,6-bisphosphate, catalyzed by phosphofructokinase.

Connecting A and R:

Since Assertion A is true but Reason R is also true due the correct choice is that A is true but R is the correct explanation of A.
Quick Tip: Pay close attention to biochemical terminology. The difference between "bisphosphate" (two separate phosphate groups) and "diphosphate" (two linked phosphate groups, like in ADP) can be the key to a correct answer in questions on metabolic pathways.

Step 1: Understanding the Question

The question asks for the definition of Expressed Sequence Tags (ESTs).


Step 2: Detailed Explanation

Expressed Sequence Tags (ESTs) are short, single-pass sequence reads derived from Complementary DNA (cDNA) libraries.

1. To generate a cDNA library, messenger RNA (mRNA) is first isolated from a cell. mRNA represents the genes that are actively being transcribed, or "expressed."

2. The enzyme reverse transcriptase is used to synthesize a single-stranded DNA molecule complementary to the mRNA template. This is cDNA.

3. Short fragments of these cDNAs are sequenced to generate ESTs.

Therefore, ESTs are tags or identifiers for genes that are expressed as RNA (specifically, mRNA) in a given tissue at a given time.


Analyzing the options:

(A) This is incorrect. ESTs only represent expressed genes, not unexpressed ones.

(B) This is incorrect. ESTs are generated from the entire mRNA population, not just "certain important" genes.

(C) This is the most accurate description. ESTs represent all genes that are transcribed into RNA.

(D) This is incorrect. While many RNAs are translated into proteins, not all are (e.g., non-coding RNAs). ESTs represent the RNA transcript itself, not the final protein product.


Step 3: Final Answer

ESTs are sequences derived from mRNA, so they represent all genes that are expressed as RNA. Thus, option (C) is correct.
Quick Tip: Remember that ESTs come from cDNA, and cDNA is made from mRNA. The 'E' in EST stands for "Expressed," which means the gene is transcribed into RNA. This directly links ESTs to genes expressed as RNA.

Step 1: Understanding the Question

The question asks to identify the specific phase of the eukaryotic cell cycle during which DNA replication occurs.


Step 2: Detailed Explanation

The eukaryotic cell cycle is divided into two main stages: Interphase and M phase (Mitotic phase). Interphase is further subdivided into three phases:

G\(_1\) phase (Gap 1): This is the phase of cell growth where the cell synthesizes proteins and organelles. The cell is metabolically active, but DNA does not replicate.

S phase (Synthesis phase): This is the specific phase where DNA replication takes place. The amount of DNA in the cell doubles, but the chromosome number remains the same (each chromosome now consists of two sister chromatids).

G\(_2\) phase (Gap 2): The cell continues to grow and synthesizes proteins and organelles in preparation for mitosis.

M phase (Mitotic phase): This is the phase where the cell divides its nucleus (mitosis) and cytoplasm (cytokinesis) to form two daughter cells.


Step 3: Final Answer

DNA replication is the defining event of the S phase. Therefore, option (D) is the correct answer.
Quick Tip: Remember the cell cycle phases in order: G\(_1\) \(\rightarrow\) S \(\rightarrow\) G\(_2\) \(\rightarrow\) M. Associate 'S' with 'Synthesis' of DNA. This is a fundamental concept in cell biology.

Step 1: Analyzing the Statements

We need to evaluate the correctness of two statements regarding xylem development patterns.


Step 2: Evaluation of Statement I

The terms 'endarch' and 'exarch' describe the pattern of development of primary xylem, not secondary xylem.

- Endarch: The protoxylem (first-formed primary xylem) is located towards the center (pith), and the metaxylem (later-formed primary xylem) is towards the periphery. This is characteristic of stems.

- Exarch: The protoxylem is located towards the periphery, and the metaxylem is towards the center. This is characteristic of roots.

Secondary xylem is formed by the vascular cambium and does not follow these developmental patterns. Therefore, Statement I is incorrect.


Step 3: Evaluation of Statement II

This statement claims that the exarch condition is the most common feature of the root system. As explained above, the arrangement of primary xylem in roots where the protoxylem is on the outer side and metaxylem is on the inner side is called the exarch condition. This is a defining characteristic of roots in dicots and monocots. Therefore, Statement II is true.


Step 4: Final Answer

Statement I is incorrect, and Statement II is true. This corresponds to option (B).
Quick Tip: Remember the association: \textbf{Ex}arch is in roots (think \textbf{ex}it, outside), and \textbf{En}darch is in stems (think \textbf{en}ter, inside). These terms apply only to primary xylem.

Step 1: Understanding the Question

The question describes a set of floral characteristics (large size, colourful, fragrant, nectar-producing) and asks to identify the corresponding pollination agent. This relates to the concept of pollination syndromes.


Step 2: Detailed Explanation

Different pollination agents are attracted by different floral features:

(A) Bat pollinated plants (Chiropterophily): Flowers are typically large but pale or dull-coloured, open at night, and emit a strong, musty or fermented fruit-like odour. They produce copious nectar.

(B) Wind pollinated plants (Anemophily): Flowers are small, inconspicuous, lack colour, fragrance, and nectar. They are adapted to produce and release large quantities of lightweight pollen.

(C) Insect pollinated plants (Entomophily): Flowers have evolved to attract insects. The combination of being large (to be visible), colourful (to attract visually), fragrant (to attract by smell), and producing nectar (as a food reward) is the classic suite of adaptations for insect pollination.

(D) Bird pollinated plants (Ornithophily): Flowers are often large and brightly coloured (especially red and orange), but they typically lack a strong scent as birds have a poor sense of smell. They produce abundant, dilute nectar.


The combination of all four traits listed in the question is most characteristic of insect-pollinated plants.


Step 3: Final Answer

The set of features described perfectly matches the adaptations for attracting insects. Therefore, option (C) is the correct answer.
Quick Tip: Create a table to remember pollination syndromes. Key columns should be: Pollinator (Wind, Insect, Bird, Bat), Flower Size, Colour, Scent, and Nectar. This helps in quickly answering such questions.

Step 1: Understanding the Question

The question asks to identify the plant hormone responsible for promoting the rapid elongation of internodes or petioles in deep-water rice varieties when they are submerged.


Step 2: Detailed Explanation

Deep-water rice has a remarkable adaptation to survive flooding. When the plant is submerged, the gaseous hormone ethylene accumulates in the submerged plant parts because its diffusion out of the plant is blocked by water.

This increased concentration of ethylene triggers a physiological response. It enhances the sensitivity of the cells to gibberellic acid (GA) or promotes GA synthesis, which in turn causes rapid cell division and elongation in the internodes and petioles. This allows the leaves to quickly reach the water surface to continue photosynthesis and gas exchange.

While GA\(_3\) (a gibberellin) is the hormone that directly causes the elongation, ethylene is the primary signal or promoter of this response specifically in the context of submergence in deep-water rice. Given the options, ethylene is the most accurate answer for the hormone that "promotes" this specific adaptive phenomenon.


Step 3: Final Answer

Ethylene is the key hormone that accumulates during submergence and promotes the elongation response in deep-water rice. Thus, option (A) is correct.
Quick Tip: Remember ethylene as the "stress" hormone in some contexts. In deep-water rice, the stress of submergence leads to ethylene accumulation, which triggers the escape mechanism (rapid elongation).

Step 1: Understanding the Statements

The question presents an Assertion (A) defining a flower and a Reason (R) explaining the structural modification. We need to evaluate both statements and their relationship.


Step 2: Detailed Explanation

Assertion A: "A flower is defined as modified shoot wherein the shoot apical meristem changes to floral meristem." This is the correct and standard botanical definition of a flower. The transition from a vegetative phase to a reproductive phase involves the transformation of the shoot apical meristem into a floral meristem, which has determinate growth. So, Assertion A is true.

Reason R: "Internode of the shoot gets condensed to produce different floral appendages laterally at successive nodes instead of leaves." This statement accurately describes the modification process. The floral axis, or thalamus, is essentially a shoot with highly condensed internodes. The floral whorls (sepals, petals, stamens, and carpels) are homologous to leaves and are arranged at these closely packed nodes. So, Reason R is also true.


Connecting A and R:

The Reason (condensation of internodes and production of floral appendages instead of leaves) explains exactly why a flower is considered a modified shoot (the Assertion). It details the structural changes that occur when a shoot apex becomes a floral apex. Therefore, Reason R is the correct explanation of Assertion A.


Step 3: Final Answer

Both A and R are true, and R correctly explains A. Therefore, option (C) is the correct answer.
Quick Tip: Evidence for the "flower as a modified shoot" theory includes that floral parts sometimes revert to leaf-like structures (phyllody) and that the thalamus is essentially a stem with nodes and condensed internodes.

Step 1: Understanding the Question

The question requires matching the phases of the cell cycle (List I) with their corresponding events or descriptions (List II).


Step 2: Detailed Matching

A. M Phase: This is the mitotic phase where the cell divides. Mitosis is known as equational division because the daughter cells have the same number of chromosomes as the parent cell. Thus, A matches with IV.

B. G\(_2\) Phase: This is the second gap phase, occurring after DNA synthesis (S phase) and before mitosis (M phase). During this phase, the cell continues to grow, and crucial proteins are synthesized, such as tubulin for the mitotic spindle. Thus, B matches with I.

C. Quiescent stage (G\(_0\)): This is a state where cells exit the cell cycle and stop dividing. They are metabolically active but are in an inactive phase with respect to proliferation. Thus, C matches with II.

D. G\(_1\) Phase: This is the first gap phase, which is the interval between the end of mitosis (M phase) and the initiation of DNA replication (S phase). Thus, D matches with III.


Step 3: Final Answer

The correct set of matches is: A \(\rightarrow\) IV, B \(\rightarrow\) I, C \(\rightarrow\) II, D \(\rightarrow\) III.
This corresponds to option (A).
Quick Tip: Draw the cell cycle diagram (a circle with G\(_1\), S, G\(_2\), M phases) and label the key event of each phase. This visual aid makes matching questions much easier to solve. G\(_0\) is an exit from the G\(_1\) phase.

Step 1: Understanding the Question

The question asks for the approximate number of different proteins found in a ribosome. As it does not specify prokaryotic or eukaryotic, we consider the most common context in general biology, which is the eukaryotic ribosome.


Step 2: Detailed Explanation

Ribosomes are complex molecular machines made of ribosomal RNA (rRNA) and ribosomal proteins.

Eukaryotic Ribosome (80S): It is composed of two subunits:

- Large Subunit (60S): Contains 3 types of rRNA molecules and approximately 49 different proteins.

- Small Subunit (40S): Contains 1 type of rRNA molecule and approximately 33 different proteins.

The total number of different proteins in an 80S eukaryotic ribosome is therefore approximately 49 + 33 = 82 proteins.


Prokaryotic Ribosome (70S): For comparison, it consists of:

- Large Subunit (50S): ~34 proteins.

- Small Subunit (30S): ~21 proteins.

Total proteins are approximately 55.


Looking at the options, the value '80' is a very close approximation for the number of proteins in a eukaryotic ribosome.


Step 3: Final Answer

A eukaryotic ribosome is composed of approximately 80 different proteins. Thus, option (C) is the correct answer.
Quick Tip: For questions on ribosomes, remember the Svedberg units and composition. Eukaryotes: 80S = 60S + 40S, with ~80 proteins. Prokaryotes: 70S = 50S + 30S, with ~55 proteins. The numbers don't add up arithmetically because Svedberg units are a measure of sedimentation rate, not mass.

Step 1: Understanding the Question

The question asks to identify the incorrect statement among the given options related to water pollution and its effects on aquatic ecosystems.


Step 2: Detailed Explanation

Let's analyze each statement:

(1) Water hyacinth in eutrophic water bodies: This statement is correct. Eutrophic water bodies are rich in nutrients, which promotes the excessive growth of aquatic plants like water hyacinth. This leads to an imbalance in the ecosystem.

(2) Biomagnification: This statement describes biomagnification (or bioaccumulation), where the concentration of toxic substances (like heavy metals or pesticides) increases at successive trophic levels in a food chain. This is a correct phenomenon.

(3) Biodegradation and Oxygen Depletion: This statement is correct. When sewage with a high amount of organic matter is discharged into a water body, decomposer microorganisms break it down. This process consumes a large amount of dissolved oxygen, leading to a sharp drop in oxygen levels (measured as high Biological Oxygen Demand or BOD). The lack of oxygen can cause the death of fish and other aquatic organisms.

(4) Algal Blooms: This statement is incorrect. Algal blooms are caused by an excess of nutrients (like nitrates and phosphates), not primarily organic matter, in the water. These blooms drastically deteriorate water quality. When the algae die, they are decomposed by bacteria, which consumes a large amount of dissolved oxygen, leading to hypoxia or anoxia and the death of fish. Therefore, algal blooms harm fisheries, not promote them, and degrade water quality.


Step 3: Final Answer

The statement that algal blooms improve water quality and promote fisheries is factually incorrect. Hence, option (4) is the correct answer.
Quick Tip: Remember the key consequences of eutrophication: excessive plant/algal growth, increased BOD, oxygen depletion, and death of aquatic animals. Algal blooms are a clear indicator of poor water quality.

Step 1: Understanding the Question

The question asks to identify the essential components required for the process of chemiosmosis.


Step 2: Key Concepts

Chemiosmosis is the mechanism by which ATP is produced during cellular respiration and photosynthesis. It involves the movement of ions (specifically protons or H\(^{+}\)) across a selectively permeable membrane, down their electrochemical gradient. This process is described by Peter Mitchell's chemiosmotic theory.


Step 3: Detailed Explanation

The key components for chemiosmosis are:

1. A membrane: A semipermeable membrane (like the inner mitochondrial membrane or the thylakoid membrane) is essential to establish and maintain a concentration gradient of protons.

2. A proton pump: This is a mechanism to actively transport protons across the membrane, from a region of low concentration to a region of high concentration. This is typically achieved by the electron transport chain (ETC), which uses the energy from electrons to pump H\(^{+}\).

3. A proton gradient: The pumping of protons creates a high concentration of H\(^{+}\) on one side of the membrane, resulting in a proton motive force (an electrochemical gradient).

4. ATP synthase: This is an enzyme complex embedded in the membrane that provides a channel for protons to flow back down their concentration gradient. The energy released from this flow is used by ATP synthase to synthesize ATP from ADP and inorganic phosphate (Pi).


Analyzing the options:

(1) and (2) are incomplete as they miss the essential membrane component required to maintain the gradient.

(3) includes all four necessary components: the membrane, the pump, the resulting gradient, and the enzyme (ATP synthase) that utilizes the gradient.

(4) is incorrect because NADP synthase is not directly involved in chemiosmosis for ATP synthesis; instead, NADP\(^{+}\) reductase is involved in the final step of the light-dependent reactions of photosynthesis to produce NADPH.


Step 4: Final Answer

The correct combination of components required for chemiosmosis is membrane, proton pump, proton gradient, and ATP synthase. Thus, option (3) is the correct answer.
Quick Tip: Think of chemiosmosis like a dam. The membrane is the dam wall, the proton pump is the machinery that fills the reservoir (creating the proton gradient), and the ATP synthase is the turbine through which water flows to generate electricity (ATP).

Step 1: Understanding the Question

The question requires matching terms related to the properties of water and plant water relations (List I) with their correct definitions or descriptions (List II).


Step 2: Detailed Explanation

Let's match each term in List I with its correct definition in List II.


A. Cohesion: This is the property of like molecules sticking to each other due to mutual attraction. For water, it's the attraction among water molecules. This matches with II. Mutual attraction among water molecules.

B. Adhesion: This is the property of different molecules or surfaces clinging to one another. In plants, it refers to the attraction of water molecules to the polar surfaces of xylem elements. This matches with IV. Attraction towards polar surfaces.

C. Surface tension: This property is a direct result of cohesion. Water molecules at the surface are more strongly attracted to other water molecules in the liquid phase than to the molecules in the air above. This matches with I. More attraction in liquid phase.

D. Guttation: This is the process of exudation of water droplets (xylem sap) from the tips or margins of leaves, typically occurring at night when transpiration is low and root pressure is high. It is a form of water loss in the liquid phase. This matches with III. Water loss in liquid phase.



Step 3: Final Answer

Based on the matching:

A matches with II.

B matches with IV.

C matches with I.

D matches with III.

This combination corresponds to A-II, B-IV, C-I, D-III, which is option (3).
Quick Tip: Remember the 'Co-' in Cohesion means 'together' (like molecules together), and 'Ad-' in Adhesion means 'to' (sticking 'to' a different surface). Guttation is often confused with dew, but guttation is water coming from *inside* the plant, whereas dew is condensation from the atmosphere.

Step 1: Understanding the Question

The question requires matching the micronutrients in List I with their specific functions in plants from List II.


Step 2: Detailed Explanation

Let's match each micronutrient with its correct function.


A. Iron (Fe): Iron is a crucial component of proteins involved in redox reactions, such as cytochromes in the electron transport chain. It is also essential for the formation of chlorophyll and is a key part of the enzyme catalase, being necessary for its activation and function. This matches with III. Activator of catalase.

B. Zinc (Zn): Zinc is required for the activity of various enzymes, especially carboxylases. It is also critically needed for the synthesis of auxin, a major plant growth hormone. This matches with I. Synthesis of auxin.

C. Boron (B): Boron is required for the uptake and utilization of Ca\(^{2+}\), membrane functioning, pollen germination, cell elongation, and cell differentiation. This matches with IV. Cell elongation and differentiation.

D. Molybdenum (Mo): Molybdenum is a component of several enzymes, including nitrogenase and nitrate reductase, both of which are critical for nitrogen metabolism in plants. This matches with II. Component of nitrate reductase.



Step 3: Final Answer

Based on the matching:

A matches with III.

B matches with I.

C matches with IV.

D matches with II.

This combination corresponds to A-III, B-I, C-IV, D-II, which is option (1).
Quick Tip: Create flashcards for essential micronutrients and their key functions. Mnemonics can be helpful, for example: "ZinC for AuXin" and "Molybdenum for Nitrogen metabolism (Nitrate Reductase, Nitrogenase)".

Step 1: Understanding the Question

The question presents two statements related to ecological competition and asks us to evaluate their correctness.


Step 2: Detailed Explanation

Analysis of Statement I:

Statement I provides a definition of Gause's 'Competitive Exclusion Principle'. This principle posits that when two species compete for the exact same limited resources within a stable environment, one will be more efficient and will eventually outcompete and eliminate the other. This definition is accurate. A classic example is the experiment with two species of *Paramecium*, *P. aurelia* and *P. caudatum*. When grown together, *P. aurelia* outcompeted *P. caudatum*. Thus, Statement I is correct.


Analysis of Statement II:

Statement II claims that carnivores are generally more adversely affected by competition than herbivores. This is a generalization that is not universally accepted and is often considered incorrect in ecological theory. Competition can be intense at all trophic levels. Herbivores often face strong competition for limited plant resources, which can be just as, if not more, intense than competition among carnivores for prey. For instance, competition for grazing land among different herbivore species can be very high. Therefore, making a blanket statement that one group is "more adversely affected" is not accurate. Thus, Statement II is false.


Step 3: Final Answer

Since Statement I is a correct definition of Gause's principle and Statement II is an incorrect generalization, the correct option is (1).
Quick Tip: Remember Gause's principle as "one niche, one species". However, also be aware of mechanisms that allow coexistence, such as resource partitioning (e.g., MacArthur's warblers feeding in different parts of the same tree), which is an exception to competitive exclusion.

Step 1: Understanding the Question

The question asks for the enzyme that is inhibited by malonate, leading to the inhibition of bacterial growth. This points towards a specific type of enzyme inhibition.


Step 2: Key Concepts

This question relates to the concept of competitive enzyme inhibition. A competitive inhibitor is a molecule that structurally resembles the enzyme's substrate. It competes with the substrate for binding to the active site of the enzyme. By binding to the active site, the inhibitor prevents the substrate from binding, thereby reducing the enzyme's activity.


Step 3: Detailed Explanation


Enzyme and Substrate: The enzyme in question is succinic dehydrogenase. It is a key enzyme in the Krebs cycle (citric acid cycle), which is a central metabolic pathway for energy production in aerobic organisms, including many pathogenic bacteria.

Substrate: The natural substrate for succinic dehydrogenase is succinate. The enzyme catalyzes the oxidation of succinate to fumarate.

\[ Succinate \xrightarrow{Succinic dehydrogenase} Fumarate \]
Inhibitor: Malonate (or malonic acid) has a chemical structure very similar to succinate.


Due to this structural similarity, malonate acts as a competitive inhibitor of succinic dehydrogenase. It binds to the active site of the enzyme but cannot be acted upon. This blocks the active site and prevents succinate from binding. By inhibiting this crucial step in the Krebs cycle, malonate disrupts cellular respiration and ATP production, which in turn inhibits the growth and proliferation of the bacteria.


Step 4: Final Answer

Malonate is a classic competitive inhibitor of the enzyme succinic dehydrogenase. Therefore, option (3) is the correct answer.
Quick Tip: Remember the classic example of competitive inhibition: succinic dehydrogenase is inhibited by its structural analogue, malonate. This is a frequently tested concept in exams.

Step 1: Understanding the Question

The question asks to identify which of the five given statements about plant anatomy (specifically bark and related structures) are correct.


Step 2: Detailed Explanation

Let's evaluate each statement:


Statement A: Lenticels are indeed lens-shaped pores on the bark of woody plants that allow for the exchange of gases between the internal tissues and the atmosphere. This statement is correct.

Statement B: Bark formed early in the season (spring wood) is known as 'soft bark', while bark formed later in the season (autumn wood) is called 'hard bark'. Therefore, this statement is incorrect.

Statement C: While 'bark' is a non-technical term that broadly refers to all tissues outside the vascular cambium, this definition can be considered less precise than statement D. In the context of multiple-choice questions where a more specific correct option exists, the general one might be excluded.

Statement D: Anatomically, bark is composed of the periderm (cork, cork cambium, and secondary cortex) and the secondary phloem. This is a precise and correct definition of bark. This statement is correct.

Statement E: Phellogen (cork cambium) is a meristematic tissue. It is generally described as being a single layer of cells, but it can be a few layers thick in some species. Given the definite correctness of A and D, and the ambiguity or potential inaccuracy of B, C, and E in a strict sense, we must choose the best option.



Step 3: Final Answer

Statements A and D are unequivocally correct descriptions used in botany. Statement B is incorrect. Statements C and E are debatable or less precise. Comparing the options, the combination of the most accurate statements is A and D.

Therefore, option (4) is the correct choice.
Quick Tip: In plant anatomy questions, pay close attention to precise definitions. 'Bark' has both a general and a specific anatomical definition. The specific one (Periderm + Secondary Phloem) is often preferred in exams.

Step 1: Understanding the Question

The question asks to evaluate an Assertion (A) and a Reason (R) related to pollination and fertilization in gymnosperms.


Step 2: Detailed Explanation

Analysis of Assertion A:

Assertion A states that gymnosperm pollen grains are released from the microsporangium and carried by air currents. This describes anemophily, or wind pollination, which is the characteristic mode of pollination in most gymnosperms (like conifers). So, Assertion A is true.


Analysis of Reason R:

Reason R describes the events after pollination. It states that air currents carry the pollen grains to the mouth of the archegonia, and then the male gametes are discharged without the formation of a pollen tube. This is incorrect. In gymnosperms, the pollen grain lands on the micropyle of the ovule (not directly on the archegonium). It then germinates to form a pollen tube, which grows through the nucellus and delivers the non-motile male gametes to the vicinity of the egg cell within the archegonium. The statement "pollen tube is not formed" is a critical error. So, Reason R is false.


Step 3: Final Answer

Since the Assertion is true and the Reason is false, the correct option is (1).
Quick Tip: A key feature of seed plants (gymnosperms and angiosperms) is siphonogamy - the formation of a pollen tube to deliver male gametes. This adaptation eliminated the need for water for fertilization, which was required in bryophytes and pteridophytes.

Step 1: Understanding the Question

The question asks to identify the correct statements describing Klinefelter's Syndrome from a given list.


Step 2: Detailed Explanation

Klinefelter's Syndrome is a genetic disorder caused by the presence of an extra X chromosome in males, resulting in the karyotype 47, XXY. Let's evaluate each statement:


Statement A: This is incorrect. Langdon Down described Down's Syndrome (Trisomy 21). Klinefelter's Syndrome was described by Harry Klinefelter in 1942.

Statement B: This is correct. Individuals with Klinefelter's Syndrome are phenotypically male and have overall masculine development. However, the extra X chromosome leads to the expression of some feminine characteristics, such as the development of breasts (gynaecomastia).

Statement C: This is incorrect. Individuals with Klinefelter's Syndrome are often taller than average, not short statured. Short stature is a characteristic of Turner's Syndrome (45, XO).

Statement D: This is incorrect. This description is more characteristic of Down's Syndrome. While some learning disabilities may be present in individuals with Klinefelter's Syndrome, severe retardation of physical, psychomotor, and mental development is not a typical feature.

Statement E: This is correct. The presence of the extra X chromosome leads to underdeveloped testes (testicular atrophy), resulting in low testosterone production and sterility.



Step 3: Final Answer

Based on the analysis, only statements B and E are correct. Therefore, option (1) is the correct answer.
Quick Tip: To avoid confusion between chromosomal disorders, create a summary table. For each syndrome (e.g., Down's, Turner's, Klinefelter's), list the karyotype, key physical features, and effects on development and fertility.

Step 1: Understanding the Question

The question asks to arrange the given steps of creating recombinant DNA in the correct chronological order.


Step 2: Detailed Explanation

Let's break down the logical flow of recombinant DNA technology:

1. Isolation of Genetic Material (DNA): The very first step is to isolate the desired DNA (the gene of interest) from the source organism. This corresponds to step C. Isolation of desired DNA fragment.

2. Cutting the DNA: Once the DNA is isolated, both the gene of interest and the vector DNA (e.g., a plasmid) must be cut with the same restriction enzyme to create complementary "sticky ends". This corresponds to step B. Cutting of DNA at specific location by restriction enzyme.

3. Amplification of Gene of Interest: To obtain a sufficient quantity of the desired gene for ligation, it is amplified using the Polymerase Chain Reaction (PCR). This step ensures there are many copies of the gene to be inserted into the vectors. This corresponds to step D. Amplification of gene of interest using PCR.

4. Ligation: The amplified gene of interest is then joined (ligated) with the cut vector DNA using the enzyme DNA ligase. This forms the recombinant DNA molecule. (This step is implicit between D and A).

5. Transformation/Insertion: The final step in this sequence is to introduce the recombinant DNA into a suitable host cell (like E. coli) where it can replicate. This process is called transformation. This corresponds to step A. Insertion of recombinant DNA into the host cell.


Step 3: Final Answer

The correct sequence of the given steps is C \(\rightarrow\) B \(\rightarrow\) D \(\rightarrow\) A. This matches option (1).
Quick Tip: Remember the acronym "I-C-A-L-I": \textbf{I}solation, \textbf{C}utting, \textbf{A}mplification, \textbf{L}igation, \textbf{I}nsertion. This covers the main workflow for creating a recombinant organism. (Ligation is not an option here but happens between D and A).

Step 1: Understanding the Question

The question requires matching metabolic processes or reactions from List I with the associated enzyme, pathway, or system from List II.


Step 2: Detailed Explanation

Let's match each item from List I with its correct counterpart in List II.


A. Oxidative decarboxylation: This is a key reaction that links glycolysis to the Krebs cycle. It involves the conversion of pyruvate to acetyl-CoA, a process catalyzed by the Pyruvate dehydrogenase complex. This matches with II.

B. Glycolysis: This is the initial pathway of glucose breakdown. It is also known as the EMP pathway, named after its discoverers Embden, Meyerhof, and Parnas. This matches with IV.

C. Oxidative phosphorylation: This is the process where ATP is formed as a result of the transfer of electrons from NADH or FADH\(_2\) to O\(_2\) by a series of electron carriers. This process takes place in the Electron transport system (ETS). This matches with III.

D. Tricarboxylic acid (TCA) cycle: Also known as the Krebs cycle or citric acid cycle. The very first step of this cycle is the condensation of acetyl-CoA and oxaloacetate to form citrate, a reaction catalyzed by the enzyme Citrate synthase. This matches with I.



Step 3: Final Answer

Based on the matching:

A matches with II.

B matches with IV.

C matches with III.

D matches with I.

This combination corresponds to A-II, B-IV, C-III, D-I, which is option (2).
Quick Tip: Associate key enzymes or alternative names with major metabolic pathways. For example, Glycolysis = EMP pathway; Krebs Cycle starts with Citrate Synthase; the Link Reaction is catalyzed by Pyruvate Dehydrogenase; and ATP synthesis via ETS is Oxidative Phosphorylation.

Step 1: Understanding the Question

The question requires matching different types of ecological interactions (List I) with their symbolic representation (List II), where '+' denotes benefit, '-' denotes harm, and 'O' denotes no effect.


Step 2: Detailed Explanation

Let's define each interaction and match it to its symbol.


A. Mutualism: An interaction where both species (A and B) benefit from the relationship. This is represented as (+, +). This matches with IV. +(A), +(B).

B. Commensalism: An interaction where one species (A) benefits, and the other species (B) is neither harmed nor benefited (unaffected). This is represented as (+, O). This matches with I. +(A), O(B).

C. Amensalism: An interaction where one species (A) is harmed, and the other species (B) is unaffected. This is represented as (-, O). This matches with II. -(A), O(B).

D. Parasitism: An interaction where one species (the parasite, A) benefits at the expense of the other species (the host, B), which is harmed. This is represented as (+, -). This matches with III. +(A), -(B). (Note: The question paper OCR might have a typo for option III, but based on standard definitions, this is the correct match).



Step 3: Final Answer

Based on the matching:

A matches with IV.

B matches with I.

C matches with II.

D matches with III.

This combination corresponds to A-IV, B-I, C-II, D-III, which is option (4).
Quick Tip: Create a table for all population interactions (Mutualism, Commensalism, Amensalism, Parasitism, Predation, Competition) and their (+, -, O) notation. This makes it easy to memorize and quickly answer matching questions.

Step 1: Understanding the Question

The question asks to identify the genetic disorder associated with the physical characteristic of a broad palm with a single, transverse palmar crease.


Step 2: Detailed Explanation

Let's analyze the options:


(1) Klinefelter's syndrome (47, XXY): This affects males and is characterized by features like tall stature, underdeveloped testes, and some feminine characteristics (gynaecomastia). It is not associated with a single palmar crease.

(2) Thalassemia: This is an autosomal recessive blood disorder affecting hemoglobin production. It doesn't have the described palmar characteristic.

(3) Down's syndrome (Trisomy 21): This is caused by the presence of an extra copy of chromosome 21. It is characterized by a set of distinct physical features, including a small round head, furrowed tongue, partially open mouth, and a broad palm with a characteristic single transverse crease (also known as a simian crease).

(4) Turner's syndrome (45, XO): This affects females and is characterized by short stature, a webbed neck, and underdeveloped ovaries. It is not associated with a single palmar crease.



Step 3: Final Answer

The specific physical trait of a broad palm with a single palmar crease is a well-known clinical symptom of Down's syndrome. Therefore, option (3) is the correct answer.
Quick Tip: Associate key physical stigmata with common genetic syndromes. For Down's syndrome, remember "simian crease," flat facial profile, and epicanthal folds. For Turner's syndrome, remember "webbed neck" and short stature.

Step 1: Understanding the Question

The question asks to evaluate the correctness of two statements regarding the structure of proteins and hemoglobin.


Step 2: Detailed Explanation

Analysis of Statement I:

A protein is a polypeptide chain of amino acids. By convention, the sequence of amino acids in a protein is written starting from the amino-terminal end (N-terminus), which has a free amino group (-\(NH_2\)). The last amino acid in the chain is the carboxyl-terminal end (C-terminus), which has a free carboxyl group (-\(COOH\)). Statement I incorrectly reverses this convention, stating the first amino acid is the C-terminal and the last is the N-terminal. Therefore, Statement I is false.


Analysis of Statement II:

Adult human hemoglobin (HbA) is a globular protein responsible for oxygen transport. It has a quaternary structure, meaning it is composed of multiple polypeptide subunits. Specifically, it is a tetramer made of four subunits: two identical alpha (\(\alpha\)) chains and two identical beta (\(\beta\)) chains. This structure is often denoted as \(\alpha_2\beta_2\). Therefore, Statement II is true.


Step 3: Final Answer

Since Statement I is false and Statement II is true, the correct option is (2).
Quick Tip: Remember the convention for proteins: the chain starts at the N-terminus and ends at the C-terminus. Think of it alphabetically: N comes before C in the reverse alphabet, but in biology, N-terminus is the "start" and C-terminus is the "end".

Step 1: Understanding the Question

The question asks us to evaluate an Assertion and a Reason related to the types of nephrons in the human kidney.


Step 2: Detailed Explanation

Analysis of Assertion A:

The assertion states that nephrons are classified into two types, cortical and juxtamedullary, based on their location. This is correct. Cortical nephrons are more numerous (\(\sim\)85%) and have their renal corpuscles in the superficial part of the cortex. Juxtamedullary nephrons have their renal corpuscles deep in the cortex, near the medulla. Thus, Assertion A is true.


Analysis of Reason R:

The reason describes the length of the loop of Henle in these two types of nephrons. However, it states that juxtamedullary nephrons have a short loop of Henle and cortical nephrons have a long loop. This is incorrect. Juxtamedullary nephrons have a very long loop of Henle that extends deep into the medulla. This long loop is crucial for creating the concentration gradient necessary for producing concentrated urine. Cortical nephrons have a short loop of Henle that barely dips into the medulla. The statement reverses these facts. Thus, Reason R is false.


Step 3: Final Answer

Since the Assertion is true and the Reason is false, the correct option is (1).
Quick Tip: Remember: "Juxtamedullary" means "next to the medulla". These nephrons are specialized for water conservation, which requires a long loop of Henle to create a strong osmotic gradient deep in the medulla.

Step 1: Understanding the Question

This question requires matching drugs from List I with their primary mode of action or effect from List II.


Step 2: Detailed Explanation

Let's match each drug with its correct description:


A. Heroin: Heroin (diacetylmorphine) is a powerful opioid that acts as a central nervous system depressant. It slows down body functions like breathing and heart rate. This matches with II. Slow down body function.

B. Marijuana: The active components in marijuana are cannabinoids, which interact with cannabinoid receptors in the brain. They have a range of effects, including known impacts on the cardiovascular system, such as increased heart rate. This matches with I. Effect on cardiovascular system.

C. Cocaine: Cocaine is a potent central nervous system stimulant. It primarily works by blocking the reuptake of neurotransmitters like dopamine, serotonin, and norepinephrine, leading to increased concentrations in the synapse. This matches with IV. Interfere with transport of dopamine.

D. Morphine: Morphine is a classic opioid analgesic (painkiller) derived from the opium poppy. It is highly effective in relieving severe pain. This matches with III. Painkiller.



Step 3: Final Answer

Based on the matching:

A matches with II.

B matches with I.

C matches with IV.

D matches with III.

This combination corresponds to A-II, B-I, C-IV, D-III, which is option (3).
Quick Tip: Categorize drugs into major groups: Depressants (e.g., opioids like heroin, morphine), Stimulants (e.g., cocaine, amphetamines), and Hallucinogens (e.g., LSD, cannabinoids like marijuana). This helps in quickly identifying their general effects.

Step 1: Understanding the Question

The question asks for the correct formula for the Vital Capacity (VC) of the lungs.


Step 2: Key Formula or Approach

We need to define the relevant lung volumes:


Tidal Volume (TV): Volume of air inspired or expired during a normal respiration (\(\sim\)500 ml).
Inspiratory Reserve Volume (IRV): Additional volume of air a person can inspire by a forcible inspiration (\(\sim\)2500-3000 ml).
Expiratory Reserve Volume (ERV): Additional volume of air a person can expire by a forcible expiration (\(\sim\)1000-1100 ml).
Residual Volume (RV): Volume of air remaining in the lungs even after a forcible expiration (\(\sim\)1100-1200 ml).

Vital Capacity (VC) is defined as the maximum volume of air a person can breathe out after a forced inspiration. It represents the maximum amount of exchangeable air.


Step 3: Detailed Explanation

The calculation for Vital Capacity is the sum of the volumes that can be moved in and out of the lungs:
\[ VC = ERV + TV + IRV \]
Let's analyze the given options:

(1) IRV + ERV + TV – RV: This is incorrect.

(2) IRV + ERV + TV: This matches the correct definition of Vital Capacity.

(3) IRV + ERV: This is incorrect; it omits the Tidal Volume. This sum is sometimes referred to just as the sum of reserves, not the full vital capacity.

(4) IRV + ERV + TV + RV: This sum is equal to the Total Lung Capacity (TLC), not the Vital Capacity.


Step 4: Final Answer

The correct formula for Vital Capacity is the sum of Inspiratory Reserve Volume, Expiratory Reserve Volume, and Tidal Volume. Therefore, option (2) is the correct answer.
Quick Tip: Remember that "Vital Capacity" is the total 'usable' or 'exchangeable' volume of air. "Residual Volume" is what you can't exchange. Total Lung Capacity = Vital Capacity + Residual Volume.

Step 1: Understanding the Question

The question asks to match the components of a standard electrocardiogram (ECG) waveform (List I) with the cardiac event they represent (List II).


Step 2: Detailed Explanation

Let's analyze each component of the ECG:


A. P-wave: This represents the electrical excitation (or depolarisation) of the atria, which leads to the contraction of both atria. This matches with III. Depolarisation of atria.

B. Q-wave: The Q-wave is the first downward deflection of the QRS complex. The entire QRS complex marks the onset of ventricular depolarisation, which immediately precedes ventricular contraction (systole). Therefore, it signifies the beginning of systole. This is the best fit among the options and matches with I. Beginning of systole.

C. QRS complex: This complex represents the depolarisation of the ventricles, which initiates ventricular contraction. This matches with IV. Depolarisation of ventricles.

D. T-wave: This represents the return of the ventricles from the excited to the normal state (repolarisation). The end of the T-wave marks the end of systole. This matches with II. Repolarisation of ventricles.



Step 3: Final Answer

Based on the matching:

A matches with III.

B matches with I.

C matches with IV.

D matches with II.

This combination corresponds to A-III, B-I, C-IV, D-II, which is option (3).
Quick Tip: Remember the sequence: \textbf{P}olarization of \textbf{A}tria (P-wave), then \textbf{QRS} for ventricular de\textbf{P}olarization, and finally \textbf{T} for ventricular re\textbf{P}olarization. Depolarization leads to contraction, Repolarization leads to relaxation.

Step 1: Understanding the Question

The question requires matching different types of cells from the digestive system (List I) with their respective secretions (List II).


Step 2: Detailed Explanation

Let's match each cell type to its secretion:


A. Peptic cells: Also known as chief cells or zymogenic cells, these are found in the gastric glands of the stomach. They secrete the inactive proenzyme pepsinogen. This matches with III.

B. Goblet cells: These are found throughout the epithelial lining of the gastrointestinal tract. They secrete mucus, which lubricates and protects the lining. This matches with I.

C. Oxyntic cells: Also known as parietal cells, these are also found in the gastric glands. They secrete hydrochloric acid (HCl) and intrinsic factor, which is essential for the absorption of vitamin B\(_{12}\). This matches with IV.

D. Hepatic cells: These are the main cells of the liver (hepatocytes). They produce and secrete bile juice, which is important for the emulsification of fats. This matches with II.



Step 3: Final Answer

Based on the matching:

A matches with III.

B matches with I.

C matches with IV.

D matches with II.

This combination corresponds to A-III, B-I, C-IV, D-II, which is option (1).
Quick Tip: For the stomach glands, remember: \textbf{P}eptic cells secrete \textbf{P}epsinogen. \textbf{P}arietal (Oxyntic) cells secrete HCl and intrinsic factor. Goblet cells are the "goblets" full of mucus.
